Hermle Tellurium I Astronomical Clock Instruction Manual

1. Вовед

The Hermle Tellurium I is a sophisticated mechanical clock that not only tells time but also accurately reproduces the annual orbit of the Earth around the Sun, the Earth's rotation, and the Moon's revolution around the Earth. This intricate mechanism allows for the display of various astronomical phenomena, including the phases of the Moon and the Earth's passage through the zodiac signs, months, and individual days.

This clock features an 8-day spring-wound movement with a 4/4 Westminster chime, played on four polished bells. It also includes a separate second feature and an 11-jewel deadbeat Swiss escapement, ensuring precision and reliability. The polished brass disc is adorned with milled zodiac signs and rosettes, complementing the detailed astronomical display.

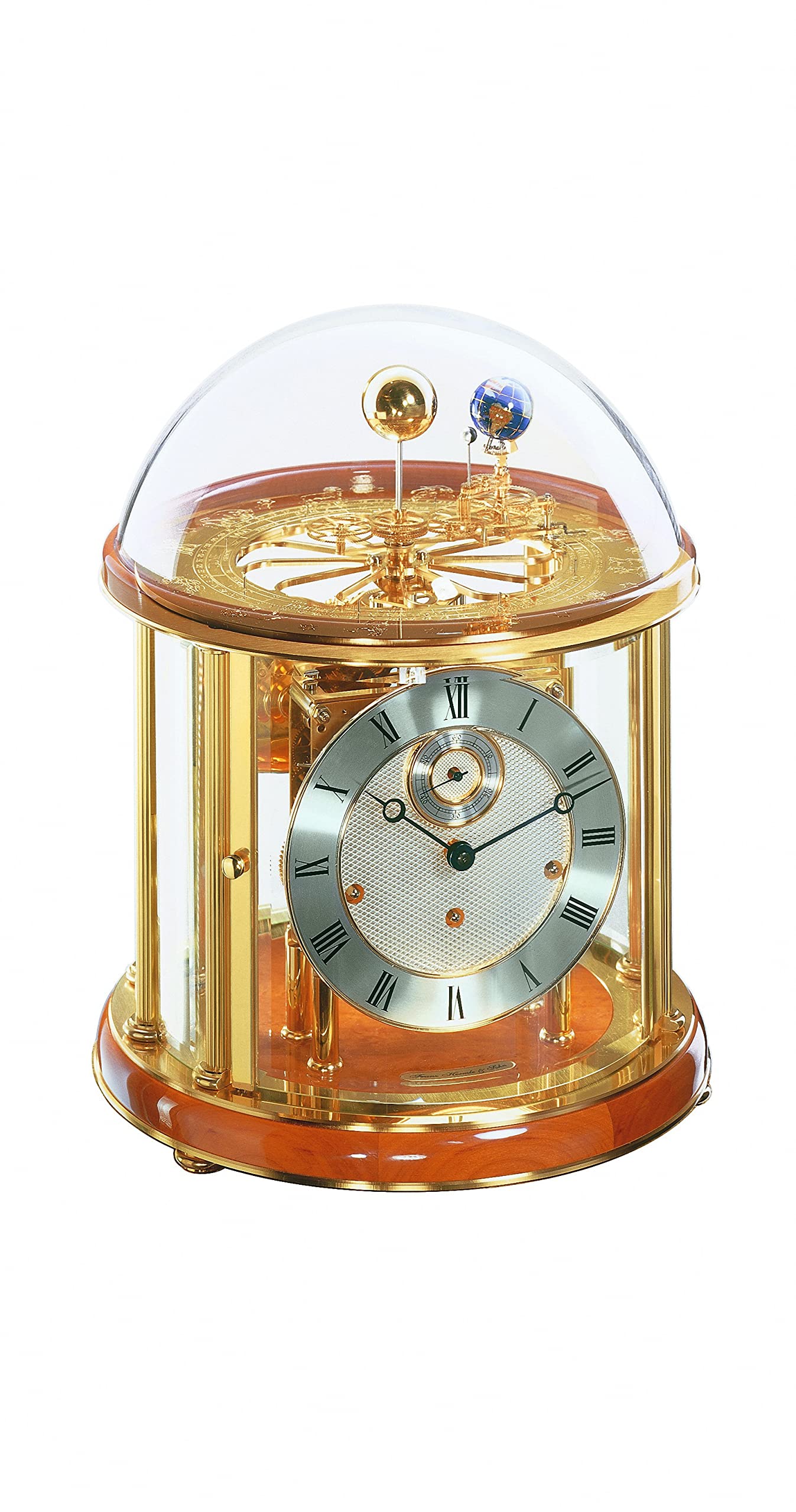

This image displays the Hermle Tellurium I clock, highlighting its intricate astronomical dial and the elegant cherrywood casing. The clock face features the sun, earth, and moon, illustrating their relative movements.

2. Поставување

2.1 Отпакување и поставување

• Carefully remove the clock from its packaging, retaining all packing materials for future transport or service.
• Place the clock on a stable, level surface, such as a desk or shelf, away from direct sunlight, heat sources, or excessive humidity. Ensure the surface can support the clock's weight.

2.2 Winding the Movement

• The Tellurium I features an 8-day spring-wound movement. Locate the winding arbors on the clock face or movement.
• Using the provided winding key, turn the key clockwise until resistance is felt. Do not overwind. Wind the clock fully once a week, preferably on the same day and time, to ensure consistent operation.

2.3 Поставување време

• To set the time, gently turn the minute hand clockwise until the correct time is displayed. Allow the chime to complete its sequence at each quarter hour as you pass it.
• Do not move the minute hand counter-clockwise, as this can damage the movement.

2.4 Setting the Astronomical Display

• The astronomical display (Earth, Moon, Sun, zodiac, month, day) is typically synchronized with the clock's timekeeping. Refer to the specific instructions provided with your clock for detailed adjustment of the astronomical elements.
• Generally, these elements are set by carefully rotating the appropriate discs or gears until they align with the current date and moon phase. Exercise caution to avoid bending or damaging the delicate components.

3. Упатства за работа

3.1 Winding

As mentioned in the setup, regular winding (once a week) is crucial for the clock's continuous and accurate operation. Always wind gently until firm resistance is met.

3.2 Westminster Chime

• The clock features a 4/4 Westminster chime, meaning it plays a portion of the melody at each quarter hour, with the full melody and hour strike on the hour.
• Automatic Night Shut-off: The Tellurium I is equipped with an automatic night shut-off feature. This function silences the chime during nighttime hours (typically between 10:00 PM and 7:00 AM) to prevent disturbance. This feature operates automatically based on the clock's internal mechanism.

3.3 Astronomical Display Functions

• Earth's Orbit: The Earth model orbits the Sun once annually, passing through the 12 zodiac signs, months, and individual days indicated on the flat disc.
• Earth's Rotation: The Earth rotates on its own axis once every 24 hours, simulating day and night.
• Moon's Revolution: The Moon model revolves around the Earth in approximately 29.5 days, completing a full rotation around its axis. This movement accurately reproduces the different phases of the Moon as observed from Earth.

4. Одржување

4.1 Чистење

• Dust the clock regularly with a soft, dry cloth.
• For the brass components, use a specialized brass cleaner sparingly and follow the product instructions. Avoid getting cleaner on the wood finish or other delicate parts.
• For the wood casing, use a high-quality furniture polish designed for cherrywood, applied with a soft cloth.
• Never use abrasive cleaners or harsh chemicals, as these can damage the finish and movement.

4.2 Oiling and Servicing

• Mechanical clocks require periodic oiling and servicing to maintain optimal performance and longevity.
• It is recommended to have the clock professionally serviced by a qualified clockmaker every 5-7 years. Do not attempt to oil or disassemble the movement yourself, as this can cause irreparable damage and void the warranty.

5 Смена на проблеми

5.1 Clock Not Running After Winding

• Ensure the clock is fully wound.
• Check that the clock is on a level surface. Slight adjustments to its position can sometimes restart a stopped movement.
• If the clock has been stopped for an extended period, the oils may have congealed. Professional servicing may be required.

5.2 Chime Not Working or Irregular

• Verify the clock is fully wound. The chime mechanism has its own spring.
• Check if the automatic night shut-off is active (typically between 10 PM and 7 AM).
• Ensure no packing materials or debris are obstructing the hammers or chime rods.
• If the chime is irregular, the clock may not be perfectly level.

5.3 Временска неточност

• Ensure the clock is wound regularly and fully.
• Temperature fluctuations can affect mechanical movements. Keep the clock in a stable environment.
• If significant inaccuracy persists, the movement may require regulation by a professional clockmaker.

6. Спецификации

7. Информации за гаранцијата

The Hermle Tellurium I clock comes with a 3-годишна гаранција на производот од производителот. Оваа гаранција ги покрива дефектите во материјалите и изработката при нормална употреба.

For warranty claims or service, please retain your proof of purchase and contact the retailer or Hermle customer service. Unauthorized repairs or modifications may void your warranty.

Дополнително, а 3-годишен план за заштита may be available for purchase separately, offering extended coverage beyond the manufacturer's warranty. Please refer to the terms and conditions of any purchased protection plan for full details.

8. Поддршка

Should you require further assistance with your Hermle Tellurium I clock, please contact your authorized Hermle dealer or the manufacturer's customer support. When contacting support, please have your model number (22805-160352) and purchase information readily available.

For general inquiries or to locate an authorized service center, you may visit the official Hermle webстраницата или консултирајте ја документацијата што е доставена со вашата нарачка.
