YATO YT-38782 Socket Set Instruction Manual

1. Вовед

Thank you for choosing the YATO YT-38782 professional socket set. This 72-piece set, featuring 1/4-inch and 1/2-inch drive components, is designed for various mechanical tasks. The tools are manufactured from high-quality Chrome Vanadium steel (CrV50BV30) for sockets and S2 steel for screwdriver bits, ensuring durability and performance. This manual provides essential information for the safe and effective use, maintenance, and storage of your socket set.

2. Информации за безбедност

Секогаш почитувајте ги следниве безбедносни мерки на претпазливост кога користите рачни алатки:

• Носете соодветна лична заштитна опрема, вклучувајќи заштитни очила, за да се заштитите од летачки остатоци.
• Ensure the correct size socket or bit is used for the fastener to prevent damage to the tool or fastener.
• Do not use damaged or worn tools. Inspect all components before each use.
• Avoid using extension handles or "cheater bars" on ratchets unless specifically designed for such use, as this can overload the tool and cause breakage.
• Одржувајте ги алатите чисти и без маснотии или масло за да одржите безбедно држење.
• Store tools in their designated case to prevent loss and damage.
• Да се ​​чува подалеку од дофат на деца.

3. Содржина на пакетот

Your YATO YT-38782 socket set includes the following 72 pieces, neatly organized in a durable storage case:

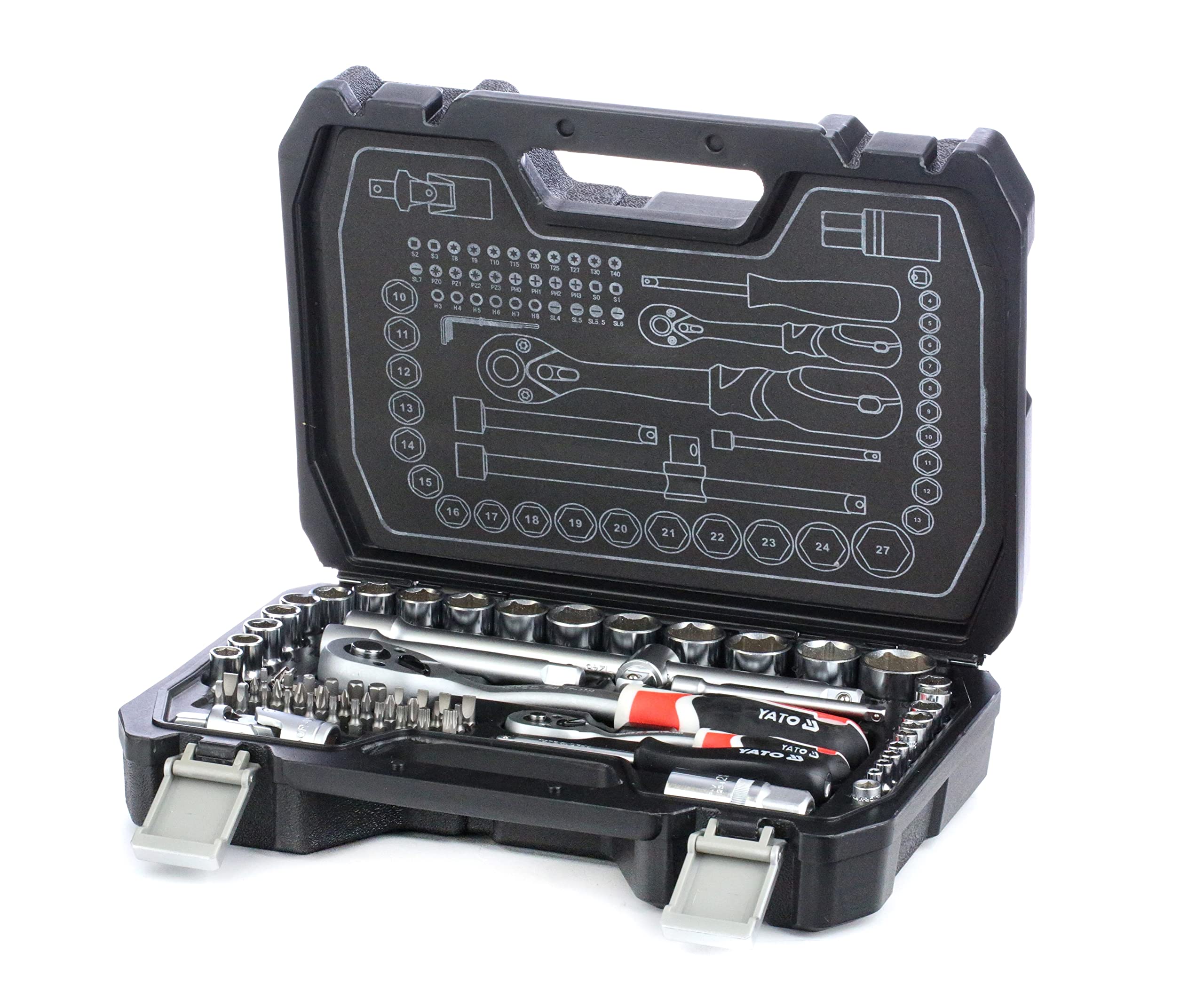

Figure 1: YATO YT-38782 Socket Set with case open, displaying all components.

Слика 2: Детално view of the socket set's internal organization.

1/2-inch Drive Components:

• Sockets (L38mm): 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24 mm
• Socket (L42mm): 27 мм
• Spark Plug Socket: 21 мм
• Рачка: High-quality 72-teeth gear, soft grip, curved shape
• Продолжувачки шипки: 127 mm и 254 mm
• Универзален зглоб

1/4-inch Drive Components:

• Сокети: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 мм
• Рачка: High-quality 72-teeth gear, soft grip, curved shape
• Рачка за центрифугирање
• Extension Bar: 152 мм
• Sliding T-Bar

Screwdriver Bits (S2 Steel):

• Со дупчиња: 4, 5, 5.5, 6, 7 мм
• Филипс: PH0, PH1, PH2, PH3
• Pozidrive: PZ0, PZ1, PZ2, PZ3
• Торкс: T8, T9, T10, T15, T20, T25, T27, T30, T40
• Хекс: 3, 4, 5, 6, 7, 8 мм
• Плоштад: S0, S1, S2, S3

Хексадетични клучеви:

• 1.25, 1.5, 2.5, 3 мм

All components are housed in a handy, durable case for storage and transport.

4. Поставување

The YATO YT-38782 socket set comes pre-assembled and organized within its durable carrying case. No initial assembly is required.

1. Unlatch the Case: Locate the two latches on the front of the case. Push them inwards or upwards to release the lid.
2. Отворете го случајот: Carefully open the lid to reveal the organized tools.
3. Проверете ги компонентите: Before first use, visually inspect all sockets, ratchets, and bits for any signs of damage or manufacturing defects. Ensure all 72 pieces are present as listed in the "Package Contents" section.

Figure 3: The YATO YT-38782 Socket Set in its closed carrying case.

5. Упатства за работа

This section details the proper use of the various components within your YATO socket set.

5.1. Using Ratchets and Sockets

Figure 4: Detail of a YATO ratchet head.

Figure 5: Assortment of sockets and bits.

1. Изберете го правилниот приклучок: Choose a socket that precisely fits the fastener (nut or bolt head). Using an incorrect size can strip the fastener or damage the tool or fastener.
2. Прикачете на запчаникот: Press the socket firmly onto the square drive of the ratchet. Ensure it clicks securely into place.
3. Контрола на насока: Use the lever on the ratchet head to select the desired direction (tighten or loosen).
4. Примени сила: Place the socket squarely onto the fastener. Apply steady, controlled force to the ratchet handle. The 72-teeth ratchet gear allows for a minimum working stroke of 5 degrees, ideal for confined spaces.
5. AS-DRIVE System: YATO sockets feature the AS-DRIVE system, which increases maximum torque by 25% while protecting the corners of the fastener. This system applies force to the flats of the fastener rather than the corners, reducing the risk of rounding.
6. Отстранете го сокетот: Press the quick-release button on the ratchet head (if present) and pull the socket off.

5.2. Using Extension Bars and Universal Joints

• Продолжувачки шипки: Use extension bars to reach fasteners in deep or obstructed areas. Attach the extension bar to the ratchet, then the socket to the extension bar.
• Universal Joint: The universal joint allows for angular access to fasteners that are not in a direct line with the ratchet. Attach it between the ratchet and the socket or extension bar. Note that using a universal joint may reduce the effective torque and should be used with care.

5.3. Using Screwdriver Bits and Spinner Handle

• Избор на битови: Choose the appropriate screwdriver bit (Slotted, Phillips, Pozidrive, Torx, Hex, Square) for the screw head.
• Spinner Handle: Insert the selected bit into the bit holder on the spinner handle. This is suitable for fasteners requiring less torque or for quick turning.
• Ratcheting with Bits: For higher torque applications, use a bit adapter (if included or separately acquired) with the 1/4-inch ratchet.

6. Одржување

Proper maintenance ensures the longevity and reliable performance of your YATO socket set.

• Чистење: After each use, wipe down all tools with a clean, dry cloth to remove dirt, grease, and debris. For stubborn grime, a mild degreaser can be used, followed by thorough drying.
• Подмачкување: Periodically, apply a small amount of light machine oil to the ratchet mechanism to ensure smooth operation. Do not over-lubricate.
• Инспекција: Regularly inspect sockets for cracks, wear, or rounding of the drive square. Check ratchets for smooth operation and ensure the direction lever functions correctly. Replace any damaged components immediately.
• Складирање: Always return tools to their designated slots in the carrying case after use. Close and latch the case securely. Store the case in a dry environment, away from excessive humidity or extreme temperatures, to prevent corrosion.

7 Смена на проблеми

Овој дел се однесува на вообичаени проблеми со кои може да се соочите со вашиот сет сокети.

8. Спецификации

9. Гаранција и поддршка

For warranty information, technical support, or to inquire about replacement parts, please contact YATO customer service through their official website or the retailer from whom the product was purchased. Keep your purchase receipt as proof of purchase.

Note: The manufacturer provides a UK VAT invoice upon request.
