JACKYLED Solar Motion Sensor Pendant Light (Model JACKYLED637) Instruction Manual

1. Производот завршиview

The JACKYLED Solar Motion Sensor Pendant Light is designed for versatile indoor and outdoor illumination. It features a separate solar panel for optimal sun exposure and two pendant lights that can be installed in various locations. Equipped with motion sensing capabilities, multiple lighting modes, and remote control, this light provides adaptable and energy-efficient lighting solutions.

Image: Complete set of the JACKYLED Solar Motion Sensor Pendant Light, including the solar panel, two pendant lights, and two remote controls.

2. Што има во кутијата

• Соларен панел
• Pendant Lights (2 units)
• Remote Controls (2 units)
• Монтажни материјали (завртки, сидра)
• Упатство за употреба

3. Спецификации

4. Поставување и инсталација

The JACKYLED Solar Motion Sensor Pendant Light features a separate solar panel and lights, allowing for flexible installation. Ensure the solar panel receives direct sunlight for optimal charging.

4.1. Поставување на соларни панели

Choose a location for the solar panel that receives 6-8 hours of direct sunlight daily. The panel is designed to be waterproof (IP65) and resistant to various weather conditions.

Слика: Прample of separate installation, showing the solar panel on a roof and a pendant light illuminating a doorway.

4.2. Light Placement

The two pendant lights can be installed indoors or outdoors, connected to the solar panel via 16.4ft cables. This allows for illumination in areas like sheds, garages, patios, or backyards where direct sunlight might not be available.

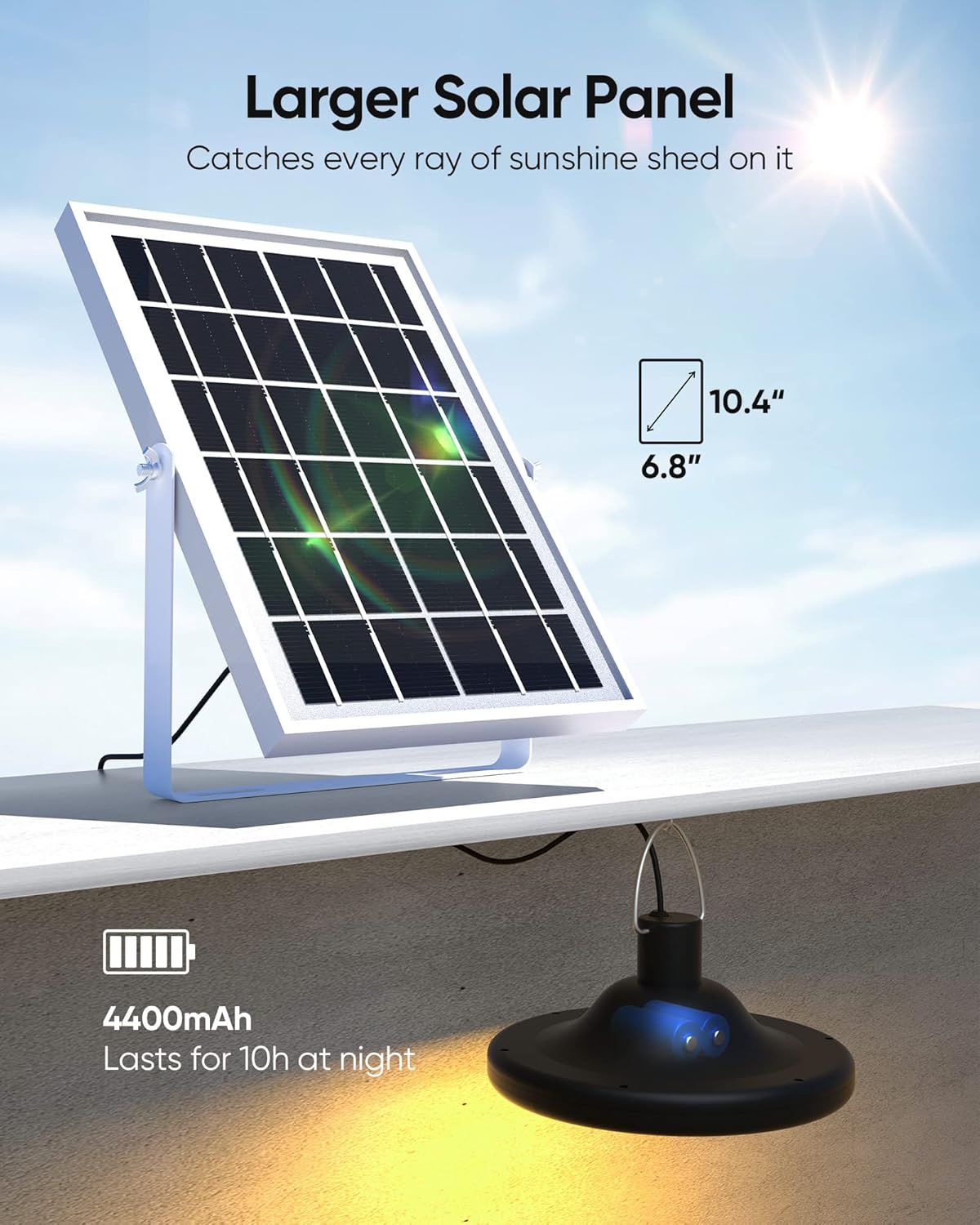

Image: The solar panel and a pendant light, highlighting the panel's dimensions and the battery capacity for extended night operation.

4.3. Connecting the Lights to the Solar Panel

Before initial use, connect the lights to the solar panel for charging. Ensure the connectors are securely fastened to maintain the IP65 waterproof rating.

Video: This video demonstrates the connection process between the pendant lights and the solar panel, and illustrates the various lighting modes and brightness adjustments.

5. Упатства за работа

The JACKYLED Solar Motion Sensor Pendant Light offers four distinct operating modes and adjustable brightness, controlled via the included remote.

5.1. Режими на осветлување

The light features 4 modes, selectable via the remote control:

Image: Visual representation of the four distinct lighting modes available for the pendant light.

1. Mode 1 (Dim-to-Bright at Night): The light stays dim at night and brightens to full intensity when motion is detected. After approximately 20 seconds of no motion, it returns to dim.
2. Mode 2 (Off-to-Bright at Night): The light remains off at night and turns on to full brightness when motion is detected. After approximately 20 seconds of no motion, it turns off.
3. Mode 3 (Constant ON at Night): The light automatically turns on at dusk and stays on at a constant brightness until dawn.
4. Mode 4 (Constant ON Day & Night): The light stays on continuously, regardless of ambient light or motion. This mode is suitable for areas requiring constant illumination, even during the day.

Image: Mode 4 in action, providing light in a dark attic during daylight hours.

5.2. Работа со далечински управувач

The included remote controls allow you to manage the lights from up to 26 feet away. Each remote can control both lights.

Image: Remote control in use, demonstrating its range and ability to control multiple lights.

• ВКЛУЧЕНО/ИСКЛУЧЕНО: Вклучете ги или исклучете ги светлата.
• Избор на режим: Buttons for Mode 1, Mode 2, Mode 3, and Mode 4.
• Прилагодување на осветленоста: Use the 'UP' and 'DOWN' buttons to cycle through 6 brightness levels (20%, 40%, 60%, 80%, 90%, 100%).

Image: Illustration of the 6 adjustable brightness levels from 20% to 100%.

6. Одржување

To ensure optimal performance and longevity of your JACKYLED Solar Motion Sensor Pendant Light, follow these maintenance guidelines:

• Чист соларен панел: Редовно бришете го соларниот панел со мека, дamp cloth to remove dust, dirt, and debris. A clean panel ensures efficient sunlight absorption and charging.
• Проверете ги каблите: Periodically check the connection cables for any signs of wear, damage, or loose connections. Ensure they are securely plugged into both the lights and the solar panel.
• Исчистете ги пречките: Ensure no trees, buildings, or other objects are shading the solar panel, especially during peak sunlight hours.
• Нега на батеријата: While the internal batteries are designed for durability, prolonged periods of low sunlight or extreme temperatures can affect performance. Ensure the unit gets adequate charging.
• Водоотпорен интегритет: The lights and solar panel are IP65 waterproof. Avoid submerging them in water or exposing them to high-pressure water jets. Ensure all connections are tight to maintain water resistance.

Image: The IP65 waterproof rating ensures durability against various weather conditions.

7 Смена на проблеми

If you encounter issues with your JACKYLED Solar Motion Sensor Pendant Light, refer to the following common troubleshooting steps:

• Light Not Turning On/Charging:
  • Ensure the solar panel is placed in direct sunlight for at least 6-8 hours to fully charge the batteries.
  • Verify that all cable connections between the solar panel and the lights are secure.
  • Check if the activation button on the light unit has been pressed.
  • Confirm that the selected mode is appropriate for the current lighting conditions (e.g., motion modes require darkness to activate).
• Light Flashes or Behaves Erratically:
  • This could indicate an unstable power supply. Ensure the solar panel is receiving consistent sunlight and the batteries are adequately charged.
  • Disconnect and reconnect the cables to reset the connection.
  • If the issue persists, it might suggest an internal component malfunction.
• Далечинскиот управувач не работи:
  • Ensure there are no obstructions between the remote and the light sensor.
  • Check the remote control's battery and replace if necessary.
  • Ensure you are within the effective range (up to 26 feet).
• Сензорот за движење не се активира:
  • Verify that the light is set to Mode 1 or Mode 2.
  • Ensure the sensor is not obstructed and is positioned to detect motion in the desired area.
  • Test the sensor in complete darkness, as ambient light can prevent activation in motion-sensing modes.

8. Информации за безбедност

• Не обидувајте се да го расклопите или модифицирате производот. Ова може да ја поништи гаранцијата и да претставува ризик за безбедноста.
• Држете го производот подалеку од отворен пламен или извори на екстремна топлина.
• Ensure proper installation to prevent the lights or solar panel from falling.
• Отстранете ги батериите и електронските компоненти според локалните прописи.

9. Гаранција и поддршка

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official JACKYLED webстраница. Чувајте ја сметката за купување како доказ за купување.
