Sony FE 35mm f/1.4 GM Lens (SEL35F14GM) Instruction Manual

1. Вовед

This manual provides essential instructions for the safe and effective use of your Sony FE 35mm f/1.4 GM Lens (SEL35F14GM). Please read this manual thoroughly before using the lens and retain it for future reference. The Sony FE 35mm f/1.4 GM is a high-performance wide-angle prime lens designed for Sony E-mount cameras, offering exceptional resolution and beautiful bokeh.

2. Што има во кутијата

Verify that all items listed below are included with your purchase:

• Sony FE 35mm f/1.4 GM Lens (SEL35F14GM)
• Аспиратор за леќа
• Капак на предниот објектив
• Капак на задниот леќа
• Случај на леќи
• Additional Accessories (Starter Bundle):
• Ураган Бловер
• Pixel Cleaning Kit
• 3-во-1 USB A/C/читач на микро картички
• Delkin 64GB SD Card
• Gadget Bag
• 67MM 3PC Filter Kit

Image: Sony FE 35mm f/1.4 GM Lens with its standard accessories.

Image: Included accessories such as SD card, cleaning kit, filter kit, and blower.

3. Производот завршиview

Image: The Sony FE 35mm f/1.4 GM Lens, showing its compact design.

Компоненти на објективот

• Фокус прстен: Се користи за рачно фокусирање.
• Прстен за отвор на блендата: Controls the lens aperture.
• Прекинувач за AF/MF: Toggles between Auto Focus and Manual Focus modes.
• Focus Hold Button: Can be customized via camera menu for various functions.
• Монтирање на објективот: Sony E-mount for compatible cameras.

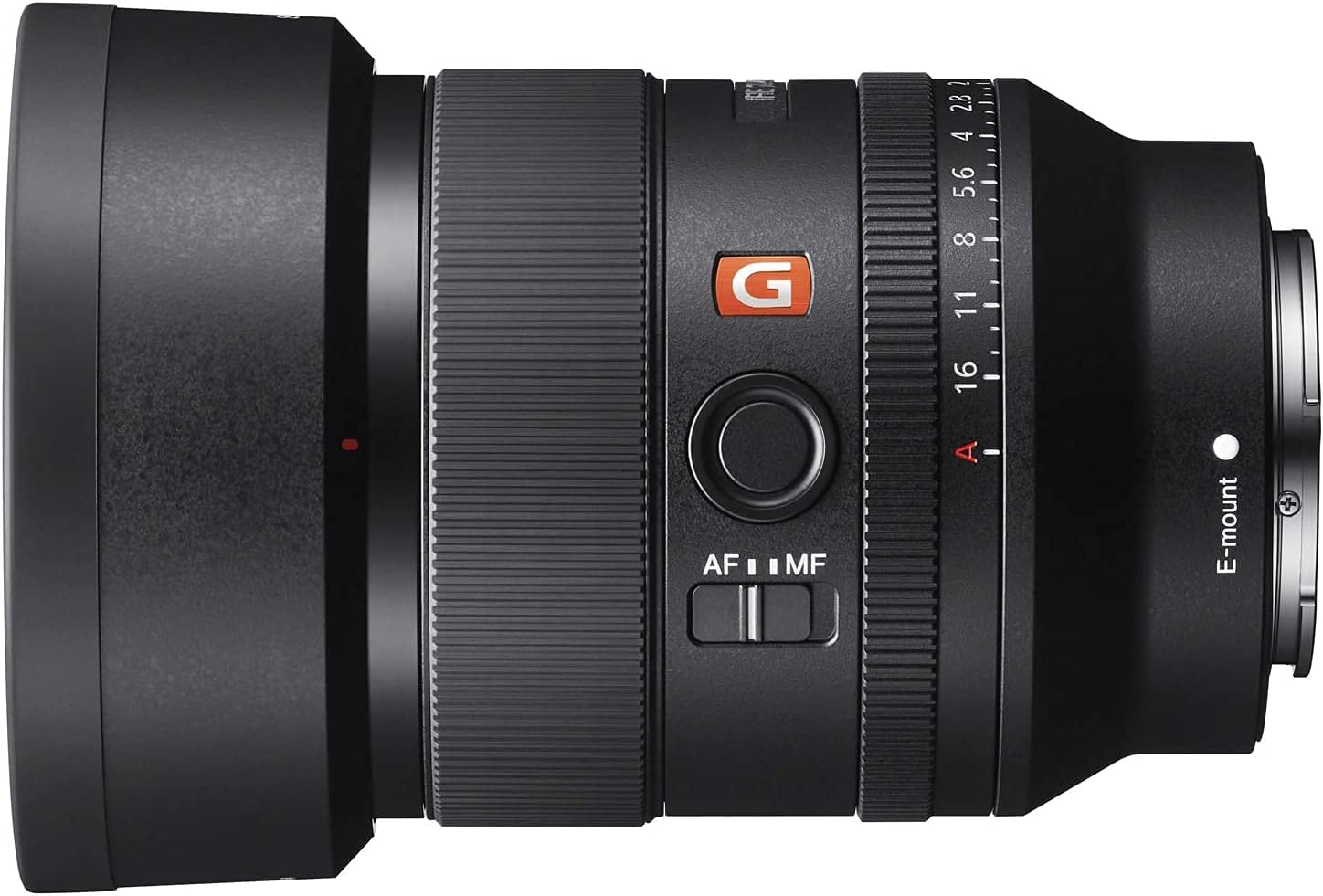

Слика: Детална view of the focus hold button and AF/MF switch on the lens barrel.

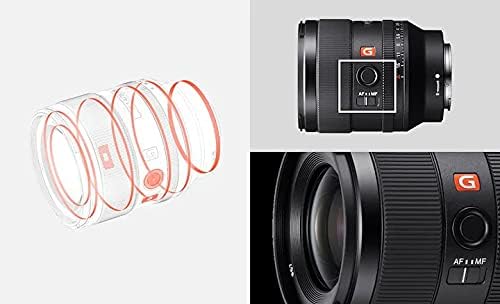

Слика: Експлодирана view showing the internal optical elements and construction of the lens.

4. Поставување

Прикачување на објективот

1. Проверете дали вашата камера е исклучена.
2. Отстранете го задниот капак на објективот од објективот и капакот на телото од фотоапаратот.
3. Align the white index mark on the lens barrel with the white index mark on your camera's E-mount.
4. Вметнете го објективот во држачот за камера и вртете го во насока на стрелките на часовникот додека не кликне на своето место. Не притискајте насилно врз објективот.

Отстранување на објективот

1. Проверете дали вашата камера е исклучена.
2. Додека го притискате копчето за отпуштање на објективот на телото на фотоапаратот, ротирајте го објективот спротивно од стрелките на часовникот додека не застане.
3. Нежно извадете го објективот од држачот на камерата.
4. Прикачете ги предните и задните капачиња за објективот за да ги заштитите елементите на објективот.

5. Ракување со објективот

Фокусирање

The lens features an AF/MF switch for selecting the focus mode.

• Auto Focus (AF): Set the AF/MF switch to 'AF'. The lens utilizes two XD (extreme dynamic) Linear Motors for fast, precise, and quiet autofocus performance.
• Рачен фокус (MF): Set the AF/MF switch to 'MF'. Rotate the focus ring to adjust focus manually. The Linear Response MF feature provides a direct and intuitive manual focusing experience.

Контрола на решетка

The lens has an aperture ring to control the depth of field. The maximum aperture is f/1.4, allowing for excellent low-light performance and shallow depth of field effects. The 11-blade circular diaphragm contributes to smooth, natural-looking bokeh.

Image: The lens with visible aperture markings on the ring.

Копче за задржување на фокусирање

The focus hold button can be assigned various functions through your camera's menu, such as Eye AF, AF On, or other custom settings, to enhance your shooting workflow.

6. Одржување и грижа

Соодветната грижа гарантира долготрајност и перформанси на вашиот објектив.

• Чистење: Use a lens blower (like the included Hurricane Blower) to remove dust from the lens surface. For smudges or fingerprints, use a soft, clean microfiber cloth or lens cleaning paper with a small amount of lens cleaning solution (from the Pixel Cleaning Kit). The front element features a fluorine coating to repel water and oil, making it easier to clean.
• Отпорност на прашина и влага: The lens features a dust- and moisture-resistant design. While this provides protection in challenging environments, it is not waterproof. Avoid exposing the lens to heavy rain or direct water.
• Складирање: When not in use, store the lens with both front and rear caps attached in a dry, cool place, away from direct sunlight and extreme temperatures. The included gadget bag provides protection during transport.
• Употреба на филтер: The included 67mm 3PC Filter Kit can be used to protect the front element and achieve various photographic effects. Always ensure filters are clean before attaching.

7 Смена на проблеми

If you encounter issues with your lens, consider the following basic troubleshooting steps:

• Објективот не е препознаен од камерата: Ensure the lens is securely attached to the camera body. Turn the camera off and on again. Check for any debris on the lens or camera contacts.
• Автоматскиот фокус не работи: Verify the AF/MF switch on the lens is set to 'AF'. Check your camera's focus mode settings. Ensure there is sufficient light and contrast for the autofocus system to operate.
• Image quality issues (e.g., blurry images): Check if the lens elements are clean. Ensure the correct focus mode is selected and that the lens is properly focused. Verify camera settings such as shutter speed and ISO.
• Lens not mounting correctly: Ensure no obstructions are present on the lens mount or camera body. Align the index marks carefully.

For more detailed troubleshooting or persistent issues, refer to your camera's instruction manual or contact Sony support.

8. Спецификации

Image: Visual representation of lens dimensions and key specifications.

9. Гаранција и поддршка

Your Sony FE 35mm f/1.4 GM Lens is covered by Sony's full factory warranty. As an authorized Sony dealer, Pixel Connection ensures that all products are brand new, USA factory condition, and eligible for Sony's warranty and repair services.

For warranty claims, technical support, or service inquiries, please contact Sony customer support or the authorized dealer from whom you purchased the product.

Image: Pixel Connection's authorization as a Sony dealer, ensuring valid warranty.
