1. Вовед
This manual provides essential information for the safe and efficient operation of your Pyhodi Portable Manual Clothes Dryer. Designed for convenience and portability, this non-electric dehydrator is ideal for small loads, delicates, and use in various settings such as camping, apartments, or RVs. Please read this manual thoroughly before using the product to ensure proper function and longevity.
2. Информации за безбедност
Секогаш почитувајте ги следниве безбедносни упатства за да спречите повреда или оштетување на производот:
- Ensure the dryer is placed on a stable, flat surface before operation.
- Do not overload the dryer. Refer to the "Operating Instructions" section for recommended load sizes.
- Држете ги рацете и лабавата облека подалеку од подвижните делови за време на работата.
- This product is designed for dehydrating clothes only. Do not use it for other purposes.
- Да се чува подалеку од дофат на деца.
- Clean the unit regularly as instructed in the "Maintenance and Care" section.
3. Содржина на пакетот
Проверете дали сите артикли се присутни во пакувањето:
- 1 x Manual Dehydration Machine
- 1 x Removable Laundry Basket
- 4 x Suction Cup Feet
- 1 x Drain Pipe (approx. 150cm)
- 1 x Drawstring with Handles
- Additional accessories (as pictured)
Figure 3.1: The Pyhodi Portable Manual Clothes Dryer shown with its included accessories, including the drain pipe, suction cup feet, and the removable basket.
4. Производот завршиview
Familiarize yourself with the main components of your manual clothes dryer.

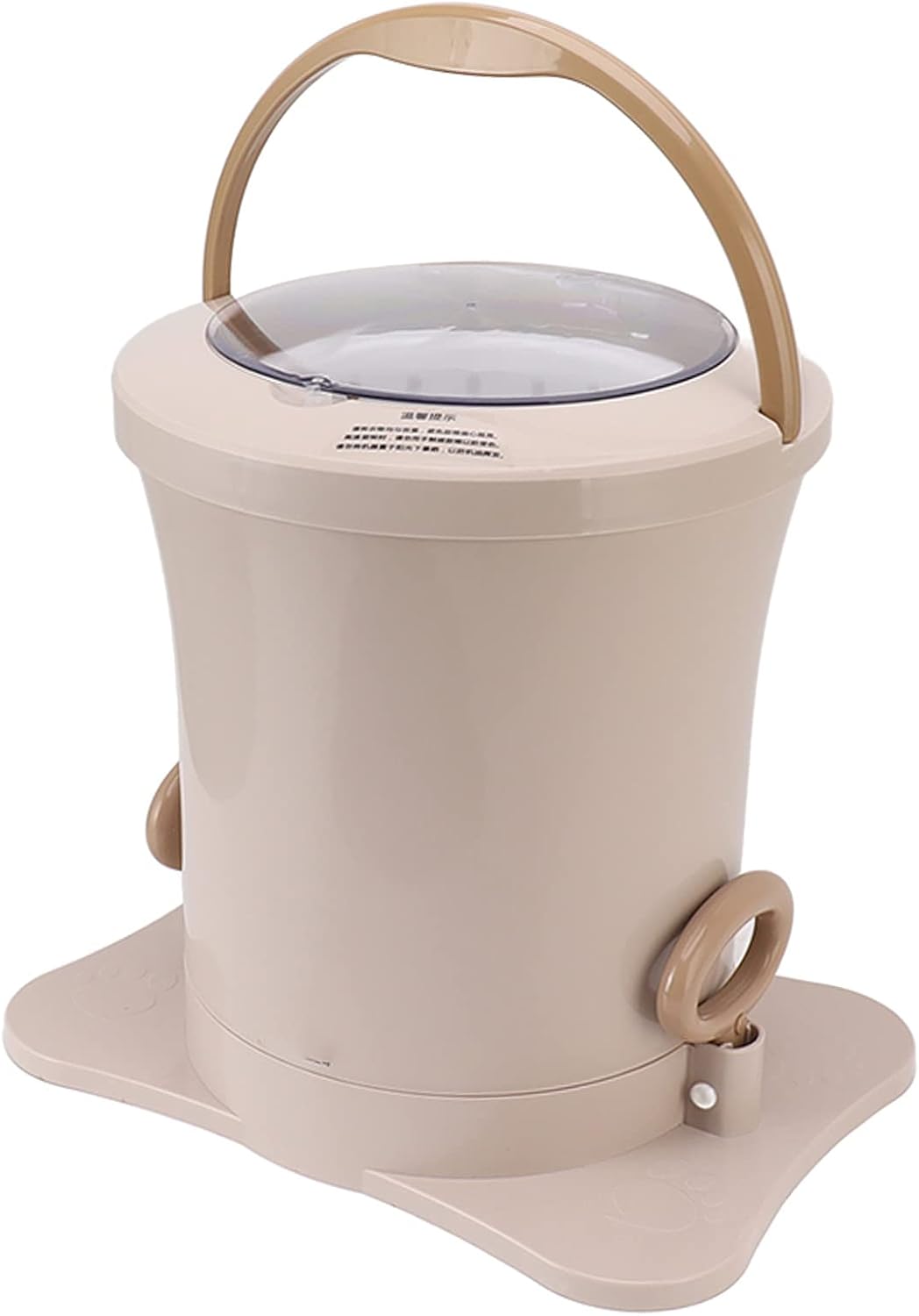

Слика 4.1: Предна страна view of the Pyhodi Portable Manual Clothes Dryer, highlighting its compact and portable design.
Слика 4.2: Внатрешно view of the dryer, showcasing the precise design of the spin mechanism and the removable basket.
Слика 4.3: Детално views of the dryer's components, including the safe and dustproof transparent top cover, the hidden design portable handle, and the wide comfortable bottom pedal.
Слика 4.4: Детално views of the circular finger groove stick hand grip, selected high-quality nylon drawstring, strong support structure at the bottom with springs, and the 150cm telescopic drain pipe.
5. Поставување
Следете ги овие чекори за првично поставување:
- Отпакувај: Внимателно отстранете ги сите компоненти од пакувањето.
- Attach Suction Cup Feet: Locate the four suction cup feet and firmly attach them to the designated spots on the bottom of the dryer's base. These ensure stability during operation.
- Вметнете ја кошничката: Place the removable laundry basket inside the main drum of the dryer.
- Position Drain Pipe: Connect the drain pipe to the outlet on the side of the dryer. Ensure it is securely attached and directed towards a suitable drainage area (e.g., sink, bucket).
- Место на стабилна површина: Position the dryer on a flat, stable, and non-slip surface. The suction cup feet will help secure it.
Figure 5.1: The dryer positioned, demonstrating the stability provided by the four suction cup type foot pads. The ergonomic design allows for easy control.
6. Упатства за работа
This section guides you through the process of dehydrating your clothes using the manual dryer.
- Prepare Clothes: Wring out excess water from your clothes before placing them into the dryer basket. This will improve efficiency.
- Вчитај облека: Open the transparent top cover and place the wet clothes evenly into the removable laundry basket. Do not overload. This dehydrator is suitable for small garments, underwear, socks, and towels.
- Затвори го капакот: Securely close the transparent top cover.
- Engage Operation:
- For Pedal Operation: Place your foot on the wide bottom pedal and press down repeatedly to initiate the spinning motion.
- For Drawstring Operation: If your model includes the drawstring, pull the handles of the drawstring upwards and release repeatedly. This action will spin the inner basket.
- Циклус на центрифуга: Continue the spinning motion for several minutes (e.g., 2-5 minutes) until the desired level of dehydration is achieved. The dryer can reach speeds of up to 2500 RPM, effectively removing water from garments.
- Исцедете ја водата: The extracted water will collect at the bottom and drain out through the connected drain pipe. Ensure the drain pipe is positioned to direct water away from the unit.
- Соблечи ја облеката: Once complete, open the top cover and carefully remove the dehydrated clothes.
Figure 6.1: A user demonstrating the operation of the non-electric dehydrator, highlighting its large capacity and ease of use with the pull cords.
Figure 6.2: Visual representation of the fast dehydration process, showing water being efficiently removed from the clothes within the spinning basket.
Figure 6.3: The manual dryer next to a stack of dry clothes, demonstrating its ability to spin at up to 2500 RPM for fast drying. The detachable wash basket is easy to clean, preventing secondary contamination.
7. Одржување и грижа
Proper maintenance ensures the longevity and hygiene of your dryer.
- Чистење: After each use, remove the laundry basket and rinse it thoroughly with water. Wipe down the interior and exterior of the dryer with a damp cloth. The removable basket design facilitates easy cleaning and prevents secondary contamination of clothes.
- Сушење: Allow all components to air dry completely before reassembling or storing the unit.
- Складирање: Store the dryer in a cool, dry place away from direct sunlight and extreme temperatures.
- Инспекција: Periodically check the drain pipe for blockages and the suction cup feet for wear.
8 Смена на проблеми
Погледнете го овој дел за вообичаени проблеми и нивни решенија.
| Проблем | Можна причина | Решение |
|---|---|---|
| Dryer is unstable or shakes excessively. | Uneven surface; suction cup feet not properly attached; overloaded. | Ensure the dryer is on a flat, stable surface. Press down firmly on the suction cup feet. Reduce the load of clothes. |
| Clothes are not drying effectively. | Overloaded basket; insufficient spinning time/speed; clothes not wrung out enough. | Reduce load size. Increase spinning time or intensity. Wring out clothes thoroughly before placing them in the dryer. |
| Водата не истекува. | Drain pipe is kinked or blocked; drain pipe not properly connected. | Check the drain pipe for kinks or obstructions and clear them. Ensure the drain pipe is securely connected to the outlet. |
9. Спецификации
Key technical specifications for the Pyhodi Portable Manual Clothes Dryer:
- Тип на производ: Manual Dehydration Machine
- Материјал: ABS, PP
- Operating Frequency (Spin Speed): До 2500 вртежи во минута
- Тежина: Приближно 4 кг (141.1 оз)
- Боја: Кајсија
- Димензии на пакетот: 42 x 41 x 33 cm
- Број на модел: Pyhodi4n2kt5vma1-12
- ASIN: B0BYZHNH7F
- Производител: Pyhodi
- Земја на потекло: Кина
10. Гаранција и поддршка
For any questions, concerns, or support regarding your Pyhodi Portable Manual Clothes Dryer, please contact your retailer or the manufacturer directly. Please refer to your purchase documentation for specific warranty details and contact information.
