Вовед
This manual provides essential information for the proper handling, installation, and maintenance of the reconditioned Junkers ZWC 28/28 3 MFK 31 hydraulic part. This component is designed for specific Junkers boiler models and plays a critical role in regulating water flow within the boiler system, contributing to its efficient and safe operation. Please read these instructions carefully before proceeding with installation or any related procedures.

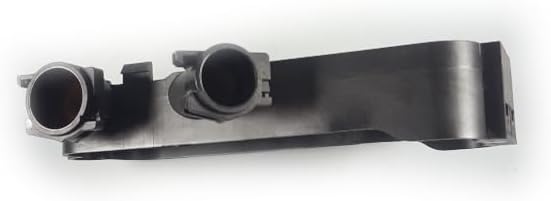

Слика 1: Страна view of the Junkers ZWC 28/28 3 MFK 31 reconditioned hydraulic part, showing two circular openings for water connections.
Информации за безбедност
Важно: Installation and maintenance of boiler components should only be performed by qualified and certified technicians. Improper installation can lead to serious injury, property damage, or malfunction of the boiler system. Always disconnect power and water supply to the boiler before beginning any work.
- Ensure the boiler is completely depressurized and cooled before handling any parts.
- Носете соодветна лична заштитна опрема (ЛЗО), вклучувајќи ракавици и заштита за очи.
- Verify that the replacement part is compatible with your specific boiler model (Junkers ZWC 28/28 3 MFK 31).
- Follow all local codes and regulations for boiler installation and repair.
Инсталација (Поставување)
This hydraulic part is a direct replacement for the original component in Junkers ZWC 28/28 3 MFK 31 boilers. Professional installation is highly recommended.
- Подготовка: Turn off the boiler's power supply at the main breaker. Close the main water inlet valve to the boiler and drain the system if necessary. Allow the boiler to cool down completely.
- Пристап: Внимателно отстранете го бојлерот casing to gain access to the hydraulic block. Refer to your boiler's specific service manual for instructions on accessing internal components.
- Отстранување на стариот дел: Disconnect all water lines and electrical connections (if any) from the existing hydraulic part. Note their positions for reassembly. Remove any mounting screws or clips securing the old part.
- Инсталација на нов дел: Position the reconditioned hydraulic part in the correct orientation. Secure it with the appropriate mounting screws or clips. Reconnect all water lines, ensuring a tight, leak-free seal. Reconnect any electrical wiring according to the boiler's wiring diagram.
- System Refill and Test: Slowly open the main water inlet valve to refill the boiler system. Bleed any air from the system. Check for leaks around all connections. Restore power to the boiler and test its operation according to the manufacturer's guidelines. Monitor for proper water flow and heating.

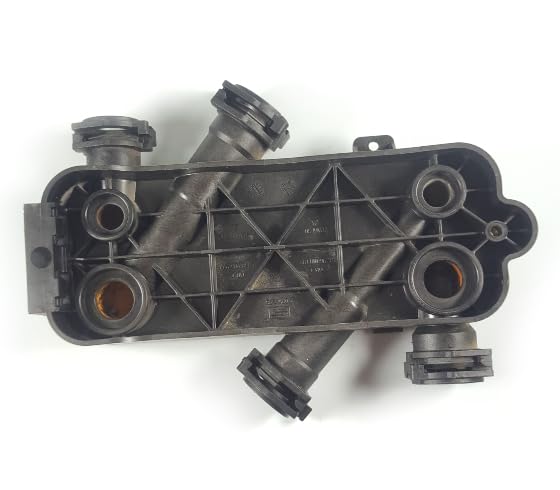

Слика 2: Врвот view of the hydraulic part, illustrating various pipe connection points.
Function (Operating)
The hydraulic part (or hydraulic block) is an integral component of the boiler's water circuit. Its primary function is to manage and direct the flow of water within the boiler, facilitating both heating and domestic hot water production. It typically integrates various sensors, valves, and flow switches that work in conjunction with the boiler's control unit to ensure optimal performance and safety. Once correctly installed, this reconditioned part will function automatically as part of the boiler's overall system.

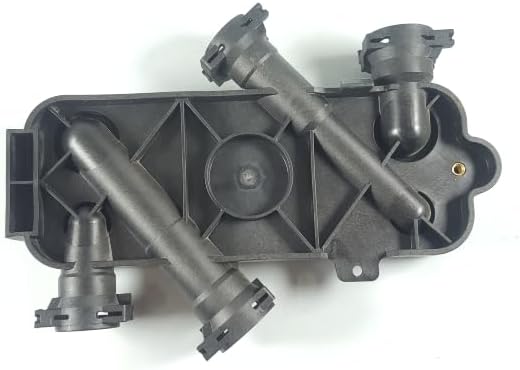

Слика 3: Детално view of the hydraulic part, highlighting internal pipe structures and connection points.
Одржување
As a reconditioned part, this hydraulic block has been inspected and restored to optimal condition. Regular maintenance of the overall boiler system is crucial for its longevity and efficient operation. This includes:
- Годишен сервис на бојлер: Have your boiler serviced annually by a qualified technician. This service typically includes checking for leaks, inspecting components, and ensuring proper system pressure.
- Проверка на притисокот во системот: Regularly monitor your boiler's pressure gauge. Maintain pressure within the manufacturer's recommended range (usually between 1 and 1.5 bar when cold).
- Bleeding Radiators: Periodically bleed air from your radiators to ensure efficient heat distribution, which can indirectly affect the hydraulic system's performance.
- Квалитет на вода: Ensure the boiler system's water quality is maintained to prevent scale buildup and corrosion, which can impact hydraulic components.
Решавање проблеми
If you experience issues after installing the hydraulic part, consider the following common troubleshooting steps. For complex problems, always consult a qualified technician.
| Проблем | Можна причина | Решение |
|---|---|---|
| Истекување на вода | Loose connections, damaged seals during installation. | Turn off water supply, tighten connections, replace seals if necessary. Consult a technician if leaks persist. |
| Нема топла вода / греење | Incorrect installation, air in the system, other boiler component failure. | Check boiler pressure, bleed radiators. Verify all connections. Contact a qualified technician for diagnosis. |
| Unusual Noises from Boiler | Air in the system, pump issues, or other component malfunction. | Bleed radiators. If noises persist, consult a technician. |
Спецификации
- Тип на дел: Reconditioned Hydraulic Part
- Компатибилност: Junkers ZWC 28/28 3 MFK 31 Boiler
- Производител: Генерички
- ASIN: B0CBMVDPLN
- Потребни батерии: бр
- Вклучени батерии: бр
Информации за гаранцијата
This reconditioned hydraulic part comes with a 1 година гаранција from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, neglect, accident, or unauthorized modifications. Please retain your proof of purchase for warranty claims.
Техничка поддршка
If you require technical assistance or are unsure about the compatibility or installation of this part, please contact our specialized technical support team. Our experts have over 25 years of experience in heating and boiler maintenance and can help you identify the correct part and provide guidance.
For support, please refer to the contact information provided by your retailer or the original supplier of this reconditioned part.
