GEARGO Заштитник за пренапон за кампери 30 Amp Упатство за користење со паметен LED дисплеј

1. Производот завршиview

The GEARGO 30 Amp RV Surge Protector with Smart LED Display is designed to safeguard your RV's electrical system from power fluctuations and surges. It features 12000 Joules of surge protection, a real-time circuit analyzer, and automatic shut-off capabilities to ensure the safety and longevity of your RV appliances.

Image: The GEARGO 30 Amp RV Surge Protector, showing its main unit with LED display, 30 Amp plug, and protective cover.

2. Информации за безбедност

• Always ensure the power source is off before connecting or disconnecting the surge protector.
• Do not use if the unit appears damaged or has exposed wiring.
• Keep the unit dry and protected from extreme weather conditions, although it is designed to be waterproof.
• If the unit displays an overtemperature alarm (E5 or E6), immediately unplug the power supply and allow it to cool down.
• Ensure proper grounding of the power pedestal before connection.

3. Карактеристики на производот

3.1. 12000 Joules Surge Protection

This surge protector is engineered to absorb high voltage spikes up to 12000 Joules within nanoseconds, protecting your RV's sensitive electronics from electrical disturbances and sudden power surges, such as those caused by lightning.

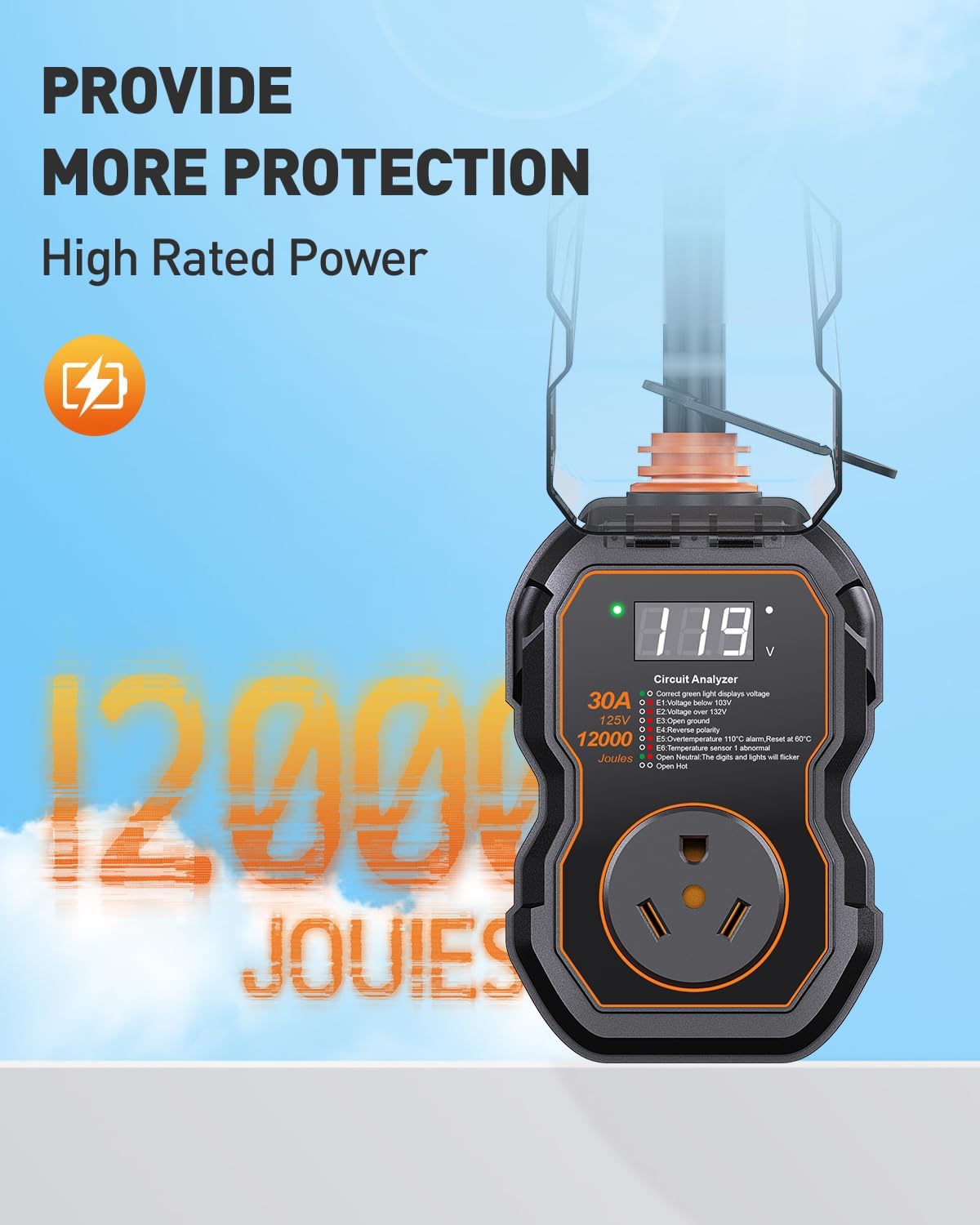

Image: The surge protector highlighting its 12000 Joules protection capability against high-rated power.

3.2. Smart LED Display & Circuit Analyzer

The integrated smart LED display provides real-time readings of line voltage and indicates wiring status via error codes. This allows for quick verification of the power source's safety and proper wiring before connecting your RV.

3.3. Automatic Shut-off and Reset

The unit automatically shuts off power when it detects faulty conditions, such as voltage dropping below 103V or exceeding 132V. Once the circuit stabilizes and conditions return to normal, the protector automatically resets, restoring power.

3.4. Full Circuit Analyzer with Temperature Control

Beyond voltage protection, the device includes a built-in temperature control feature. A flashing red light alerts users if temperatures exceed 110°C, preventing damage from overheating.

Image: Diagram illustrating the temperature control protection, showing normal and alarm temperature ranges.

3.5. IP68 Waterproof Cover and Ergonomic Design

The surge protector features an IP68-rated waterproof cover designed to fit various plug types, offering reliable protection against rain, wind, and sandstorms. Its ergonomic easy-grip handle facilitates effortless plugging and unplugging.

Image: Close-up of the surge protector showing its large waterproof cover, designed for enhanced protection.

Image: The surge protector installed outdoors, demonstrating its ability to function reliably in rain, sun, and provide electricity protection.

4. Упатства за поставување

Follow these steps to properly set up your GEARGO RV Surge Protector:

1. Plug Protector into AC Power: Connect the surge protector's male plug into the RV park's 30 Amp AC power pedestal receptacle.
2. Verify Power Status: Observe the LED display. Ensure both the green surge protection light and the voltage reading are within the safe range (103-132V). If error codes appear or the green light is off, do not proceed. Contact RV park management to fix the power source issue.
3. Поврзете се со кампер: Once the display indicates correct wiring and safe voltage (only the upper left green light is on, and voltage reads between 103-132V), plug your RV's power cord into the surge protector's female receptacle.

Image: Visual guide showing the three steps for connecting the RV surge protector to the power source and then to the RV.

Image: The surge protector properly connected to an RV power pedestal, with an RV and campsite in the background.

5. Упатства за работа

The smart LED display provides crucial information about the power supply. Understanding the display and indicator lights is essential for safe operation.

5.1. Читање на екранот

The display shows the current voltage. Below the voltage reading, a series of indicators (E1-E6, Open Neutral, Open Hot) provide diagnostic information.

Image: Close-up of the surge protector's display, detailing the circuit analyzer indicators and their meanings.

5.2. Indicator Meanings

Refer to the table below for a comprehensive understanding of the display indications:

Image: A table outlining the display indicators, their meanings, and the resulting action (correct or error).

• Correct Green Light: Indicates safe voltage (103-132V) and proper wiring.
• E1: томtage под 103V: Низок волуменtagе откриено.
• E2: томtage over 132V: Висок волуменtagе откриено.
• E3: Open ground: Ground wire is not connected.
• E4: Reverse polarity: Hot and neutral wires are reversed.
• E5: Overtemperature 110°C alarm: Unit temperature exceeds 110°C. Resets at 60°C.
• E6: Temperature sensor 1 abnormal: Indicates a fault with the temperature sensor.
• Open Neutral: The digits and lights will flicker, indicating an open neutral connection.
• Open Hot: Indicates an open hot connection.

If any error code (E1-E6, Open Neutral, Open Hot) is displayed, do not connect your RV. Disconnect the surge protector from the power pedestal and investigate the power source issue. Contact a qualified electrician or RV park staff if necessary.

6. Одржување

• Чистење: Избришете ја единицата со рекламаamp крпа за отстранување на нечистотија и остатоци. Не користете груби хемикалии или абразивни средства за чистење.
• Инспекција: Periodically inspect the surge protector for any signs of physical damage, such as cracks, frayed wires, or corrosion on the prongs.
• Складирање: When not in use, store the surge protector in a cool, dry place, away from direct sunlight and extreme temperatures.
• Заштитна обвивка: Always ensure the waterproof cover is properly seated over the connections when in use to maintain IP68 protection.

7 Смена на проблеми

If you encounter issues with your GEARGO RV Surge Protector, refer to the operating instructions for indicator meanings. Here are common troubleshooting steps:

• Нема екран/Нема напојување: Ensure the surge protector is fully plugged into the power pedestal. Check the power pedestal's breaker.
• Прикажан код за грешка: Refer to Section 5.2 for the meaning of specific error codes (E1-E6, Open Neutral, Open Hot). Do not connect your RV if an error is present.
• Unit Shuts Off Repeatedly: This indicates persistent voltage issues (too high or too low) or an overtemperature condition. Check the power source stability and ensure adequate ventilation around the unit.
• Flickering Display/Lights: This typically indicates an 'Open Neutral' condition. Disconnect and check the power pedestal wiring.
• Физичко оштетување: If the unit is physically damaged, discontinue use immediately and replace it.

If troubleshooting steps do not resolve the issue, contact GEARGO customer support.

8. Спецификации

Note: This model is a 30 Amp unit. GEARGO also offers 50 Amp models with different plug configurations.

Image: Visual comparison illustrating the difference in plug and receptacle configurations between 30 Amp (3 plugs, 3 holes) and 50 Amp (4 plugs, 4 holes) surge protectors.

9. Гаранција и поддршка

9.1. Информации за гаранцијата

The GEARGO RV Surge Protector typically comes with a 5-year warranty. Please refer to the warranty card included with your product for specific terms, conditions, and registration details. Retain your proof of purchase for warranty claims.

9.2. Поддршка за корисници

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact GEARGO customer support. Contact information can usually be found on the product packaging, the official GEARGO webлокација или преку вашиот продавач.
