Replacement Dryer Roller, Belt, and Pulley Kit

Вовед

This instruction manual provides guidance for the installation, operation, and maintenance of the Generic Replacement Dryer Roller, Belt, and Pulley Kit, designed for compatibility with KitchenAid Dryer Model KEYS850JQ1. This kit includes essential components for restoring proper dryer function. Please read all instructions carefully before proceeding with installation.

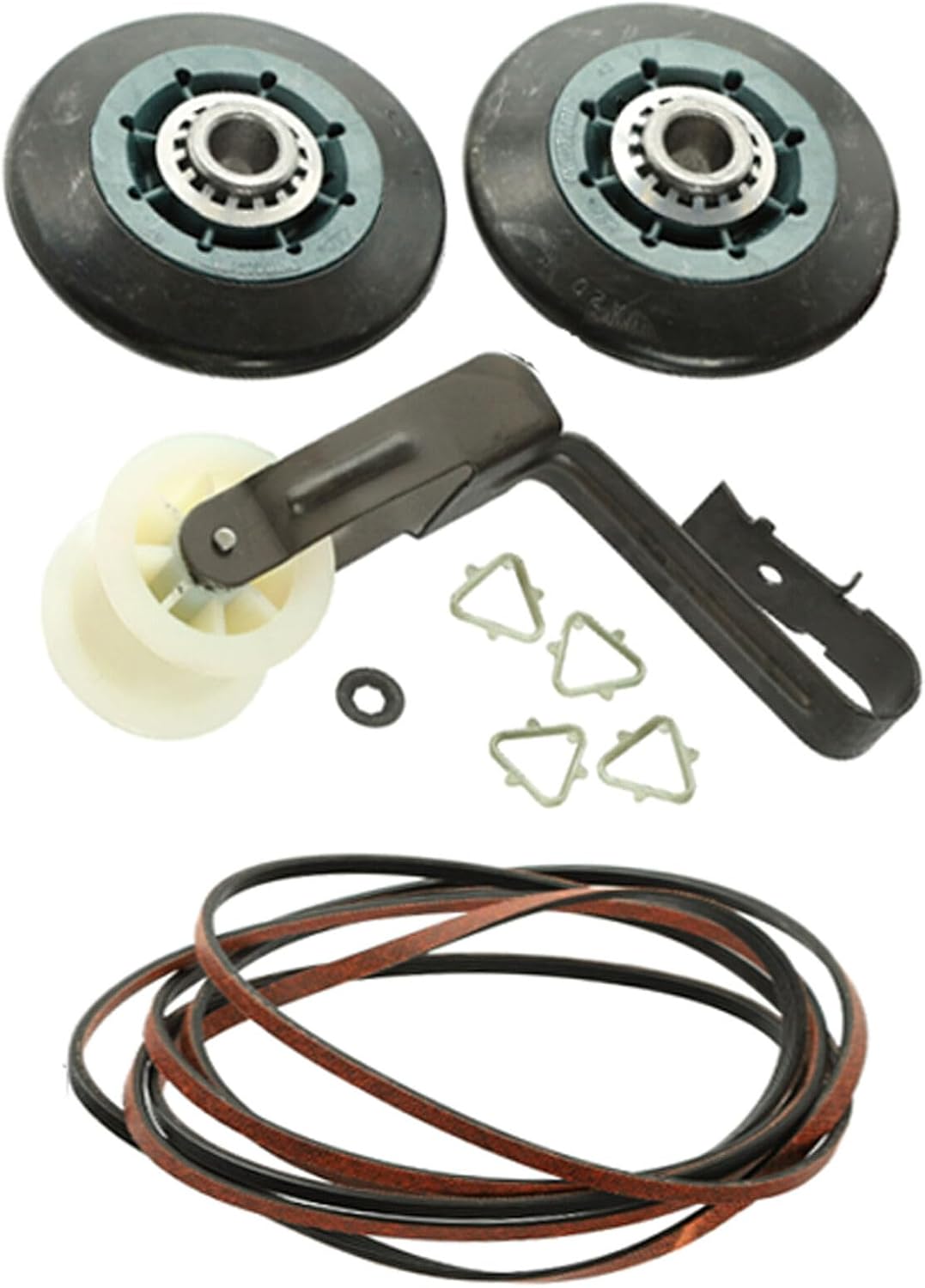

Image: The complete replacement kit, including two dryer rollers, a drive belt, a pulley assembly, and small fasteners.

Информации за безбедност

• Always disconnect the dryer from its power source before attempting any repairs or maintenance. Failure to do so can result in electric shock or injury.
• Носете соодветна лична заштитна опрема, како што се ракавици, за да спречите посекотини или гребнатини.
• Доколку не сте сигурни за кој било чекор, консултирајте се со квалификуван техничар за апарати.
• Чувајте ги сите мали делови подалеку од деца.

Поставување и инсталација

This kit is intended for replacement of worn or broken dryer components. The installation process typically involves disassembling the dryer to access the drum, rollers, belt, and pulley system. Specific steps may vary slightly depending on your exact dryer configuration, but the general procedure is as follows:

1. Исклучете го напојувањето: Исклучете го сушачот од штекерот.
2. Компоненти за пристап: Carefully remove the dryer's top panel, front panel, and/or rear panel to gain access to the drum, rollers, drive belt, and idler pulley. Refer to your specific dryer model's service manual for detailed disassembly instructions.
3. Отстранете ги старите делови: Detach the old drive belt from the motor pulley and idler pulley. Remove the old rollers and the old idler pulley assembly. Note their original positions and orientation.
4. Инсталирајте нови ролери: Mount the new dryer rollers onto their respective shafts. Ensure they spin freely.
5. Инсталирајте нова макара: Install the new idler pulley assembly in the correct position.
6. Инсталирајте нов ремен: Route the new drive belt around the dryer drum, motor pulley, and idler pulley. Ensure the belt is properly tensioned by the idler pulley. The ribbed side of the belt typically faces the drum.
7. Повторно склопување на машината за сушење алишта: Повторно прицврстете ги сите панели и прицврстете ги правилно.
8. Тест функционалност: Plug the dryer back into the electrical outlet and run a short cycle to ensure proper operation and check for any unusual noises.

It is crucial to ensure all connections are secure and parts are correctly aligned before reassembling the dryer.

Упатства за работа

Once the replacement parts are correctly installed, your dryer should operate as intended. This kit does not alter the operational controls or cycles of your dryer. Continue to operate your dryer according to the manufacturer's original instructions.

• Listen for any unusual noises during the first few cycles after installation.
• Ensure the dryer drum tumbles smoothly and quietly.

Одржување

Regular maintenance helps prolong the life of your dryer and its components.

• Филтер за влакненца: Clean the lint filter before or after every load to maintain airflow and efficiency.
• Систем за вентилација: Periodically inspect and clean the dryer vent system to prevent lint buildup, which can restrict airflow and cause overheating.
• Инспекција на компоненти: If you notice any changes in dryer performance (e.g., unusual noises, reduced tumbling), consider inspecting the rollers, belt, and pulley for wear or damage.

Решавање проблеми

If your dryer experiences issues after installing the kit, consider the following:

• Dryer Not Tumbling:
  • Check if the drive belt is properly installed and tensioned around the drum and pulleys.
  • Ensure the motor is functioning.
• Squealing or Grinding Noises:
  • Inspect the rollers and their shafts for proper lubrication and free movement.
  • Verify the idler pulley is installed correctly and spinning smoothly.
  • Ensure no foreign objects are caught in the dryer mechanism.
• Dryer Overheating or No Heat:
  • While this kit does not directly affect heating elements, a broken belt can prevent tumbling, leading to overheating if the heating element remains on.
  • Check for proper ventilation and clear any lint blockages.

For persistent issues, it is recommended to consult a professional appliance repair technician.

Спецификации

Информации за гаранцијата

Специфични детали за гаранцијата за овој резервен дел не се дадени во информациите за производот. Ве молиме погледнете ја политиката за враќање на продавачот или контактирајте го директно продавачот за какви било прашања поврзани со гаранцијата.

Поддршка за корисници

For technical assistance, installation questions, or concerns regarding this product, please contact the seller through the platform where the purchase was made. Provide your order details and a clear description of the issue for prompt support.
