1. Вовед
This manual provides instructions for the installation and basic operation of the QSZN RP5-RN-101 Canbus Box Adaptor and Wiring Harness. This product is designed to facilitate the integration of an aftermarket Android car radio into specific Renault and Dacia vehicles, enabling communication between the vehicle's CAN bus system and the new head unit.
The Canbus box translates vehicle signals such as ignition, illumination, reverse gear, and steering wheel control commands, ensuring proper functionality of the Android car radio within the vehicle's electrical system.
2. Компатибилност на производот
The RP5-RN-101 Canbus Box Adaptor is compatible with the following vehicle models:
- Renault Clio: 2013-2015
- Renault Sandero: 2017 onwards, and 2015-2018 models
- Renault Duster: 2018, 2014-2017, and 2015 onwards models
- Renault Captur: 2018
- Renault Logan: 2015-2018
- Dacia vehicles with CAN BUS from 2015 onwards
Пред да продолжите со инсталацијата, проверете дали марката, моделот и годината на производство на вашето возило се совпаѓаат со листата за компатибилност.
3. Компоненти надview
Пакетот ги вклучува следните главни компоненти:
- RP5-RN-101 Canbus Box: The central module for signal translation.
- Поврзување на жици: A set of cables with connectors designed to interface between the vehicle's wiring, the Canbus box, and the aftermarket Android car radio.

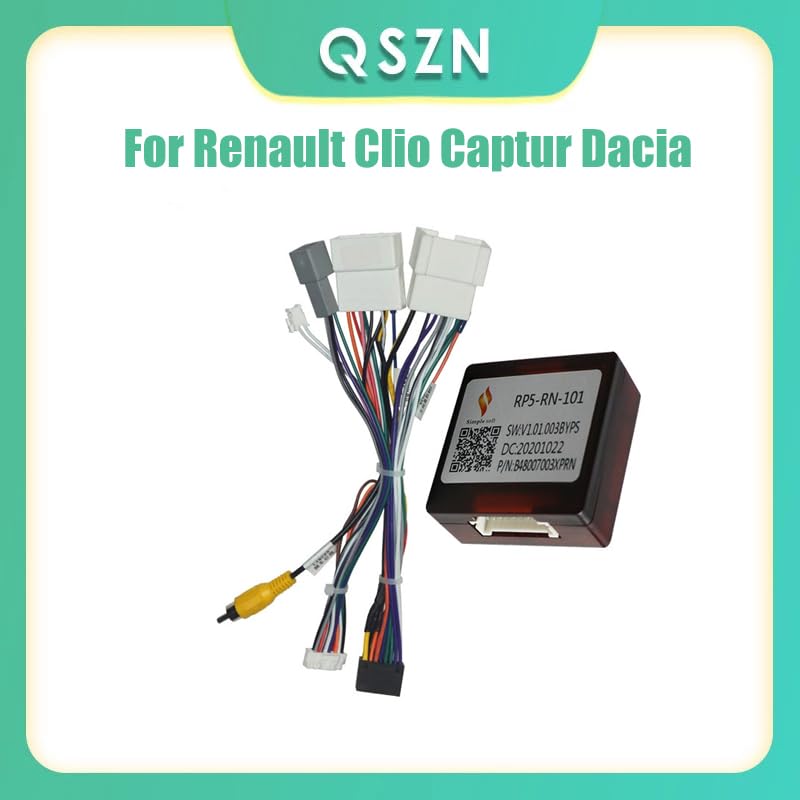

Слика 1: Готовоview of the QSZN RP5-RN-101 Canbus Box and its accompanying wiring harness. This image displays the main components included in the package, showing the compact Canbus module and the multi-pin wiring loom.

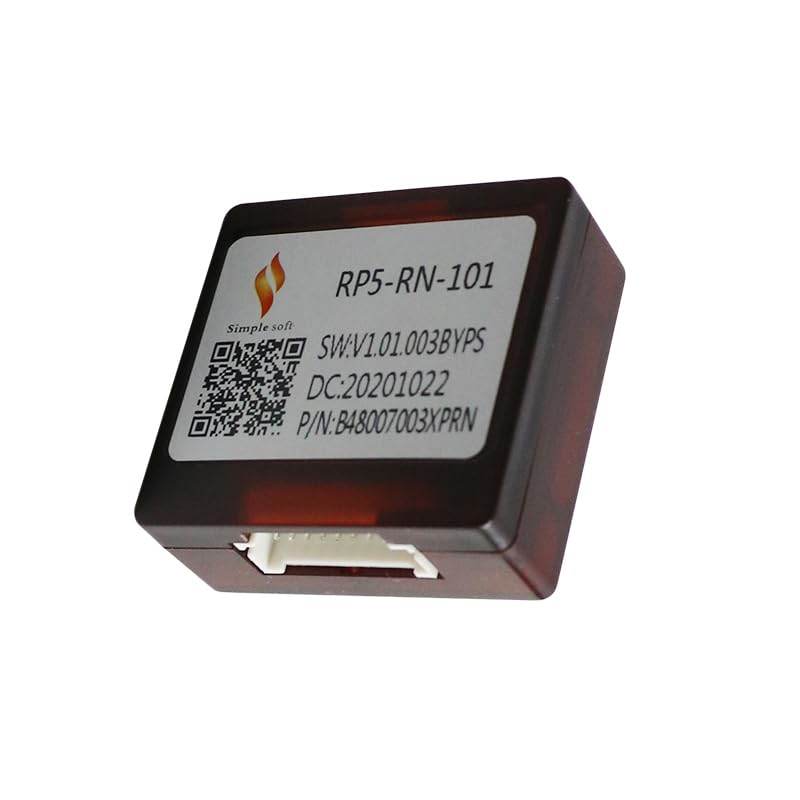

Слика 2: Детален view of the RP5-RN-101 Canbus Box. The label on the box indicates the model number, software version (SW:V1.01.003BYPS), date code (DC:20201022), and part number (P/N:B48007003XPRN). This box is crucial for vehicle signal integration.
4. Поставување и инсталација
Важна забелешка за безбедност: Before beginning any installation, disconnect the vehicle's negative battery terminal to prevent electrical shorts and damage to components.
- Отстранете го постоечкото радио: Carefully remove the factory car radio from your vehicle. Refer to your vehicle's service manual for specific instructions on dashboard disassembly.
- Поврзете ја кутијата Canbus со кабелскиот појас: Connect the RP5-RN-101 Canbus box to the designated connector on the wiring harness. Ensure the connection is secure.
- Поврзете го кабелот со возилото: Plug the vehicle-specific connectors of the wiring harness into the corresponding ports in your car's dashboard, which were previously connected to the factory radio. These typically include power, speaker, and CAN bus connectors.
- Connect Harness to Android Radio: Connect the other end of the wiring harness to your aftermarket Android car radio. The harness provides standard ISO or universal connectors for power, ground, speaker outputs, and accessory wires (e.g., ACC, ILL, Reverse, Steering Wheel Control). Match the wires according to your Android radio's wiring diagram.
- Потврдете ги врските: Double-check all connections to ensure they are firm and correctly matched. Loose connections can lead to intermittent functionality or damage.
- Повторно поврзете ја батеријата: Once all connections are secure, reconnect the vehicle's negative battery terminal.
- Тест функционалност: Turn on the vehicle ignition and power on the Android car radio. Test all functions, including audio, steering wheel controls, reverse camera input (if applicable), and illumination.

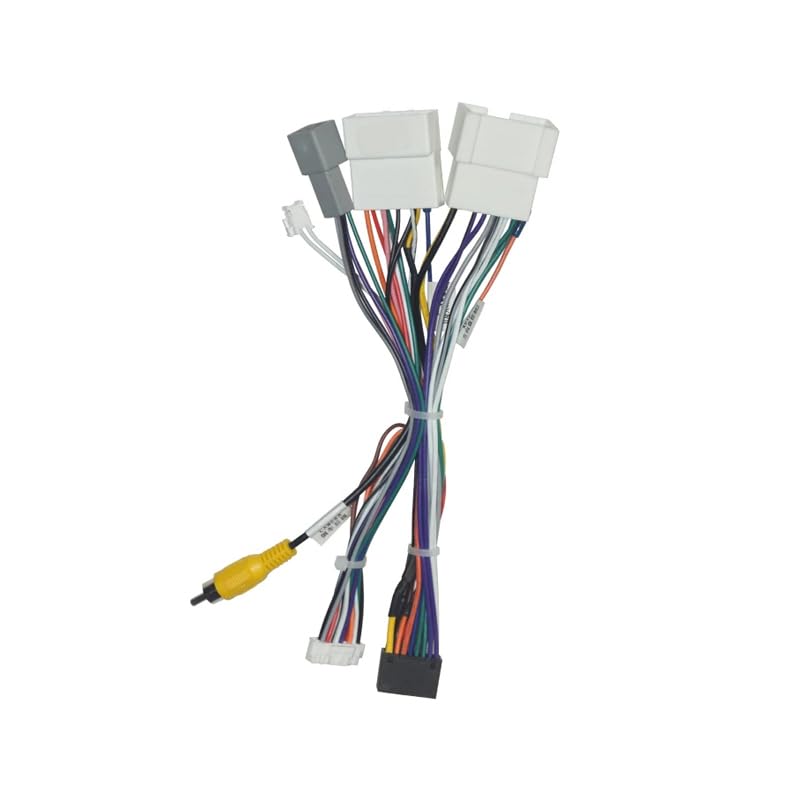

Figure 3: The wiring harness component. This image shows the various color-coded wires and connectors that facilitate the connection between the vehicle's electrical system, the Canbus box, and the aftermarket Android head unit. Proper connection of these wires is essential for correct operation.
5. Упатства за работа
The RP5-RN-101 Canbus Box operates automatically once correctly installed. It acts as an interface, translating signals between your vehicle and the Android car radio. There are no user-adjustable settings directly on the Canbus box itself.
Key functions enabled by the Canbus box include:
- Контроли на воланот: Allows the use of factory steering wheel buttons to control the Android radio (e.g., volume, track skip, mode). Configuration may be required within the Android radio's settings.
- Сигнал за палење (ACC): Provides the accessory power signal to turn the radio on and off with the vehicle's ignition.
- Сигнал за осветлување: Dims the radio's display or activates night mode when vehicle headlights are turned on.
- Сигнал за рикверц: Activates the reverse camera input on the Android radio when the vehicle is shifted into reverse.
For specific operation of your Android car radio, refer to its dedicated instruction manual.
6. Одржување
The QSZN RP5-RN-101 Canbus Box and wiring harness are designed for maintenance-free operation. No periodic servicing or user-replaceable parts are required.
- Одржување на суво: Ensure the Canbus box and connections remain dry and free from moisture.
- Безбедни врски: Periodically check that all wiring connections are secure and have not loosened due to vehicle vibrations.
- Избегнувајте физичко оштетување: Protect the components from physical impact or excessive force.
7 Смена на проблеми
Доколку наидете на проблеми по инсталацијата, повторноview следните чекори за решавање проблеми:
| Проблем | Можна причина | Решение |
|---|---|---|
| Андроид радиото не се вклучува. | Loose power connection, blown vehicle fuse, incorrect wiring. | Check the main power and accessory (ACC) connections. Inspect vehicle fuses related to the radio. Ensure the harness is correctly wired to the radio. |
| Steering wheel controls do not function. | Canbus box not connected, incorrect wiring to radio, radio settings not configured. | Verify the Canbus box is securely connected to the harness. Ensure the steering wheel control wires from the harness are connected to the correct input on the Android radio. Access the Android radio's settings to program or learn the steering wheel controls. |
| Нема звук од звучниците. | Лабави врски на звучниците, неправилно поврзување на звучниците. | Check all speaker wire connections between the harness and the Android radio. Ensure positive and negative terminals are not reversed. |
| Radio illumination does not dim with headlights. | Illumination wire not connected or incorrect. | Verify the illumination (ILL) wire from the harness is correctly connected to the Android radio. |
| Камерата за возење наназад не се активира. | Reverse signal wire not connected or incorrect. | Ensure the reverse signal wire from the harness is connected to the reverse input on the Android radio. Check the camera's power and video connections. |
If problems persist after following these steps, it is recommended to consult a professional car audio installer or contact the seller for further assistance.
8. Спецификации
| Карактеристика | Детал |
|---|---|
| Број на модел | RP5-RN-101 |
| Бренд | QSZN (Generic) |
| Влез волуменtage | 12V DC |
| Тип на материјал | Пластика |
| Тежина на ставката | Приближно 0.2 кг |
| Power Output (for accessories) | 12 W |
| Компатибилност | Renault Clio (2013-2015), Sandero (2017+, 2015-2018), Duster (2018, 2014-2017, 2015+), Captur (2018), Logan (2015-2018), Dacia (2015+) |
9. Гаранција и поддршка
Specific warranty information for the QSZN RP5-RN-101 Canbus Box Adaptor is not provided in this manual. For details regarding warranty coverage, return policies, or technical support, please refer to the product listing on the retailer's webстраница или контактирајте го продавачот директно.
When contacting support, please have your product model number (RP5-RN-101) and purchase details readily available.
