1. Вовед
The LILYGO T-Display S3 Pro LR1121 is an advanced development board built upon the T-Display S3 Pro External Expansion Module. It integrates the LR1121 chip, offering dual LoRa band capabilities (Sub-G band and 2.4G band). This board features a 2.33-inch touch IPS TFT SPI LCD for interactive applications.
Key integrated functions include motor vibration, Real-Time Clock (RTC), speaker, and microphone. It is powered by a built-in high-capacity 2000mAh Li-ion battery. The robust ABS+PC material shell is designed with two external LoRa antenna ports, ensuring optimal wireless performance without internal interference. A 1/4-inch screw mount at the bottom allows for attachment to outdoor fixtures like tripods.
Figure 1.1: LILYGO T-Display S3 Pro LR1121 front view with antennas extended.
Слика 1.2: Детално прикажаноview of LILYGO T-Display S3 Pro LR1121 features.
2. Поставување
2.1 Почетно поставување на хардверот
- Инсталација на антена: Carefully connect the two LoRa external antennas to the designated ports on the side of the device. Ensure they are securely fastened. The LR1121 antenna can be rotated 180 degrees in the direction of the screen; avoid rotating it backward.
- Поврзување за напојување: Connect the LILYGO T-Display S3 Pro LR1121 to a power source using a standard USB-C cable. The device has a built-in 2000mAh Li-ion battery.

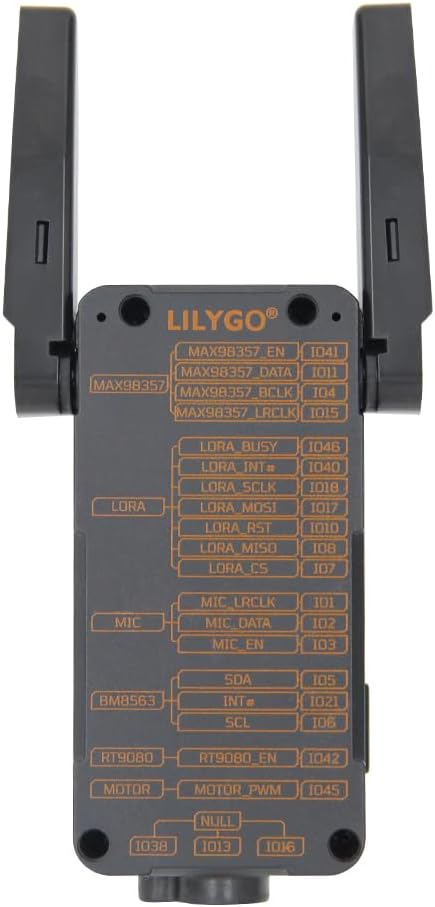

Слика 2.1: Назад view with pinout diagram.
Figure 2.2: Detailed Pinmap Diagram.
2.2 Поставување на софтверската околина
For programming and development, refer to the official GitHub repository for detailed instructions on setting up your development environment, including Arduino-IDE or VS Code.
- Репозиториум на GitHub: github.com/Xinyuan-LilyGO/T-Display-S3-Pro-MVSRLora
3. Упатства за работа
3.1 Основно работење
- Вклучување/исклучување: Use the designated power button (if available) or connect/disconnect USB power to turn the device on or off.
- Интеракција на екранот: The 2.33-inch touch IPS TFT SPI LCD supports touch input. Interact with on-screen elements as programmed.
Figure 3.1: Display showing touch information.
3.2 Безжична комуникација
The board supports multiple wireless communication protocols:
- ЛоРа: Utilizes the LR1121 chip for Sub-G band and 2.4G band LoRa communication. Ensure antennas are properly connected for optimal range.
- Wi-Fi: Supports Wi-Fi 802.11 for network connectivity.
- Bluetooth: Features BLE 5 and Bluetooth mesh for short-range communication.
3.3 Integrated Functions
The T-Display S3 Pro LR1121 includes several integrated peripherals:
- Motor Vibration: Обезбедува хаптичка повратна информација.
- RTC (часовник во реално време): Maintains accurate timekeeping.
- Говорник: За аудио излез.
- Микрофон: За аудио влез.
Video 3.1: Official video demonstrating the LILYGO T-Display S3 Pro LR1121 development board's features and functionality.
4. Одржување
4.1 Општа нега
- Чистење: Use a soft, dry cloth to clean the device. Avoid using liquid cleaners or solvents.
- Складирање: Чувајте го уредот на ладно и суво место, подалеку од директна сончева светлина и екстремни температури.
- Физичка заштита: The ABS+PC shell provides good protection, but avoid dropping the device or subjecting it to strong impacts.
4.2 Грижа за батерии
- Полнење: Charge the built-in 2000mAh Li-ion battery using a compatible USB-C power adapter (5V, 500mA recommended).
- Долгорочно складирање: If storing the device for an extended period, charge the battery to approximately 50% to prolong its lifespan. Avoid fully discharging or fully charging the battery for long-term storage.
5 Смена на проблеми
If you encounter issues with your LILYGO T-Display S3 Pro LR1121, consider the following steps:
- Уредот не се вклучува: Ensure the battery is charged or the device is connected to a stable USB power source. Check the USB-C cable and port for damage.
- Прикажи проблеми: If the display is blank or unresponsive, try restarting the device. Verify that the software is correctly loaded and initialized the display.
- Connectivity Problems (LoRa, Wi-Fi, Bluetooth): Check antenna connections for LoRa. For Wi-Fi and Bluetooth, ensure your software configuration is correct and that the device is within range of the network/peer.
- Проблеми поврзани со софтверот: Refer to the official GitHub repository for common issues, firmware updates, and community support. Many problems can be resolved by ensuring you are running the latest stable firmware or by consulting the project's documentation.
- Уред што не реагира: If the device becomes unresponsive, perform a hard reset by disconnecting and reconnecting the power source.
6. Спецификации
| Карактеристика | Детал |
|---|---|
| Бренд | ЛИЛИГО |
| Име на моделот | LILYGO T-Display S3 Pro LR1121 |
| Технологија за поврзување | Bluetooth, Wi-Fi, LoRa (Sub-G, 2.4G) |
| Вклучени компоненти | Упатство за употреба |
| Оперативен систем | FreeRTOS |
| Бренд на процесор | Espressif (ESP32-S3R8 Dual-core LX7 microprocessor) |
| Технологија на RAM меморија | LPDDR4 |
| Број на процесори | 1 |
| Вкупно USB порти | 1 (USB-C) |
| Приказ | 2.33 inch Touch IPS TFT SPI LCD (Resolution: 222(H) RGB x 480(V), Drive Chip: ST7796) |
| LoRa Transceiver | LR1121 (LoRa/(G)FSK half-duplex, 150-960MHz, 2.4GHz, 2GHz S-band, 1.55GHz L-band) |
| Voice Communication Kit | Microphone (MP34DT05-A), Speaker (MAX98357A) |
| Other Integrated Features | Vibration Motor (PWM Motor), RTC (BM8563) |
| Батерија | Вградена литиум-јонска батерија од 2000 mAh |
| Димензии (Д x Ш x В) | 111 x 36 x 52 mm |
| UPC | 717382831206 |
7. Гаранција и поддршка
7.1 Информации за гаранцијата
This product is covered by the manufacturer's standard warranty. Please refer to the LILYGO official webлокација или контактирајте ја нивната служба за корисници за специфични услови и одредби за гаранција.
7.2 Техничка поддршка
For technical assistance, documentation, and community support, please visit the official LILYGO GitHub repository:
If you have any questions or suggestions regarding the product, you may also contact LILYGO directly through their official channels.
