1. Вовед
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Generic A155 Furnace Inducer Motor, Model 7021-10046. This component is designed to replace Fasco models 7021-10046, 7021-1004, 7021-10325, and Armstrong models 7021-11062, 7021-1004. Please read all instructions carefully before proceeding with installation or service.
2. Информации за безбедност
ПРЕДУПРЕДУВАЊЕ: Installation and servicing of this furnace inducer motor should only be performed by a qualified HVAC technician. Improper installation, adjustment, alteration, service, or maintenance can cause property damage, personal injury, or loss of life.
- Always disconnect electrical power to the furnace before installing or servicing the inducer motor. Failure to do so can result in electrical shock.
- Носете соодветна лична заштитна опрема (ЛЗО), вклучувајќи заштитни очила и ракавици, за време на инсталацијата и одржувањето.
- Осигурајте се дека сите жичени врски се безбедни и се во согласност со локалните електрични кодови.
- This motor must be properly grounded.
- Verify that the replacement motor specifications match the original equipment requirements.
3. Што има во кутијата
По отворањето на пакувањето, проверете дали сите компоненти се присутни и неоштетени.

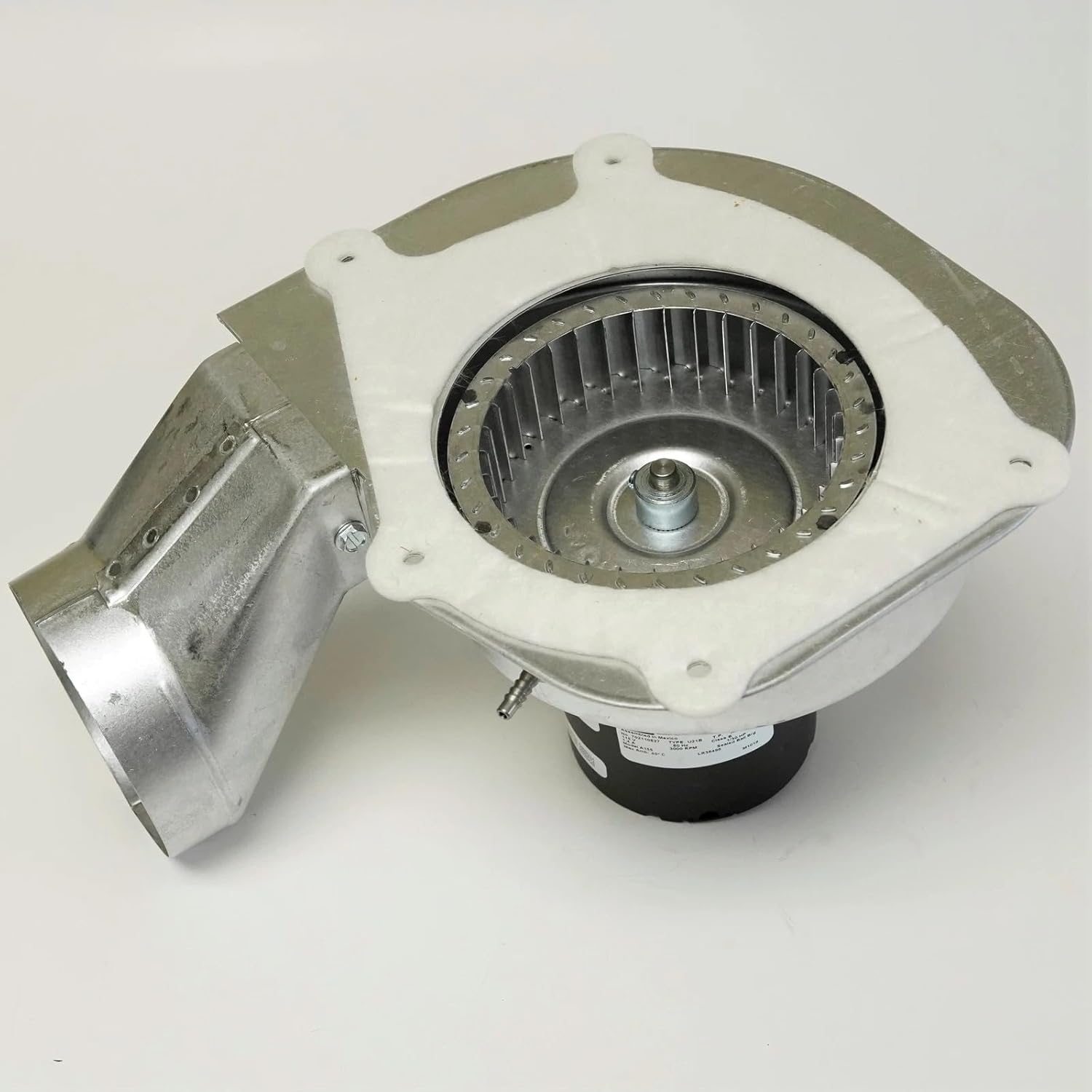

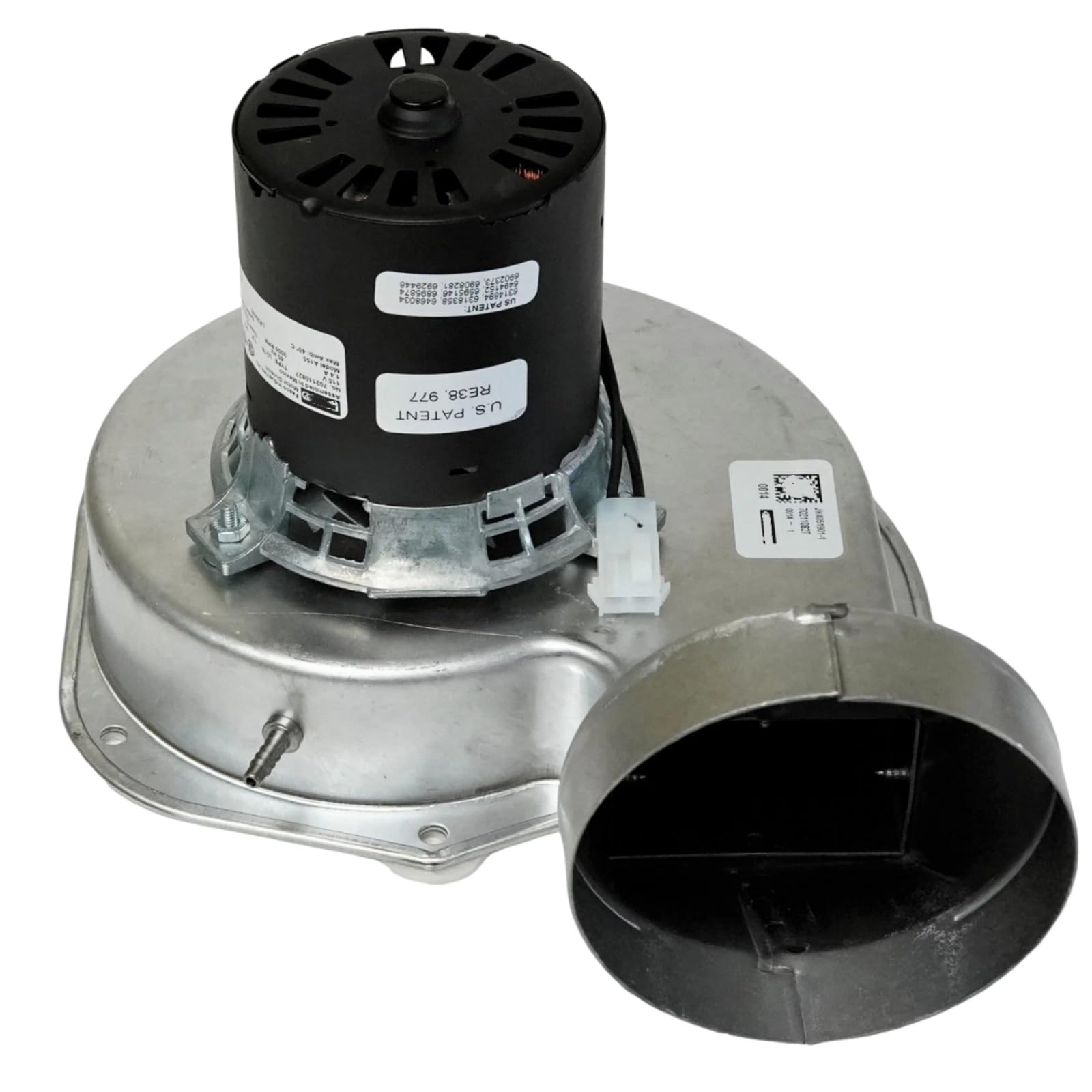

- 1 x A155 Furnace Inducer Motor Assembly
4. Спецификации
The following are the technical specifications for the A155 Furnace Inducer Motor:

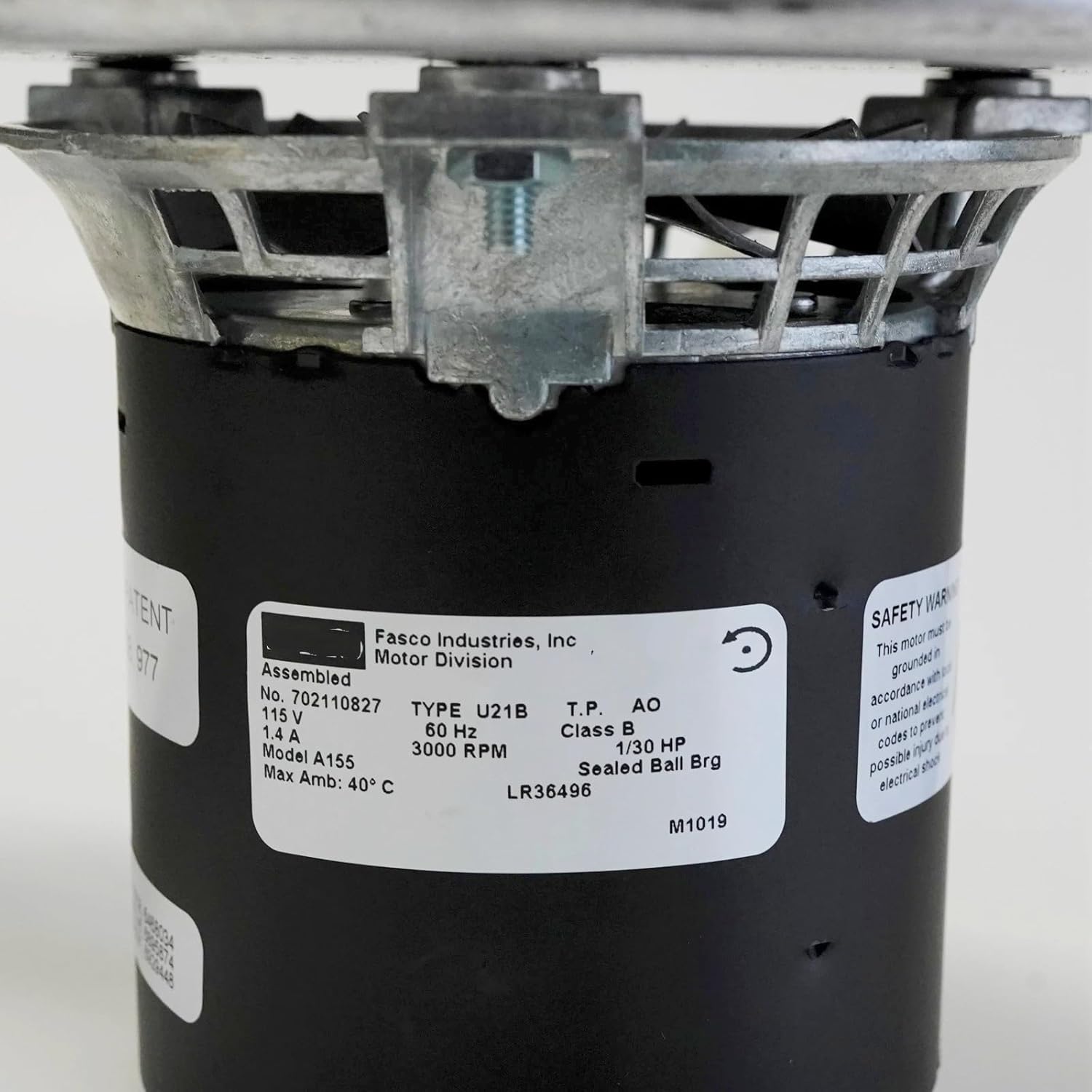

| Број на модел | 7021-10046 (A155) |
| Voltage | 115 волти |
| Ampбес | 1.4 Amps |
| Вртежи во минута | 3000 вртежи во минута |
| Тип на мотор | Shaded Pole, 3.3" Diameter |
| Ротација | CCW (Counter-Clockwise) as viewед од крајот на вратилото |
| Фреквенција | 60 Hz |
| Коњски сили | 1 / 30 ХП |
| Тип на лежиште | Запечатен топчести лежишта |
| Максимална амбиентална температура | 40°C |
| Замена за | Fasco 7021-10046, 7021-1004, 7021-10325; Armstrong 7021-11062, 7021-1004 |
| Other Part Numbers | R7-RFB425, 40425-002, 40425-003 |
5. Инсталација (Поставување)
This section outlines the general steps for installing the inducer motor. Always refer to your furnace manufacturer's specific instructions and diagrams for detailed guidance.
- Исклучување на струја: Исклучете го целиот електричен напон до печката на главната сервисна табла. Проверете дали напојувањето е исклучено со помош на волтаичен регулатор.tagд тестер.
- Access Inducer Motor: Locate the existing inducer motor on your furnace. This may require removing access panels.
- Исклучете ги жиците: Carefully disconnect the electrical wiring from the old motor. Note the position and color of each wire for correct re-connection.
- Отстранете го стариот мотор: Unbolt or unfasten the old inducer motor from its mounting bracket or furnace housing. Be prepared to support its weight.
- Проверете ја дихтунгата: Inspect the gasket or mounting surface for damage. Replace if necessary to ensure an airtight seal.
- Монтирајте нов мотор: Position the new A155 inducer motor assembly and secure it using the appropriate bolts or fasteners. Ensure it is seated correctly and the gasket forms a tight seal.
- Поврзете жици: Reconnect the electrical wiring to the new motor, matching the connections noted during removal.
- Вратете ја моќноста: Replace all access panels. Restore electrical power to the furnace.
- Тест операција: Initiate a heating cycle to verify the inducer motor operates correctly. Listen for unusual noises and observe the exhaust.
6. Операција
The A155 Furnace Inducer Motor is an integral component of your furnace's combustion system. When the thermostat calls for heat, the inducer motor activates first, drawing combustion air into the burner and expelling exhaust gases. This creates a negative pressure within the heat exchanger, allowing the pressure switch to close and signal the ignition sequence to begin. The motor continues to operate throughout the heating cycle to ensure proper ventilation of combustion byproducts.
7. Одржување
Regular maintenance helps ensure the longevity and efficient operation of your furnace and its components.
- Годишна инспекција: Have a qualified technician inspect the inducer motor annually as part of routine furnace maintenance.
- Проверете дали има пречки: Ensure the exhaust vent and air intake are free from debris, blockages, or animal nests.
- Слушајте невообичаени звуци: Pay attention to any new or unusual sounds coming from the inducer motor, such as grinding, squealing, or rattling, which may indicate a problem.
- Verify Proper Venting: Confirm that exhaust gases are being properly vented to the outside.
8 Смена на проблеми
If your furnace is experiencing issues related to the inducer motor, consider the following common problems. Always ensure power is disconnected before inspecting components.
- Моторот не се пали:
- Check for power supply to the furnace.
- Verify electrical connections to the motor are secure.
- Inspect the pressure switch and its tubing for blockages or damage. A faulty pressure switch can prevent the motor from starting.
- The motor capacitor (if external) may be faulty.
- Unusual Noises (Grinding, Squealing):
- Indicates worn bearings or impeller. The motor may need replacement.
- Check for debris inside the blower housing.
- Печката не се пали (моторот на индукцијата работи):
- The pressure switch may not be closing, even if the motor is running. Check tubing for cracks or blockages.
- Other ignition components (ignitor, flame sensor) may be faulty.
- Прегревање на моторот:
- Обезбедете соодветна вентилација околу моторот.
- Check for excessive load on the motor, such as a restricted exhaust vent.
For complex issues or if you are unsure about any troubleshooting step, contact a certified HVAC professional.
9. Гаранција и поддршка
This product is backed by an after-sale guarantee focused on customer satisfaction. If you encounter any issues or are not satisfied with the product, please contact the seller or manufacturer directly for assistance. They are committed to providing a satisfactory solution.
