Generic Carburetor Assembly Instruction Manual

1. Производот завршиview

This manual provides essential instructions for the installation, operation, maintenance, and troubleshooting of your new Generic Carburetor Assembly, designed for use with Homelite Powerstroke PS3000 Generators. This carburetor (Part# 309369001) is a direct replacement part intended to restore optimal fuel delivery and engine performance.

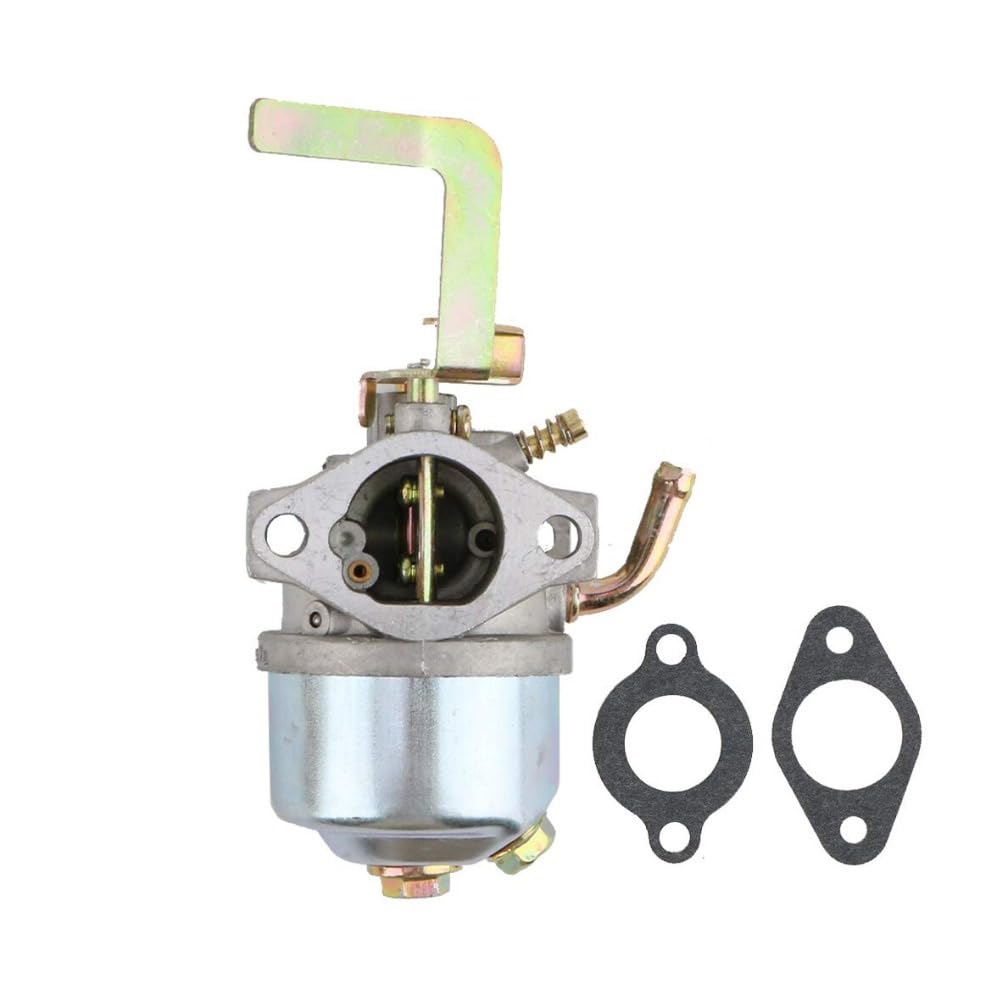

Image 1.1: Generic Carburetor Assembly. This image displays the complete carburetor unit, including the main body, fuel inlet, and various adjustment screws.

2. Информации за безбедност

Always prioritize safety when working with fuel systems and power equipment. Failure to follow these safety guidelines may result in serious injury or property damage.

• Read the Generator Manual: Always consult your Homelite Powerstroke PS3000 Generator's original instruction manual for specific safety procedures and warnings.
• Ракување со гориво: Gasoline is highly flammable. Work in a well-ventilated area, away from open flames, sparks, or heat sources. Do not smoke.
• Engine Off and Cool: Ensure the generator engine is completely off and cool before attempting any installation or maintenance. Disconnect the spark plug wire to prevent accidental starting.
• Заштита на очите: Always wear appropriate eye protection (safety glasses or goggles) to shield against fuel splashes or debris.
• Ракавици: Wear fuel-resistant gloves to protect your hands from gasoline and other chemicals.
• Вентилација: Ensure adequate ventilation to prevent the buildup of fuel vapors.
• Спречување на истурање: Have rags and a suitable container ready to catch any spilled fuel. Dispose of fuel and contaminated materials properly.
• Професионална помош: Доколку не сте сигурни за кој било чекор, консултирајте се со квалификуван сервисер.

3. Содржина на пакетот

Carefully unpack the box and verify that all items are present and undamaged. If any parts are missing or damaged, contact your retailer immediately.

• 1 x Carburetor Assembly (Part# 309369001)
• (Additional gaskets or accessories may be included as shown in product pictures)

Note: The package contains everything shown in the product pictures. Please refer to the product listing for a visual representation of all included components.

4. Инсталација (Поставување)

This section outlines the general steps for replacing the carburetor on a Homelite Powerstroke PS3000 Generator. Specific steps may vary slightly depending on your generator's configuration. Always refer to your generator's service manual for detailed instructions.

1. Подготовка на генераторот:
   • Проверете дали генераторот е исклучен и моторот е ладен.
   • Исклучете ја жицата на свеќичката за да спречите случајно палење.
   • Turn off the fuel supply valve (if equipped) and drain the fuel tank into an approved container.
   • Place absorbent rags around the carburetor area to catch any residual fuel.
2. Отстранете го склопот на филтерот за воздух:
   • Locate and remove the air filter cover and air filter element.
   • Unbolt and remove the air filter housing from the carburetor.
3. Disconnect Fuel Line and Linkages:
   • Carefully disconnect the fuel line from the carburetor. Be prepared for some fuel spillage.
   • Note the routing and connection points of all throttle and choke linkages. Disconnect them from the old carburetor. Taking pictures can be helpful.
4. Отстранување на стариот карбуратор:
   • Unbolt the carburetor from the engine intake manifold. There may be one or two mounting bolts.
   • Carefully remove the old carburetor, ensuring any gaskets are also removed.
5. Инсталирајте нов карбуратор:
   • Ensure the mating surfaces on the engine and air filter housing are clean and free of old gasket material.
   • Install new gaskets (if provided) on both sides of the carburetor.
   • Position the new carburetor assembly onto the engine intake manifold.
   • Secure the carburetor with the mounting bolts, tightening them evenly to the manufacturer's specifications (refer to generator manual).
6. Reconnect Fuel Line and Linkages:
   • Повторно поврзете го горивниот вод безбедно со новиот карбуратор.
   • Reattach all throttle and choke linkages to their correct positions. Double-check for free movement.
7. Повторно инсталирајте го склопот на филтерот за воздух:
   • Reattach the air filter housing, ensuring a tight seal.
   • Install a clean air filter element and replace the air filter cover.
8. Конечни проверки:
   • Наполнете го резервоарот за гориво со свежо, соодветно гориво.
   • Отворете го вентилот за снабдување со гориво.
   • Check for any fuel leaks around the carburetor and fuel lines.
   • Повторно поврзете ја жицата за свеќичката.

5. Operating Instructions (After Installation)

After successful installation of the new carburetor, follow these general steps to start and operate your generator. Always refer to your Homelite Powerstroke PS3000 Generator's owner's manual for specific starting procedures.

1. Prime the Carburetor (if applicable): Some carburetors have a primer bulb. If yours does, press it several times until fuel is visible in the fuel line or bulb.
2. Поставете задави: Move the choke lever to the "CHOKE" or "START" position, especially if the engine is cold.
3. Set Throttle: Set the throttle to the "FAST" or "RUN" position.
4. Стартувајте го моторот: Цврсто и непречено повлечете ја рачката на стартерот со отскок додека моторот не запали. Не дозволувајте јажето да се открши назад.
5. Прилагодување на загушувачот: Once the engine starts and runs smoothly, gradually move the choke lever to the "RUN" or "OPEN" position. If the engine falters, move the choke back slightly until it runs smoothly, then slowly open it again.
6. Загревање: Оставете моторот да се загрее неколку минути пред да нанесете оптоварување.
7. Исклучи: To stop the engine, turn off the ignition switch and close the fuel valve.

6. Одржување

Proper maintenance ensures the longevity and reliable performance of your carburetor. Regular checks and cleaning are recommended.

• Квалитет на гориво: Always use fresh, clean, unleaded gasoline. Stale fuel can cause deposits and clog carburetor passages. Consider using a fuel stabilizer if the generator will be stored for extended periods.
• Филтер за гориво: Редовно проверувајте и заменувајте го филтерот за гориво (доколку е опремен) за да спречите нечистотиите да стигнат до карбураторот.
• Филтер за воздух: Keep the air filter clean. A dirty air filter restricts airflow, leading to a rich fuel mixture and poor engine performance. Clean or replace as recommended by your generator's manual.
• Складирање: Before long-term storage, run the engine until it runs out of fuel, or drain the fuel system completely to prevent gum and varnish buildup in the carburetor.
• Чистење: If the carburetor becomes clogged, it may require disassembly and cleaning with a carburetor cleaner. This should only be performed by individuals with appropriate mechanical knowledge.

7 Смена на проблеми

This section provides solutions to common issues you might encounter after installing your new carburetor. For more complex problems, consult a qualified technician.

8. Спецификации

The following specifications pertain to the Generic Carburetor Assembly (Part# 309369001).

• Бренд: Генерички
• Компатибилност на моделот: Homelite Powerstroke PS3000 Generator
• Број на дел: 309369001
• Материјал: Aluminum (Exterior)
• Тежина на ставката: Приближно 1 фунта
• Димензии на пакетот: Приближно 1 x 1 x 1 инчи

9. Гаранција и поддршка

For information regarding warranty coverage, returns, or technical support, please refer to the retailer or seller from whom you purchased this product. Keep your purchase receipt as proof of purchase.

Note: This product is a replacement part. Any warranty claims or support requests should be directed to the seller.
