Instruction Manual for Generic Replacement Part B1RO-p13556

1. Производот завршиview

This document provides essential information for the installation, operation, and maintenance of the Generic Replacement Part, model B1RO-p13556. This part is designed for compatibility with Briggs & Stratton Mower Models 31P677-4373-G5 and 31Q677-0120-G1, facilitating routine servicing, troubleshooting, and component replacement.

Constructed with robust, quality materials, this replacement part is engineered for seamless compatibility and aims to streamline the repair process, ensuring the smooth operation of mechanical systems.

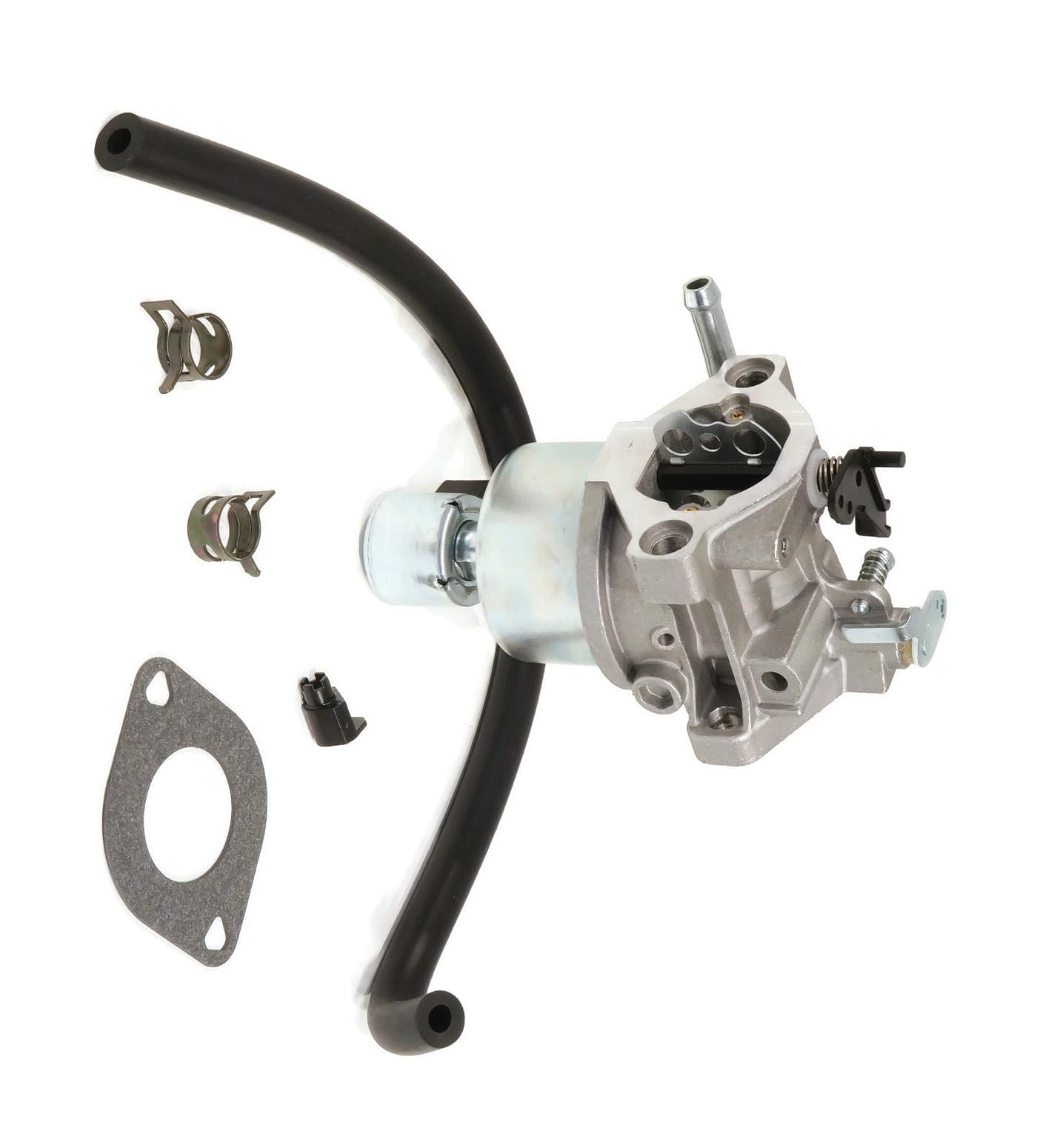

Image 1.1: Generic Replacement Part B1RO-p13556. This image displays the replacement part, which is typically a mechanical component designed for specific mower models.

2. Поставување и инсталација

Before beginning installation, ensure the equipment is turned off, disconnected from any power source, and allowed to cool. Always wear appropriate personal protective equipment (PPE), such as gloves and eye protection.

1. Безбедноста на прво место: Disconnect the spark plug wire or remove the battery to prevent accidental starting.
2. Identify Old Part: Locate the part to be replaced on your Briggs & Stratton mower. Refer to your mower's specific service manual for detailed diagrams if necessary.
3. Отстранете го стариот дел: Carefully remove any fasteners, connectors, or hoses attached to the old part. Note their positions for reassembly.
4. Проверка на областа: Clean the area where the new part will be installed, removing any debris or corrosion.
5. Инсталирај нов дел: Position the Generic Replacement Part B1RO-p13556 into place. Ensure all mounting points align correctly.
6. Безбедни сврзувачки елементи: Reattach all fasteners, connectors, and hoses. Tighten fasteners to the manufacturer's recommended torque specifications, if available. Avoid over-tightening.
7. Конечна проверка: Verify that the new part is securely installed and that there are no loose connections or obstructions.

Доколку не сте сигурни за кој било чекор, препорачливо е да се консултирате со квалификуван сервисер.

3. Упатства за работа (по инсталацијата)

After successful installation of the replacement part, follow these steps to ensure proper function of your equipment:

1. Повторно поврзете го напојувањето: Reconnect the spark plug wire or reinstall the battery.
2. Почетно стартување: Start the mower according to its manufacturer's instructions.
3. Набљудувајте ја операцијата: Listen for unusual noises, check for leaks, or any abnormal behavior during the initial operation.
4. Тест функционалност: If the part is related to a specific function (e.g., engine, drive, cutting), test that function carefully in a safe environment.

If any issues arise, refer to the Troubleshooting section or consult a professional.

4. Одржување

Proper maintenance extends the life of your replacement part and the overall equipment. While this part is designed for durability, regular checks are recommended.

• Редовна инспекција: Periodically inspect the installed part for signs of wear, damage, or loose connections.
• Чистење: Keep the area around the part clean and free of debris, which can hinder performance or cause premature wear.
• Подмачкување: If the part involves moving components, ensure they are adequately lubricated according to the mower's maintenance schedule.
• Проверки на сврзувачки елементи: Occasionally check and tighten any fasteners associated with the replacement part to prevent loosening due to vibration.

5 Смена на проблеми

If you encounter issues after installing the replacement part, consider the following common troubleshooting steps:

• Equipment Not Starting:
  • Ensure the spark plug wire is securely reconnected.
  • Verify all electrical connections related to the installed part are firm.
  • Check fuel levels and other basic mower starting requirements.
• Невообичаени звуци или вибрации:
  • Re-check all fasteners to ensure they are tightened correctly.
  • Confirm the part is seated properly and not interfering with other components.
• Part Not Fitting Correctly:
  • Double-check the model numbers of your mower against the compatibility information for the replacement part.
  • Ensure no debris is obstructing the installation area.

If problems persist, it is advisable to seek assistance from a certified technician or contact the product support.

6. Спецификации

7. Гаранција и поддршка

For specific warranty information regarding this Generic Replacement Part B1RO-p13556, please refer to the terms and conditions provided by your retailer or the manufacturer at the time of purchase. Warranty coverage typically addresses defects in materials and workmanship.

If you require technical assistance or have questions not covered in this manual, please contact the seller or manufacturer directly through their official support channels. When contacting support, please have your purchase details and the part's model number (B1RO-p13556) readily available.
