Вовед
This manual provides detailed instructions for the safe and efficient operation of your Aiwa AWQ680 Portable Bluetooth Speaker. Please read this manual thoroughly before using the product and retain it for future reference.

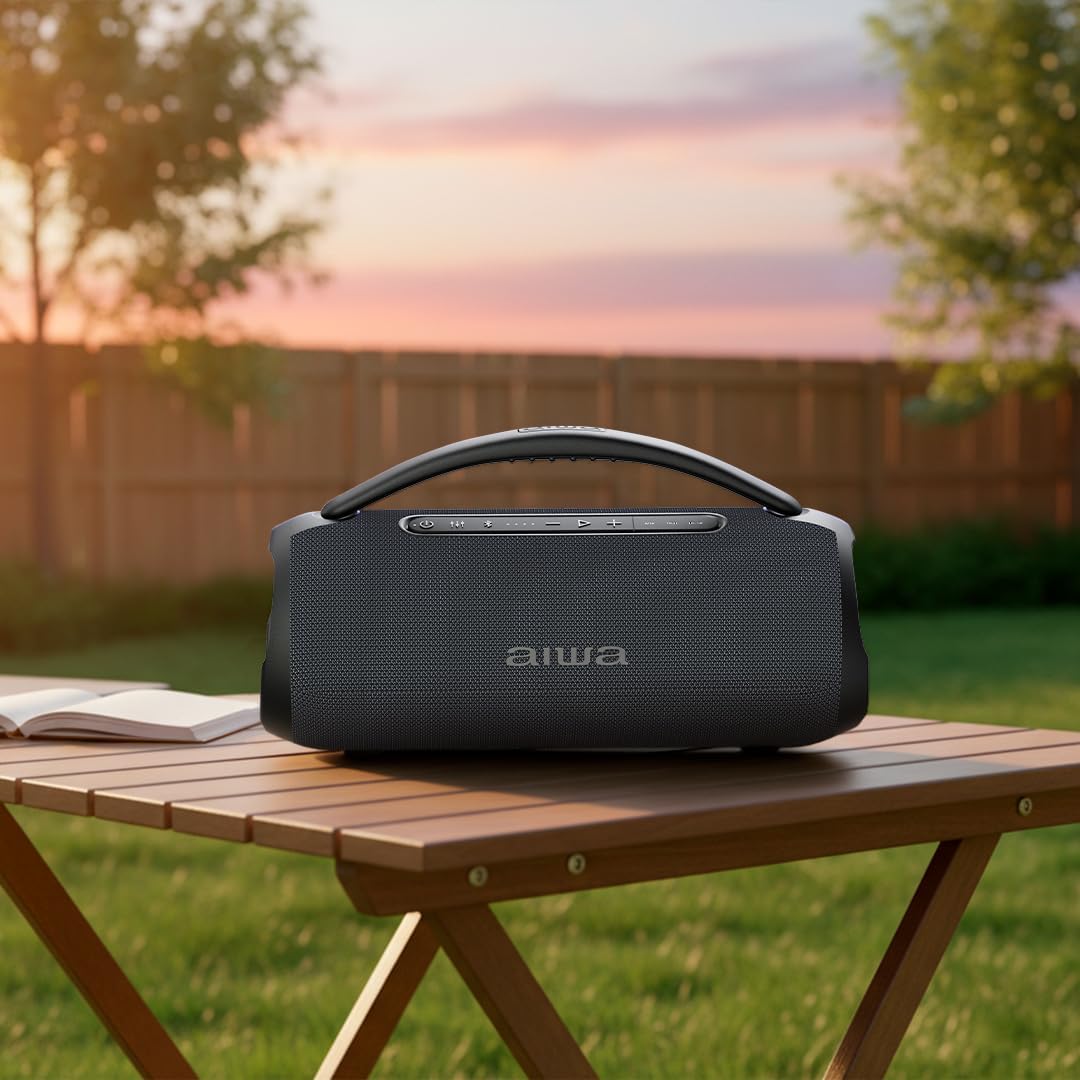

Image: The Aiwa AWQ680 speaker in an outdoor setting, demonstrating its portability.
Клучни карактеристики
- 30W RMS Power & TWS Technology: Enjoy clear, immersive sound with 30W of real power. True Wireless Stereo (TWS) allows you to link two units simultaneously for a massive, enveloping stereo sound.
- IPX5 Отпорност на вода: Designed for adventure, this Bluetooth speaker is certified IPX5 against water and dust, making it suitable for use at the beach, poolside, or other outdoor environments without concern for splashes.
- Bluetooth 5.3 & 4-Hour Battery: Equipped with the latest Bluetooth 5.3 standard for ultra-stable and uninterrupted transmission. The rechargeable battery provides up to 4 hours of autonomy for extended music sessions.
- Maximum Connectivity: Offers total versatility to play your favorite content. This model includes an FM Radio tuner, AUX input, and a USB port (compatible with memory up to 32GB), providing freedom to choose your audio source.
- LED Lights & Portable Design: Features a dynamic LED lighting system that adds a spectacular visual touch to any event, synchronizing with your style. Its compact and modern black design makes it highly portable.
Содржина на пакетот
Проверете дали сите предмети се присутни во пакувањето:
- Aiwa AWQ680 Portable Bluetooth Speaker
- Микрофон
- Кабел за полнење
- Упатство за употреба (овој документ)
Производот завршиview
Запознајте се со компонентите и контролите на звучникот.
Контроли на врвните панели

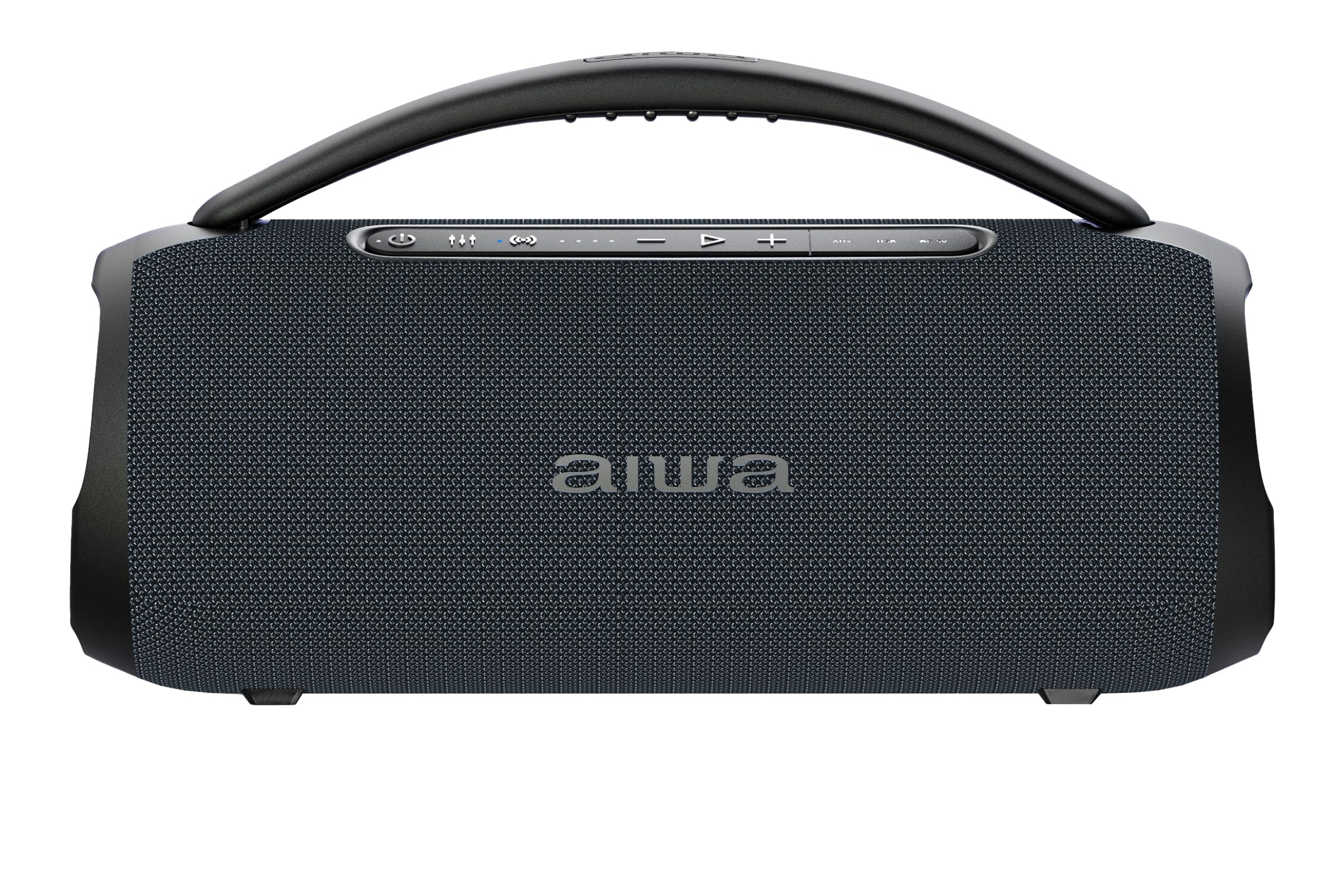

Слика: Горе view of the Aiwa AWQ680 speaker, highlighting the control panel with buttons for power, mode, volume, playback, and LED light control, along with the integrated carrying handle.
- Power Button (Ⓢ): Притиснете и задржете за да го вклучите или исклучите звучникот.
- Копче за режим (М): Кратко притискање за префрлување помеѓу режимите Bluetooth, FM радио, USB и AUX.
- Play/Pause Button (►): Кратко притискање за репродукција или паузирање на аудио.
- Јачина на звук (+): Short press to increase volume. Long press for next track/station.
- Намалување на јачината на звукот (-): Short press to decrease volume. Long press for previous track/station.
- Копче TWS (∞): Short press to activate/deactivate True Wireless Stereo pairing.
- LED Light Button (☀): Short press to cycle through LED light modes or turn off the lights.
Rear Port Panel
Слика: Заден дел view of the Aiwa AWQ680 speaker with a protective flap covering the input ports.
- USB порта: For USB flash drive playback (supports up to 32GB).
- Влез AUX: За поврзување на надворешни аудио уреди преку 3.5 мм аудио кабел.
- Порта за полнење: For connecting the charging cable to power the speaker.
- Влез за микрофон: За поврзување на вклучениот микрофон.
Поставување
Полнење на звучникот
Before initial use, fully charge the speaker. Connect the charging cable to the speaker's charging port and a suitable power adapter. The LED indicator will show the charging status. Disconnect the charger once fully charged.
Вклучување/исклучување
Press and hold the Power button (Ⓢ) on the top panel for approximately 3 seconds to turn the speaker on or off.
Bluetooth спарување
- Вклучете го звучникот. Тој автоматски ќе влезе во режим на спарување преку Bluetooth, што ќе биде означено со трепкачка LED диода.
- На вашиот уред (паметен телефон, таблет итн.), овозможете Bluetooth и пребарајте достапни уреди.
- Select "AWQ680" from the list. Once successfully paired, the LED indicator will stop flashing and remain solid.
Вистинска безжична стерео функција (TWS)
To pair two AWQ680 speakers for an enhanced stereo sound experience:
- Ensure both speakers are powered on and in Bluetooth mode, but not yet paired to any external device.
- On one speaker (this will be the primary speaker), short press the TWS button (∞). The speaker will emit a tone and its LED will flash.
- The primary speaker will automatically search for and pair with the secondary speaker. Once connected, both speakers will emit a confirmation tone, and their LEDs will synchronize.
- Now, pair your Bluetooth-enabled device to the primary speaker as described in the "Bluetooth Pairing" section.
Image: Two Aiwa AWQ680 speakers shown side-by-side, illustrating the True Wireless Stereo (TWS) feature for enhanced sound.
Упатства за работа
Репродукција на музика преку Bluetooth
After successful Bluetooth pairing, you can play music from your device. Use the Play/Pause button (►) on the speaker to control playback. Use the Volume Up (+) and Volume Down (-) buttons for volume adjustment. Long press Volume Up/Down for next/previous track.
FM радио
In FM Radio mode (select with the Mode button), long press the Play/Pause button (►) to auto-scan and save available stations. Short press Play/Pause to switch between saved stations. Use Volume Up (+) and Volume Down (-) to fine-tune or change stations.
Репродукција преку USB
Insert a USB flash drive (formatted to FAT32, up to 32GB) into the USB port. The speaker will automatically switch to USB mode and begin playing compatible audio files. Use playback controls as in Bluetooth mode.
AUX влез
Connect an external audio device (e.g., MP3 player, laptop) using a 3.5mm AUX cable to the AUX input port. Switch the speaker to AUX mode using the Mode button (M). Audio will play from the connected device.
LED контрола на светлина
Press the LED Light button (☀) to cycle through different light modes or to turn the lights off.
Одржување
За да обезбедите долготрајност и оптимални перформанси на вашиот звучник:
- Keep the speaker clean by wiping it with a soft, dry cloth. Avoid abrasive cleaners.
- Avoid exposing the speaker to extreme temperatures, direct sunlight, or high humidity for extended periods.
- Ensure the rear port cover is securely closed when using the speaker near water to maintain its IPX5 water resistance.
- Чувајте го звучникот на ладно и суво место кога не го користите.
Решавање проблеми
| Проблем | Решение |
|---|---|
| Звучникот не се вклучува. | Проверете дали батеријата е наполнета. Поврзете го звучникот со извор на напојување и обидете се повторно. |
| Не може да се спари преку Bluetooth. | Make sure the speaker is in pairing mode (flashing LED). Disable and re-enable Bluetooth on your device. Ensure no other devices are currently connected to the speaker. |
| Нема звук. | Check volume levels on both the speaker and your connected device. Ensure the correct input mode (Bluetooth, AUX, USB) is selected using the Mode button. |
| Спарувањето преку TWS не успева. | Ensure both speakers are AWQ680 models and are not connected to any other Bluetooth device before initiating TWS pairing. Place them close to each other. |
Спецификации
- Бренд: Аива
- Модел: AWQ680
- Излезна моќност на звучникот: 30W RMS (80 Watts Max)
- Фреквентен одговор: 50 KHz
- Технологија за поврзување: Bluetooth 5.3, AUX, USB
- Режим за излез на звук: Стерео
- Тип на звучник: Преносен звучник
- Посебни карактеристики: LED Light, IPX5 Water Resistance, TWS Function, FM Radio
- Контролен метод: Допрете
- Траење на батеријата: Approximately 4.5 Hours (2500 Milliamp Часови)
- Влез волуменtage: 240 волти
- Димензии (DxWxH): Approximately 9.27 cm x 9.27 cm x 24.18 cm (based on product images)
- Компатибилни уреди: Паметен телефон
- Земја на потекло: Кина
- Аудио канали: 2.0
- Протокол за поврзување: AUX, Bluetooth, USB
- Тип на драјвер за аудио: Динамичен драјвер
Image: The Aiwa AWQ680 speaker with its approximate dimensions labeled.
Гаранција и поддршка
This product comes with a 12-month warranty from the date of purchase. For warranty claims or technical support, please contact Aiwa customer service. Keep your proof of purchase for warranty validation.
