Вовед
The Kaito KA350GY Voyager Trek is a versatile multi-powered radio designed for emergency preparedness and outdoor activities. It features AM/FM, Shortwave (SW), and NOAA Weather band reception, a 5-LED flashlight, and a USB charging port for external devices. This manual provides instructions for its setup, operation, maintenance, and troubleshooting.
Клучни карактеристики
- Мулти-бенд радио: Receives AM (530-1710KHz), FM (87-108MHz), Shortwave (SW1: 3-8 MHz, SW2: 9-18 MHz), and 7 pre-programmed NOAA Weather channels.
- Повеќе извори на енергија: Internal rechargeable Ni-MH battery (charged via hand crank, solar panel, USB, or optional AC/DC adapter), and 3 AAA batteries (not included).
- 5-LED Flashlight: Integrated super bright flashlight for illumination.
- USB порта за полнење: Allows charging of external devices like cell phones and MP3 players.
- Компактен и пренослив дизајн: Ideal for emergencies, campинг, и патување.
Поставување
1. Инсталација на батеријата и почетно полнење
The KA350GY comes with a built-in rechargeable Ni-MH battery pack. Before initial use, ensure this battery pack is properly connected. It is typically located within the AAA battery compartment. If using optional AAA batteries, insert three AAA batteries into the compartment, observing correct polarity.

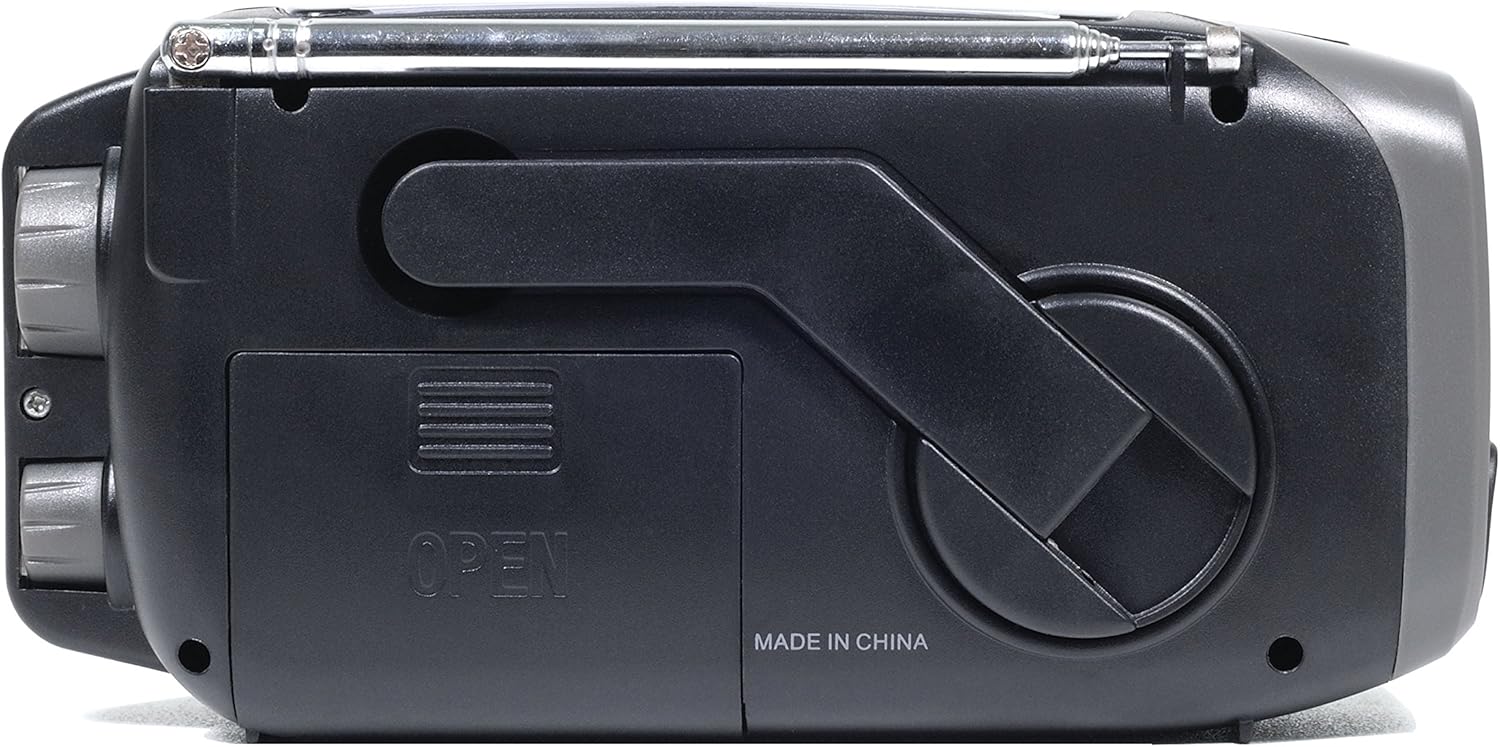

Слика: Заден дел view of the radio, highlighting the battery compartment and hand crank.
For optimal performance, fully charge the internal Ni-MH battery before first use. Use one of the following methods:
- USB полнење: Connect the radio to a computer's USB port or a USB wall adapter (not included) using the provided USB cable.
- Рачна рачка: Rotate the hand crank clockwise or counter-clockwise for several minutes. Ensure the crank is turned gently and kept properly aligned to prevent damage.
- Соларен панел: Place the radio with the solar panel facing direct sunlight. Note that solar charging provides a trickle charge and is best for maintaining battery life or operating the radio without draining the battery, rather than a rapid full charge.
2. Power Source Selection
Locate the power source switch. For most operations, set it to the "Power" position to utilize the internal rechargeable battery or external power. If using AAA batteries, switch to the "Battery" position.
Упатства за работа
1. Работење со радио

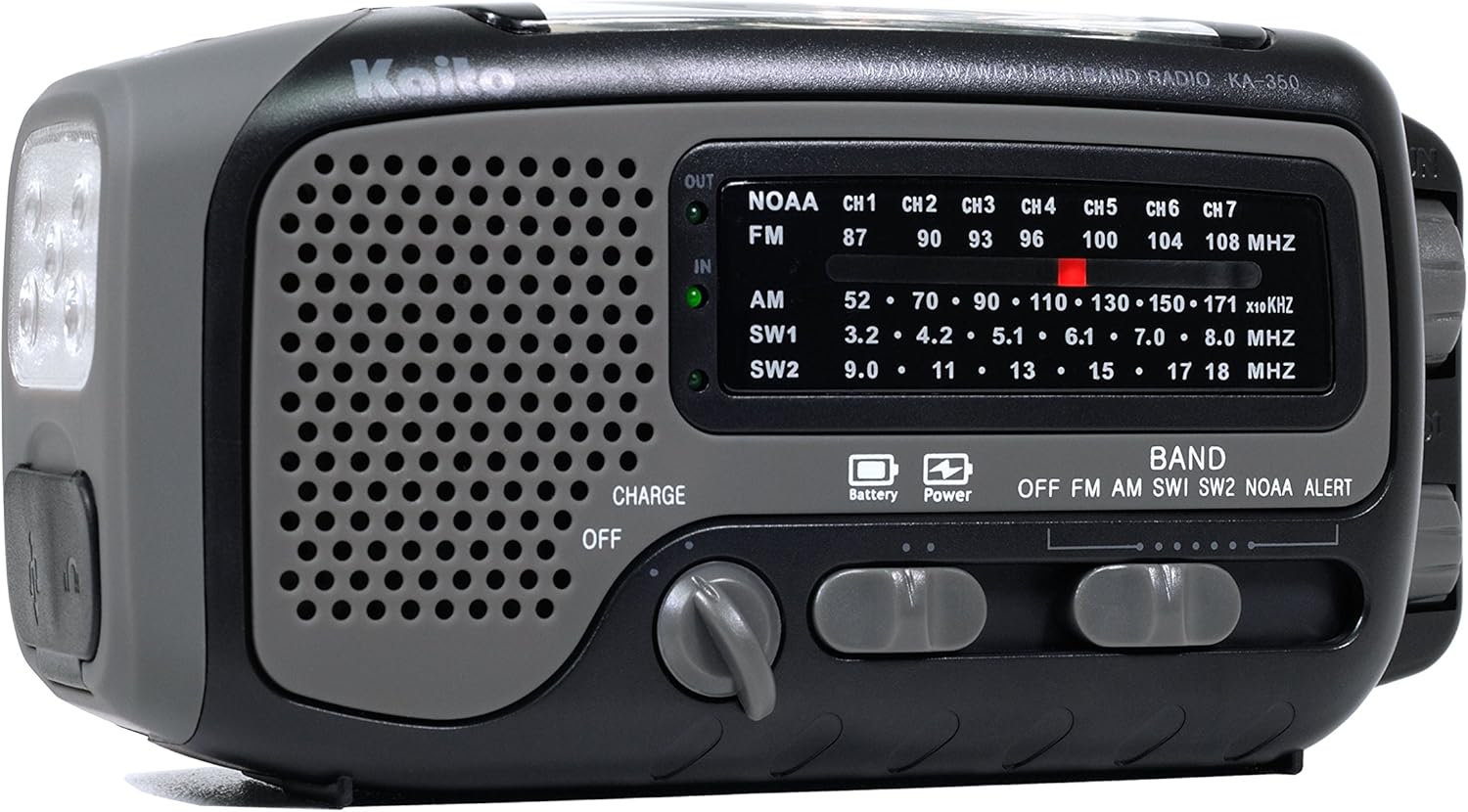

Слика: напред view of the radio, displaying the speaker, tuning dial, and band selection switches.
- Вклучи: Rotate the Volume knob clockwise to turn on the radio and adjust the volume.
- Изберете опсег: Use the BAND switch to select between OFF, FM, AM, SW1, SW2, NOAA, or ALERT.
- Намести ја станицата: Rotate the TUNING knob to find your desired station. Extend the telescopic antenna for better FM and SW reception. For AM, rotate the radio for optimal signal.
- NOAA временски канали: The 7 NOAA channels are pre-programmed. Simply select the NOAA band, and then use the channel selector to choose between CH1-CH7.
- NOAA Alert: In ALERT mode, the radio will remain silent until a weather alert is broadcast, at which point it will sound an alarm and play the alert message.
2. Работа со фенерче
Слика: Под агол view of the radio, highlighting the 5-LED flashlight and the hand crank.
Press the FLASH LIGHT button located near the flashlight to turn it on or off. The flashlight uses 5 LEDs for bright illumination.
3. Полнење на надворешни уреди
Image: End views of the radio, illustrating the USB output port for charging external devices and the micro-USB input for charging the radio itself.
The radio features a USB output port (labeled "OUT") to charge small electronic devices such as cell phones, MP3 players, or digital cameras. Connect your device's charging cable to this port. Ensure the radio has sufficient charge in its internal Ni-MH battery for effective charging.
Note: Direct charging of some high-power devices may be slow or inconsistent. For more reliable charging of such devices, consider charging an external power bank with the radio first, then using the power bank to charge your device.
Одржување
- Нега на батеријата: If storing the radio for extended periods without use, remove any AAA batteries to prevent leakage and damage. The internal Ni-MH battery should be periodically charged to maintain its health.
- Редовно тестирање: To ensure readiness, operate and test all radio functions at least once a year.
- Чистење: Избришете ја надворешноста на радиото со мека, дamp крпа. Избегнувајте употреба на груби хемикалии или абразивни средства за чистење.
- Ракувајте со внимание: The hand crank and telescopic antenna are delicate components. Operate the hand crank gently and extend/retract the antenna with reasonable care to prevent bending or breakage.
- Складирање: Store the radio in a cool, dry place away from extreme temperatures and direct sunlight.
Решавање проблеми
| Проблем | Можна причина / решение |
|---|---|
| Радиото не се вклучува. |
|
| Poor radio reception (AM/FM/SW). |
|
| Надворешниот уред не се полни. |
|
| Hand crank feels stiff or breaks. |
|
Спецификации
- Модел: KA350GY
- Димензии (Д x Ш x В): Приближно 6 x 2 x 3 инчи (15.24 x 5.08 x 7.62 см)
- Тежина: Приближно 8 унци (227 грама)
- Радио бендови:
- AM: 530 - 1710 KHz
- ФМ: 87 - 108 MHz
- Shortwave (SW1): 3 - 8 MHz
- Shortwave (SW2): 9 - 18 MHz
- NOAA Weather: 7 pre-programmed channels
- Извори на енергија:
- Internal Rechargeable Ni-MH Battery Pack
- 3 x AAA батерии (не се вклучени)
- Рачен чудак Динамо
- Соларен панел
- USB Input (5V DC)
- Фенерче: 5-ЛЕР
- Излез: USB (за полнење на надворешни уреди)
- Вклучени компоненти: Earphone, User Manual
Image: Diagram illustrating the physical dimensions of the Kaito KA350GY radio.
Информации за гаранцијата
Warranty details for the Kaito KA350GY radio are typically provided with the product packaging or can be found on the official Kaito website. Please refer to these sources for specific terms and conditions regarding your product's warranty coverage.
Поддршка за корисници
For technical assistance, troubleshooting beyond this manual, or inquiries about your Kaito KA350GY radio, please visit the official Kaito website or contact their customer support using the information provided in your product documentation.
