BOSS DS-1 Distortion Pedal User Manual

1. Вовед

The BOSS DS-1 Distortion Pedal delivers a classic, hard-edged distortion sound, suitable for various music genres including rock, punk, grunge, and hard rock. Its robust, all-metal construction ensures durability for both studio and live performance environments. This manual provides essential information for setting up, operating, and maintaining your DS-1 pedal.

2. Што има во кутијата

• BOSS DS-1 Distortion Pedal
• Напојување
• Кабел за инструменти
• Печ-кабел
• Избори
• Ткаенина за полирање „Остин Базар“

3. Поставување

Follow these steps to connect your BOSS DS-1 Distortion Pedal:

1. Поврзете ја гитарата со ВЛЕЗ jack of the DS-1 pedal.
2. Поврзете го ИЗЛЕЗ jack of the DS-1 pedal to your ampвлез на лифиерот.
3. Power the pedal using either a 9V alkaline battery or the included AC adapter (9V).

Уверете се дека сите врски се безбедни пред да го вклучите вашиот ampживописен.

Image: BOSS DS-1 Distortion Pedal connected to guitar and amplifier with power supply.

4. Контроли и функции

The BOSS DS-1 features three primary control knobs and a pedal switch:

• Копче LEVEL: Ја прилагодува вкупната излезна јачина на звукот на ефектот.
• TONE копче: Shapes the tonal character of the distortion. Turning clockwise boosts highs and cuts lows for a sharp, cutting rhythm. Turning counter-clockwise boosts lows and cuts highs for smooth, warm lead tones.
• DIST knob: Controls the amount of distortion applied to your signal.
• Прекинувач на педалата: Engages or disengages the distortion effect. The CHECK indicator light illuminates when the effect is active.

Слика: Детална view of the pedal's control knobs and footswitch.

5. Tone Shaping

The TONE knob is crucial for customizing your distortion sound. Unlike some standard pedals that can become 'muddy' with distortion, the DS-1 maintains low-end definition. Experiment with the TONE knob to achieve desired sounds:

• Clockwise (Right): Boosts highs and cuts lows, ideal for sharp, cutting rhythm and 'ice-pick' clarity.
• Counter-Clockwise (Left): Boosts lows and cuts highs, suitable for smooth, fat leads and warm sustain.

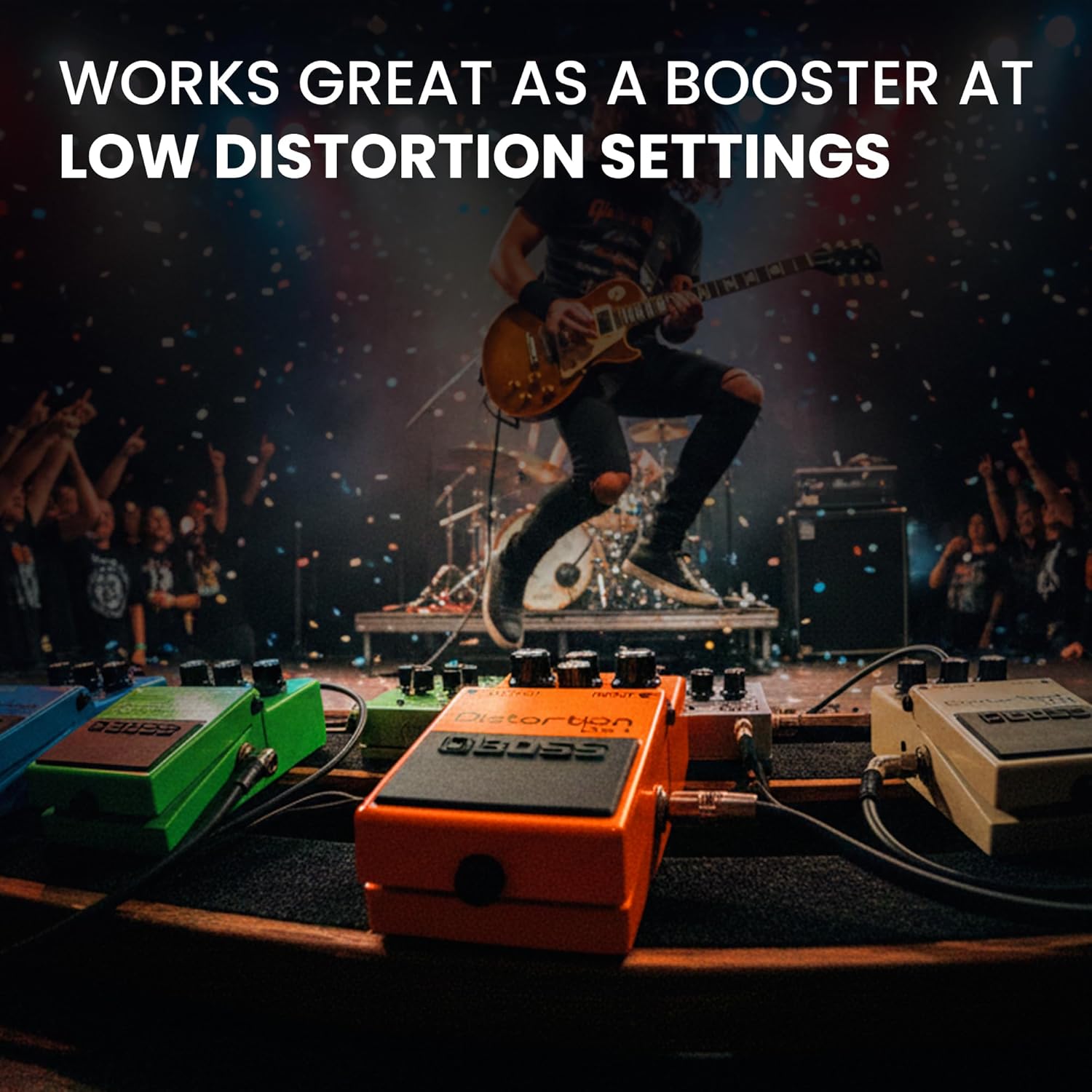

The DS-1 also works effectively as a booster at low distortion settings, driving vintage amplifiers to their limit while keeping the low-end tight and defined.

Image: Visual guide to the Tone knob's effect on high and low frequencies.

6. Опции за напојување

The DS-1 pedal can be powered by two methods:

• 9V Alkaline Battery (6LR61): Provides approximately 80 hours of continuous use.
• 9V Carbon-Zinc Battery (6F22): Provides approximately 50 hours of continuous use.
• AC Adaptor (PSA series): An external power supply is included in this bundle for reliable, plug-and-play performance.

To prolong battery life, ensure the input plug is disconnected when the unit is not in use. Replace the battery if the CHECK indicator LED dims or turns off during operation.

Image: Battery and AC adapter options for powering the pedal.

7. Градежништво

The BOSS DS-1 is built with a compact, all-metal chassis, designed for ruggedness and reliability. Its road-ready construction makes it suitable for demanding use in practice sessions, live gigs, and touring environments.

Image: Pedal on a stage, highlighting its durable, gig-proof design.

8. Спецификации

9. Одржување

To ensure the longevity and optimal performance of your BOSS DS-1 Distortion Pedal, follow these maintenance guidelines:

• Regularly clean the pedal's exterior with the included Austin Bazaar Polishing Cloth.
• Чувајте ја педалата на суво место, подалеку од екстремни температури и влажност.
• Disconnect all cables when the pedal is not in use to prevent battery drain.
• Avoid exposing the pedal to direct sunlight or heat sources.

10 Смена на проблеми

If you encounter issues with your DS-1 pedal, consider the following:

• Нема звук: Check all cable connections (guitar, pedal, amplifier). Ensure the pedal is powered (battery or AC adapter) and the CHECK indicator is lit when engaged. Verify your guitar and ampлифирачите функционираат правилно.
• Weak or Distorted Sound (unintended): Replace the 9V battery if the CHECK indicator is dim. Ensure all cables are in good condition and properly connected. Check the settings of the LEVEL, TONE, and DIST knobs.
• Несакана бучава: Ensure all cables are shielded and in good condition. Try using a different power source or outlet. Move the pedal away from other electronic devices that might cause interference.

11. Гаранција и поддршка

The BOSS DS-1 Distortion Pedal comes with a Петгодишна гаранција, ensuring long-term reliability and performance. For any product inquiries, technical support, or warranty claims, please contact the seller, Austin Bazaar, directly. Their customer service team will be able to assist you with any issues or questions regarding your product.
