WD Elements 500GB Portable External Hard Drive (WDBUZG5000ABK-NESN) User Manual

Вовед

The WD Elements portable hard drive provides reliable, high-capacity storage for your digital files. Designed for portability, it offers fast data transfer rates through USB 3.0 and is backward compatible with USB 2.0 devices. This drive is ideal for backing up photos, videos, and other important documents on the go. It is compatible with both PC and Mac systems, though reformatting may be required for Mac use.

Што има во кутијата

• WD Elements Portable Hard Drive (500GB)
• Кабел USB 3.0
• Водич за брз почеток

Поставување

Follow these steps to set up your WD Elements portable hard drive:

1. Поврзете го дискот: Plug the small end of the included USB 3.0 cable into the USB port on the WD Elements drive.
2. Поврзете се со компјутер: Plug the larger end of the USB 3.0 cable into an available USB port on your computer. For optimal performance, use a USB 3.0 port (often blue). The drive is also compatible with USB 2.0 ports.
3. Првично препознавање: Your computer should automatically detect the drive. For Windows operating systems (Windows 8, 7, Vista, XP), the drive is pre-formatted and ready for use.
4. Компатибилност со Mac: If you are using a Mac, the drive will need to be reformatted for full compatibility. Refer to your Mac's operating system documentation for instructions on how to reformat an external drive using Disk Utility. Забелешка: Реформатирањето ќе ги избрише сите податоци на дискот.

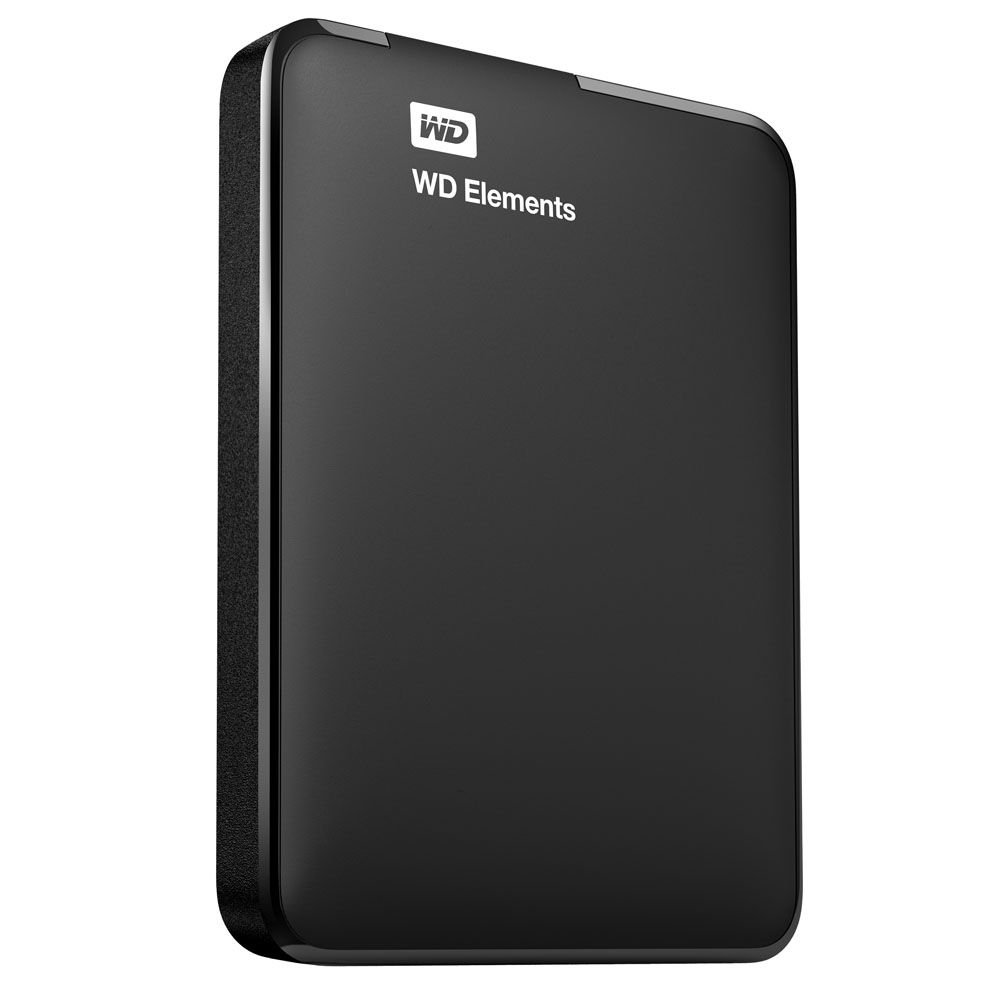

Image: The WD Elements portable hard drive with its USB 3.0 cable, ready for connection to a computer. This illustrates the compact size and simple connection method.

Упатства за работа

Once connected and recognized by your computer, the WD Elements drive functions like any other storage device.

• Пренесување Files: Можете да влечете и пуштате files and folders directly to and from the WD Elements drive using your computer's file истражувач (Windows) или Пронаоѓач (Mac).
• Резервна копија: Use your operating system's built-in backup features or third-party backup software to regularly back up your important data to the drive.
• Безбедно отстранување: Секогаш безбедно извадете го или одмонтирајте го дискот пред да го исклучите од компјутерот за да спречите оштетување на податоците.
  • Windows: Click the "Safely Remove Hardware and Eject Media" icon in the system tray, then select the WD Elements drive.
  • Mac: Drag the drive icon from the desktop to the Trash, or right-click (Control-click) the drive icon and select "Eject".

Одржување

Proper care ensures the longevity and reliability of your hard drive:

• Физичка заштита: Avoid dropping or subjecting the drive to physical shocks, as this can damage internal components.
• Еколошки услови: Држете го погонот подалеку од екстремни температури, директна сончева светлина и висока влажност.
• Чистење: Use a soft, dry cloth to clean the exterior of the drive. Do not use liquid cleaners.
• Редовни бекап: While the drive is designed for reliability, it is good practice to maintain backups of critical data on multiple storage devices.

Решавање проблеми

If you encounter issues with your WD Elements drive, consider the following:

• Не е откриен диск:
  • Осигурајте се дека USB кабелот е безбедно поврзан и со дискот и со компјутерот.
  • Обидете се да го поврзете дискот со друг USB порт на вашиот компјутер.
  • Тестирајте го дискот со друг USB кабел, доколку е достапен.
  • For Mac users, ensure the drive has been correctly reformatted for macOS.
• Бавни брзини на пренос:
  • Verify that you are connected to a USB 3.0 port on your computer for maximum speed. USB 2.0 ports will result in slower transfer rates.
  • Осигурајте се дека драјверите на вашиот компјутер се ажурирани.
• Drive Goes to Sleep / Delays:
  • The drive may enter a low-power sleep mode after a period of inactivity. This is normal behavior to conserve energy.
  • There might be a slight delay when accessing the drive after it has entered sleep mode as it wakes up.
• Корупција на податоци:
  • Always use the "Safely Remove Hardware" (Windows) or "Eject" (Mac) function before disconnecting the drive.
  • If data corruption occurs, you may need to reformat the drive, which will erase all data.

Спецификации

Информации за гаранцијата

Western Digital products are manufactured to the highest standards of quality and reliability. This product is covered by a limited warranty. For detailed information regarding the warranty period, terms, and conditions applicable to your region, please refer to the warranty statement included with your product or visit the official Western Digital webсајт.

Поддршка

For technical support, product registration, or additional resources, please visit the official Western Digital support website. You can find FAQs, troubleshooting guides, software downloads, and contact information for customer service.

Western Digital Support Webсајт: support.wdc.com
