HGST Ultrastar He8 HUH728080ALE604 8TB SATA Hard Drive User Manual

1. Вовед

This manual provides essential information for the installation, operation, and maintenance of your HGST Ultrastar He8 HUH728080ALE604 8TB SATA Hard Drive. The Ultrastar He8 series utilizes HelioSeal technology, replacing air with helium inside the drive to reduce turbulence and enable a seven-disk design within a standard 3.5-inch form factor. This design contributes to industry-leading capacity, improved power efficiency, and enhanced performance for enterprise environments.

Figure 1: HGST Ultrastar He8 8TB SATA Hard Drive, top view.

2. Информации за безбедност

Следете ги следниве безбедносни мерки за да спречите оштетување на погонот и да обезбедите безбедно работење:

• Заштита од електростатско празнење (ESD): Always handle the hard drive by its edges. Wear an anti-static wrist strap or frequently touch a grounded metal object before handling the drive to discharge static electricity.
• Физичко ракување: Avoid dropping or subjecting the drive to sudden impacts. Hard drives are precision instruments and can be damaged by rough handling.
• Напојување: Ensure your power supply unit (PSU) provides stable and sufficient power for the drive. Incorrect voltage or unstable power can damage the drive.
• Вентилација: Install the drive in a well-ventilated area to prevent overheating. Excessive heat can reduce the lifespan of the drive.

3. Содржина на пакетот

Потврдете дека вашиот пакет ги содржи следниве ставки:

• HGST Ultrastar He8 HUH728080ALE604 8TB SATA Hard Drive
• Documentation (this user manual, if provided in print)

Note: SATA data cables, power cables, and mounting screws are typically supplied with your computer system or enclosure and are not usually included with the bare drive.

4. Поставување

4.1 Физичка инсталација

1. Подгответе го вашиот систем: Power off your computer and disconnect the power cord. Open the computer case to access the drive bays.
2. Монтирајте го погонот: Slide the HGST Ultrastar He8 drive into an available 3.5-inch drive bay. Secure the drive with appropriate mounting screws on both sides to prevent vibration.
3. Поврзете кабли:
   • Connect one end of a SATA data cable to the SATA port on the hard drive and the other end to an available SATA port on your motherboard.
   • Поврзете SATA кабел за напојување од вашиот уред за напојување (PSU) со конекторот за напојување на тврдиот диск.
4. Затворете го куќиштето и вклучете го: Close your computer case, reconnect the power cord, and power on your system.

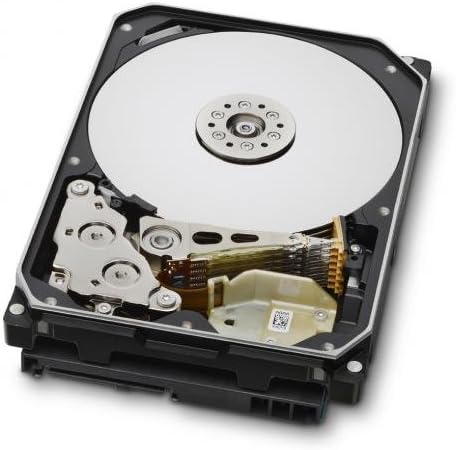

Figure 2: Internal components of the HGST Ultrastar He8, illustrating the platters and read/write head assembly.

4.2 Initial Configuration (Operating System)

По физичката инсталација, дискот треба да се иницијализира, партиционира и форматира од вашиот оперативен систем пред да може да се користи за складирање.

1. Пристап до управување со дискови:
   • Windows: Right-click on the Start button, then select "Disk Management."
   • Linux: Користете алатки како што се fdisk, gparted, или Disks.
   • MacOS: Use "Disk Utility."
2. Иницијализирај диск: The new drive should appear as "Unallocated Space." You may be prompted to initialize the disk. Choose GPT (GUID Partition Table) for drives larger than 2TB.
3. Create New Simple Volume (Partition): Right-click on the unallocated space and select "New Simple Volume." Follow the wizard to define the partition size, assign a drive letter, and format the volume.
4. Форматирајте го дискот: Изберете a file system (e.g., NTFS for Windows, ext4 for Linux, APFS/HFS+ for macOS). Perform a quick format for faster setup, or a full format for a more thorough check (which takes significantly longer).

5. Работење

The HGST Ultrastar He8 is designed for continuous operation in enterprise environments, offering high capacity and reliable performance. Once configured, it functions like any other storage drive within your system.

• Пренос на податоци: Трансфер files to and from the drive using your operating system's file explorer or command-line tools.
• Изведба: The drive operates at 7200 RPM with a SATA 6Gb/s interface, providing fast data access and transfer speeds suitable for demanding applications.
• Моќен менаџмент: Ensure your operating system's power settings are configured appropriately for hard drives, especially in server environments, to optimize power consumption and drive longevity.

6. Одржување

Regular maintenance helps ensure the longevity and reliability of your hard drive and the data stored on it.

• Бекап на податоци: Regularly back up critical data to another storage device or cloud service. No storage device is infallible.
• Следење на состојбата на дискот: Use S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) tools to monitor the drive's health status. Many operating systems and third-party utilities offer this functionality.
• Еколошки услови: Maintain a stable operating environment. Avoid extreme temperatures, high humidity, and excessive vibrations.
• Ажурирања на фирмверот: Periodically check the Western Digital support website for firmware updates for your specific drive model. Firmware updates can improve performance, stability, or address known issues. Exercise caution when performing firmware updates, as an interrupted update can render the drive inoperable.

7 Смена на проблеми

If you encounter issues with your HGST Ultrastar He8 drive, consider the following troubleshooting steps:

• Не е откриен диск:
  • Check all cable connections (SATA data and power) to ensure they are secure.
  • Verify that the SATA port on the motherboard is enabled in the system's BIOS/UEFI settings.
  • Test the drive in a different SATA port or with different cables.
  • Ensure the drive is initialized and formatted in Disk Management (Windows) or equivalent utility (Linux/macOS).
• Бавни перформанси:
  • Проверете дали има процеси во позадина што трошат ресурси на дискот.
  • Ensure the drive is connected to a SATA 6Gb/s port and that the necessary drivers are installed.
  • Monitor drive health using S.M.A.R.T. tools for potential issues.
  • Обезбедете соодветна вентилација за да спречите термичко задушување.
• Невообичаени звуци:
  • Clicking, grinding, or repetitive beeping sounds can indicate a mechanical failure. Immediately back up any accessible data and consider replacing the drive.
  • A slight hum or whirring is normal for a spinning hard drive.
• Корупција на податоци:
  • Стартувај алатки за проверка на грешки на дискот (на пр., chkdsk on Windows, fsck on Linux).
  • Ensure proper system shutdowns to prevent data loss.

8. Спецификации

9. Информации за гаранцијата

The HGST Ultrastar He8 hard drive typically comes with a 3-year seller warranty, covering defects in materials and workmanship under normal use. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact your seller directly.

Standard return policies usually allow for returns or replacements within 30 days of purchase, subject to the seller's terms.

10. Поддршка

For further assistance, technical support, or warranty claims, please contact Western Digital customer support or visit their official webсајт:

• Western Digital Support Webсајт: https://support.wdc.com
• Western Digital Store: Western Digital Store on Amazon

When contacting support, please have your drive's model number (HUH728080ALE604 or 0F23668) and serial number ready.
