Motorola RLN6554A Wireless Remote Speaker Microphone User Manual

1. Вовед

The Motorola RLN6554A Wireless Remote Speaker Microphone (RSM) provides convenient and secure communication for mission-critical users. Designed for use with Motorola APX series radios, this wireless accessory offers enhanced security, quick pairing, and fast Push-To-Talk (PTT) capabilities. Its robust design ensures reliable performance in demanding environments, allowing users to operate without the hindrance of wires.

Key features include large, recessed PTT and emergency buttons to prevent accidental activation, easy quick-touch pairing with voice prompts, and a user-removable battery (PMNN4461) for extended multi-shift usage. The RSM also features volume control, an audio jack for earpieces, a 360-degree rotatable clip, and a task light for low-light conditions.

2. Што има во кутијата

Verify that all items are present upon unpacking your Motorola RLN6554A Wireless Remote Speaker Microphone package:

• Motorola RLN6554A Wireless Remote Speaker Microphone
• Rechargeable Battery (PMNN4461)
• Dual Unit Charger (PMLN6714)
• Адаптер за напојување за полнач
• Вртлива штипка

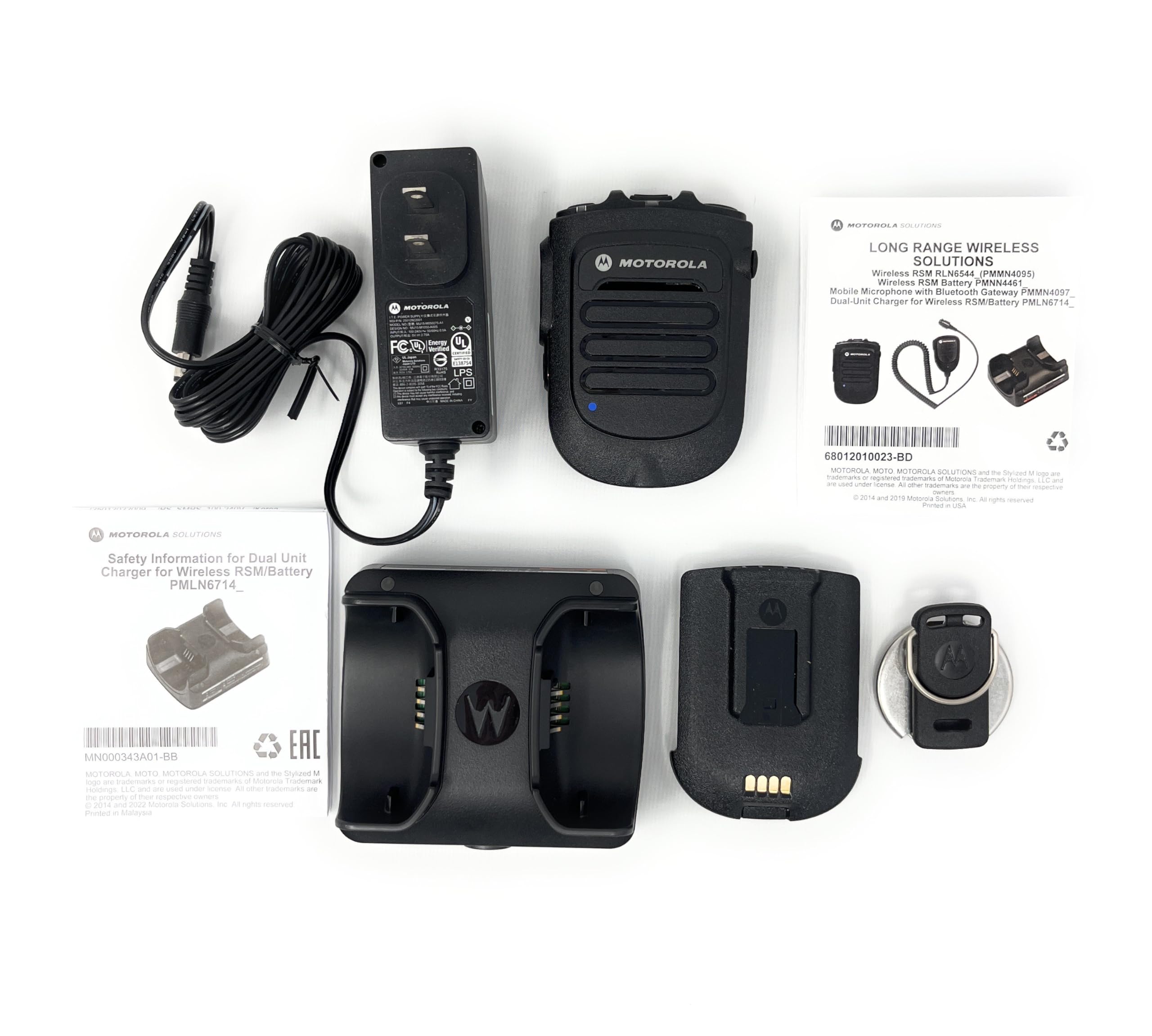

Image 1: Package contents of the RLN6554A Wireless Remote Speaker Microphone. This includes the RSM unit, a dual-unit charger, a power adapter, and a rechargeable battery.

3. Поставување

3.1. Инсталација на батерија

1. Ensure the RSM is powered off.
2. Locate the battery compartment on the back of the RSM.
3. Align the battery (PMNN4461) with the compartment contacts.
4. Нежно турнете ја батеријата на своето место додека не кликне безбедно.
5. Close the battery compartment cover, if applicable, ensuring it is latched.

3.2. Полнење на батеријата

Before first use, fully charge the battery. The dual unit charger (PMLN6714) is designed for this purpose.

1. Connect the power adapter to the dual unit charger and plug it into a power outlet.
2. Place the RSM with the installed battery into one of the charger pockets.
3. Observe the charging indicator light on the charger. It typically glows red during charging and green when fully charged.
4. Целосното полнење може да потрае неколку часа.

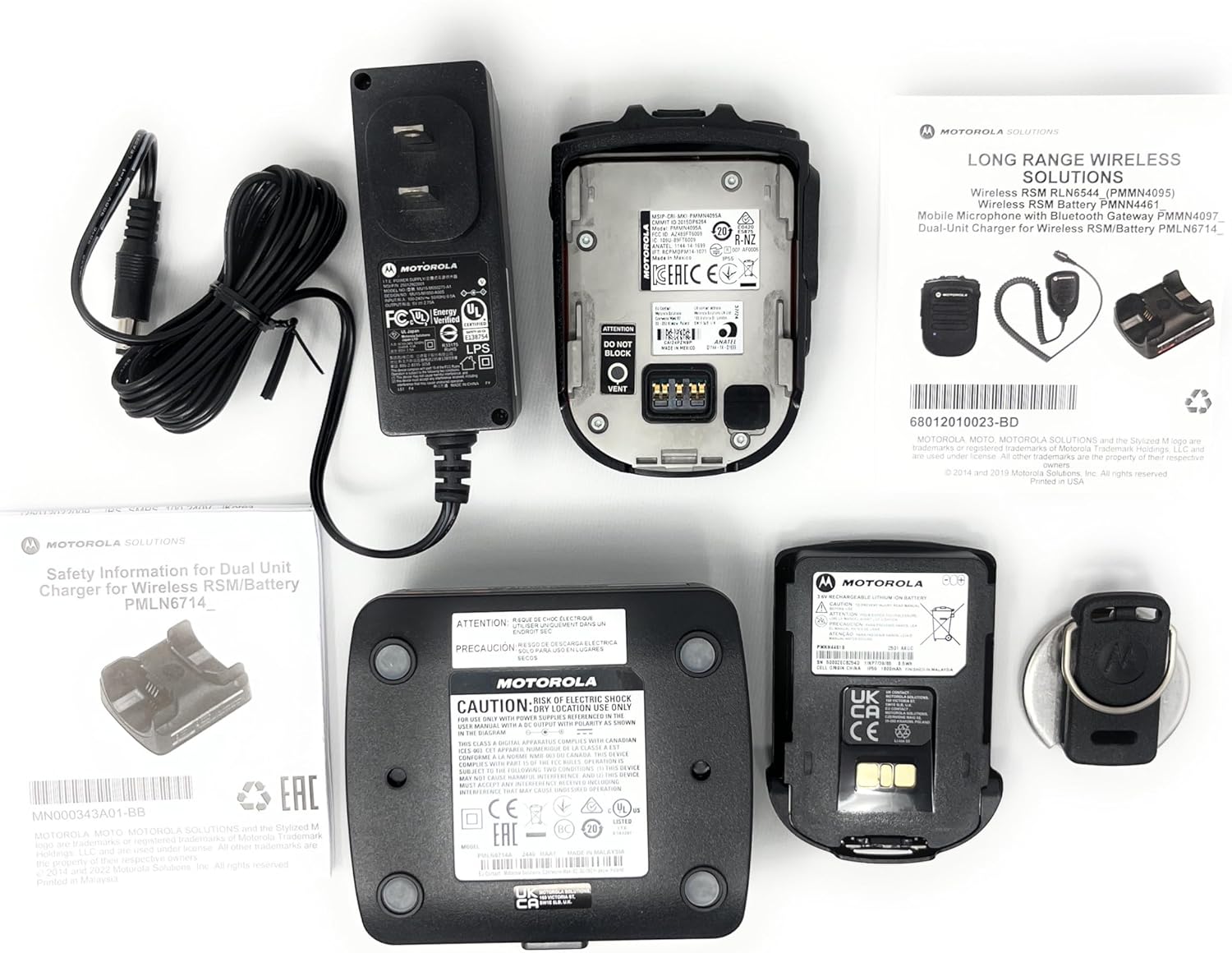

Слика 2: Задна страна view of the RLN6554A RSM, illustrating the battery compartment and contacts for charging.

3.3. Pairing with Your Radio

The RLN6554A uses Bluetooth for wireless communication. Ensure your Motorola APX series radio has Bluetooth enabled before attempting to pair.

1. Enable Bluetooth on Radio: Access your APX radio's menu and ensure Bluetooth is turned on. Refer to your radio's user manual for specific instructions.
2. Power On RSM: Press and hold the power button on the RSM until it powers on.
3. Започнете со спарување: The RSM supports quick-touch pairing. Bring the RSM close to your radio (typically within a few inches). The RSM will provide voice prompts confirming pairing actions.
4. Потврдете го спарувањето: Your radio may display a prompt to confirm the connection. Accept the pairing request. The RSM will indicate successful pairing, often with a voice prompt or LED indicator change.
5. Тест за поврзување: Perform a radio check to ensure audio transmission and reception are functioning correctly through the RSM.

4. Упатства за работа

4.1. Копче Push-To-Talk (PTT).

• To transmit, press and hold the large, recessed PTT button located on the side of the RSM.
• Зборувајте јасно во микрофонот.
• Пуштете го копчето PTT за да слушате.

4.2. Контрола на јачината на звукот

The RSM features dedicated volume control buttons. Use these to adjust the speaker volume of the RSM independently of the radio's main volume.

• Притиснете го Јачина на звук нагоре button to increase the audio output.
• Притиснете го Намалување на јачината на звукот button to decrease the audio output.

4.3. Копче за итни случаи

The recessed emergency button is designed to prevent accidental activation. Consult your radio's programming and your organization's protocols for the specific function of this button.

• To activate the emergency function, press and hold the emergency button for the duration specified by your radio's programming.

4.4. Task Light

The integrated task light assists in reading documents or identifying objects in low-light conditions.

• Locate the task light button on the RSM.
• Press the button to turn the task light on or off.

4.5. Поврзување на слушалки

The RSM includes an audio jack for connecting compatible earpieces (e.g., RLN4941, AARLN4885) for private listening.

• Insert the earpiece's 3.5mm connector into the audio jack on the RSM.
• Audio will automatically route to the earpiece when connected.

5. Одржување

5.1. Чистење

• Wipe the exterior of the RSM with a soft, damp крпа.
• Не користете груби хемикалии, растворувачи или абразивни средства за чистење.
• Ensure the RSM is completely dry before use or charging.

5.2. Нега на батерии

• Use only genuine Motorola PMNN4461 batteries and the provided dual unit charger.
• Избегнувајте изложување на батеријата на екстремни температури.
• If the RSM will not be used for an extended period, remove the battery and store it in a cool, dry place.
• Заменете ја батеријата кога нејзиното работно време значително ќе се намали.

6 Смена на проблеми

7. Спецификации

8. Компатибилност

The Motorola RLN6554A Wireless Remote Speaker Microphone is designed for seamless integration with the following Motorola APX series radios:

• APX 1000 Series
• APX 3000 Series
• APX 4000 Series
• APX 6000 Series
• APX 7000 Series

It is also compatible with earpieces such as the RLN4941 and AARLN4885, which can be connected via the integrated audio jack.

Слика 3: На пр.ample of Motorola APX series radios, which are compatible with the RLN6554A Wireless Remote Speaker Microphone.

9. Гаранција и поддршка

За информации за гаранцијата и техничка поддршка, ве молиме погледнете ги официјалните решенија на Motorola. website or contact your authorized Motorola dealer. Keep your purchase receipt as proof of purchase for warranty claims.

Online resources and contact information can typically be found at the Моторола решенија webсајт.
