1. Вовед
This manual provides essential information for the installation, operation, and maintenance of your Power Acoustik PD-624HB 6.2-inch Double-DIN In-Dash LCD Touchscreen DVD Receiver. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage.
The PD-624HB is a versatile multimedia receiver designed for in-dash installation, featuring a 6.2-inch LCD touchscreen, DVD player, Bluetooth connectivity, and MHL MobileLink X1 compatibility.

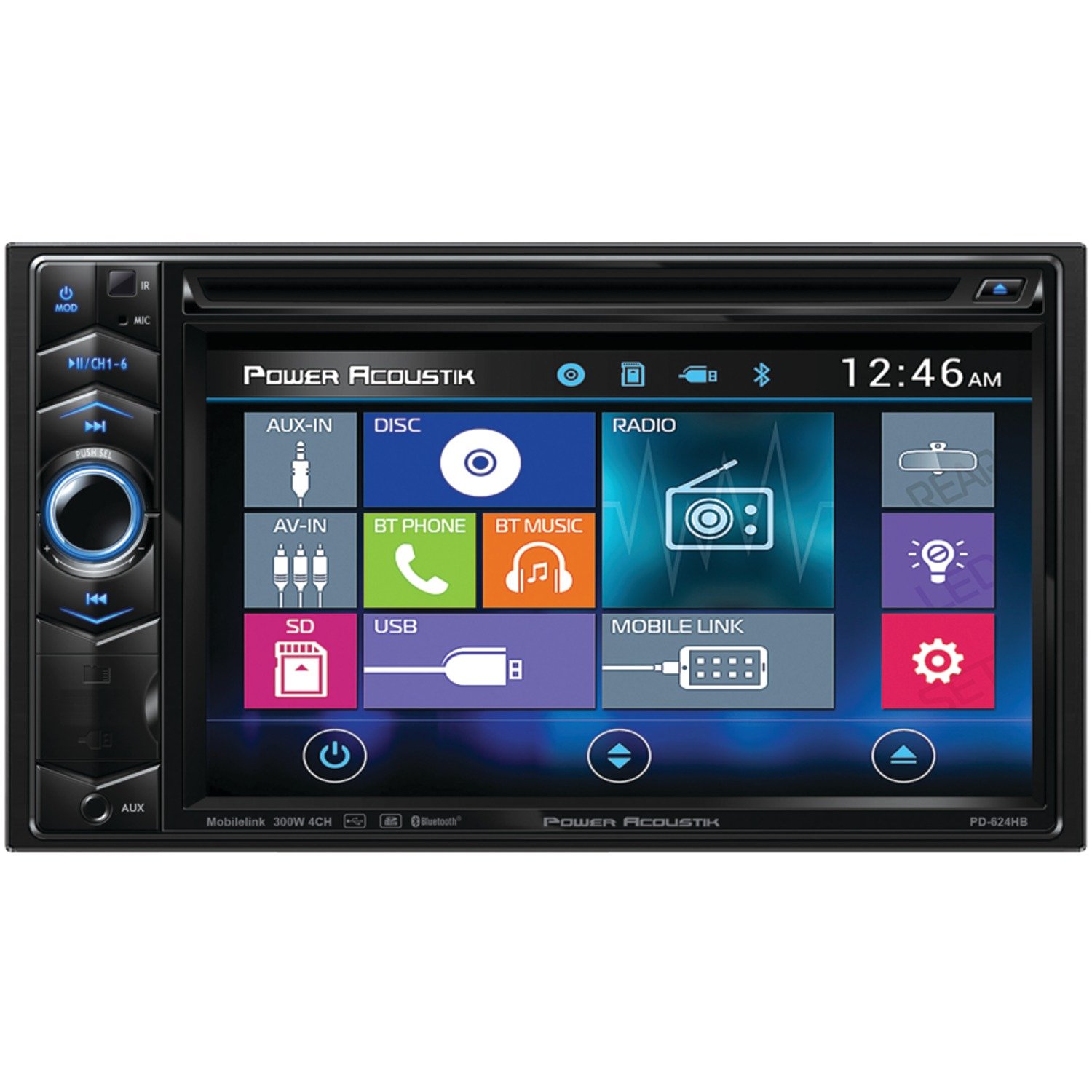

Слика 1.1: напред view of the Power Acoustik PD-624HB receiver, showcasing its 6.2-inch LCD touchscreen and double-DIN form factor for in-dash installation.
2. Поставување и инсталација
Важно: Due to the complexity of automotive electrical systems, professional installation by a qualified technician is highly recommended for this product. Incorrect wiring can lead to damage to the unit, vehicle, or personal injury.
2.1. Монтирање
The PD-624HB is a double-DIN unit. Ensure your vehicle's dashboard opening is compatible with double-DIN dimensions. Secure the unit using the provided mounting hardware and brackets. Refer to your vehicle's specific installation guide for dashboard disassembly and reassembly procedures.
2.2. Приклучоци за жици
Connect the power, ground, speaker, and accessory wires according to the wiring diagram provided in the separate installation guide (not included in this user manual). Ensure all connections are secure and properly insulated to prevent short circuits.
- Моќност (жолта): Connect to constant +12V supply.
- Додаток (црвена): Connect to switched +12V supply (ignition).
- Земјата (црна): Поврзете се со чиста точка за заземјување на шасијата.
- Излези на звучници: Connect to vehicle speakers, observing correct polarity.
- Антена: Поврзете го кабелот за антена на возилото.
- Паркирна сопирачка: Connect to the parking brake circuit for safety features (e.g., video playback).
2.3. Првично вклучување
After all connections are made, turn on your vehicle's ignition. The unit should power on and display the Power Acoustik logo. Follow any on-screen prompts for initial setup, such as language selection or clock settings.
3. Упатства за работа
3.1. Интерфејс на екран на допир
The 6.2-inch LCD touchscreen is the primary interface for controlling the PD-624HB. Tap icons to select functions, swipe to navigate menus, and use on-screen buttons for playback control and settings adjustments.
3.2. DVD/CD Playback
Insert a DVD or CD into the disc slot. The unit will automatically detect the disc and begin playback. Use the on-screen controls for play, pause, skip, and menu navigation. Ensure discs are clean and free of scratches for optimal performance.
3.3. Bluetooth поврзување
За да спарите уред со Bluetooth:
- Овозможете Bluetooth на вашиот мобилен уред.
- На PD-624HB, одете до менито Bluetooth.
- Пребарај за available devices and select "PD-624HB" (or similar name).
- Потврдете го кодот за спарување ако се побара.
Откако ќе се спари, можете да стримувате аудио од вашиот уред. Note: Song titles and artist information may not display on the unit's screen during Bluetooth audio streaming.
3.4. MHL MobileLink X1
Connect compatible MHL-enabled smartphones using an MHL cable (sold separately) to mirror your phone's screen on the PD-624HB display. This allows for control of certain phone applications directly from the receiver's touchscreen.
3.5. Radio Tuner
Select the Radio function to access AM/FM stations. Use the touchscreen to scan for stations, save presets, and switch between bands.
3.6. Аудио поставки
Access the audio settings menu to adjust volume, balance, fader, and equalizer settings. Note: The equalizer functionality is limited to basic treble and bass adjustments. Mid-range or other advanced EQ controls are not available.
4. Одржување
4.1. Чистење на екранот
To clean the LCD touchscreen, gently wipe it with a soft, lint-free cloth. For stubborn smudges, slightly dampen the cloth with water or a screen-safe cleaning solution. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the screen surface.
4.2. Општа нега
- Чувајте го уредот чист од прашина и остатоци.
- Избегнувајте изложување на уредот на екстремни температури или директна сончева светлина подолг период.
- Do not insert foreign objects into the disc slot or any other openings.
- Обезбедете соодветна вентилација околу уредот за да спречите прегревање.
5 Смена на проблеми
If you encounter issues with your PD-624HB, refer to the following common problems and solutions:
| Проблем | Можна причина / решение |
|---|---|
| Нема струја / Уредот не се вклучува. | Check power and ground connections. Verify vehicle's ignition is on. Check fuses. |
| Нема звук. | Check speaker connections. Ensure volume is not muted or set to minimum. Verify fader/balance settings. |
| Bluetooth audio does not display song/artist information. | This unit may not support displaying full metadata (song title, artist) via Bluetooth A2DP for all devices or applications. This is a characteristic of the unit's design. |
| Equalizer only has Treble and Bass adjustments. | The PD-624HB's audio equalizer is designed with basic treble and bass controls only. Advanced multi-band EQ settings are not available. |
| CD/DVD disc does not insert fully or plays incorrectly. | Ensure the disc is inserted correctly with the label side up. Check for obstructions in the disc slot. Use clean, unscratched discs. Do not force the disc. |
| MHL MobileLink screen appears distorted or "goes crazy". | Ensure your smartphone is fully compatible with MHL MobileLink X1 and that the MHL cable is securely connected. Try restarting both the phone and the receiver. Compatibility issues with certain phone models or operating system versions may occur. |
| Екранот на допир не реагира. | Perform a soft reset (refer to the separate installation guide for reset button location, usually a small pinhole). Ensure the screen is clean and free of debris. |
6. Спецификации
| Карактеристика | Детал |
|---|---|
| Број на модел | PD-624HB |
| Тип на дисплеј | ЛЦД-екран на допир |
| Големина на екранот | 6.2 инчи |
| Резолуција | 800 x 480 |
| Сооднос на аспект | 16:9 |
| LED осветленост | 400 NIT |
| Поддршка за типови медиуми | CD, DVD, SD |
| Поврзување | Bluetooth, MHL MobileLink X1 |
| Димензии на производот | 6.2 x 9.1 x 9.5 инчи |
| Тежина на ставката | 2.6 фунти |
| Боја | Црното |
6.1. Што има во кутијата
- 6.2" Double-din In-dash Lcd Touchscreen Dvd Receiver With Bluetooth & Mhl Mobilelink X1
7. Гаранција и поддршка
За информации за гаранцијата, ве молиме погледнете ја гарантната картичка што е вклучена со вашиот производ или посетете ја официјалната страница на Power Acoustik. website. For technical support, product inquiries, or service, please contact Power Acoustik customer service directly. Contact details are typically available on the manufacturer's webлокацијата или во пакувањето на производот.
