Baseus Time Desktop Evaporative Cooler User Manual

1. Вовед

Thank you for choosing the Baseus Time Desktop Evaporative Cooler. This device is designed to provide instant cooling and humidification, enhancing comfort in various environments such as offices, dormitories, and bedrooms. Please read this manual carefully before use to ensure proper operation and maintenance.

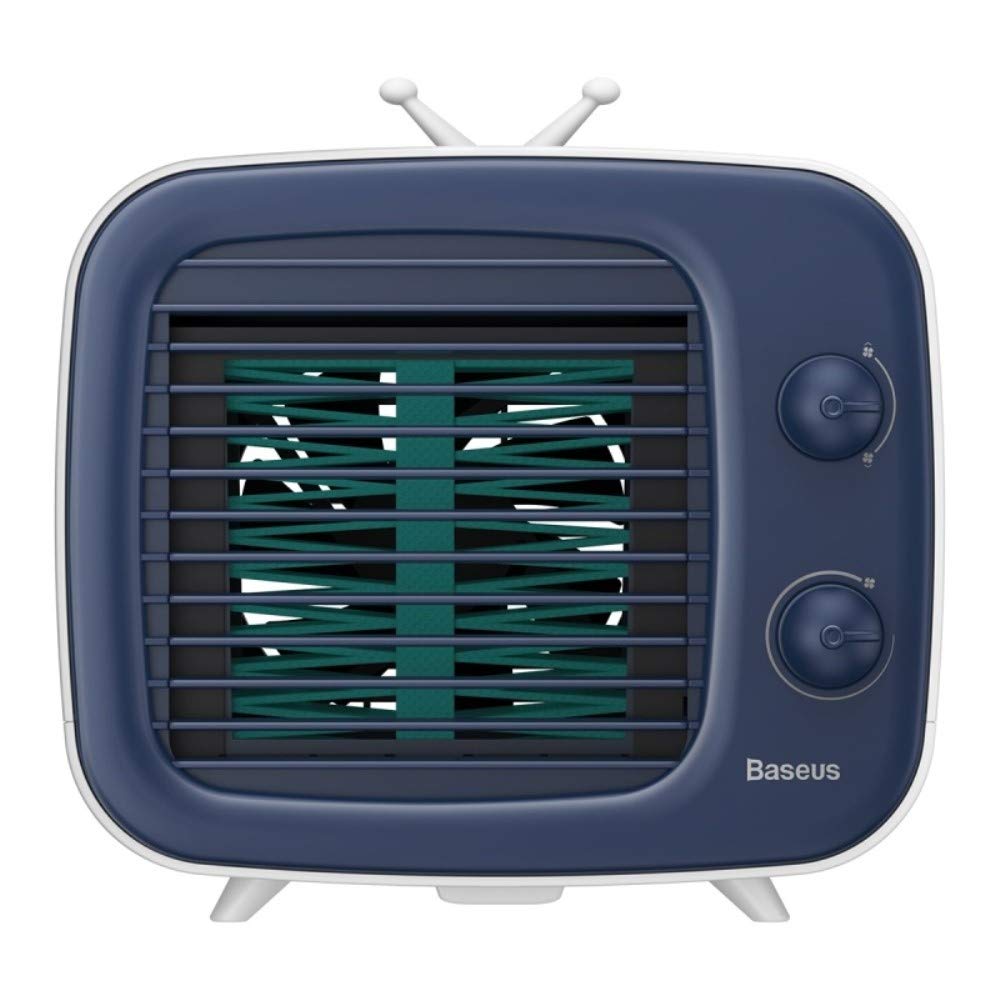

Слика: напред view of the Baseus Time Desktop Evaporative Cooler.

2. Важни безбедносни инструкции

• Always place the cooler on a stable, flat surface to prevent tipping.
• Не го потопувајте уредот во вода или други течности.
• Осигурајте се дека кабелот за напојување не е оштетен и дека е правилно поврзан со соодветен извор на енергија.
• Да се ​​чува подалеку од дофат на деца и домашни миленици.
• Unplug the cooler before cleaning, refilling, or when not in use for extended periods.
• Не блокирајте ги влезовите или излезите за воздух.
• Use only clean water. For enhanced cooling, ice cubes may be added.

3. Содржина на пакетот

Проверете дали сите артикли се присутни во пакувањето:

• Единица за ладење на воздух
• USB кабел

Image: The Baseus Time Desktop Evaporative Cooler and its included accessories, such as the USB cable.

4. Производот завршиview

The Baseus Time Desktop Evaporative Cooler features a compact design with intuitive controls. It operates by drawing in hot air, passing it through a water-soaked curtain for purification and humidification, and then releasing cool, moist air. The device is designed for quiet operation, making it suitable for various personal spaces.

Клучни карактеристики:

• Ладење со испарување: Utilizes water evaporation to cool and humidify the air.
• Прилагодлив проток на воздух: Offers 3 fan speeds and adjustable air supply angles (45° upward, 45° downward, and vertical 90°).
• Тивко работење: Engineered for low noise levels, comparable to a gentle breeze.
• Humidification Function: Adds moisture to the air, beneficial for skin hydration.
• Преносен дизајн: Compact and lightweight for easy placement and movement.

Image: Diagram illustrating the operating principle of the cold fan, showing air intake, water curtain, and cool air output.

5. Поставување

Follow these steps to set up your Baseus Time Desktop Evaporative Cooler:

1. Place the Cooler: Position the cooler on a flat, stable surface in your desired location.
2. Наполнете го резервоарот за вода:
   • Open the top water injection cap.
   • Pour clean water into the tank. The maximum capacity is 320ml. Observe the water level bar to avoid overfilling.
   • For enhanced cooling, you may add ice cubes to the water tank.
   • Optionally, add spray or aromatherapy liquids for a different environment.


   Image: A hand pouring water into the top-fill water tank of the cooler, showing the water level bar.
3. Поврзете напојување:
   • Connect the provided USB cable to the cooler's power input port.
   • Plug the other end of the USB cable into a compatible power source such as a USB charger, computer, power bank, or vehicle USB port.


   Image: Illustration of various power supply options including USB charger, computer, power bank, and vehicle USB.

Image: A visual guide demonstrating the setup steps: 1. Open water injection cap, 2. Insert ice water or ice, 3. Plug in power supply, 4. Turn on and adjust wind.

6. Упатства за работа

Once the cooler is set up and powered, you can begin operation:

1. Вклучување: Turn the lower rotary knob to power on the device.
2. Прилагодете ја брзината на вентилаторот: Use the lower rotary knob to select one of the three fan speeds:
   • Брзина 1: Soft wind for a comfortable breeze.
   • Брзина 2: Medium-speed wind for moderate cooling.
   • Брзина 3: Strong wind for rapid cooling.
3. Прилагодете ја насоката на протокот на воздух: The cooler offers three air supply angles:
   • 45 degrees upward
   • 45 degrees downward
   • Вертикално 90 степени
   Adjust the grille manually to direct the airflow as desired.
4. Навлажнување: The device automatically humidifies the air as it cools. If you added aromatherapy liquids, the scent will also be diffused.

   Image: A woman relaxing near the cooler, highlighting the spray humidification feature.

5. Enhanced Cooling with Ice: If ice cubes were added to the water tank during setup, the cooling effect will be stronger and more immediate.

   Image: A hand adding ice cubes to the cooler, demonstrating how to enhance the cooling effect.

7. Одржување

Regular cleaning ensures optimal performance and longevity of your cooler.

• Чистење на резервоарот за вода: Regularly empty and clean the water tank to prevent mold or mildew buildup. Use a soft cloth and mild detergent if necessary, then rinse thoroughly.
• Cleaning the Water Curtain: The water curtain is removable for cleaning. Carefully remove it and rinse under running water to clean any dust or debris. Ensure it is dry before reinserting.

  Слика: Крупен план view of the removable water curtain, indicating it can be easily cleaned to remove dust.
• Надворешно чистење: Wipe the exterior of the cooler with a soft, damp крпа. Не користете абразивни средства за чистење или растворувачи.
• Складирање: If storing the cooler for an extended period, ensure the water tank and water curtain are completely dry. Store in a cool, dry place.

8 Смена на проблеми

9. Спецификации

Image: Visual representation of the cooler's dimensions (180mm x 164mm x 158mm) and key technical specifications.

10. Гаранција и поддршка

For warranty information or technical support, please refer to the documentation provided with your purchase or contact Baseus customer service through their official webстраница. Зачувајте го доказот за купување за гаранциски побарувања.
