VENUS Lyra Digital 015RD 15-Litre Vertical Storage Water Heater User Manual

1. Вовед

Thank you for choosing the VENUS Lyra Digital 015RD 15-Litre Vertical Storage Water Heater. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read these instructions carefully before using the water heater and retain them for future reference. Proper installation and adherence to these guidelines will ensure optimal performance and longevity of the product.

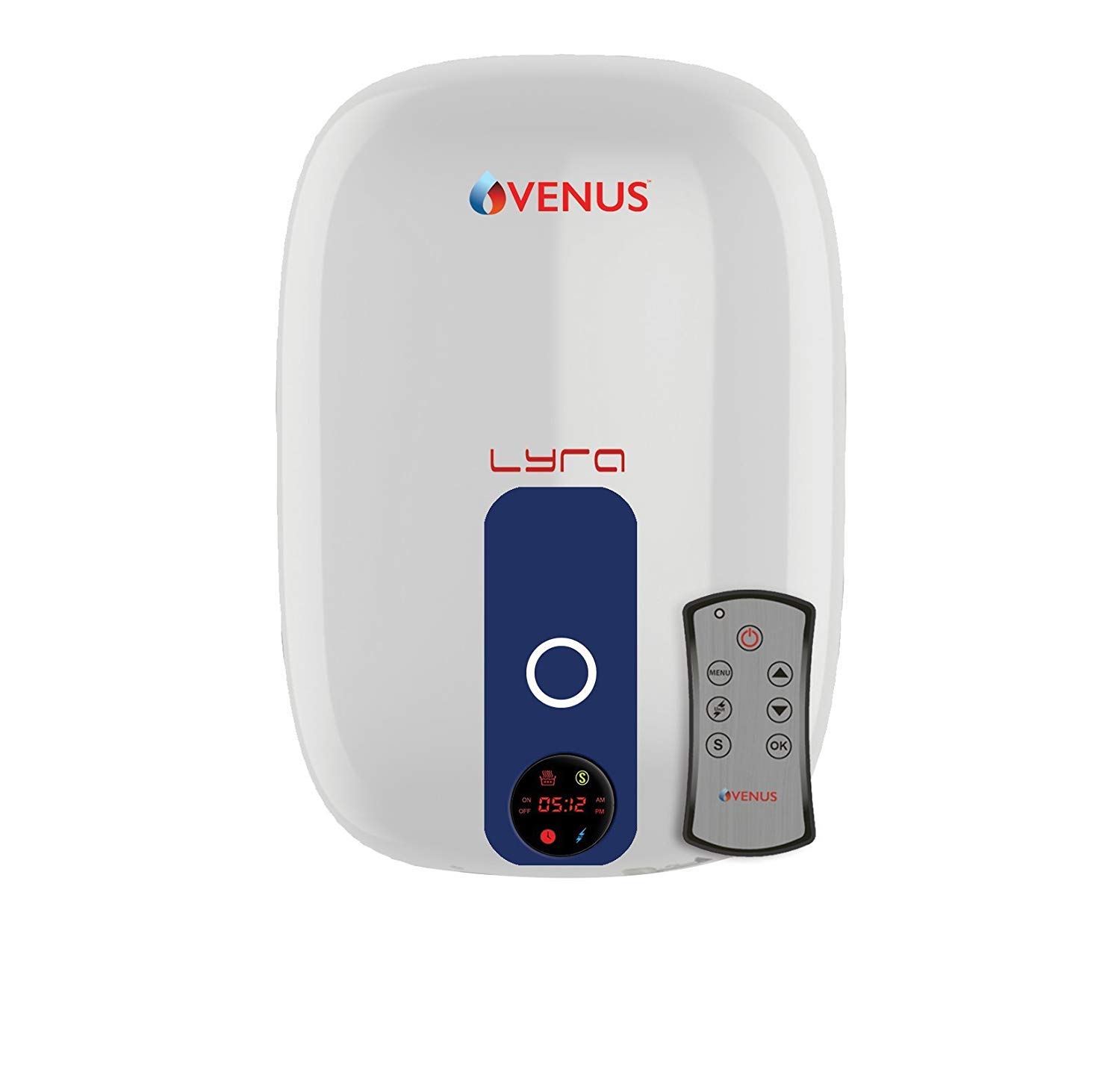

Figure 1: VENUS Lyra Digital 015RD 15-Litre Vertical Storage Water Heater. This image shows the front view of the water heater, highlighting its digital display and white and blue casing.

2. Инструкции за безбедност

Важно: Read all safety warnings and instructions carefully before installation and operation to prevent electric shock, fire, injury, or property damage.

• Ensure the water heater is installed by a qualified technician in accordance with local regulations and safety standards.
• Do not operate the water heater if it is damaged or malfunctioning. Contact customer support immediately.
• Секогаш исклучувајте го напојувањето од струја пред да вршите какво било одржување или чистење.
• Do not block or cover any ventilation openings on the appliance.
• Овој апарат не е наменет за употреба од лица (вклучувајќи деца) со намалени физички, сетилни или ментални способности или недостаток на искуство и знаење, освен ако не им се дадени надзор или инструкции во врска со употребата на апаратот од лице одговорно за нивната безбедност. .
• Децата треба да се надгледуваат за да се осигура дека не си играат со апаратот.
• Бојлерот мора да биде правилно заземјен.
• Не користете продолжни кабли или адаптери со овој апарат.
• Ensure the water heater is always filled with water before switching on the power supply. Operating an empty water heater can cause severe damage.

3. Поставување

3.1 Отпакување

Carefully remove the water heater from its packaging. Inspect the unit for any signs of damage during transit. Retain the packaging materials for future transport or if the unit needs to be returned. Ensure all included components are present: Water Heater, Wall clamp with fitting screws, Remote control, User manual, and Guarantee card.

3.2 Монтирање

The VENUS Lyra Digital 015RD is designed for vertical wall mounting. Choose a suitable location that is structurally sound, close to water supply and drainage, and protected from freezing temperatures. Use the provided wall clamp and fitting screws to securely mount the water heater. Ensure there is adequate space around the unit for maintenance and ventilation.

• Mark the drilling points on the wall using the wall clamp како шаблон.
• Drill holes and insert appropriate wall plugs (if necessary, depending on wall material).
• Securely fasten the wall clamp до ѕидот.
• Carefully lift and hang the water heater onto the wall clamp, ensuring it is stable and level.

3.3 Приклучоци за водовод

Connect the water inlet and outlet pipes to the corresponding ports on the water heater. The inlet is typically marked with blue or 'C' (cold), and the outlet with red or 'H' (hot). Use appropriate plumbing fittings and sealants to ensure leak-free connections. Install a pressure relief valve (PRV) as per local codes, if not already integrated.

3.4 Електрични врски

Ensure the main power supply is switched off before making any electrical connections. Connect the water heater to a dedicated, properly earthed electrical circuit with appropriate voltage and current ratings as specified on the product label. A qualified electrician should perform this step.

3.5 Initial Filling

Before switching on the power, open a hot water tap in your home to allow air to escape from the tank. Then, open the cold water inlet valve to fill the water heater. Wait until water flows steadily from the hot water tap, indicating the tank is full. Close the hot water tap. Check all plumbing connections for leaks.

4. Упатства за работа

4.1 Вклучување/исклучување

Once the water heater is filled with water, switch on the main power supply. The digital display will illuminate. To turn the heating element on or off, use the power button on the unit or the remote control.

4.2 Поставување температура

Use the temperature control buttons (usually '+' and '-') on the unit or remote control to set your desired water temperature. The digital display will show the current water temperature and the set temperature. The heating element will activate until the set temperature is reached, then automatically switch off.

• The color ring on the unit changes from blue to red when the water is completely heated and ready for use.

4.3 Smart Mode and Power Consumption Display

The Lyra Digital 015RD features a smart mode that helps optimize power consumption. Refer to the remote control instructions for activating and customizing smart mode settings. The digital display also shows the power units consumed, allowing you to monitor energy usage.

4.4 Употреба на далечински управувач

The included remote control allows convenient operation from a distance. It can be used to:

• Turn the water heater on/off.
• Прилагодете ја температурата на водата.
• Activate smart mode.
• Set timers for heating cycles (if available on your model).

Ensure the remote control has fresh batteries and is pointed towards the water heater's receiver for optimal functionality.

5. Одржување

Regular maintenance ensures the efficiency and extends the lifespan of your water heater. Always disconnect the power supply before performing any maintenance.

5.1 Надворешно чистење

Исчистете ја надворешноста casing of the water heater with a soft, damp крпа. Не користете абразивни средства за чистење, растворувачи или груби хемикалии, бидејќи тие можат да ја оштетат завршната обработка.

5.2 Испуштање на резервоарот

If the water heater will be out of use for an extended period or if there is a risk of freezing, the tank should be drained. To drain:

• Switch off the power supply to the water heater.
• Затворете го вентилот за влез на ладна вода.
• Отворете славина за топла вода во вашиот дом за да го намалите притисокот.
• Поврзете црево со вентилот за одвод на дното од бојлерот и насочете го кон соодветен одвод.
• Отворете го вентилот за одвод и оставете резервоарот целосно да се испразни.
• Once drained, close the drain valve and hot water tap.

5.3 Инспекција и замена на анодна прачка

The anode rod protects the tank from corrosion. It should be inspected annually and replaced if significantly corroded. This procedure typically requires professional assistance.

5.4 Декалирање

In areas with hard water, mineral deposits (scale) can accumulate inside the tank and on the heating element, reducing efficiency. Descaling should be performed periodically by a qualified technician.

6 Смена на проблеми

Пред да контактирате со службата за корисници, ве молиме погледнете го следното упатство за решавање проблеми за вообичаени проблеми.

7. Спецификации

8. Гаранција и поддршка

The VENUS Lyra Digital 015RD Water Heater comes with a manufacturer's warranty. Please refer to the included Guarantee Card for specific terms, conditions, and duration of the warranty. VENUS assures full warranty even if purchased online.

For technical assistance, service requests, or warranty claims, please contact VENUS customer support:

• Производител: Venus Water Heater
• Број за контакт: 8144666999
• Please have your model number (Lyra 15RD) and purchase details ready when contacting support.
