Важни безбедносни информации
Read and understand all instructions before operating this heater. Failure to follow these instructions may result in fire, explosion, injury, or death. This heater is designed for use in well-ventilated areas only. Never use this heater in living areas or where flammable vapors may be present.
Предлог 65 Предупредување: Овој производ може да ве изложи на хемикалии, вклучително и јаглерод моноксид, кој на државата Калифорнија и е познат дека предизвикува вродени дефекти или друга репродуктивна штета. За повеќе информации одете на www.P65Warnings.ca.gov.
The heater is equipped with an overheat safety shut-off feature and continuous electronic ignition for enhanced safety.
Овој производ е Сертифициран CSA, ensuring it meets applicable safety standards.
Производот завршиview
The DEWALT DXH190HD is a heavy-duty forced air kerosene heater designed for robust performance in demanding environments. It features a durable roll cage, flat-free rubber tires for easy transport, and a rugged two-piece split barrel for simplified cleaning and maintenance. The ergonomic handle and recessed controls further enhance usability and protection on the job site.

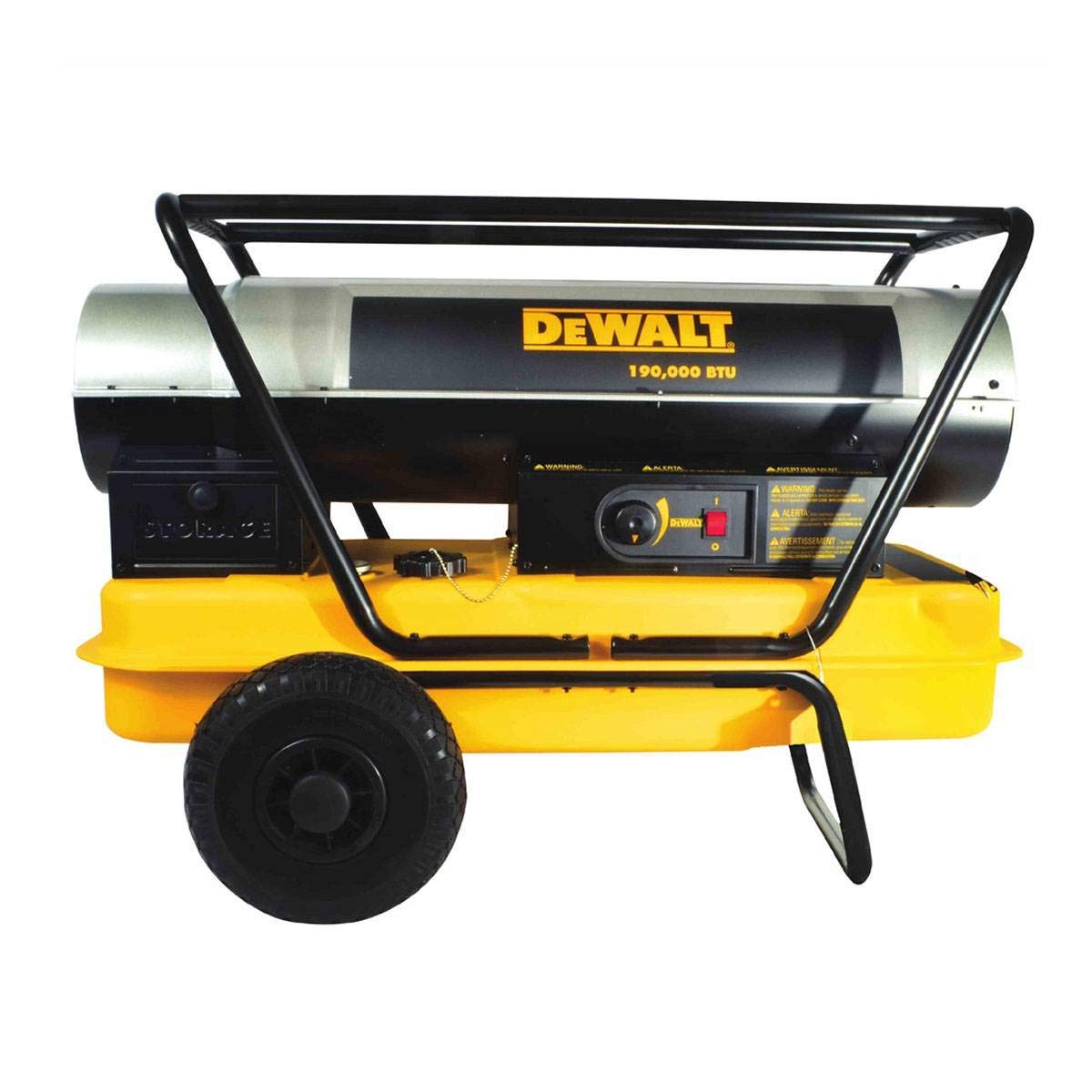

Слика 1: Севкупно view of the DEWALT DXH190HD Forced Air Kerosene Heater, showcasing its robust design with a yellow fuel tank, black roll cage, and large wheels.
Поставување и склопување
- Отпакување: Внимателно отстранете ги сите компоненти од пакувањето. Проверете дали има оштетувања при транспортот.
- Собрание: Minimal assembly is required. Attach the handle and wheels as per the included assembly diagram. Ensure all fasteners are securely tightened.
- Поставување: Position the heater on a stable, level surface in a well-ventilated area. This heater is suitable for construction sites, barns, warehouses, and workshops. Maintain adequate clearance from combustible materials.
- Полнење гориво: This heater is multi-fuel capable. It can operate on Kerosene, Diesel #1 or #2, Heating Oil, or Jet A fuel.
- Ensure the heater is turned off and cool before adding fuel.
- Use a clean funnel to prevent contaminants from entering the fuel tank.
- Не преполнувајте го резервоарот.
- Always use the recommended fuel types. Using improper fuels can damage the heater and void the warranty.
- Поврзување за напојување: Connect the heater to a grounded electrical outlet with the correct voltagе и amperage како што е наведено во спецификациите на производот.

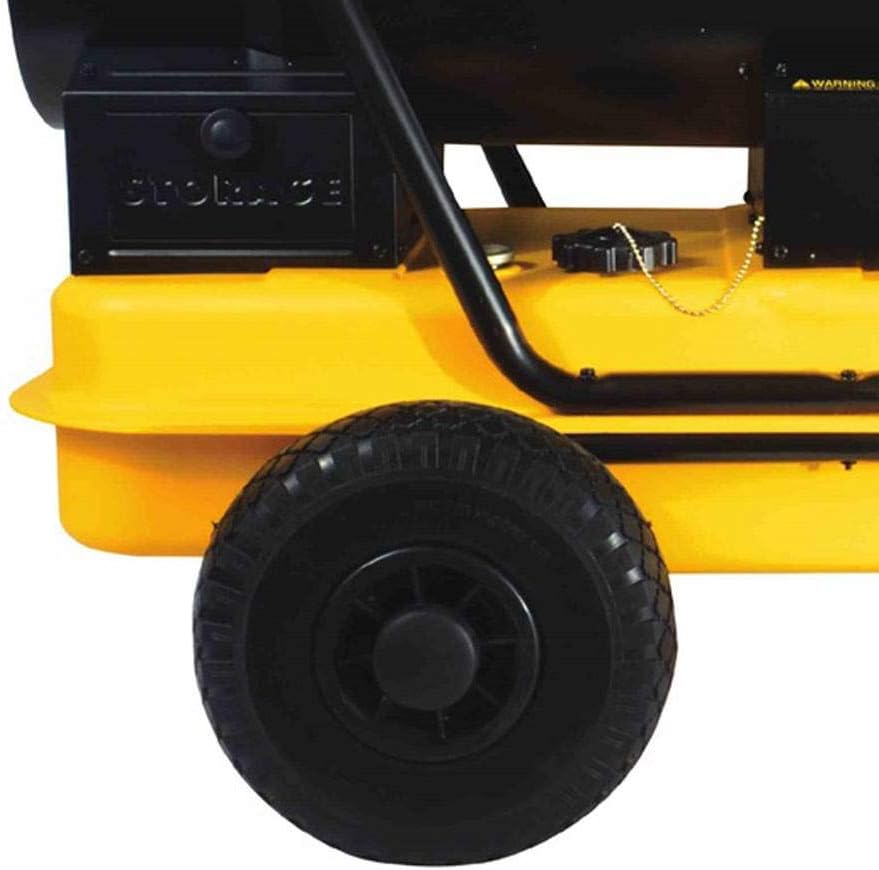

Figure 2: Detail of the flat-free rubber tire, designed for durability and easy maneuverability across various terrains.
Упатства за работа
- Проверка пред операција:
- Verify the fuel tank contains sufficient and correct fuel.
- Осигурајте се дека грејачот е правилно поврзан со извор на енергија.
- Confirm the area is adequately ventilated.
- Check for any obstructions around the heater's air intake or exhaust.
- Стартување на грејачот:
- Turn the thermostat control to the desired heat setting.
- Flip the power switch to the "ON" position. The continuous electronic ignition system will initiate the burner.
- The heater may sputter briefly before a steady flame is established.
- Прилагодување на излезната топлина:
- Use the thermostat control knob to adjust the heat output. The heater will cycle on and off to maintain the set temperature.
- Се исклучува:
- To turn off the heater, flip the power switch to the "OFF" position.
- Оставете го грејачот целосно да се олади пред да го преместите или складирате.
Забелешка за бучавата: This forced air heater produces significant operational noise during use. This is normal for this type of equipment.
Figure 3: The recessed control panel, featuring the power switch and thermostat knob, designed to protect against damage.
Figure 4: The front barrel of the heater, showing the air intake and burner assembly.
Одржување
Regular maintenance ensures optimal performance and extends the life of your heater. Always disconnect the heater from the power supply and allow it to cool completely before performing any maintenance.
- Cleaning the Barrel: The rugged two-piece split barrel design allows for easier access for cleaning. Regularly inspect and clean the interior of the barrel to remove any soot or debris that may accumulate.
- Проверка на системот за гориво: Periodically inspect fuel lines and connections for leaks or damage. If you observe fuel leaking around the filler cap or fuel gauge, ensure they are properly sealed and not damaged.
- Филтер за гориво: Check and clean or replace the fuel filter as recommended in the full service manual (not provided here). A clogged fuel filter can affect performance.
- Прилагодување на протокот на воздух: If switching between different fuel types (e.g., kerosene to diesel), minor adjustments to the fuel pump pressure or airflow may be necessary to ensure clean and efficient burning. Consult a qualified technician if unsure.
- Општо чистење: Keep the exterior of the heater clean and free of dust and debris. Do not spray water directly onto the heater.
Решавање проблеми
Пред да контактирате со корисничката поддршка, повторноview следниве вообичаени проблеми и решенија:
| Проблем | Можна причина | Решение |
|---|---|---|
| Грејачот не се пали или не се пали. | No power, no fuel, clogged fuel filter, ignition system issue. | Check power connection. Ensure sufficient fuel. Inspect and clean fuel filter. If ignition fails, contact support. |
| Heater sputters or sprays raw fuel. | Incorrect fuel pressure, dirty nozzle, air in fuel line, incorrect fuel type. | Verify correct fuel type. Check fuel pressure adjustment screw. Inspect and clean fuel nozzle. Bleed air from fuel line if necessary. |
| Excessive fumes or strong odor. | Insufficient ventilation, incorrect fuel type, improper combustion. | Ensure adequate ventilation. Use recommended fuel. Adjust fuel/air mixture if possible (consult manual or technician). |
| Грејачот се исклучува неочекувано. | Overheat safety engaged, low fuel, power interruption. | Allow heater to cool. Check fuel level. Verify stable power supply. |
If troubleshooting steps do not resolve the issue, please contact DEWALT customer support.
Спецификации
- Број на модел: F340695 (DXH190HD)
- Начин на загревање: Принуден воздух
- Излез на топлина: 190,000 BTU
- Тип на гориво: Multi-fuel (Kerosene, Diesel #1/#2, Heating Oil, Jet A)
- Димензии на производот: 39.75 x 18 x 21 инчи
- Тежина на ставката: 74 фунти
- Безбедносни карактеристики: Overheat Safety Shut-off, Continuous Electronic Ignition
- Сертификати: Сертифициран CSA
Гаранција и поддршка
This DEWALT DXH190HD Forced Air Kerosene Heater comes with a 1 година гаранција од датумот на купување, покривајќи ги дефектите во материјалите и изработката.
For warranty claims, technical assistance, or to purchase replacement parts, please contact DEWALT Customer Support:
- Webсајт: www.dewalt.com/support (Прampлинкот, вистинската врска може да варира)
- Телефон: 1-800-4DEWALT (1-800-433-9258) (Example number, actual number may vary)
Please have your model number (DXH190HD or F340695) and date of purchase available when contacting support.
