Вовед
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Grandeur 811527 Arc Plate Double Dummy with Biarritz Crystal Knob. Please read these instructions carefully before beginning installation to ensure proper function and longevity of your product. This product is designed for doors requiring a push/pull function only, without a latch or locking mechanism.

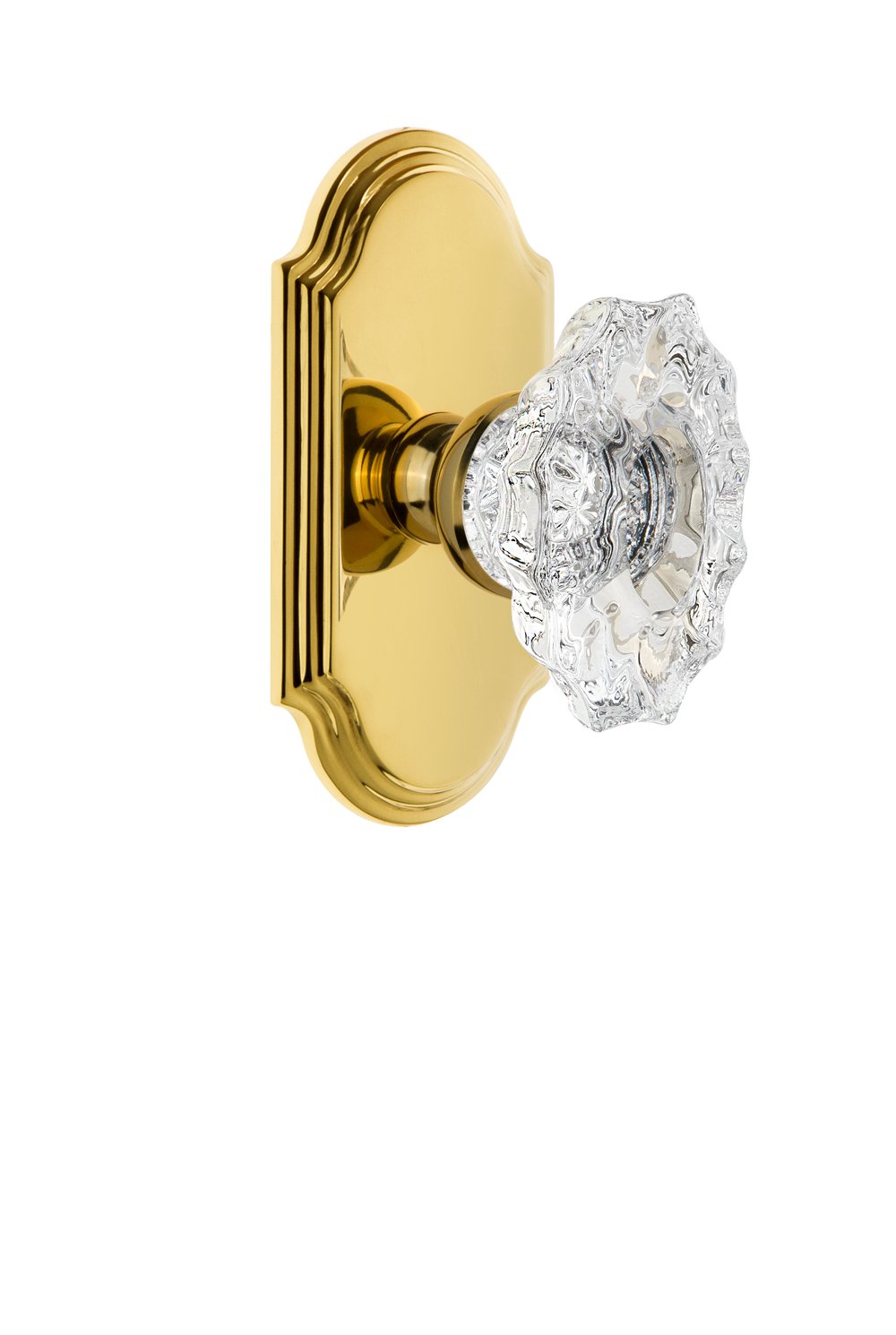

Image of the Grandeur Arc Plate Double Dummy with Biarritz Crystal Knob, showcasing its polished brass finish and crystal knob.
Производот завршиview
The Grandeur 811527 Arc Plate Double Dummy with Biarritz Crystal Knob is a non-functional door hardware set crafted from solid, forged brass. The arc plate features a graceful top curve meeting a waterfall edge, complemented by a Biarritz crystal knob. This double dummy configuration is specifically designed for doors that do not require a latch or lock, providing a decorative and functional push/pull handle.
Клучни карактеристики:
- Constructed from solid, forged brass for enhanced strength and durability.
- Double Dummy design, ideal for doors requiring only push/pull functionality.
- Pre-mounted knobs and levers facilitate straightforward installation.
- Hand assembled in the USA.
Вклучени компоненти:
- Non-functioning door lever/knob for both sides of the door.
- Chosen longplate for both sides of the door.
- Two dummy spindles.
- Завртки за монтирање.
Поставување и инсталација
This double dummy set is designed for surface mounting on doors where no latching or locking mechanism is needed. The knobs and levers come pre-mounted for ease of installation.
Чекори за инсталација:
- Подгответе ја вратата: Ensure the door surface is clean and free of debris. Mark the desired location for the door hardware.
- Position the Arc Plate: Place one arc plate assembly on one side of the door, aligning it with your marked position.
- Insert Dummy Spindles: Insert the dummy spindles through the door from the first arc plate assembly.
- Attach Second Arc Plate: Position the second arc plate assembly on the opposite side of the door, ensuring the dummy spindles engage properly.
- Обезбедете со завртки: Use the provided mounting screws to firmly attach both arc plate assemblies to the door. Ensure the screws are tightened securely but do not overtighten to avoid damaging the door or hardware.
- Тест функционалност: Gently pull and push the knob to ensure it is securely mounted and operates smoothly.
Note: For doors with existing holes, ensure the hardware covers them adequately. If drilling new holes, measure carefully to ensure proper alignment.
Упатства за работа
The Grandeur 811527 Arc Plate Double Dummy with Biarritz Crystal Knob is a non-functional door handle. It does not contain a latch, lock, or any internal mechanism for securing the door. Its sole purpose is to provide a decorative and ergonomic handle for opening and closing a door through a simple push or pull action.
- To open the door, simply pull the knob.
- To close the door, push the door shut.
No special operation or maintenance of internal mechanisms is required as there are none.
Одржување
Proper care will help maintain the finish and appearance of your Grandeur door hardware.
Чистење:
- Користете мека, гamp cloth to wipe down the polished brass and crystal surfaces.
- Avoid abrasive cleaners, harsh chemicals, or polishing agents, as these can damage the finish.
- For the crystal knob, a mild glass cleaner applied to a cloth (not directly to the knob) can be used if necessary, followed by a dry wipe.
Периодична инспекција:
- Периодично проверувајте ги завртките за монтирање за да се осигурате дека се цврсто затегнати. Ако некои завртки се лабави, нежно затегнете ги.
- Inspect the knob and plate for any signs of wear or damage.
Решавање проблеми
As a non-functional dummy set, troubleshooting is generally minimal. Most issues relate to installation.
Заеднички прашања и решенија:
| Проблем | Можна причина | Решение |
|---|---|---|
| Копчето е лабаво или нестабилно. | Завртките за монтирање се лабави. | Tighten the mounting screws on both sides of the door. Do not overtighten. |
| Arc plate is not flush with the door surface. | Неправилна инсталација или нерамна површина на вратата. | Re-check screw alignment and tightness. Ensure no debris is trapped between the plate and the door. |
| Scratches or discoloration on the finish. | Употреба на абразивни средства за чистење или груби хемикалии. | Refer to the Maintenance section for proper cleaning procedures. Damage from improper cleaning is not covered by warranty. |
Спецификации
| Карактеристика | Детал |
|---|---|
| Број на модел | 811527 |
| Тип | Double Dummy Door Knob Set |
| Материјал | Цврст кован месинг |
| Заврши | Полиран месинг |
| Тип на копче | Biarritz Crystal Knob |
| Тежина на ставката | 4.3 фунти (приближно) |
| Димензии на производот | 2.32 x 2.5 x 4.75 инчи (приближно) |
| Апликација | Doors requiring push/pull function only (no latch/lock) |
Гаранција
Овој производ на Grandeur е поддржан од Доживотна механичка гаранција. This warranty covers defects in material and workmanship of the mechanical components for the lifetime of the product under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage resulting from improper installation, misuse, abuse, or the use of improper cleaning agents.
Поддршка
If you have any questions regarding the installation, operation, or maintenance of your Grandeur 811527 Arc Plate Double Dummy with Biarritz Crystal Knob, or if you encounter any issues not covered in this manual, please contact Grandeur customer support. Refer to the product packaging or the official Grandeur webстраница за тековни информации за контакт.
