GROHE Grohtherm SmartControl Thermostatic Push Button Shower Set

Производот завршиview

The GROHE Grohtherm SmartControl Thermostatic Push Button Shower Set offers precise control over your showering experience. This innovative system features SmartControl technology for intuitive operation, allowing you to select spray sources and adjust water volume with push-turn buttons. Integrated GROHE TurboStat technology ensures consistent water temperature, preventing sudden fluctuations. For safety, the GROHE SafeStop override button limits the maximum temperature to 38°C, with an optional SafeStop Plus limiter for 43°C. The set includes a concealed SmartControl thermostat, a Rainshower 310 SmartActive round head shower (with 400mm arm and rough-in box) offering two spray options, a Euphoria Cosmopolitan Stick hand shower and holder, and a Silverflex twist-free shower hose.

Figure 1: Installed GROHE Grohtherm SmartControl shower set in a modern bathroom.

Поставување и инсталација

The GROHE Grohtherm SmartControl system is designed for concealed installation. It requires the GROHE Rapido SmartBox for proper setup. The QuickFix system facilitates a swift and straightforward installation process. Professional installation is recommended to ensure optimal performance and adherence to local plumbing codes.

Figure 2: Various components included in the GROHE Grohtherm SmartControl shower set, including the concealed box, trim, head shower, and hand shower.

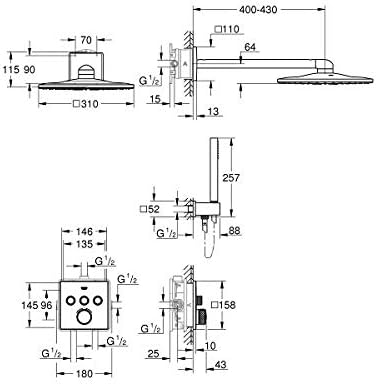

Figure 3: Technical diagram illustrating dimensions and connections for the shower system components.

Потребни компоненти за инсталација:

• Grohtherm Smart Control Thermostat (included)
• Rainshower 310 SmartActive Head Shower with 400mm arm (included)
• Euphoria Cosmopolitan Stick Hand Shower and holder (included)
• Silverflex Twist-Free Shower Hose (included)
• GROHE Rapido SmartBox for installation (included)

Чекори за инсталација (резиме):

1. Install the GROHE Rapido SmartBox into the wall according to the detailed instructions provided with the SmartBox.
2. Connect the water supply lines (hot and cold) to the SmartBox.
3. Install the head shower arm and head shower.
4. Install the hand shower holder and connect the Silverflex hose to the hand shower and the SmartBox outlet.
5. Mount the SmartControl trim set onto the installed SmartBox, ensuring all connections are secure and watertight.

Упатства за работа

The SmartControl technology provides intuitive control over your shower. The system features push-turn buttons for selecting spray sources and adjusting water volume, and a central dial for temperature control.

Water Flow and Spray Selection:

• To start the shower, push the desired button for the spray source (e.g., head shower or hand shower).
• Turn the button to adjust the water volume.
• Push the button again to pause or stop the water flow. Your selected water volume is preset for the next use.
• To use the hand and head shower simultaneously, simply activate both buttons.
• The head shower offers two spray options: the soft GROHE Pure Rain spray and the invigorating GROHE Active Rain pattern. These can be used separately or combined.

Контрола на температурата:

• The central dial controls the water temperature.
• Integrated GROHE TurboStat technology prevents sudden temperature changes, maintaining your desired temperature.
• GROHE SafeStop: This safety feature is set at 38°C to prevent scalding. To select higher temperatures, push the override button on the dial.
• GROHE SafeStop Plus (Optional): An additional temperature limiter can be set to ensure the temperature does not exceed 43°C.

Одржување и нега

To maintain the dazzling, durable GROHE Starlight chrome finish and ensure the longevity of your shower set, follow these cleaning guidelines:

• Use only mild soap and water for regular cleaning.
• Wipe surfaces with a soft cloth to prevent water spots and maintain shine.
• Избегнувајте: Abrasive sponges, scouring agents, organic solvents, acidic cleaners, limescale removers, household vinegar, or cleaners containing acetic acid. These products can damage the chrome finish.

Решавање проблеми

If you encounter any issues with your GROHE Grohtherm SmartControl shower set, please refer to the comprehensive troubleshooting guide available on the official GROHE website or contact customer support. Common issues may include:

• Неконзистентна температура на водата: Check the hot and cold water supply to the unit. Ensure the TurboStat technology is functioning correctly.
• Низок притисок на вода: Verify that water supply valves are fully open. Check for any blockages in the showerheads or hose.
• Протекување: Inspect all connections for tightness. If leaks persist, professional assistance may be required.

Спецификации

Гаранција и поддршка

Информации за гаранцијата:

Овој производ е покриен со а 5 година гаранција од производителотВе молиме задржете го доказот за купување за гаранциски барања.

Поддршка за корисници:

For further assistance, technical support, or warranty inquiries, please visit the official GROHE website or contact their customer service department. Contact details can typically be found on the GROHE webна локацијата или во материјалите за пакување.
