Ergotron MXV Single Monitor Arm Instruction Manual

Вовед

This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your Ergotron MXV Single Monitor Arm. Please read this manual thoroughly before beginning installation to ensure proper setup and to maximize the benefits of your monitor arm. This product is designed to enhance your workspace ergonomics by providing flexible monitor positioning.

Информации за безбедност

Always follow these safety guidelines to prevent injury or damage to the product and equipment:

• Ensure the mounting surface (wall stud) is structurally sound and capable of supporting the combined weight of the monitor arm and your monitor.
• Do not exceed the maximum weight capacity of 20 lbs (9.1 kg) for the monitor arm.
• Verify that your monitor is compatible with VESA mounting patterns 75x75mm or 100x100mm.
• Use all provided hardware and tools as instructed. Do not substitute parts.
• Држете ги децата и домашните миленици подалеку од местото на инсталација.
• Adjust the arm tension carefully to match your monitor's weight. Improper tension can cause the monitor to move unexpectedly.

Содржина на пакетот

Пред инсталацијата, проверете дали сите компоненти се присутни:

• MXV Single Monitor Arm assembly
• Основа за монтирање на ѕид
• Mounting hardware kit (screws, washers, anchors)
• Водич за инсталација (овој документ)

Поставување и инсталација

Follow these steps to install your Ergotron MXV Single Monitor Arm:

1. Подгответе ја површината за монтирање: Identify a sturdy vertical surface, preferably a wood stud, for mounting. Ensure there are no electrical wires or plumbing in the wall at the drilling location.
2. Attach Wall Mount Base: Position the wall mount base at the desired height. Mark the drilling locations. Drill pilot holes as specified in the included hardware instructions. Secure the wall mount base to the wall using the provided screws and anchors.
3. Install Monitor Arm onto Base: Slide the monitor arm assembly onto the secured wall mount base. Ensure it clicks into place or is fastened according to the specific instructions for your model.
4. Attach Monitor to VESA Plate: Carefully attach your monitor to the VESA mounting plate on the arm. Align the VESA holes on the back of your monitor with the holes on the arm's VESA plate. Secure the monitor using the appropriate screws from the hardware kit.

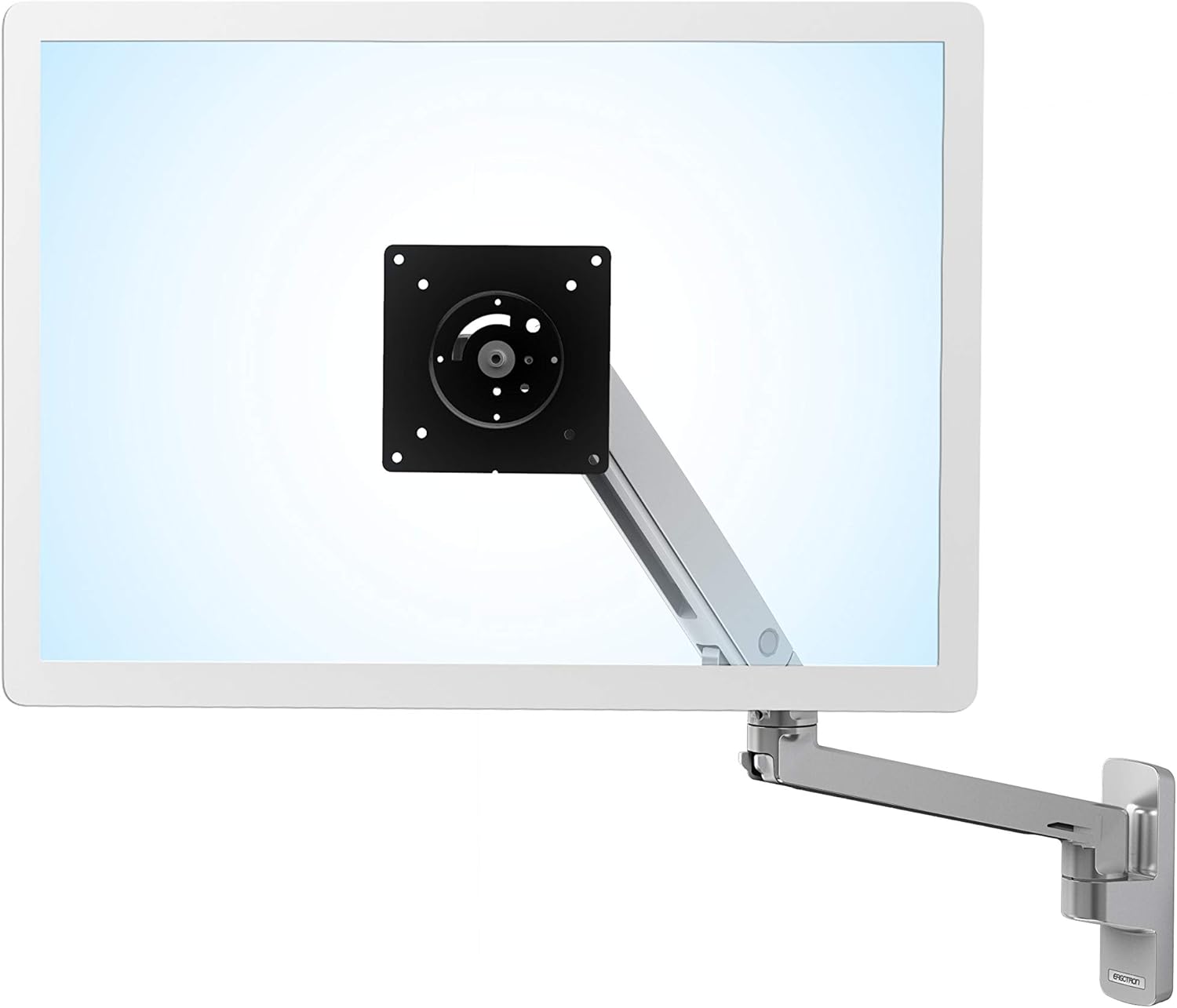

Слика: Заден дел view of a monitor with the Ergotron MXV arm's VESA plate attached, illustrating the VESA mounting process.

Image: The Ergotron MXV Single Monitor Arm installed on a wall, supporting a monitor.

5. Adjust Arm Tension: The arm's tension may need adjustment to properly support your monitor's weight. Use the provided tool to turn the tension adjustment screw until the monitor stays in place when moved, but can still be adjusted smoothly.
6. Управување со кабли: Протнете ги каблите на мониторот низ интегрираните канали за управување со кабли на рачката за да одржите уреден работен простор.

Image: Integrated cable management on the MXV monitor arm.

Упатства за работа

The Ergotron MXV Single Monitor Arm offers extensive adjustability for optimal viewудобност:

• Прилагодување на висината: Нежно притиснете или повлечете го мониторот нагоре или надолу за да го постигнете посакуваното viewвисина.
• Проширување и повлекување: The arm provides 24.6 inches (62.5 cm) of horizontal extension. Pull the monitor forward or push it back to adjust viewing distance. The arm can fold within 4.4 inches (11.2 cm) of the wall to free up space.
• Навалување: Tilt the monitor screen up or down by 180 degrees to reduce glare and find the best angle.
• Завртување: Swivel the monitor left or right by 360 degrees at the arm base and monitor pivot point.
• Ротација: Rotate the monitor from landscape to portrait mode as needed.

Image: The MXV monitor arm extended, showcasing неговиот опсег на движење.

Одржување

To ensure the longevity and proper function of your monitor arm:

• Чистење: Избришете ги површините на рачките со мека, дamp крпа. Избегнувајте абразивни средства за чистење или растворувачи.
• Периодични проверки: Периодично проверувајте ги сите завртки и врски за да се осигурате дека се безбедни. Затегнете ги повторно доколку е потребно.
• Прилагодување на затегнатоста: If the monitor sags or is difficult to move, re-adjust the arm tension as described in the Setup section.

Решавање проблеми

Доколку наидете на проблеми со рачката на мониторот, погледнете ги следните вообичаени проблеми и решенија:

• Мониторинг на опаѓања или поместувања: The arm tension is too low for the monitor's weight. Increase the tension using the adjustment screw.
• Мониторот е тешко да се помести: The arm tension is too high. Decrease the tension using the adjustment screw.
• Arm Feels Loose on Wall Mount: Ensure the arm is fully seated on the wall mount base and any locking mechanisms are engaged. Check that the wall mount base screws are securely fastened to the wall.
• Мониторот не е на ниво: Adjust the tilt mechanism at the VESA plate to level the screen.

Спецификации

Информации за гаранцијата

Ergotron products are built to last and are backed by extensive quality testing. The Ergotron MXV Single Monitor Arm includes a 10 година гаранција, ensuring your display remains stable and secure for years to come. For detailed warranty terms and conditions, please refer to the official Ergotron webсајт или контактирајте со поддршката за корисници.

Поддршка за корисници

За техничка помош, решавање проблеми или барања за гаранција, посетете ја официјалната поддршка на Ergotron. website or contact their customer service department. You can find contact information and frequently asked questions on the Ergotron webсајт: www.ergotron.com/support
