Power Acoustik DVALT Lane Departure, Front Collision Warning System with DVR

1. Вовед

The Power Acoustik DVALT is a comprehensive driver assistance system designed to enhance road safety. This device integrates a Lane Departure Warning System (LDWS), a Forward Collision Warning System (FCWS), and a Digital Video Recorder (DVR) to provide real-time alerts and incident recording.

The system aims to assist drivers by monitoring road conditions and providing timely warnings, contributing to a safer driving experience. The integrated DVR function records video and audio, serving as a valuable record in case of an incident.

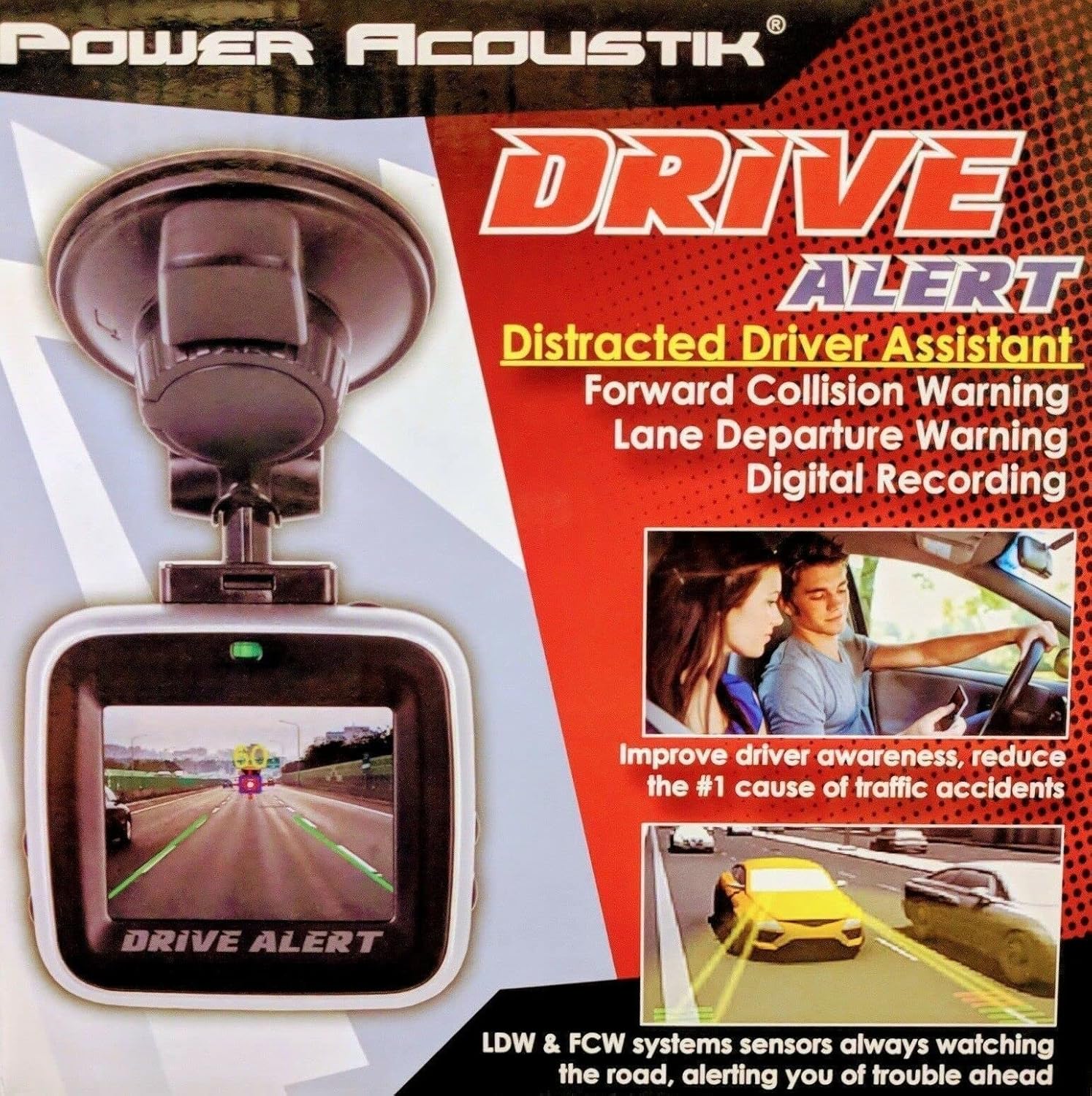

Image: The Power Acoustik DVALT device, illustrating its compact design, suction cup mount, and on-screen display of active warning systems.

2. Содржина на пакетот

Ве молиме проверете дали сите артикли наведени подолу се присутни во вашиот пакет:

• Power Acoustik DVALT System
• Window Mount Bracket
• Адаптер за напојување за запалка
• USB кабел

3. Поставување и инсталација

1. Монтирање на уредот:

   Attach the window mount bracket to the Power Acoustik DVALT System. Select a suitable location on your vehicle's windshield that does not obstruct your view of the road. Ensure the camera has a clear, unobstructed view forward. Securely attach the suction cup mount to the windshield.
2. Поврзување за напојување:

   Connect the cigarette lighter power adapter to the DVALT system and then plug it into your vehicle's 12V power outlet. Ensure the connection is secure. The device requires continuous power for operation and to retain settings.

3. Initial Power On and Settings:

   Upon first power-on, the device may prompt you to set the date and time. Navigate through the on-screen menu using the device controls to adjust these settings. It is crucial to set the correct date and time for accurate recording timestamps.

4. MicroSD Card Installation (Sold Separately):

   Insert a compatible microSD card (Class 10 or higher, maximum capacity specified in specifications) into the designated slot on the device. The device will use this card for video and audio recording. Format the card through the device's menu before first use.

4. Упатства за работа

4.1. Систем за предупредување за напуштање лента (LDWS)

The LDWS monitors lane markings on the road. If the vehicle begins to drift out of its lane without the turn signal activated, the system will issue an audible and/or visual warning. This feature is designed to prevent accidents caused by driver fatigue or distraction.

• Активирање: The LDWS typically activates automatically when the vehicle speed exceeds a certain threshold (e.g., 30 mph or 50 km/h).
• Чувствителност: Check the device settings for options to adjust LDWS sensitivity. Higher sensitivity may result in more frequent warnings, especially on narrow or winding roads.

4.2. Систем за предупредување за преден судир (FCWS)

The FCWS detects the distance and closing speed to vehicles ahead. If the system determines that a collision is imminent, it will provide an alert to the driver, allowing time to react. This system is particularly useful in reducing the risk of rear-end collisions.

• Активирање: FCWS operates continuously while the vehicle is in motion.
• Warning Types: Warnings may include audible beeps and visual indicators on the device screen.

4.3. Digital Video Recorder (DVR)

The integrated DVR continuously records video footage of the road ahead. In the event of an impact or sudden braking, the device's G-sensor will automatically lock the current recording, preventing it from being overwritten. This ensures critical footage е зачувано.

• Снимање на јамка: The DVR records in continuous loops, overwriting the oldest unprotected files кога мемориската картичка е полна.
• Снимање настан: G-sensor activated recordings are stored in a separate, protected folder.
• Аудио снимање: The device also records in-cabin audio. This feature can usually be toggled on or off in the settings menu.
• Репродукција: Снимено нештоtage може да биде реviewed directly on the device's screen or by removing the microSD card and viewвнесете го на компјутер.

4.4. Навигација во менито

Use the physical buttons on the device to navigate through the on-screen menu. Typically, there are buttons for 'Menu', 'Up', 'Down', and 'OK'/'Confirm'. While the device supports voice control, primary menu navigation is performed via physical buttons.

5. Одржување

• Чистење: Use a soft, dry cloth to clean the device's screen and lens. Avoid abrasive cleaners or solvents that could damage the surfaces.
• Температура: Do not expose the device to extreme temperatures for extended periods. High heat can damage internal components and the battery.
• Ажурирања на фирмверот: Периодично проверувајте ги упатствата на производителот webстраница за сите достапни ажурирања на фирмверот. Ажурирањата можат да ги подобрат перформансите и да додадат нови функции.
• MicroSD картичка: Regularly format the microSD card (e.g., once a month) to maintain optimal recording performance and prevent data corruption. Back up any important files пред форматирање.

6 Смена на проблеми

7. Спецификации

8. Гаранција и поддршка

For warranty information, technical support, or service inquiries, please refer to the documentation included with your purchase or visit the official Power Acoustik webстраница. Зачувајте го доказот за купување за гаранциски побарувања.

Производител: Power Acoustik

Прво достапен датум: 21 март 2018 година
