APC SMC1500IC Line-Interactive 1500VA UPS Instruction Manual

1. Вовед

The APC SMC1500IC Line-Interactive 1500VA Uninterruptible Power Supply (UPS) provides reliable power protection for your electronic devices. It delivers pure sine wave output, essential for servers with active power factor corrected (PFC) power supplies, and offers network-grade power conditioning to safeguard against damaging surges and disruptive noise. This UPS ensures continuous operation during power outages and allows for graceful system shutdowns, protecting your valuable equipment and data.

Image: The APC SMC1500IC UPS unit, a compact black device with an LCD screen, positioned next to a black briefcase on a carpeted floor, illustrating its size and typical office environment use.

2. Информации за безбедност

Please read and understand these safety instructions before installing or operating the UPS. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Електрична безбедност: Оваа единица содржи опасни томtages. Do not attempt to disassemble the UPS. Servicing should only be performed by qualified personnel.
• Безбедност на батеријата: The UPS contains a sealed lead-acid battery. Do not dispose of batteries in a fire as they may explode. Do not open or mutilate batteries. Released electrolyte is harmful to the skin and eyes.
• Околина за инсталација: Install the UPS indoors in a controlled environment, away from excessive moisture, direct sunlight, heat sources, or conductive contaminants. Ensure adequate ventilation around the unit.
• Заземјување: The UPS must be connected to a grounded AC power outlet.
• Капацитет на носивост: Do not overload the UPS. Ensure the total power draw of connected equipment does not exceed the UPS's rated output capacity.

3. Производот завршиview

Familiarize yourself with the components of your APC SMC1500IC UPS.

Преден панел

Слика: Детална предна страна view of the APC SMC1500IC UPS, highlighting the central LCD display panel and the power button below it. The unit is black with ventilation grilles on the sides.

• LCD дисплеј: Provides real-time status information, configuration options, and alerts.
• Копчиња за навигација: Used to navigate menus and adjust settings on the LCD.
• Копче за вклучување: Го контролира напојувањето до UPS-от и поврзаната опрема.

Заден панел

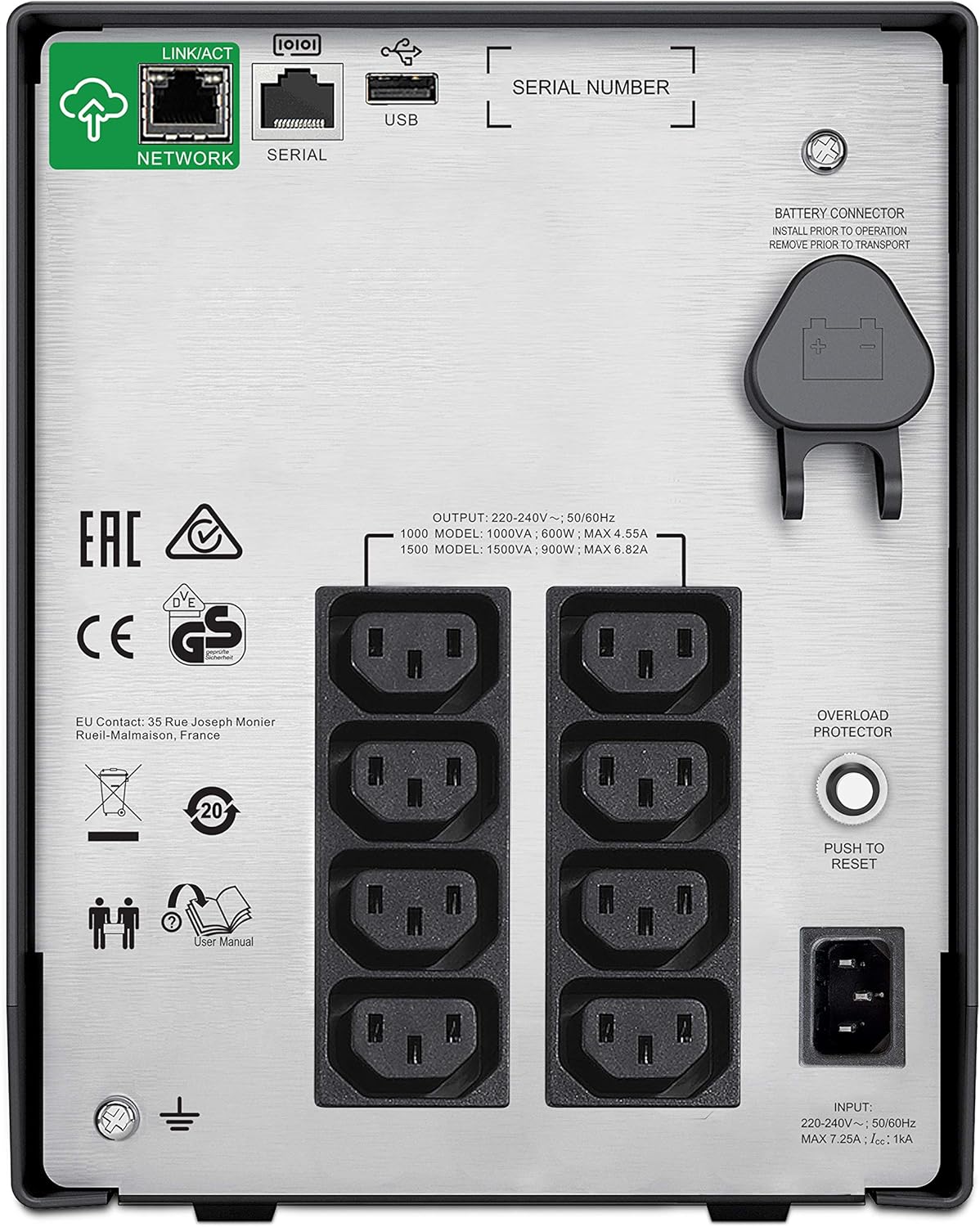

Image: The rear panel of the APC SMC1500IC UPS, displaying multiple AC power outlets, a network port, a serial port, a USB port, an overload protector button, and the battery connector.

• Приклучоци за наизменична струја: Provide battery backup and surge protection for connected devices.
• Network Port (RJ45): For network management and SmartConnect functionality.
• Сериски порт (RJ45): For direct communication with a computer or server.
• USB порта: For communication with a computer or server.
• Конектор за батерија: Connects the internal battery to the UPS.
• Заштитник од преоптоварување: A resettable circuit breaker.
• Влезен кабел за напојување: Connects the UPS to the utility power.

Слика: Крупен план view of the communication ports on the rear of the APC SMC1500IC UPS, specifically showing the 'NETWORK' (RJ45), 'SERIAL' (RJ45), and 'USB' ports.

4. Поставување

Follow these steps to set up your UPS for the first time.

1. Распакувајте го UPS-от: Внимателно извадете го UPS-от од пакувањето. Проверете дали има оштетувања при транспортот.
2. Поврзете ја батеријата: The UPS is shipped with the internal battery disconnected for safety. Locate the battery connector on the rear panel (refer to the 'Rear Panel' image in Section 3) and push it firmly into place until it clicks.
3. Позиционирајте го UPS-от: Place the UPS on a flat, stable surface in a well-ventilated area. Avoid placing it near heat sources or in direct sunlight. Ensure there is sufficient space around the unit for airflow.
4. Поврзете ја опремата: Plug your computer, monitor, network devices, and other critical electronics into the AC outlets on the rear panel of the UPS. Ensure the total load does not exceed the UPS's capacity.
5. Поврзете се на Utility Power: Plug the UPS's input power cord into a grounded wall outlet.
6. Почетна наплата: Allow the UPS to charge for at least 3 hours before connecting any critical equipment or expecting full runtime. The battery will charge whether the UPS is turned on or off.
7. Connect Communication Cables (Optional): For advanced monitoring and management, connect a USB cable from the UPS to your computer, or an Ethernet cable to your network for SmartConnect functionality.

5. Работење

This section describes how to operate your UPS and understand its status indicators.

Вклучување/исклучување

• За вклучување: Press the power button on the front panel. The LCD will illuminate, and the UPS will perform a self-test.
• За исклучување: Press and hold the power button until the UPS powers down.

LCD Display and Navigation

Image: A close-up of the APC SMC1500IC UPS's LCD screen, displaying 'ON LINE' status, input voltage (124V), and battery charge level, along with other status icons.

The intuitive LCD interface provides clear information and allows you to configure the UPS locally using the navigation keys. You can view various parameters such as input/output voltagд, проценти на оптоварувањеtage, battery charge level, and estimated runtime.

SmartConnect Functionality

Image: A composite image showing the APC SmartConnect dashboard interface displayed on a desktop monitor, a tablet, and a smartphone, illustrating remote monitoring capabilities.

The SMC1500IC features APC SmartConnect, allowing you to monitor the health and status of your UPS from any web-enabled device. Connect the UPS to your network via the RJ45 network port and follow the instructions provided with your unit to register it with the SmartConnect portal. This enables remote management, alerts, and firmware updates.

Програмабилни поставки

The UPS offers over 15 different programmable settings, including switched outlet group control. These settings allow for application-specific configurations, thresholds, and notifications. Refer to the detailed user manual available on the APC website for a complete list and instructions on how to adjust these settings via the LCD or SmartConnect interface.

6. Одржување

Правилното одржување обезбедува долготрајност и оптимални перформанси на вашиот UPS.

• Замена на батерија: The internal lead-acid battery has a finite lifespan. When the UPS indicates a battery fault or low runtime, the battery should be replaced. Contact APC support or an authorized service provider for replacement batteries. Always ensure the UPS is powered off and disconnected from utility power before attempting battery replacement.
• Чистење: Periodically clean the exterior of the UPS with a soft, dry cloth. Ensure ventilation openings are free from dust and debris to maintain proper airflow. Do not use liquid cleaners or solvents.
• Само-тестирање: Regularly perform a self-test (usually initiated via the LCD menu) to ensure the battery and internal components are functioning correctly.

7 Смена на проблеми

Овој дел нуди решенија за вообичаени проблеми со кои може да се соочите со вашиот UPS.

For more detailed troubleshooting or issues not listed here, refer to the comprehensive user manual on the APC website or contact APC technical support.

8. Спецификации

Key technical specifications for the APC SMC1500IC UPS.

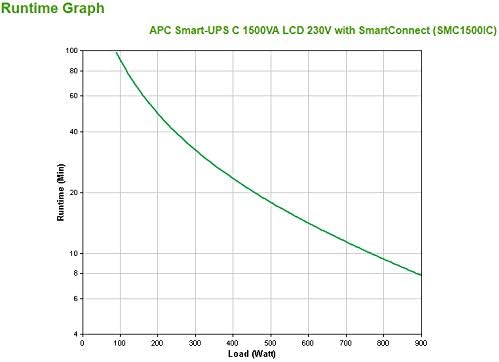

Image: A runtime graph illustrating the battery backup duration (in minutes) versus the load (in Watts) for the APC Smart-UPS C 1500VA LCD 230V with SmartConnect (SMC1500IC).

9. Гаранција и поддршка

For warranty information, technical support, or to access the full user manual, please visit the official APC webлокација или контактирајте го нивниот оддел за корисничка поддршка. Чувајте ја сметката како доказ за купување за гаранциски побарувања.

Службеник на АПЦ Webсајт: www.apc.com
