KKT KOLBE FREE9004TC 90cm Wall-Mounted Cooker Hood User Manual

1. Вовед

Thank you for choosing the KKT KOLBE FREE9004TC 90cm Wall-Mounted Cooker Hood. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your appliance. Please read these instructions carefully before use and keep them for future reference.

The KKT KOLBE FREE9004TC is a stylish, free-head design cooker hood, crafted from stainless steel and black glass. It features TouchSelect controls, four power levels, LED lighting, and an automatic shut-off function for convenience and energy saving. It can operate in both extraction and recirculation modes.

2. Информации за безбедност

Општа безбедност:

• Уверете се дека апаратот е инсталиран од квалификуван техничар во согласност со локалните прописи.
• Секогаш исклучувајте го напојувањето пред чистење или одржување.
• Не дозволувајте деца да го ракуваат апаратот без надзор.
• Never flambé under the cooker hood.
• Обезбедете соодветна вентилација во просторијата кога аспираторот се користи истовремено со апарати што согоруваат гас или други горива.

Електрична безбедност:

• Апаратот мора да биде правилно заземјен.
• Не користете продолжни кабли или повеќекратни адаптери.
• Ако кабелот за напојување е оштетен, тој мора да биде заменет од производителот, неговиот сервисер или слично квалификувани лица за да се избегне опасност.

Безбедност на инсталацијата:

• The minimum distance between the hob and the lower edge of the cooker hood must be between 50 cm and 60 cm.
• Ensure the wall is strong enough to support the weight of the hood.

3. Поставување и инсталација

3.1 Отпакување

Carefully remove the cooker hood from its packaging. Check for any damage during transit. Keep packaging materials away from children.

3.2 Монтирање на аспираторот

The FREE9004TC is designed for wall-mounted installation. Ensure the wall is structurally sound to bear the appliance's weight. The recommended distance from the worktop to the lower edge of the hood is 50 to 60 cm.

Опис на сликата: A technical drawing illustrating the dimensions of the KKT KOLBE FREE9004TC cooker hood. Key measurements include a width of 900mm, a depth of 368mm, and an adjustable height range of 760-920mm. The chimney section is 280mm wide and 323mm deep. This diagram is crucial for planning the installation space.

3.3 Режими на вентилација

The hood supports two ventilation modes:

• Режим на екстракција: Air is drawn from the kitchen, filtered, and expelled outside through a ducting system.
• Режим на кружење: Air is drawn from the kitchen, filtered through grease filters and an optional carbon filter (K606, not included), and then returned to the kitchen. This mode is suitable when external venting is not possible.

The telescopic shaft can be individually adjusted to suit your installation requirements.

4. Упатства за работа

4.1 Контролен панел

The appliance features intuitive TouchSelect controls and an LED display, showing all important information at a glance.

Опис на сликата: Фронт view of the KKT KOLBE FREE9004TC cooker hood. The sleek black glass panel houses the TouchSelect controls and an LED display, which is currently showing '12:06'. The overall design is modern and minimalist.

4.2 нивоа на моќност

The hood offers 4 adjustable power levels to effectively remove cooking fumes and odors. Select the appropriate level based on the intensity of cooking.

Опис на сликата: This image shows the KKT KOLBE FREE9004TC cooker hood with its front glass panel tilted open. This reveals the internal grease filters and the LED lighting strip, demonstrating access for maintenance and cleaning.

4.3 LED осветлување

Two integrated 1.5W LED lights illuminate your cooking area, providing clear visibility.

4.4 Automatic Shut-off Function

The appliance is equipped with a tracking mode (timer function) that automatically switches off the unit after a set period, saving energy and ensuring complete odor removal after cooking.

4.5 Smart Control (WiFi)

The FREE9004TC can be controlled via a smartphone app, offering convenient remote operation and monitoring. The app is available on the App Store and Google Play.

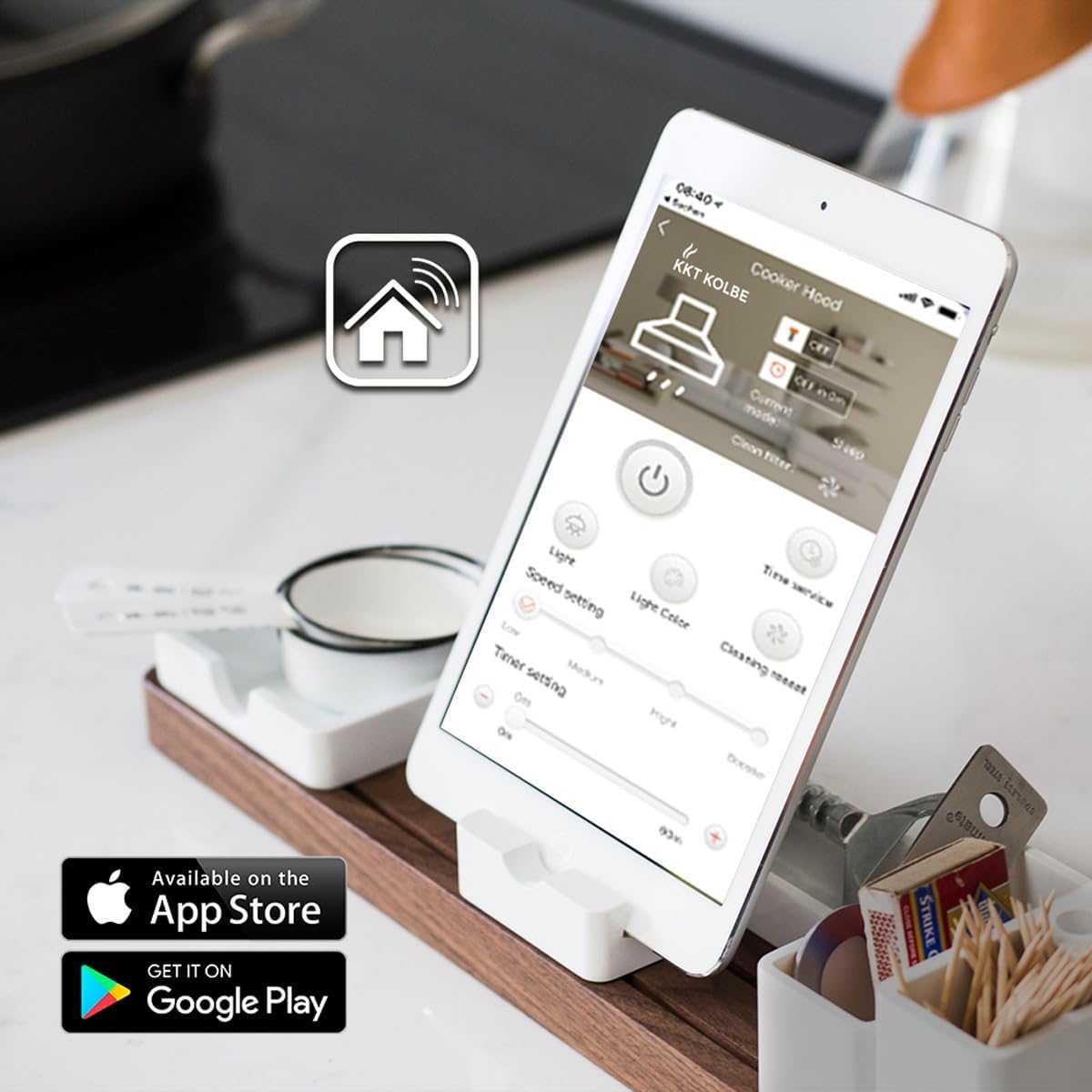

Опис на сликата: A smartphone screen displaying the KKT KOLBE cooker hood control application. The app interface shows options for light control, speed settings, timer settings, and filter cleaning reminders, indicating smart functionality.

5. Одржување

Редовното одржување обезбедува оптимални перформанси и долготрајност на вашиот аспиратор.

5.1 Чистење на филтри за маснотии

The hood is equipped with one grease filter. These filters should be cleaned regularly (e.g., monthly) to maintain extraction efficiency. They can typically be washed by hand with hot soapy water or in a dishwasher.

5.2 Replacing Carbon Filters (Recirculation Mode)

If operating in recirculation mode, an optional K606 carbon filter is required. Carbon filters cannot be cleaned and must be replaced periodically (typically every 3-6 months, depending on usage) to effectively remove odors.

5.3 Чистење на површини

Clean the stainless steel and glass surfaces with a soft cloth and a non-abrasive cleaner specifically designed for these materials. Avoid harsh chemicals or abrasive pads that could scratch the surfaces.

Опис на сликата: Внатрешна view of a cooker hood, highlighting the motor and fan assembly. This component is responsible for air extraction and should be kept free of excessive grease buildup for efficient operation.

6 Смена на проблеми

If you encounter issues with your cooker hood, refer to the following common problems and solutions:

• Аспираторот не се вклучува: Проверете дали апаратот е правилно вклучен во струја и дали прекинувачот се исклучил.
• Лоши перформанси на екстракција: Ensure grease filters are clean and not clogged. If in recirculation mode, check if the carbon filter needs replacement. Verify that the ducting (if used) is not obstructed.
• Прекумерна бучава: Check for loose parts or improper installation. Ensure the fan blades are clean and free from obstructions. Some noise is normal, especially at higher power levels.
• Светлата не работат: Check if the LED lights need replacement. Consult a qualified technician if the issue persists.

For problems not listed here, please contact KKT KOLBE customer support.

7. Спецификации

Опис на сликата: The energy efficiency label for the KKT KOLBE FREE9004TC cooker hood. It clearly displays an energy class rating of 'A', an annual energy consumption of 45 kWh/annum, and a noise level of 60 dB (note: product specifications state 55 dB, this label might be a general example or for a slightly different variant, but it's the closest available).

Опис на сликата: A graphic illustrating different noise levels, with a focus on the 'Silent-PLUS' feature. It shows a visual representation of sound intensity and indicates that this model falls into a quieter category compared to basic models.

8. Гаранција и поддршка

KKT KOLBE is committed to providing high-quality kitchen appliances. All our devices undergo rigorous quality controls to ensure you receive a product of impeccable quality.

Should problems arise, KKT KOLBE maintains an in-house workshop to respond quickly and effectively to repair needs. For support or warranty claims, please contact your retailer or KKT KOLBE customer service directly.

For more information, visit the official KKT KOLBE webстраницата или погледнете ја документацијата за купување.
