COSTWAY 24-inch Electric Built-In Single Wall Oven

1. Информации за безбедност

Ве молиме внимателно прочитајте ги сите упатства пред да го користите овој апарат за да обезбедите безбедно работење и да спречите повреда или оштетување. Зачувајте го ова упатство за во иднина.

• Електрична безбедност: Проверете дали рерната е правилно заземјена. Не користете продолжни кабли. Исклучете го напојувањето пред сервисирање.
• Инсталација: Инсталацијата мора да ја изврши квалификуван техничар во согласност со сите локални кодекси и прописи.
• Топли површини: The oven interior, door, and surrounding surfaces become hot during operation. Use oven mitts and keep children away.
• Вентилација: Ensure proper ventilation around the appliance as described in the installation section. The oven is equipped with a cooling fan that operates automatically to prevent overheating.
• Чистење: Always allow the oven to cool completely before cleaning. Use non-abrasive cleaners.

2. Производот завршиview

The COSTWAY 24-inch Electric Built-In Single Wall Oven is designed for versatile cooking with a compact, integrated design. It features a 2.5 cubic feet capacity and multiple cooking functions.

Предна страна view of the COSTWAY 24-inch Electric Built-In Single Wall Oven, showcasing its sleek black glass and stainless steel frame.

Клучни карактеристики:

• Капацитет: 2.5 cubic feet (approximately 71 liters) provides ampпростор за различни јадења.
• Функции за готвење: Offers 4 cooking functions including baking, broiling, toasting, and keeping food warm.
• Cooling Ventilation System: An integrated fan automatically activates at high temperatures to cool the exterior and prevent overheating, continuing operation until the oven cools sufficiently.
• Dual Heat Insulation Doors: Features a 2-layer black glass door designed to maintain optimal oven temperature and improve energy efficiency.
• Enamel Liner: The oven interior is coated with an enamel liner for even heat distribution and ease of cleaning.
• Контролни копчиња: Three rotary knobs provide precise control over time, temperature, and cooking function.

The oven's interior demonstrating its 71-liter capacity, suitable for large roasts and multiple items.

Detail of the dual heat insulation doors, designed for efficient heat retention.

A closer look at the oven's control knobs, aluminum alloy handle, smooth-operating hinge, and effective heat dissipation system.

3. Поставување и инсталација

This appliance is designed for built-in installation. Proper installation is crucial for safety and optimal performance. Refer to the diagram below for cutout dimensions.

Барања за инсталација:

• Пресек на кабинетот: Ensure the cabinet opening matches the specified dimensions for a secure fit.
• Електрична врска: Рерната бара посебно електрично коло. Консултирајте се со квалификуван електричар за правилно поврзување.
• Израмнување: The oven must be level to ensure even cooking and proper door operation.
• Расчистување: Maintain adequate clearances around the oven for ventilation and heat dissipation.

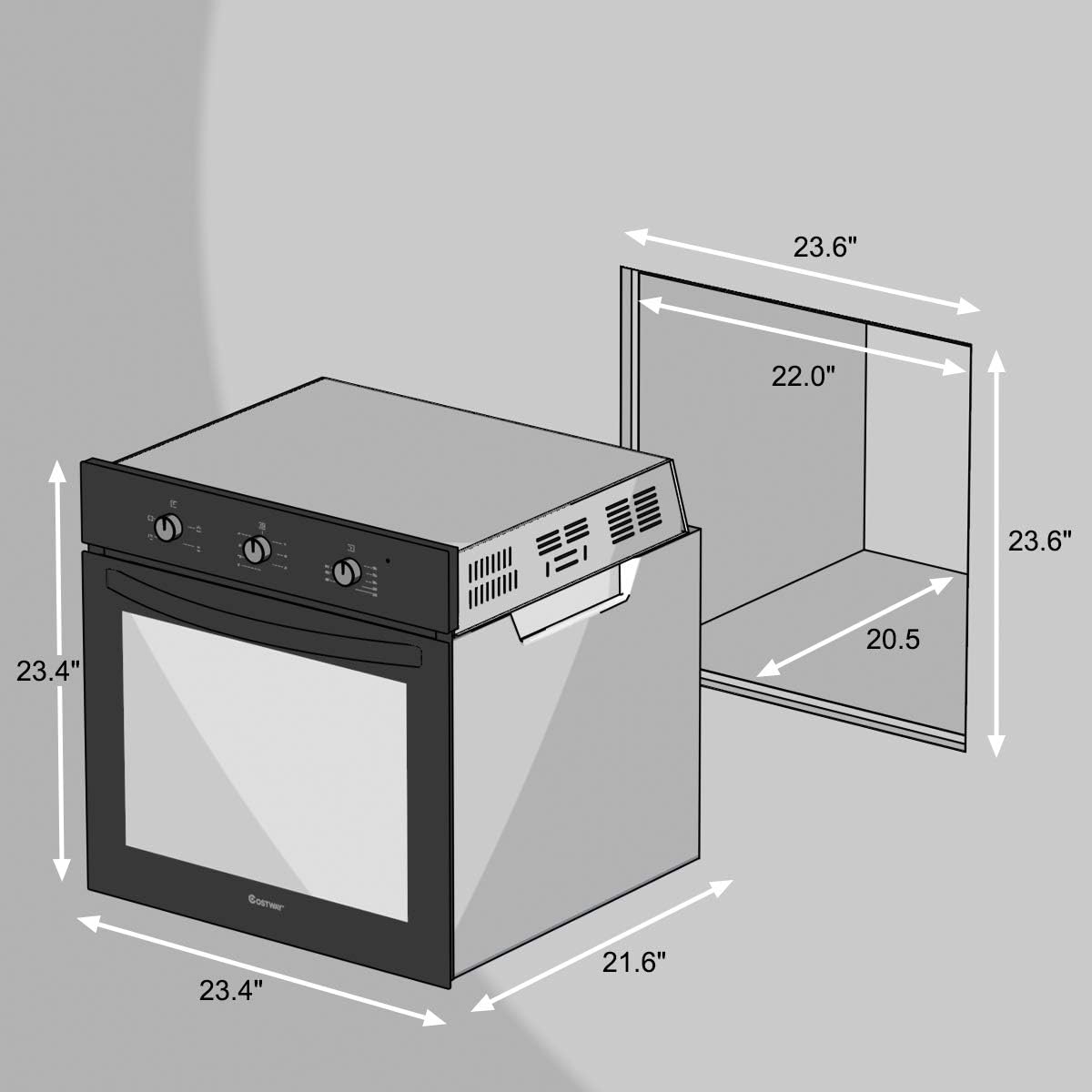

Dimensional diagram for the oven and its corresponding cabinet cutout, indicating measurements in inches.

4. Упатства за работа

Your COSTWAY oven features intuitive controls for various cooking needs. Familiarize yourself with the rotary knobs for function, temperature, and timer settings.

Контролен панел:

• Копче за функција: Selects the desired cooking mode (e.g., Baking, Broiling, Toasting, Keep Warm).
• Копче за температура: Adjusts the oven temperature within the specified range.
• Копче за тајмер: Sets the cooking duration from 10 to 120 minutes. The oven will automatically turn off and sound an alert when the set time expires.

Функции за готвење:

Visual representation of the oven's four cooking functions, including lighting for chamber washing, bottom heating for thawing, top heating for braised meat, and heating from top & bottom for baking.

• Печење: Utilizes both top and bottom heating elements for even cooking, ideal for cakes, cookies, and casseroles.
• Греење: Uses the top heating element for direct, intense heat, perfect for browning and grilling.
• Наздравување: A specific setting for toasting bread or similar items.
• Одржувајте топло: Maintains a low temperature to keep cooked food warm until serving.

Demonstration of placing food into the oven, highlighting typical usage.

5. Одржување и чистење

Редовното чистење и одржување ќе обезбедат долготрајност и оптимални перформанси на вашата рерна.

Инструкции за чистење:

• Надворешност: Wipe the stainless steel frame and glass door with a soft cloth and mild detergent. Avoid abrasive cleaners that can scratch surfaces.
• Interior (Enamel Liner): The enamel liner is designed for easy cleaning. After the oven has cooled, wipe down the interior with a damp крпа и неабразивно средство за чистење рерна доколку е потребно.
• Полици за рерна: Извадете ги решетките и измијте ги во топла вода со сапуница.
• Стакло на вратата: The 2-layer glass can be cleaned with glass cleaner. Ensure no liquid seeps into the oven's internal components.

The enamel liner of the oven, illustrating its smooth surface for easy cleaning and efficient heat distribution.

6 Смена на проблеми

If you encounter issues with your oven, refer to the following common problems and solutions.

7. Спецификации

Technical details for the COSTWAY 24-inch Electric Built-In Single Wall Oven.

8. Гаранција и поддршка

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact the retailer from whom the product was acquired. Direct manufacturer support may vary depending on the purchase channel.
