Вовед
This manual provides detailed instructions for the installation, operation, and maintenance of your oEdRo Soft Tri-fold Truck Bed Tonneau Cover. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Компатибилност
This tonneau cover is compatible with the following truck models:
- Dodge Ram 1500: 2002-2018
- Ram 1500 Classic & New Body: 2019-2026
- Dodge Ram 2500: 2003-2026
- Dodge Ram 3500: 2003-2026
Важно: This cover is designed for Fleet Side 6.4ft / 6.5ft beds only и е not compatible with models equipped with RamBox or Split Tailgate.
To ensure proper fitment, measure your truck bed length before ordering. The measurement should be taken from the bulkhead to the tailgate, along the inside of the bed.

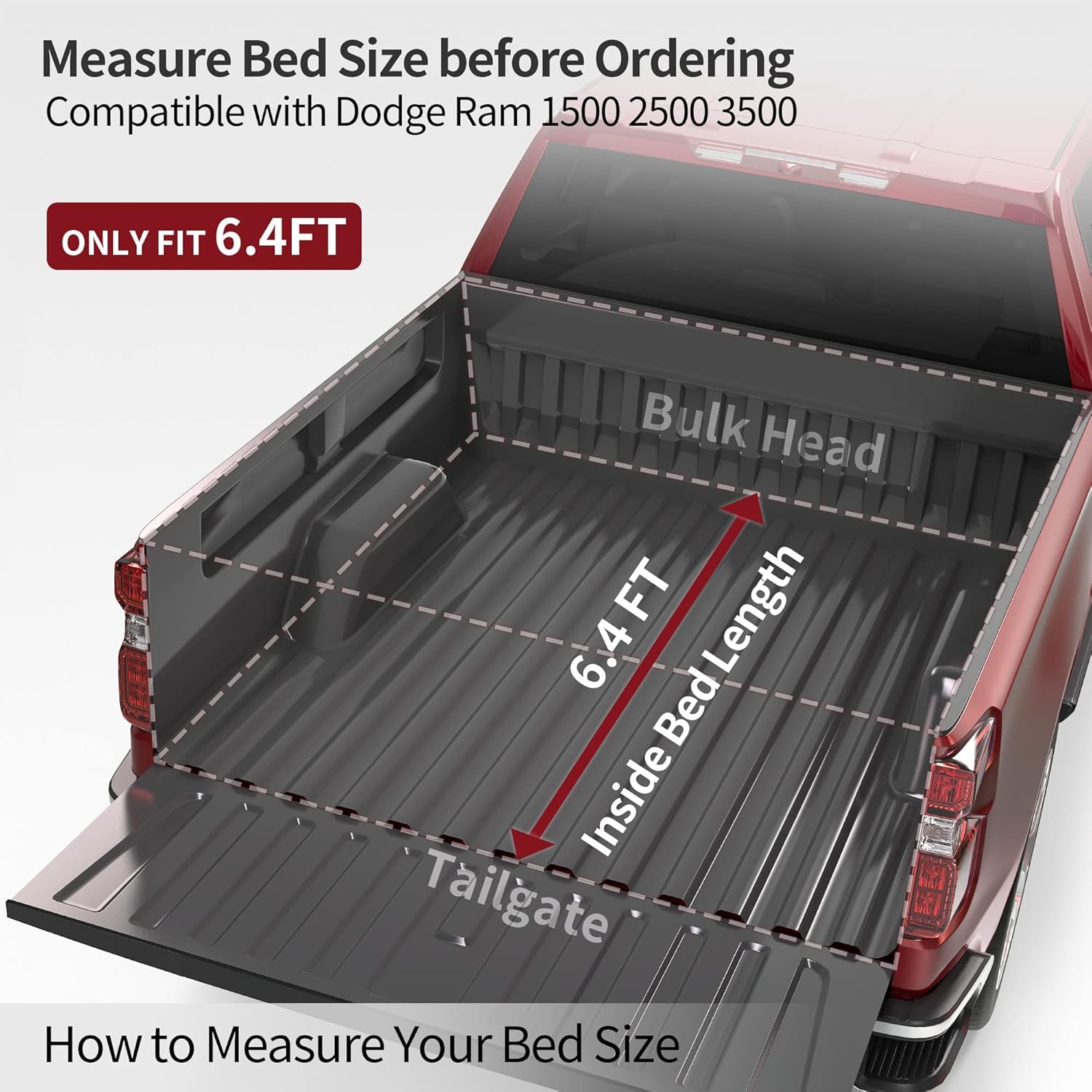

Image: How to measure your truck bed size. Ensure your bed measures approximately 6.4 feet from bulkhead to tailgate for proper fit.
Safety Information and Important Considerations
Please observe the following safety guidelines and considerations:
- Обезбедете ги сите клamps and fasteners are securely tightened before driving. Regularly check for tightness.
- Do not place heavy objects on the tonneau cover.
- Always ensure the cover is properly latched or folded when the vehicle is in motion.
- Keep hands and fingers clear of moving parts during folding and unfolding operations.
- Do not modify the tonneau cover or its components.
Incompatible Truck Bed Accessories
This tonneau cover is not suitable for installation on trucks with certain existing bed accessories. Please remove any of the following prior to installation:
- Bed racks
- Кутии со алатки
- Roll bars
- Any other accessories that obstruct the bed rails or the area where the tonneau cover clamps се инсталирани.
Слика: Прamples of truck bed conditions not suitable for tonneau cover installation. Remove any obstructing accessories before proceeding.
Содржина на пакетот
Проверете дали сите компоненти се присутни пред да започнете со инсталацијата:
- oEdRo Soft Tri-fold Tonneau Cover Assembly (pre-assembled rails and cover)
- Монтирање Clamps (pre-installed or separate)
- Weather Strip (if included separately)
- Упатство за употреба
- LED Light (included as an accessory)
Image: A free LED light is included to illuminate your truck bed.
Поставување и инсталација
The oEdRo Soft Tri-fold Tonneau Cover is designed for easy, no-drill installation in most cases. Follow these steps for a smooth setup:
Step 1: Prepare the Truck Bed
- Clean the truck bed rails thoroughly to ensure a good seal.
- Remove any existing bed accessories that may interfere with the cover's installation (refer to the Safety Information section).
- If your truck has a bed liner that extends over the bed rails, you may need to make small cuts to allow the clamps to secure properly. For bed liners under the bed rails, no cutting is typically required.
Step 2: Position the Tonneau Cover
- Place the pre-assembled tonneau cover onto the front of your truck bed, near the bulkhead.
- Ensure the cover is centered and flush with the bed rails.
Image: Visual guide for the no-drilling installation process. The cover is placed, unfolded, and then secured.
Step 3: Secure the Front Clamps
- Locate the front clamps on the underside of the tonneau cover.
- Закачете го clamps under the truck bed rails and tighten them securely. Ensure a strong connection to stabilize the cover in its initial position.
Image: Details of the tonneau cover's construction and securing mechanisms. Top right shows a strong connection point for stability.
Step 4: Unfold and Secure the Rear Clamps
- Carefully unfold the tonneau cover towards the tailgate.
- Once fully extended, locate the rear security clamps.
- Engage and tighten these clamps to the truck bed rails. These clamps ensure the tonneau cover stays put and provides a secure, snow-proof, and dust-proof trunk instantly.
Image: Bottom right shows the security clamps that hold the cover in place at the rear.
Step 5: Install Weather Strip (if separate)
- If your weather strip is not pre-installed, apply it along the tailgate edge or other specified areas to prevent rain and snow from entering the truck bed.
Image: The tonneau cover with an included weather strip ensures a perfect fit and protection against elements.
Упатства за работа
Opening the Tonneau Cover
- Release the rear security clamps by disengaging them from the truck bed rails.
- Fold the rear panel of the tonneau cover towards the front of the truck.
- Continue folding the middle panel over the front panel.
- Secure the folded cover using the integrated straps or buckles to prevent it from unfolding during transit.
Closing the Tonneau Cover
- Release the securing straps/buckles.
- Carefully unfold the front panel, then the middle panel, and finally the rear panel over the truck bed.
- Ensure the cover is properly aligned with the bed rails.
- Engage and tighten the rear security clamps to secure the cover in the closed position.
Proper operation ensures your cargo remains protected and can contribute to improved fuel efficiency.
Image: The aerodynamic design of the tonneau cover can improve gas mileage by up to 12%.
Одржување
To ensure the longevity and optimal performance of your oEdRo Tonneau Cover, follow these maintenance guidelines:
- Чистење: Wash the tonneau cover regularly with mild soap and water. Use a soft brush or cloth. Rinse thoroughly and allow to air dry. Avoid harsh chemicals or abrasive cleaners.
- УВ заштита: The cover is made from double-layer PVC with UV protection. However, applying a UV protectant spray designed for vinyl or tonneau covers can further extend its life and prevent fading.
- Проверка на хардверот: Периодично проверувајте ги сите клamps, hinges, and fasteners for tightness. Re-tighten as necessary to maintain a secure fit.
- Временска заштитна фолија: Check the weather strip and seals for any signs of wear or damage. Replace if necessary to maintain water resistance.
- Складирање: Доколку го вадите капакот подолг период, темелно исчистете го, осигурајте се дека е целосно сув и чувајте го на ладно и суво место, подалеку од директна сончева светлина.
Решавање проблеми
| Проблем | Можна причина | Решение |
|---|---|---|
| Cover does not fit properly or is loose. | Incorrect bed size measurement; clamps not tightened; cover not centered. | Verify truck bed dimensions. Re-center the cover. Ensure all front and rear clamps се безбедно затегнати. |
| Water leakage into the truck bed. | Weather strip improperly installed or damaged; cover not fully sealed; tailgate gap. | Check weather strip for proper placement and condition. Ensure the cover is fully closed and all clamps are tight. Consider adding a tailgate seal if leakage persists from the tailgate area. |
| Difficulty folding or unfolding the cover. | Obstruction; cold weather affecting material flexibility. | Check for any debris or objects obstructing the folding mechanism. In cold weather, the material may be stiffer; allow it to warm slightly if possible. |
| Clamps do not secure properly. | Bed liner interference; clamps misaligned or damaged. | Inspect for bed liner interference and trim if necessary. Ensure clamps are correctly aligned with the bed rails. Contact support if clamps appear damaged. |
Спецификации
| Бренд | oEdRo |
| Име на моделот | Soft Tri-fold Bed Tonneau Cover |
| Број на модел на ставка | MAOA-0038 |
| Димензии на производот | 179.98 x 63.98 x 11 cm (70.86 x 25.19 x 4.33 инчи) |
| Тежина на ставката | 13.6 килограми (29.98 фунти) |
| Боја | Црното |
| Материјал | Double Layer PVC Fabric |
| Тип на заклучување | Задна врата |
| Стил | Soft Tri-fold |
Гаранција и поддршка
oEdRo products are designed for durability and performance. For specific warranty information, please refer to the documentation included with your purchase or visit the official oEdRo webсајт.
If you encounter any issues or have questions regarding your tonneau cover, please contact oEdRo customer support. If the included LED light is broken upon receipt, contact us via Amazon message for an exchange.
Контакт информации: Refer to your purchase documentation or the oEdRo official webстраница за најактуелните детали за контакт со поддршката.
