1. Вовед
The Zoom LiveTrak L-8 is a portable 8-channel digital mixer and multitrack recorder designed for podcasting, music production, and live streaming. It offers a compact solution with intuitive controls, allowing users to record and mix audio with ease. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your LiveTrak L-8.

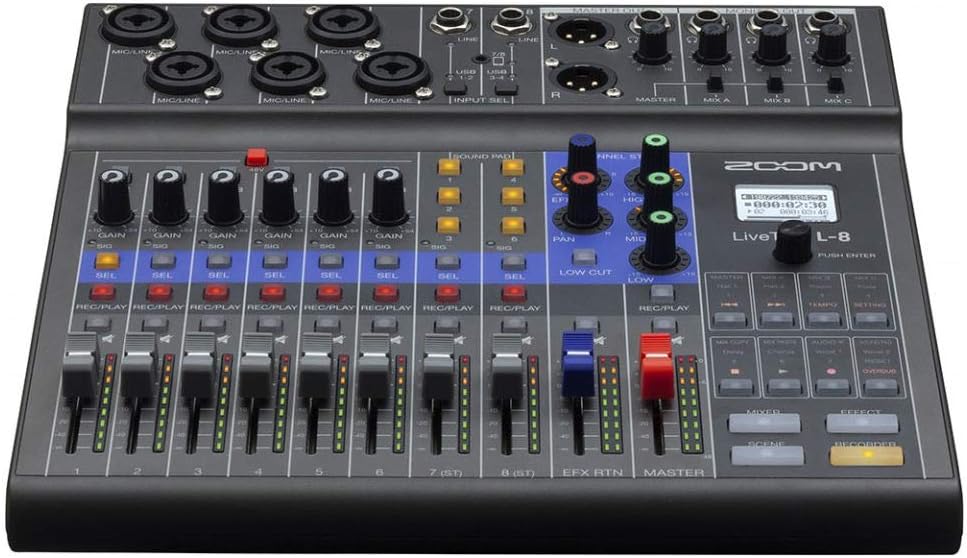

Figure 1.1: Zoom LiveTrak L-8 Digital Mixer/Recorder. This image shows the top-down view of the L-8 mixer, highlighting its faders, knobs, and display screen.
2. Производот завршиview
Клучни карактеристики:
- Portable Podcasting/Music Studio functionality.
- 10 Faders for precise audio level control.
- 6 XLR-1/4" Mic/Line Inputs with +48V phantom power.
- Multitrack Recording via SD Card and USB.
- Ability to track song demos with multiple musicians.
- Four independent headphone outputs for monitoring.
- Phone tap for call-in interviews.
- Six customizable sound pads.
- Battery or USB power supply operation.
Што има во кутијата:
- Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
- AKG K 240 Studio Professional Semi-Open Stereo Headphones
- 20' XLR-XLR Cable
- 3.5mm TRRS кабел
- USB кабел
- Адаптер за наизменична струја Zoom AD-17
- Gold-Plated 1/4" Adapter (for headphones)
- Detachable Cable (for headphones)
Figure 2.1: AKG K 240 Studio Professional Semi-Open Stereo Headphones. These headphones feature a black and gold design with a self-adjusting headband and thick ear cushions.
Figure 2.2: 20-foot XLR-XLR Cable. This image displays a coiled black XLR cable with silver connectors, packaged for retail.
3. Поставување
3.1 Powering the LiveTrak L-8
The LiveTrak L-8 can be powered in two ways:
- Адаптер за наизменична струја: Connect the included Zoom AD-17 AC adapter to the DC 5V port on the rear panel and plug it into a wall outlet.
- Батерии: For portable use, insert four AA batteries into the battery compartment on the underside of the unit. Ensure correct polarity. The unit will power off if left idle when running on batteries.
Figure 3.1: The underside of the Zoom LiveTrak L-8, showing the battery compartment. This image illustrates where to insert AA batteries for portable operation.
3.2 Поврзување на микрофони и инструменти
The L-8 features 6 XLR-1/4" combo inputs (channels 1-6) and 2 additional line inputs (channels 7/8). Use XLR cables for microphones and 1/4" cables for instruments or line-level devices.
- Connect microphones to the XLR inputs. For condenser microphones, activate +48V phantom power via the menu.
- Connect instruments (e.g., guitar, bass) to the 1/4" inputs. Channels 1 and 2 support Hi-Z input for direct instrument connection.
- Channels 7/8 can be used for stereo line input or for connecting a phone via the 3.5mm TRRS cable for call-in interviews.
3.3 Поврзување слушалки
The L-8 provides four independent headphone outputs (Monitor A, B, C, D). Connect your AKG K 240 Studio headphones or other monitoring headphones to these outputs. Each output has its own level control.
3.4 Вметнување на SD картичка
Insert a compatible SD card (up to 512GB) into the SD card slot for multitrack recording. Ensure the card is formatted correctly by the L-8 before use.
3.5 USB конекција
Connect the L-8 to a computer via the USB cable to use it as an 8-in/4-out audio interface or for data transfer to and from the SD card.
4. Упатства за работа
4.1 Основни контроли за мешање
- Копчиња за засилување: Adjust the input level for each channel. Monitor the level meters to avoid clipping.
- Измазнувачи: Control the volume of each channel in the main mix.
- Копче SEL: Press to select a channel for adjusting EQ, pan, and effects send.
- Копчиња за еквилајзер (Високо, Средно, Ниско): Adjust the equalization for the selected channel.
- Копче PAN: Adjust the stereo position of the selected channel.
- Нечујно копче: Mutes the selected channel.
Слика 4.1: Врв view of the Zoom LiveTrak L-8, showing the layout of input jacks, gain knobs, and main controls.
4.2 Recording to SD Card
- Притиснете го REC/PLAY button on each channel you wish to record. The button will illuminate red.
- Притиснете го главниот РЕКОРДАР копче за да започнете со снимање.
- Притиснете го ИГРАЈ button to playback recorded tracks.
- The L-8 records up to 12 tracks simultaneously (10 discrete inputs + stereo mix).
4.3 Using Sound Pads
The six sound pads can be used to trigger sound effects, jingles, or music during podcasts or live performances. Load audio files onto the SD card and assign them to the pads via the menu.
4.4 Следење
Use the individual headphone outputs to provide custom mixes for each performer or guest. Adjust the monitor mix levels using the dedicated knobs.
4.5 Користење како аудио интерфејс
When connected to a computer via USB, the L-8 functions as an audio interface. Select the L-8 as your audio input/output device in your Digital Audio Workstation (DAW) or system settings. This allows for streaming and recording directly to your computer.
5. Одржување
- Чистење: Избришете го уредот со мека, сува крпа. Избегнувајте употреба на абразивни средства за чистење или растворувачи.
- Нега на батеријата: Отстранете ги батериите ако уредот нема да се користи подолг период за да се спречи истекување.
- Ажурирања на фирмверот: Периодично проверувајте го Зум website for firmware updates to ensure optimal performance and access to new features. Follow the instructions provided by Zoom for updating firmware.
- Складирање: Чувајте го уредот на ладно и суво место, подалеку од директна сончева светлина и екстремни температури.
6 Смена на проблеми
- Нема излез на звук:
- Check all cable connections (inputs, outputs, headphones).
- Ensure faders and gain knobs are set appropriately.
- Verify that channels are not muted.
- Check headphone volume levels.
- Проблеми со снимање:
- Проверете дали SD-картичката е вметната и правилно форматирана.
- Check available space on the SD card.
- Потврдете дека на REC/PLAY button is active (red) for desired channels.
- Уредот не се вклучува:
- If using AC adapter, ensure it is securely connected and the outlet is functional.
- If using batteries, check battery levels and ensure they are inserted with correct polarity.
- Искривено аудио:
- Reduce input gain to prevent clipping (indicated by red peak lights).
- Проверете го интегритетот на кабелот.
For further assistance, please refer to the official Zoom support resources or contact customer service.
7. Спецификации
| Карактеристика | Спецификација |
|---|---|
| Бренд | Зумирајте |
| Број на канали | 8 (12-track recording) |
| Технологија за поврзување | USB |
| Тип на излезен конектор | TRS, USB |
| Извор на енергија | Електрична со кабел, напојувана од батерии |
| Димензии на пакетот | 5.8 x 4.8 x 1 инчи |
| Датум прв на располагање | 17 декември 2019 година |
8. Гаранција и поддршка
Информации за гаранцијата:
- Zoom LiveTrak L-8: Ограничена 1-годишна гаранција.
- AKG K 240 Studio Headphones: 2-годишна гаранција.
Please retain your proof of purchase for warranty claims. Warranty terms and conditions may vary by region. Refer to the official warranty documentation included with your product or visit the manufacturer's webстраница за целосни детали.
Поддршка за корисници:
For technical support, service, or additional information regarding your Zoom LiveTrak L-8 or bundled accessories, please visit the official Zoom webвеб-страница или контактирајте го нивниот оддел за поддршка на корисници. Контакт информациите обично може да се најдат на производителот webлокацијата или во пакувањето на производот.
