Northwest 36-Inch Wall Mounted Electric Fireplace Instruction Manual

1. Производот завршиview

The Northwest 36-Inch Wall Mounted Electric Fireplace provides the aesthetic appeal of a traditional fireplace with the convenience of electric operation. This unit features an orange LED flame with two brightness settings and offers two media options: faux logs or acrylic crystals. It is designed to heat spaces up to 400 square feet and includes two heat settings (750W/1500W) and a no-heat flame option. An integrated timer allows for automatic shut-off between 30 minutes and 7.5 hours, with a temperature range up to 88 degrees Fahrenheit. The sleek black design incorporates a front vent for efficient heat distribution.

Figure 1: Northwest 36-Inch Wall Mounted Electric Fireplace in a living room.

Клучни карактеристики:

• Прилагодлив амбиент: Features flickering orange LED flames with 2 brightness settings and interchangeable media options (faux logs or acrylic crystals).
• Ракување со далечински управувач: Conveniently adjust power, heat, flame brightness, and timer settings from a distance.
• Прилагодливи поставки за топлина: Offers low (750W), high (1500W), and no-heat modes. Heats rooms up to 400 square feet.
• Интегриран тајмер: Auto-shutoff timer can be set from 30 minutes to 7.5 hours for energy efficiency and safety.
• Front Vent Design: Allows for flush or recessed installation.
• Флексибилност на инсталација: Can be wall-mounted, recessed, or hardwired to 120V, or plugged into a standard outlet.

2. Информации за безбедност

ПРЕДУПРЕДУВАЊЕ: Овој производ може да ве изложи на хемикалии, вклучувајќи олово, за кое државата Калифорнија знае дека предизвикува рак и/или вродени дефекти или други репродуктивни штети. За повеќе информации, посетете ја страницата www.P65Warnings.ca.gov.

Always read and understand all instructions before using this appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury. Keep this manual for future reference.

• Ensure the fireplace is installed on a stable, flat surface or securely mounted to a wall.
• Do not block the front vent, as this can lead to overheating.
• Држете ги запаливите материјали на растојание од најмалку 0.9 метри од предниот дел на каминот.
• Do not operate the fireplace with a damaged cord or plug, or if the heater has malfunctioned or been dropped.
• Unplug the fireplace when not in use or before cleaning.
• Овој апарат не е наменет за употреба од лица (вклучувајќи деца) со намалени физички, сетилни или ментални способности или недостаток на искуство и знаење, освен ако не им се дадени надзор или инструкции во врска со употребата на апаратот од лице одговорно за нивната безбедност. .

3. Содржина на пакетот

Проверете дали сите компоненти се присутни пред да започнете со инсталацијата:

• Електричен камин
• Далечински управувач (потребни се 2 AAA батерии, не се вклучени)
• Faux Logs
• Акрилни кристали
• Хардвер за монтирање
• Држачи за монтирање

4. Спецификации

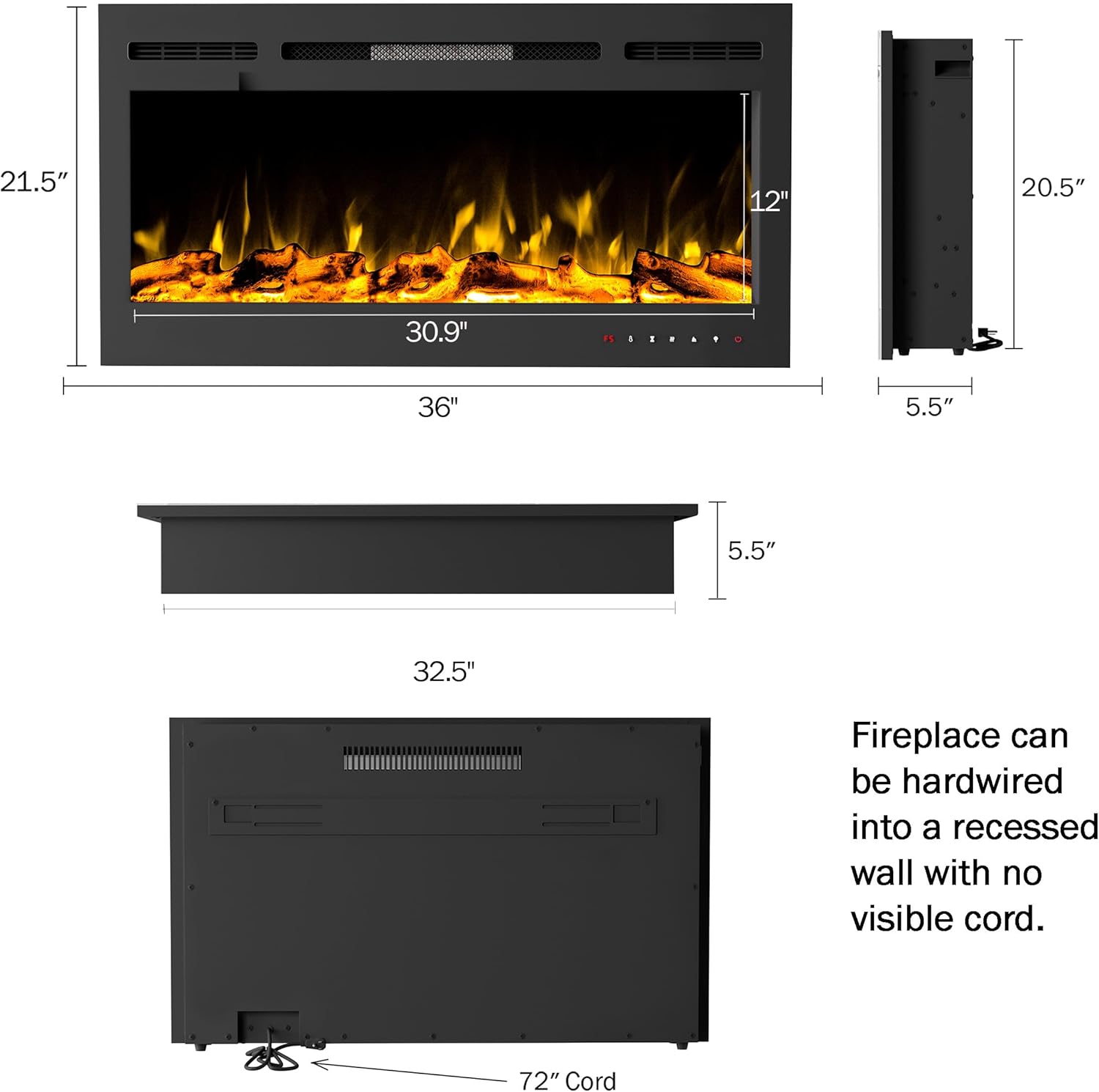

Figure 2: Product Dimensions and Recessed Installation Option.

5. Инсталација и поставување

5.1 Избор на локација

Select a location that is dry, level, and away from direct sunlight or heat sources. Ensure there is adequate clearance around the fireplace for proper ventilation and safety. The front vent design allows for versatile placement.

Figure 3: Front-Facing Vent for Warm Air Distribution.

5.2 Опции за монтирање

This electric fireplace can be installed in two primary ways:

• Поставен на ѕид: Use the provided mounting hardware and brackets to securely attach the fireplace to a wall. Ensure the wall material can support the weight of the unit.
• Вградена инсталација: The front vent design makes this unit suitable for flush or recessed installation into a wall. This option allows for the power cord to be hardwired into a 120V electrical circuit, resulting in no visible cord. Consult a qualified electrician for hardwiring.

5.3 Поврзување за напојување

The fireplace can be powered by plugging the 72-inch cord into a standard 120V electrical outlet or by hardwiring it for recessed installations. Ensure the electrical circuit can handle the fireplace's power requirements (up to 1500W).

5.4 Media Installation (Faux Logs or Acrylic Crystals)

Choose between the provided faux logs or acrylic crystals to customize the flame bed appearance. Carefully place your chosen media into the designated area within the fireplace unit according to the detailed instructions in the full product manual.

Figure 4: Faux Logs and Acrylic Crystals Media Options.

6. Упатства за работа

The fireplace can be operated using either the control panel located on the unit or the included remote control.

6.1 Remote Control and Control Panel

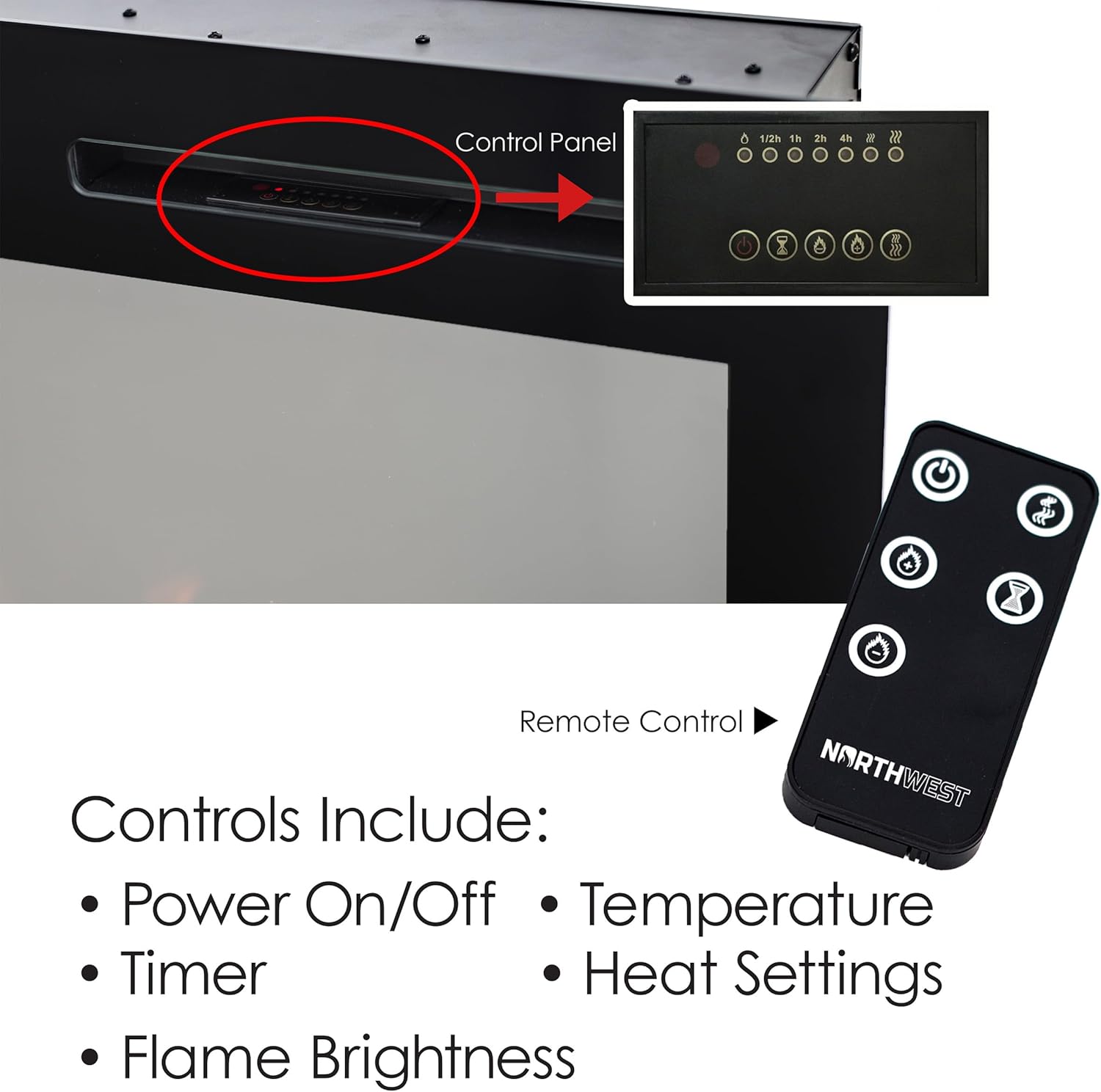

Figure 5: Control Panel and Remote Control.

6.2 Функции

• Вклучување/исклучување: Притиснете го копчето за вклучување за да го вклучите или исклучите уредот.
• Поставки за топлина: Cycle through low heat (750W), high heat (1500W), or no heat. The heater will activate to maintain the set temperature.
• Осветленост на пламенот: Adjust the intensity of the LED flames.
• Тајмер: Set the automatic shut-off timer for durations between 30 minutes and 7.5 hours.
• Контрола на температурата: Adjust the desired room temperature up to 88 degrees Fahrenheit. The heater will cycle on and off to maintain this setting.

Забелешка: The remote control requires 2 AAA batteries (not included). Ensure batteries are inserted correctly.

7. Одржување

Редовното одржување обезбедува оптимални перформанси и долготрајност на вашиот електричен камин.

• Чистење: Секогаш исклучувајте го каминот од струја пред чистење. Користете мека, дamp cloth to wipe down the exterior surfaces. Avoid abrasive cleaners or solvents. For glass surfaces, use a glass cleaner and a soft cloth.
• Отстранување прашина: Periodically vacuum or wipe dust from the air intake and exhaust vents to ensure proper airflow.
• Складирање: If storing the fireplace for an extended period, ensure it is clean and dry. Store in a cool, dry place.

8 Смена на проблеми

Доколку наидете на проблеми со вашиот електричен камин, погледнете ги следните вообичаени чекори за решавање проблеми:

• Без моќност: Ensure the power cord is securely plugged into a working outlet. Check the circuit breaker or fuse box.
• Без топлина: Verify that the heat setting is activated and not set to 'no heat'. Ensure the thermostat is set to a temperature higher than the ambient room temperature. Check for any obstructions in the air vents.
• Пламените не работат: If the flames are not visible, check the flame brightness setting. Ensure the unit is powered on.
• Далечинскиот управувач не работи: Replace the AAA batteries in the remote control. Ensure there are no obstructions between the remote and the fireplace's sensor.
• Автоматско исклучување: If the unit shuts off unexpectedly, check if the timer function is active. The unit may also have an overheat protection feature that automatically turns it off if it gets too hot. Unplug the unit, allow it to cool, and then plug it back in.

Доколку проблемите продолжат откако ќе ги направите овие чекори, контактирајте ја корисничката поддршка.

9. Гаранција и поддршка

9.1 Информации за гаранцијата

This Northwest Electric Fireplace comes with a Limited Warranty. Specific terms and conditions of the warranty are typically outlined in the full product documentation or can be obtained by contacting the manufacturer directly. Please retain your proof of purchase for warranty claims.

9.2 Поддршка за корисници

For technical assistance, replacement parts, or warranty inquiries, please contact Northwest customer support. Refer to the contact information provided with your product packaging or visit the official Northwest webстраница за детали за поддршка.
