BOBLOV LF600AG Golf Rangefinder User Manual

Вовед

Thank you for choosing the BOBLOV LF600AG Golf Rangefinder. This device is designed to provide accurate distance measurements for golf, hunting, and other outdoor activities. It features advanced pin acquisition technology with vibration, slope compensation, 6x magnification, and a durable, portable design. Please read this manual thoroughly before using the device to ensure proper operation and to maximize its performance.

Информации за безбедност

• Do not look directly into the sun or any bright light source through the rangefinder, as this may cause permanent eye damage.
• This device uses a Class 1 laser, which is safe under normal operating conditions. However, avoid direct eye exposure to the laser beam.
• Keep the device away from water and moisture. If it gets wet, wipe it dry immediately.
• Не обидувајте се сами да го расклопите или поправите уредот. Контактирајте квалификуван сервисер за помош.
• Чувајте го уредот на ладно и суво место кога не го користите.
• Да се ​​чува подалеку од дофат на деца.

Содржина на пакетот

Проверете дали сите артикли се присутни во пакувањето:

• 1 x BOBLOV LF600AG Golf Rangefinder
• 1 x USB кабел за полнење
• 1 x Упатство за употреба
• 1 x торба за носење
• 1 x крпа за чистење леќи

Производот завршиview

The BOBLOV LF600AG is a versatile rangefinder equipped with several key features to enhance your experience.

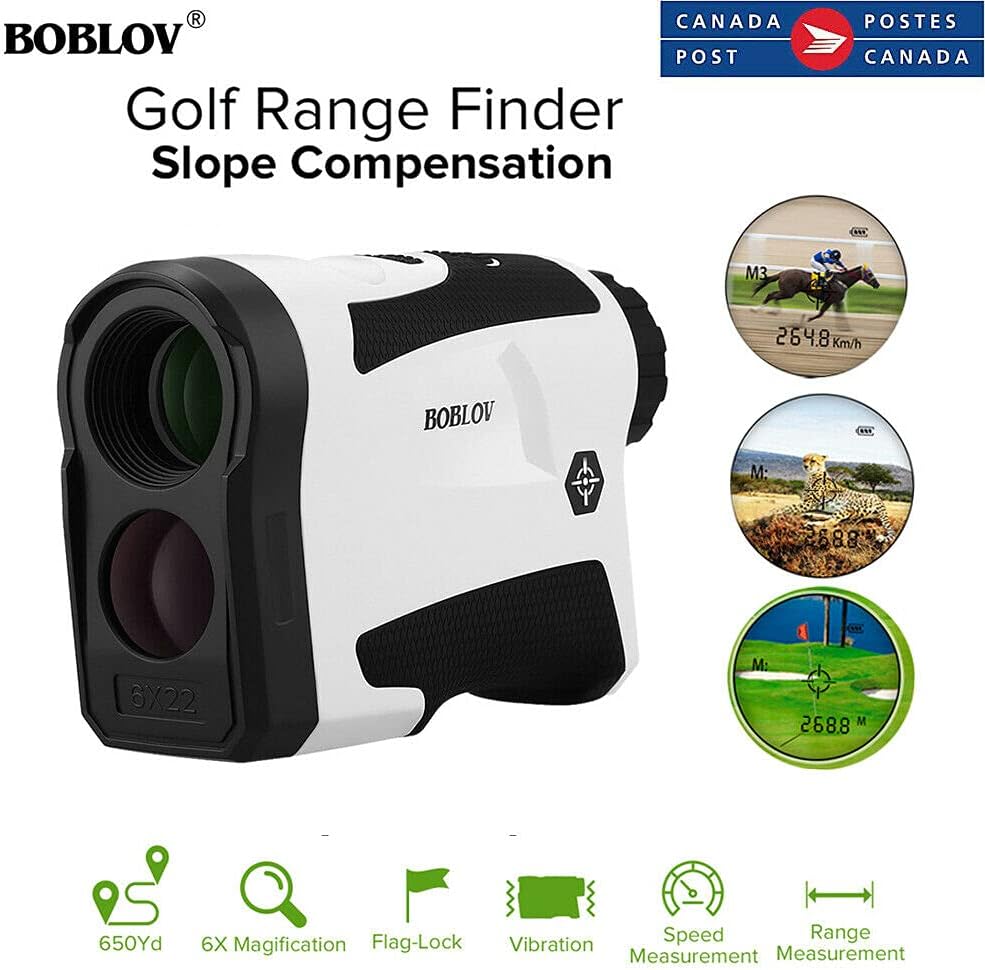

Слика 1: Предна страна view of the BOBLOV LF600AG Digital Golf Rangefinder, highlighting its compact design and optical components.

Клучни карактеристики:

• Pin Acquisition Technology with Vibration: Quickly and accurately locks onto the flagstick, providing a short vibration pulse to confirm target acquisition.
• Надомест на наклон: Calculates the slope-adjusted distance, providing a more accurate "play-as" distance for uphill and downhill shots. This feature can be toggled ON/OFF for tournament legality.
• 6X зголемување: Offers clear and bright optics for easy target identification.
• Литиумска батерија на полнење: Built-in 3.7V/800mAh battery provides long-lasting performance, capable of 15,000 scans on a full charge.
• Мерење на брзина: Capable of measuring speeds from 20 to 300 km/h.
• Режим на континуирано скенирање: Allows for scanning multiple targets quickly.
• Префрлување единица: Easily switch between meters and yards.

Поставување

1. Почетно полнење

Before first use, fully charge the rangefinder. Connect the supplied USB charging cable to the device's charging port and to a standard USB power adapter (not included). The charging indicator will show the charging status. A full charge typically takes a few hours.

2. Вклучување/исклучување

Press the Power/Measurement button once to turn on the device. The LCD display will activate. The device will automatically power off after a period of inactivity to conserve battery.

3. Прилагодување на фокусот

Look through the eyepiece and rotate the diopter adjustment ring (located near the eyepiece) until the display and target appear sharp and clear.

Упатства за работа

1. Мерење на растојание

1. Turn on the device by pressing the Power/Measurement button.
2. Насочете ги нишаните кон посакуваната цел.
3. Press the Power/Measurement button again. The distance to the target will be displayed on the LCD.

2. Flag Lock with Vibration (M2 Mode)

In M2 (Flag Lock) mode, the rangefinder will prioritize the closest object, typically the flagstick, and provide a short vibration to confirm the lock. This helps distinguish the flag from background objects.

Figure 2: The vibration switch on the side of the rangefinder. Vibration is active only in M2 (Flag Lock) mode.

3. Slope Compensation

The slope compensation feature calculates the adjusted distance based on elevation changes. This provides a more accurate distance for uphill and downhill shots. To toggle the slope function:

Figure 3: DIP switch for controlling slope compensation and other functions. Slide the switch to the desired position.

• Locate the DIP switch on the side of the device.
• Slide the switch to the 'ON' position to activate slope compensation. The display will show the compensated distance.
• Slide the switch to the 'OFF' position to disable slope compensation. This mode is legal for tournament play.

4. Speed Measurement

To measure speed:

1. Press the Mode button until the speed measurement mode is selected (indicated by a specific icon or 'KM/H'/'MPH' on the display).
2. Aim at the moving object and press the Power/Measurement button. Follow the object's movement with the crosshairs.
3. The speed will be displayed once the measurement is complete.

5. Unit Switching (Meters/Yards)

To switch between meters and yards:

• With the device powered on, press and hold the Mode button for approximately 3 seconds.
• The unit of measurement on the display will change from meters (M) to yards (Y) or vice versa.

Полнење на Уредот

The BOBLOV LF600AG features a built-in rechargeable lithium battery. When the battery indicator on the display shows low power, connect the rangefinder to a USB power source using the provided USB cable. A full charge allows for approximately 15,000 measurements. There is no need to replace external batteries.

Одржување

• Чистење на леќи: Use the included lens cleaning cloth to gently wipe the lenses. Do not use abrasive materials or harsh chemicals.
• Чистење на телото: Избришете го телото на далечинскиот мерач со мека, дamp крпа.
• Складирање: When not in use, store the device in its carry bag in a dry, cool environment, away from direct sunlight and extreme temperatures.
• Нега на батеријата: For optimal battery life, avoid completely draining the battery frequently. Charge the device regularly, even if not used for extended periods.

Решавање проблеми

Спецификации

Гаранција и поддршка

BOBLOV products are manufactured to high quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official BOBLOV webстраница. Чувајте ја сметката за купување како доказ за купување.
