Outsunny Galvanized Steel Firewood Shed Instruction Manual

Производот завршиview

This Outsunny firewood shed is designed to provide a dry and well-ventilated storage solution for your firewood. Constructed from galvanized steel, it offers durability and resistance to corrosion, ensuring your wood remains protected from the elements. The shed features an elevated base, a sloped roof with drainage, and an open design for optimal airflow, preventing moisture buildup and promoting proper wood seasoning.

Image: The firewood shed positioned in a garden, showcasing its capacity to store a significant amount of firewood in an organized manner.

Инструкции за поставување

Before assembly, ensure you have all components listed in the packaging. Choose a level and stable outdoor surface for installation to ensure the shed's stability and proper drainage. The structure is designed for straightforward assembly, utilizing the galvanized steel frame and reinforced bars for enhanced stability.

1. Отпакувајте ги компонентите: Внимателно отпакувајте ги сите делови и проверувајте според списокот на вклучени делови.
2. Составете ја основната рамка: Connect the base frame components, ensuring the elevated design is correctly formed to keep firewood off the ground.
3. Инсталирајте ги страничните панели: Attach the lacquered steel side panels to the base frame.
4. Mount Roof Structure: Secure the sloped roof frame, ensuring the drainage system is oriented correctly.
5. Attach Reinforced Bars: Install the two steel reinforcing bars at the back of the shed for added structural integrity.
6. Конечни проверки: Confirm all screws and fasteners are tightened securely.

Image: A close-up illustrating the robust construction of the shed, highlighting the galvanized steel frame, lacquered steel panels, and the two reinforcing steel bars at the rear.

Слика: Детална view of the base frame's connection points, demonstrating the sturdy assembly of the elevated structure.

Упатства за работа

This firewood shed is designed for efficient and protective storage of wood. To maximize its benefits:

• Loading Firewood: Stack firewood neatly within the shed. The open front and back design, combined with the elevated base, ensures maximum ventilation, which is crucial for drying wood and preventing rot.
• Вентилација: The shed's design promotes continuous airflow, allowing moisture to escape and keeping your firewood dry. Avoid blocking the open sides to maintain optimal ventilation.
• Капацитет: The shed provides approximately 1.62 m² of storage space. Stack wood efficiently to utilize the full capacity while ensuring stability.

Image: A visual representation of the airflow through the shed, indicating how the open front and back, along with the elevated base, facilitate maximum ventilation for drying firewood.

Одржување

Regular maintenance will extend the life of your firewood shed and ensure its continued performance.

• Чистење: Периодично бришете ги надворешните површини со адamp cloth to remove dirt and debris. Avoid abrasive cleaners that could damage the galvanized finish.
• Проверка на одводнување: Inspect the sloped roof and drainage holes (imbornal) regularly to ensure they are clear of leaves, twigs, or other obstructions. Clear any blockages to allow rainwater to drain effectively.
• Структурен интегритет: Annually check all fasteners and connections to ensure they remain tight. Re-tighten if necessary.
• Отпорност на корозија: The galvanized steel construction provides excellent corrosion resistance. However, if any scratches or damage occur to the coating, consider applying a rust-inhibiting paint to prevent localized corrosion.

Слика: Детална view of the sloped roof design, showing how rainwater is directed away, and the integrated drainage spout (imbornal) for efficient water runoff.

Image: A close-up of the drainage spout, illustrating its design for quick and effective water drainage from the roof.

Решавање проблеми

• Собирање вода на покривот:
  Можна причина: Drainage holes are blocked or the shed is not level.
  Решение: Clear any debris from the drainage holes. Ensure the shed is installed on a perfectly level surface.
• Firewood Not Drying Properly:
  Можна причина: Недоволен проток на воздух.
  Решение: Ensure the front and back of the shed are not obstructed. Avoid overfilling the shed, which can restrict air circulation.
• Shed Appears Unstable:
  Можна причина: Лабави сврзувачки елементи или нерамна подлога.
  Решение: Check all screws and bolts and tighten them. Verify that the shed is placed on a firm, level surface.

Спецификации

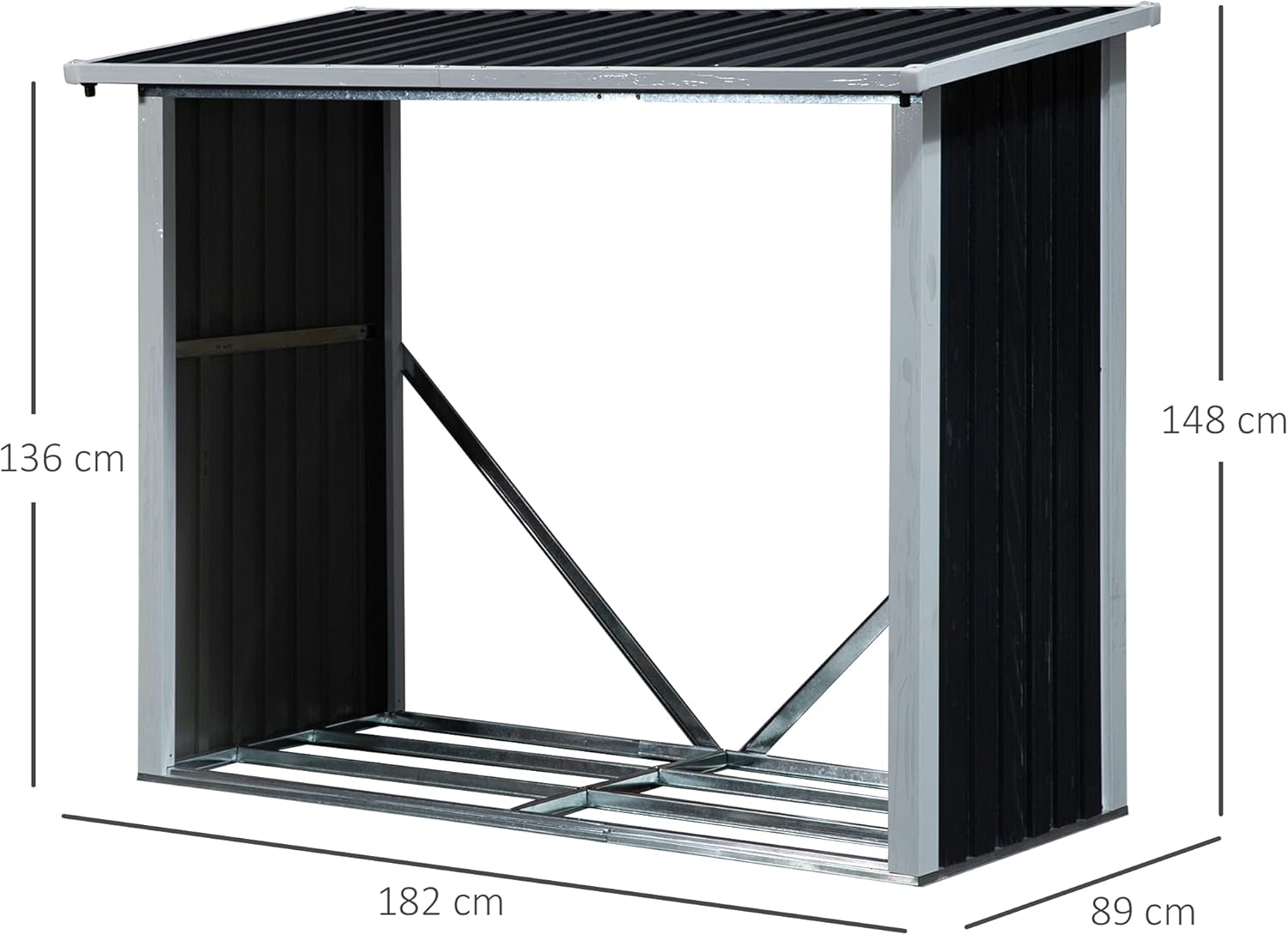

Image: A clear diagram illustrating the overall dimensions of the firewood shed, including its length, width, and the varying height of the sloped roof.

Гаранција и поддршка

For information regarding warranty coverage, product support, or replacement parts, please refer to the documentation included with your purchase or contact Outsunny customer service directly. Contact details can typically be found on the manufacturer's webстраницата или на вашата сметка за купување.
