1. Производот завршиview
The Retevis EHK008 is a helmet-compatible headset designed for two-way radio communication. It features dual speakers, a boom microphone, and a finger Push-To-Talk (PTT) button, making it suitable for use with open or full-face helmets in various activities such as motorcycling, skiing, climbing, and delivery services. The headset connects to compatible two-way radios via a K-head 2-pin plug.
Слика 1.1: Готовоview of the Retevis EHK008 Helmet Headset components.
2. Што има во кутијата
Your Retevis EHK008 package includes the following items:
- 1 x Retevis Helmet Walkie Talkie Earpiece (EHK008)
Слика 2.1: Сите компоненти се вклучени во пакетот.
3. Упатства за поставување
Follow these steps to properly install your Retevis EHK008 helmet headset:
- Подгответе ја кацигата: Ensure the inside of your helmet is clean and dry where the speakers and microphone will be placed.
- Инсталирајте звучници: The headset includes two speakers with adhesive backing. Carefully peel the backing and firmly attach one speaker inside the helmet near each ear. Ensure they are positioned for clear audio reception.
- Инсталирајте микрофон: Attach the boom microphone inside the helmet, positioning it close to your mouth for optimal voice transmission. The microphone also has an adhesive backing for secure placement.
- Кабли за маршрута: Route all cables neatly within the helmet's padding to prevent interference or discomfort.
- Поврзете се со радио: Plug the K-head 2-pin connector into your compatible two-way radio.
- Attach Finger PTT: The finger PTT (Push-To-Talk) button comes with a Velcro strap. Attach it securely to your finger or handlebar for convenient access during communication.
Image 3.1: Component diagram for installation reference.

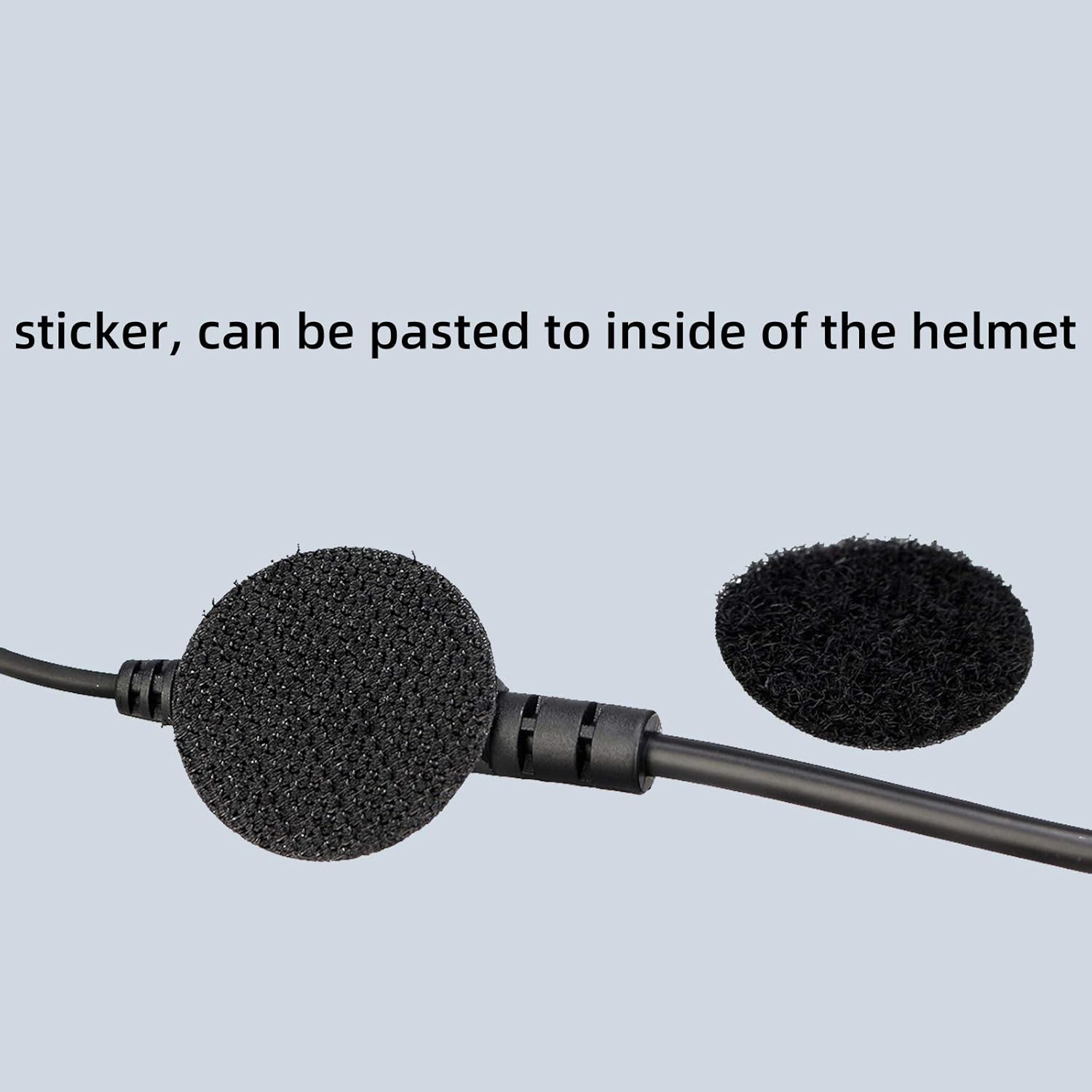

Image 3.2: Microphone with adhesive for secure placement.

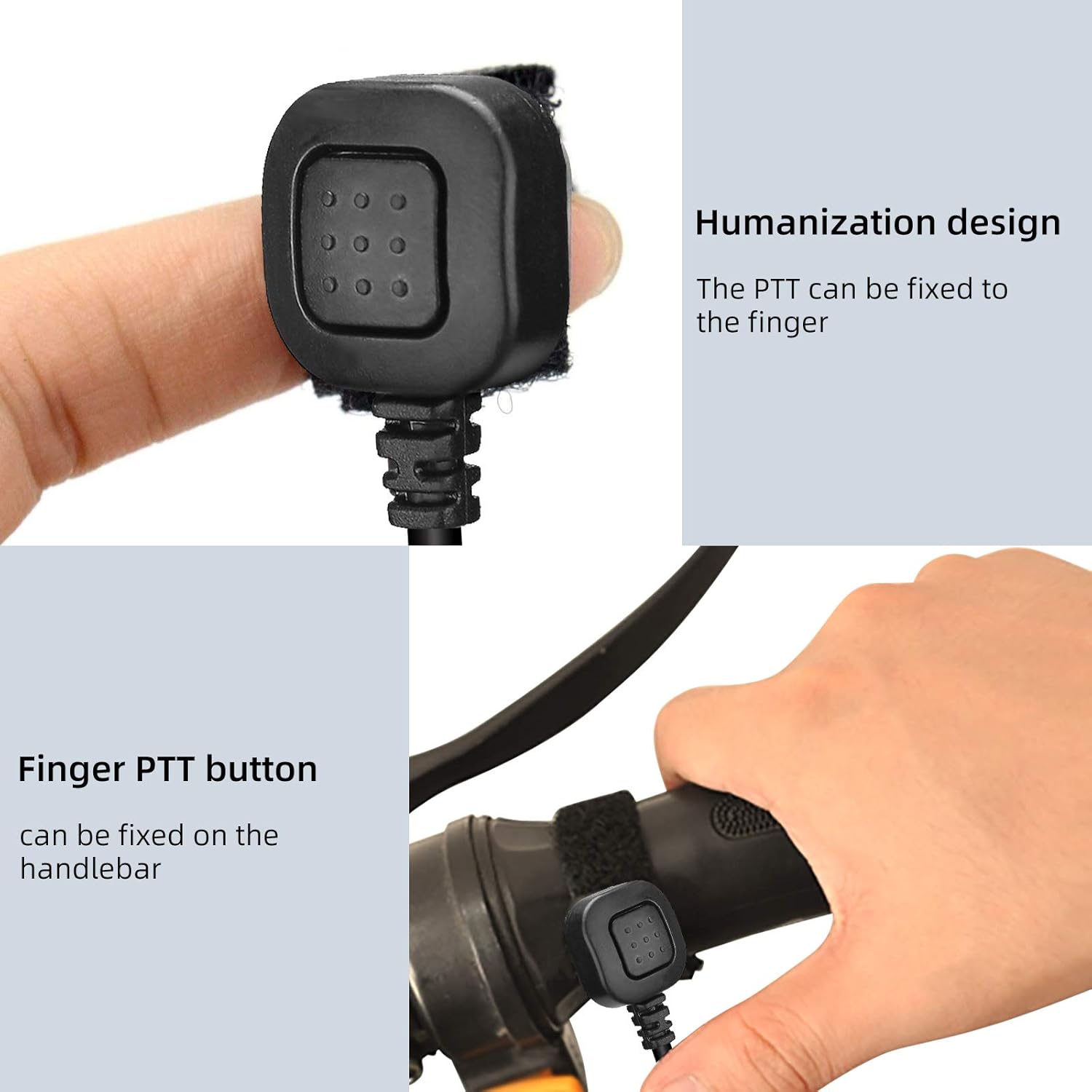

Image 3.3: Finger PTT for convenient operation.
Поставување видео водич
Video 3.1: Detailed installation guide for the Retevis Helmet Headset.
4. Упатства за работа
Once the headset is installed and connected to your two-way radio, operating it is straightforward:
- Вклучување/исклучување: Turn on your two-way radio as per its manufacturer's instructions. The headset will automatically be active.
- Примање аудио: Audio from the radio will be transmitted through the helmet speakers. Adjust the radio's volume for comfortable listening.
- Transmitting Voice (PTT): To speak, press and hold the finger PTT button. Speak clearly into the boom microphone. Release the PTT button when you are finished speaking to return to receive mode.
- Прилагодување на микрофонот: Ensure the boom microphone is positioned correctly near your mouth for clear sound transmission.
Компатибилност
The Retevis EHK008 headset features a K-head 2-pin plug, making it compatible with a wide range of two-way radios, including:
- Retevis: RT22, RT21, H-777, RT68, RT19, RT27, RT28, RT22S, H-777S, RT15, RT18, RT27V, RT21V, RB38V, RT7, RB17V, RB27V, RT5R, RT5RV, RT5, RT85, RT76, RB26, RB17A, RB27, RT84, RT53, RT10, RT43, RT72, RT26, RT1, RT86, RB25, RT81, RT50, RT56, RA16, RB37, RB35, RT67, RT17, RB17, RB17P, RT66, RB27B, RB28, RT69, RT46, RB18, RT3S, RB28B, RB29, RT76P, RA85, RB85, RB87
- Kenwood KPG: KPG27D, KPG29D, KPG48D, KPG49, KPG55D, KPG56D, KPG62D, KPG66D, KPG69D, KPG70D, KPG74D, KPG75D, KPG77D, KPG82D, KPG87D
- Kenwood TH: TH-D7, TH-D7A, TH-D7AG, TH-D7E, TH-F6, TH-F6A, TH-F7, TH-F7E, TH-G71, TH-G71A, TH-G71E, TH-K2, TH-K2A, TH-K2E, TH-K2ET, TH-21, TH-21AT, TH-21BT, TH-22, TH-22A, TH-22AT, TH-22E, TH-25, TH-26, TH-27, TH-28, TH31AT, TH31BT, TH41AT, TH41BT, TH-42, TH-42A, TH-42AT, TH-42E, TH-45, TH-46, TH-47, TH-48, TH-55, TH-75, TH-77, TH-G71, TH-205, TH-215, TH-225, TH-235, TH-235A, TH-235E, TH-315, TH-415
- Kenwood TK: TK-208/308, TK-220/320, TK-240/340, TK-240D/340D, TK-248/348, TK-250/350/353, TK-260/360, TK-260G/360G, TK-270/370, TK-270G/370G, TK-272G/372G/373G, TK-278G/378G/388GPro-Talk, TK-430/431, TK-2100/3100Pro-Talk, TK-2102/3102Pro-Power, TK-2107/3107Pro-Talk, TK2207, TK3207, TK-2160/3160
- БАОФЕНГ: UV5R, BF-480/490/320/V6/V7/V8/658/520/530/999/888/777/666S/777S/888S
5. Одржување
To ensure the longevity and optimal performance of your Retevis EHK008 headset, consider the following maintenance tips:
- Чистење: Wipe the speakers, microphone, and cables with a soft, damp крпа. Избегнувајте употреба на груби хемикалии или абразивни материјали.
- Складирање: Кога не ги користите, чувајте ги слушалките на суво и ладно место, подалеку од директна сончева светлина и екстремни температури.
- Грижа за кабел: Избегнувајте остри свиткувања или прекумерно влечење на каблите за да спречите внатрешно оштетување.
- Проверка на лепило: Periodically check the adhesive on the speakers and microphone to ensure they remain securely attached within the helmet. Reapply or replace adhesive if necessary.
6 Смена на проблеми
If you encounter issues with your Retevis EHK008 headset, refer to the following common problems and solutions:
| Проблем | Можна причина | Решение |
|---|---|---|
| Нема аудио од звучниците | Loose connection; radio volume too low; radio not powered on. | Ensure the K-head plug is fully inserted. Check radio volume and power. |
| Микрофонот не емитува | PTT button not pressed; microphone not positioned correctly; loose connection. | Press and hold PTT firmly. Adjust microphone closer to mouth. Check all connections. |
| Poor audio quality (static, low volume) | Interference; speakers not positioned correctly; radio signal weak. | Reposition speakers for better alignment with ears. Check radio signal strength. Avoid sources of electromagnetic interference. |
| Finger PTT not staying in place | Adhesive worn out or insufficient. | Clean the surface where PTT is attached. Use stronger adhesive or an alternative mounting method if needed. |
7. Спецификации
| Карактеристика | Детал |
|---|---|
| Име на моделот | EHK008 |
| Број на модел на ставка | FC9191A |
| Бренд | Ретевис |
| Технологија за поврзување | Жичен |
| Џек за слушалки | Kenwood 2 Pin |
| Контрола на бучава | Звучна изолација |
| Материјал | Гума |
| Тежина на ставката | 140 грама (4.9 унци) |
| Димензии на производот | 10.14 x 7.02 x 3.9 инчи |
| Ниво на отпорност на вода | Водоотпорен |
| Импеданса | 8 оми |
8. Гаранција и поддршка
Retevis products are designed for reliability and performance. For any questions or support needs, please refer to the following information:
- Политика за враќање: This product typically includes a 30-day return/replacement policy. Please check your purchase details for specific terms.
- Поддршка за корисници: For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please visit the official Retevis Store or contact Retevis customer service directly.
- Онлајн ресурси: Additional resources, FAQs, and product updates may be available on the Retevis webсајт.
Посетете го Retevis Store on Amazon за повеќе информации и поддршка.
