MEIKEE SWL-FL01 Rechargeable LED Work Light User Manual

Вовед

Thank you for choosing the MEIKEE SWL-FL01 Rechargeable LED Work Light. This versatile and durable work light is designed to provide reliable illumination for a wide range of activities, including construction, camping, fishing, garage work, and emergency situations. Featuring multiple lighting modes, adjustable brightness, and flexible charging options, this manual will guide you through its proper use and maintenance to ensure optimal performance.

Инструкции за безбедност

• Не гледајте директно во LED светлото кога е вклучено, бидејќи тоа може да предизвика оштетување на очите.
• Држете го уредот подалеку од екстремни температури, директна сончева светлина и корозивни течности.
• Do not disassemble or modify the product. Repairs should only be performed by qualified personnel.
• Ensure the USB port's silicone cover is properly sealed when not in use, especially in wet conditions, to maintain splash resistance.
• Да се ​​чува подалеку од дофат на деца.

Содржина на пакетот

Ве молиме проверете го пакувањето за следните ставки:

• MEIKEE SWL-FL01 Rechargeable LED Work Light
• USB кабел за полнење
• Упатство за употреба

Image: MEIKEE Rechargeable LED Work Light package contents including the light, USB cable, and user manual, along with product dimensions. The image also shows the product dimensions: 154mm (6.06in) length, 114mm (4.49in) height, and 32mm (1.25in) thickness.

Производот завршиview

The MEIKEE SWL-FL01 features a robust design with intuitive controls and multiple functionalities.

Компоненти:

• LED светлосен панел
• Solar Charging Panel (rear)
• Копче за напојување
• Mode/Brightness Adjustment Buttons
• USB-A Output Port (for charging external devices)
• USB-C Input Port (for charging the work light)
• Splash-proof Silicone Cover for USB ports
• Adjustable 180-degree Handle/Stand
• Integrated Magnets (2)
• 1/4-inch Tripod Mount Hole
• Power Indicator Lights (4 green LEDs)
• Charging Indicator Light (1 red/green LED)

Image: MEIKEE LED Work Light functioning as a power bank, charging a mobile phone via its USB output port, with a detailed view of the USB-A output, USB-C input, and splash-proof cover. The image shows the USB-A output (Out 5V 2A), USB-C input (In 5V 2A), and the protective silicone cover.

Поставување

Почетно полнење:

Before first use, it is recommended to fully charge the work light. Connect the provided USB-C cable to the input port on the device and to a compatible USB power adapter (not included). The charging indicator light will illuminate during charging. A full charge via USB takes approximately 8 hours.

Индикатор за моќност:

The four green LED lights indicate the remaining battery capacity. Each light represents approximately 25% of the battery charge. Check these indicators regularly to ensure your device is sufficiently charged for your tasks.

Image: MEIKEE LED Work Light illuminating a wide area at 1000 lumens, with a close-up of the battery power indicator lights. The green LEDs indicate the battery level.

Упатства за работа

Вклучување/исклучување:

Press and hold the power button for 3 seconds to turn the work light ON or OFF.

Adjusting Modes and Brightness:

Once the light is on, short press the mode button to cycle through the four lighting modes:

1. Топло бело (2700K): Ideal for a cozy ambiance or situations requiring less harsh light.
2. Natural White (4000K): Балансирана светилка погодна за општи задачи.
3. Ладно бело (6000K): Bright, clear light for detailed work or maximum visibility.
4. Red & Blue SOS Flash: За сигнализација за итни случаи.

Short press the brightness button to cycle through the five brightness levels (100%, 75%, 50%, 25%, 10%) within each mode. The MEIKEE work light maintains constant brightness throughout its operation, unlike some other lights that dim over time.

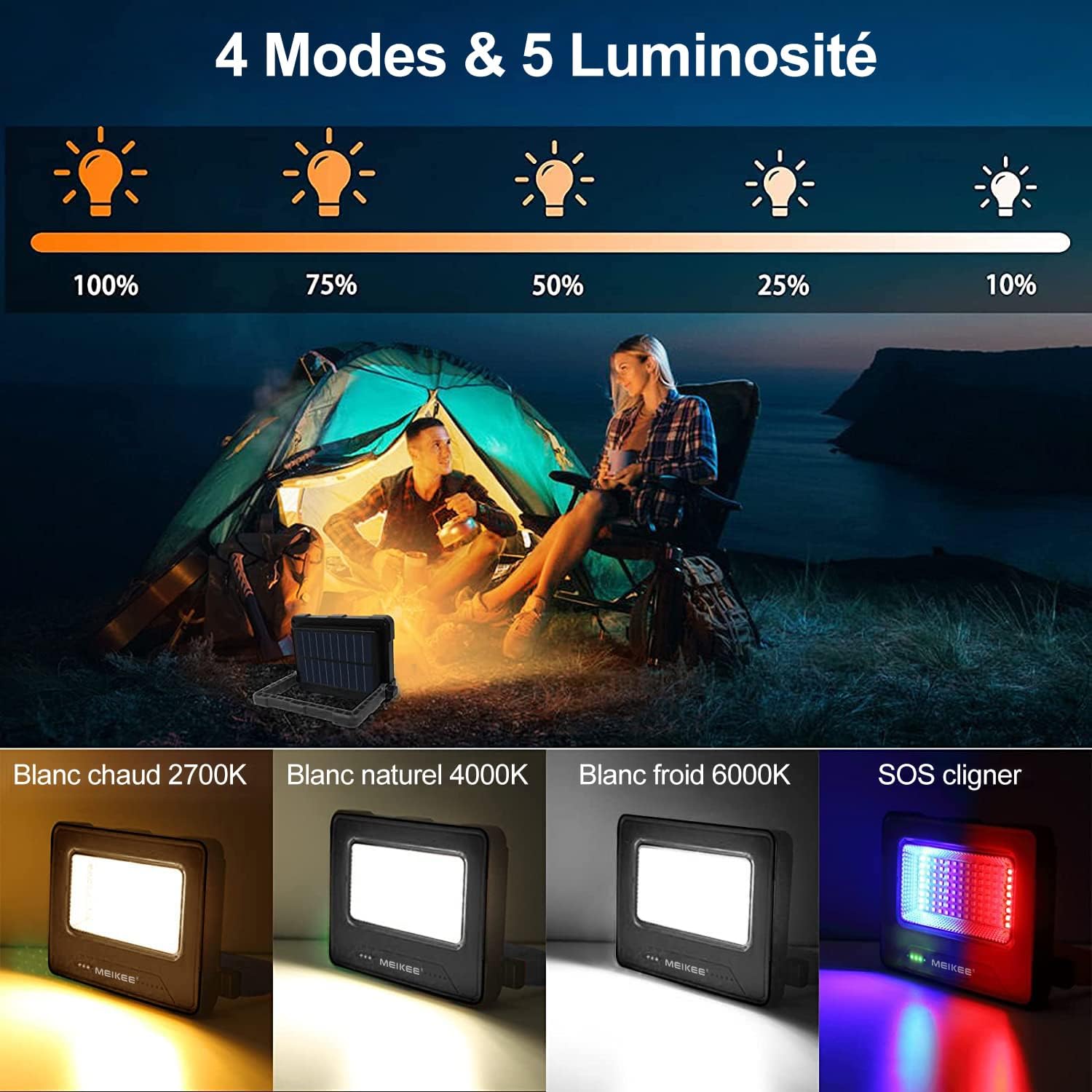

Image: MEIKEE LED Work Light displaying its four lighting modes (Warm, Natural, Cool White, SOS) and five brightness levels. The image shows the light in use during camping and detailed views of each light mode and brightness percentage.

Image: Comparison demonstrating MEIKEE LED Work Light's constant brightness feature (1000LM for 10 hours) versus other lights that dim over time (500LM after 5 hours). This highlights the stable illumination provided by the MEIKEE light.

Charging the Work Light:

The MEIKEE SWL-FL01 offers three convenient charging methods:

• USB полнење: Connect the provided USB-C cable to the input port and a 5V USB power source. Full charge takes approximately 8 hours.
• Соларно полнење: Place the work light with its solar panel facing direct sunlight. This method takes approximately 24 hours for a full charge, depending on sunlight intensity.
• Light Charging: In low light conditions, the solar panel can still trickle charge the battery, though this is the slowest method, taking up to 60 hours for a full charge.

Image: MEIKEE LED Work Light showing two charging methods: solar charging via its integrated panel and USB charging. The image depicts both solar panel exposure and USB cable connection for charging.

Функционалност на Power Bank:

The integrated 12000mAh lithium polymer battery allows the work light to double as a power bank. Connect your mobile phone or other USB-powered device to the USB-A output port (Out 5V 2A) using your device's charging cable. The work light can charge a typical smartphone 3-4 times.

Опции за монтирање:

The MEIKEE SWL-FL01 is designed for flexible positioning:

• Прилагодлива рачка/држач: The 180-degree adjustable handle can be used to carry the light or to position it as a stand on flat surfaces.
• Магнетен додаток: Two powerful magnets on the back allow you to securely attach the light to metal surfaces for hands-free operation, such as under a car hood or on a metal workbench.
• Монтирање на статив: A standard 1/4-inch screw hole is provided for mounting the light onto a tripod (not included) for elevated or more stable positioning.

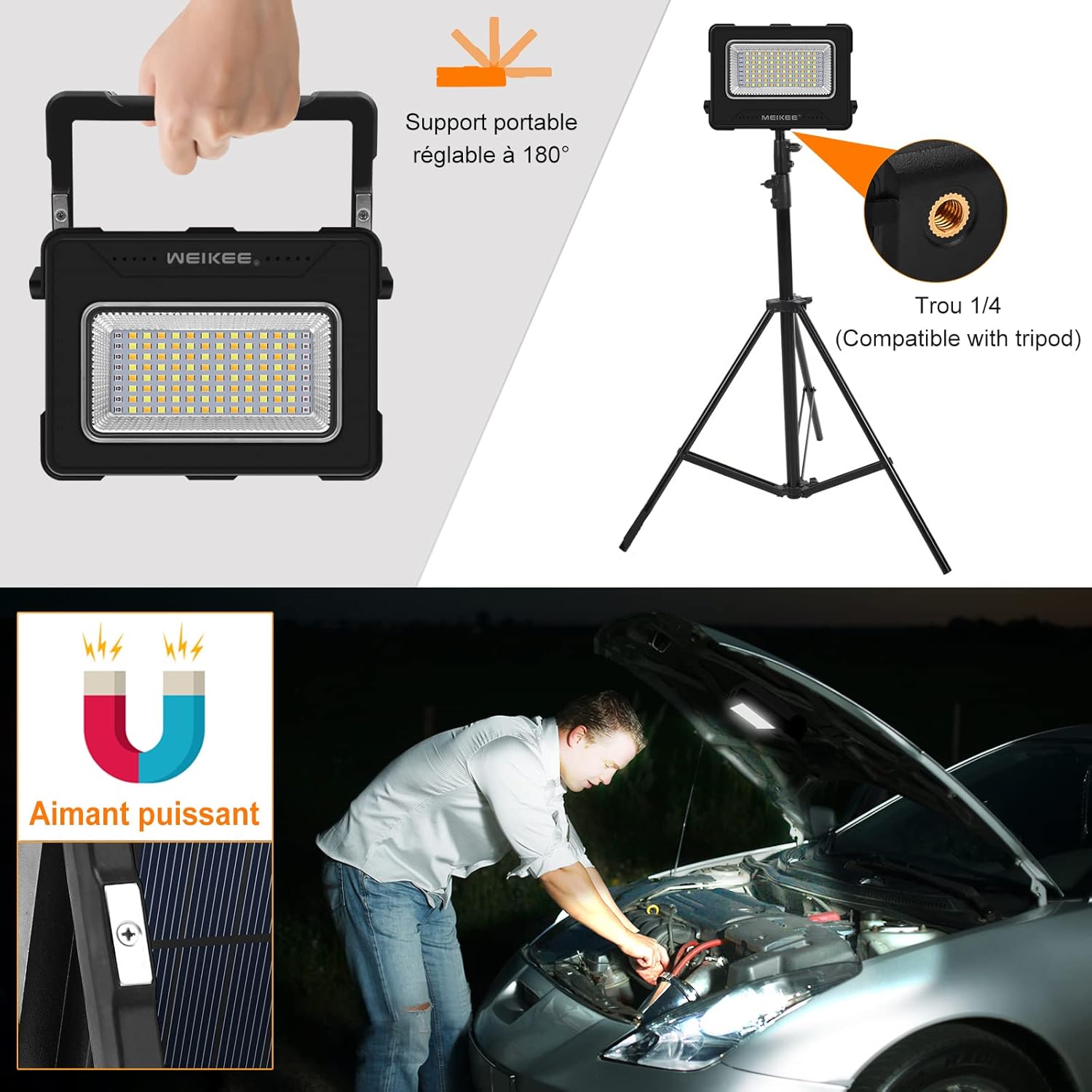

Image: MEIKEE LED Work Light showcasing its versatile mounting options: a 180-degree adjustable stand, a 1/4-inch tripod mount, and powerful integrated magnets for hands-free use. The image demonstrates the adjustable handle, tripod compatibility, and magnetic attachment under a car hood.

Одржување

• Чистење: Избришете ја светлината со мека, гamp крпа. Не користете абразивни средства за чистење или растворувачи. Осигурајте се дека соларниот панел е чист за ефикасно полнење.
• Складирање: Store the work light in a cool, dry place when not in use. If storing for extended periods, charge the battery every 3-6 months to prolong its lifespan.
• Заштита на USB порта: Always ensure the silicone cover for the USB ports is securely closed to prevent dust and water ingress.

Решавање проблеми

Спецификации

Гаранција и поддршка

MEIKEE products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official MEIKEE webстраница. Ве молиме задржете го доказот за купување за какви било гаранциски побарувања.
