1. Вовед
This manual provides detailed instructions for the installation, operation, and maintenance of your Antec NX700 Mid-Tower ATX Gaming Case. Please read this manual thoroughly before beginning assembly to ensure proper setup and safe usage.
Figure 1: Antec NX700 Mid-Tower ATX Gaming Case overview.
Клучни карактеристики
- 3D Geometric Mesh Front Panel: Designed for optimal airflow and aesthetic appeal.
- Included ARGB Fans: Comes with two 185mm ARGB fans in the front and one 120mm ARGB fan in the rear for effective cooling and customizable lighting.
- Страничен панел од калено стакло: A 4mm thick tempered glass side panel provides a clear view на вашите внатрешни компоненти.
- Extensive Radiator Support: Supports up to a 360mm radiator for advanced liquid cooling solutions.
- Versatile I/O Panel: Features Power, LED control button, Reset, 2 x USB 3.0 ports, and MIC/HD-AUDIO jacks.
- Компатибилност со матична плоча: Поддржува ATX, Micro-ATX и Mini-ITX матични плочи.

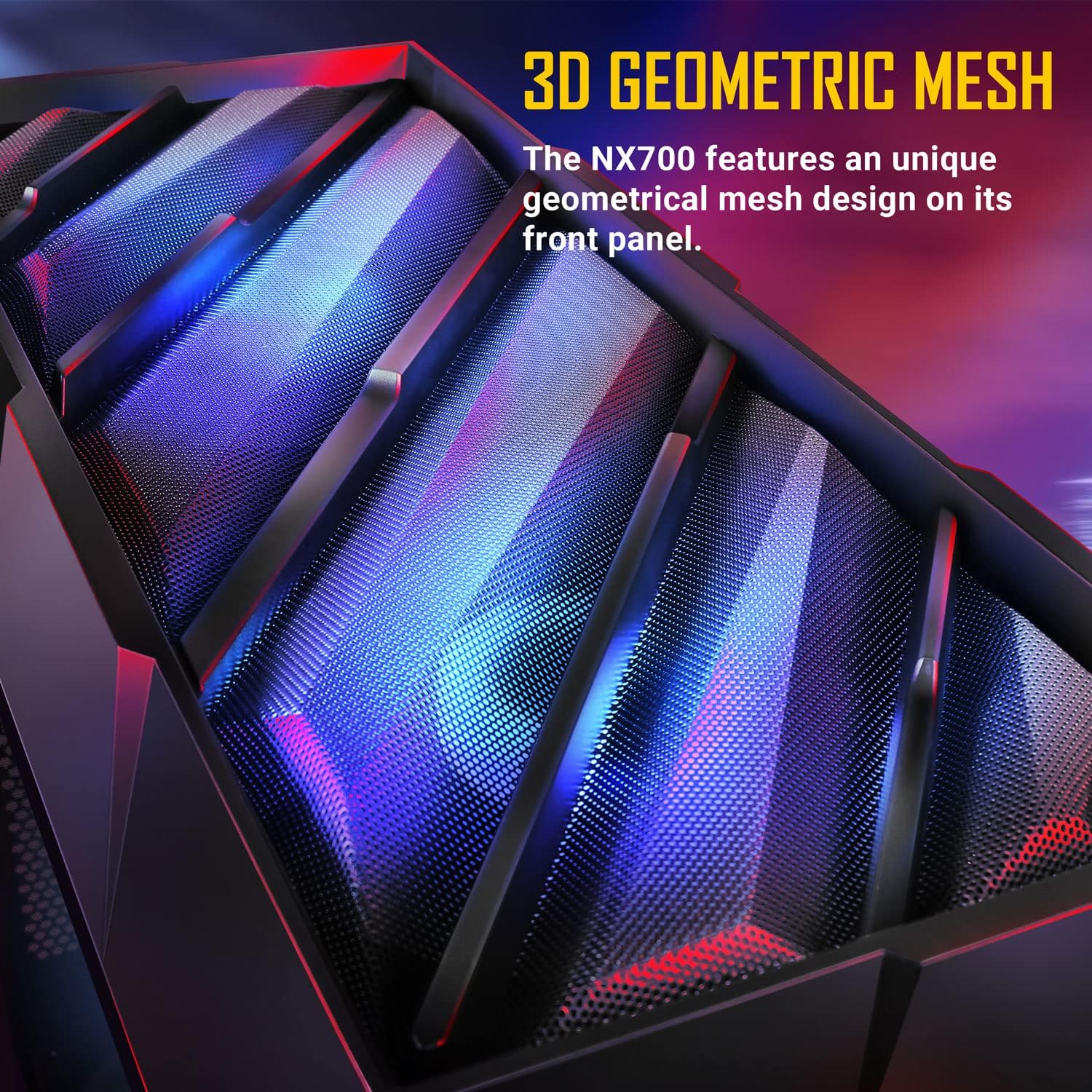

Figure 2: Close-up of the 3D geometric mesh front panel, designed for enhanced airflow.
2. Поставување и инсталација
Follow these steps to install your components into the Antec NX700 case.
2.1 Included Fans Installation
The case comes pre-installed with two 185mm ARGB fans at the front and one 120mm ARGB fan at the rear. Ensure these fans are properly connected to your motherboard or a fan controller for power and ARGB functionality.
Figure 3: Illustration of the included 2 x 185mm ARGB front fans and 1 x 120mm ARGB rear fan.
2.2 Cooling System Configuration
The NX700 supports various fan and radiator configurations to optimize cooling performance.
- Предна страна: Supports 3 x 120mm, 3 x 140mm, or 2 x 185mm fans. Radiator support up to 360mm.
- Врв: Supports 2 x 120mm or 2 x 140mm fans. Radiator support up to 280mm.
- Заден дел: Supports 1 x 120mm or 1 x 140mm fan. Radiator support up to 140mm.
- Обвивка за напојување: Supports 2 x 120mm fans.

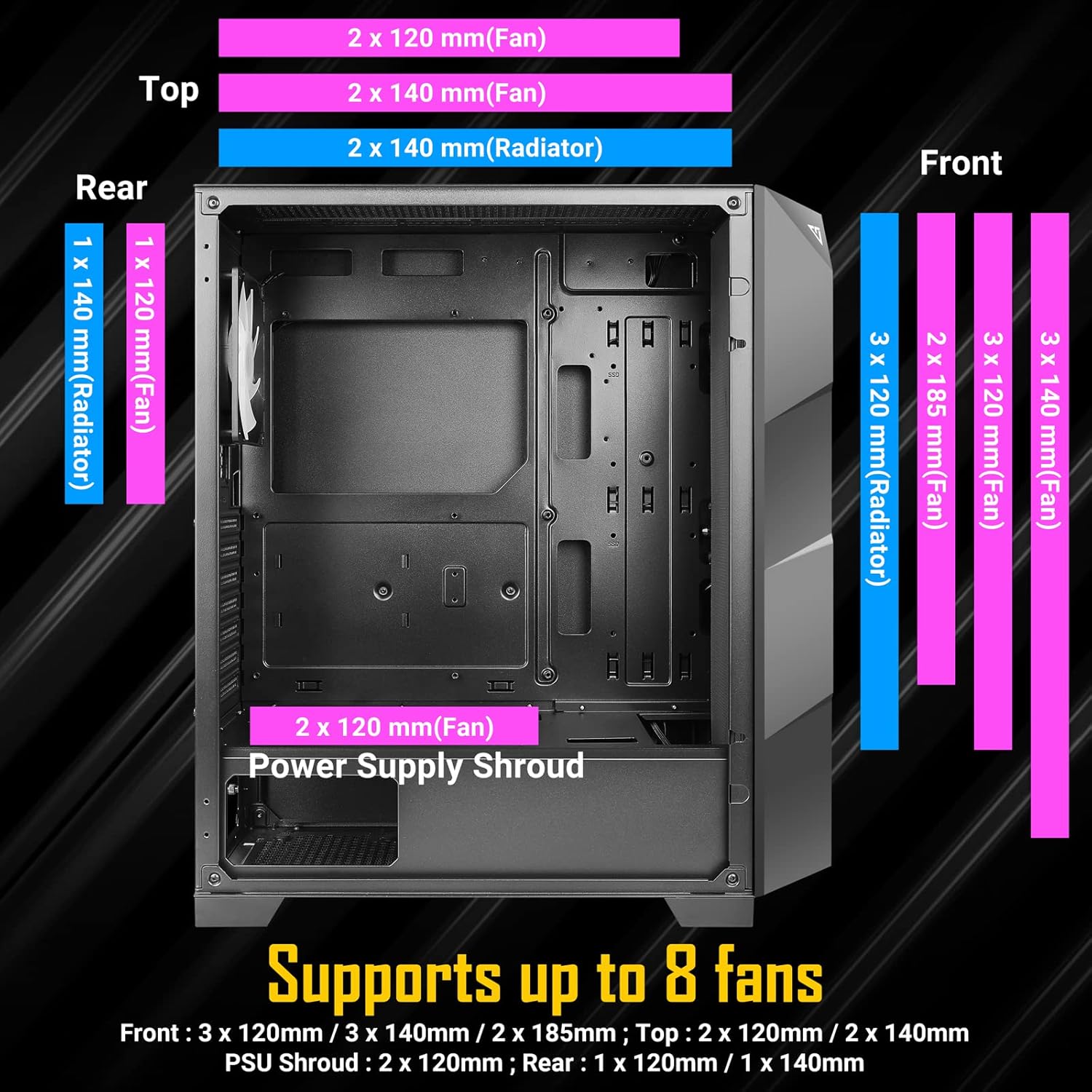

Figure 4: Diagram illustrating fan and radiator mounting options within the case.
Figure 5: Illustration showing space for a 360mm radiator installation at the front, even with 185mm fans.
2.3 Инсталација на компоненти
The NX700 offers ample space for various components. Ensure all cables are routed neatly for optimal airflow and aesthetics.
- Матична плоча: Supports ATX motherboards (up to 305mm x 275mm).
- Кулер на процесорот: Максимална висина од 170 мм.
- Графичка картичка (GPU): Максимална должина од 340 мм.
- Напојување (PSU): Supports PSUs up to 200mm (with HDD) or 365mm (without HDD).
- Складирање: 2 x 3.5" HDD / 2.5" SSD (convertible) and 4 x 2.5" SSDs.
Figure 6: Internal layout showing maximum dimensions for CPU cooler, GPU, and motherboard support.
Слика 7: Внатрешен view of the NX700 case with various components installed, demonstrating space and layout.
2.4 Video Guide for Assembly
Watch this official video for a visual guide on the Antec NX700 Mid-Tower ATX Gaming Case features and assembly process.
Видео 1: Официјално завршувањеview and assembly guide for the Antec NX700 Mid-Tower ATX Gaming Case.
3. Упатства за работа
3.1 Функции на I/O панелот
The top I/O panel provides convenient access to essential controls and ports.
- Копче за вклучување: Го вклучува или исклучува системот.
- LED Control Button: Cycles through various ARGB lighting modes for the included fans.
- Копче за ресетирање: Го рестартира системот.
- USB 3.0 порти (x2): За брз пренос на податоци.
- MIC/HD-AUDIO Jacks: За поврзување на слушалки и микрофони.
Слика 8: Детално view of the top I/O panel with power, LED control, USB 3.0, and audio ports.
3.2 Контрола на вентилаторот ARGB
The included ARGB fans can be controlled either via the dedicated LED button on the I/O panel or synchronized with your motherboard's ARGB software.
- Using the LED Control Button: Press the LED button on the I/O panel to cycle through pre-programmed lighting effects.
- Синхронизација на матичната плоча: To sync with your motherboard, connect the ARGB cables from the fans to a compatible 3-pin 5V ARGB header on your motherboard. Use your motherboard's software (e.g., ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion) to control the lighting.
Figure 9: The Antec NX700 case showcasing its vibrant ARGB lighting capabilities.
4. Одржување
Regular maintenance helps ensure the longevity and optimal performance of your Antec NX700 case.
- Филтри за прашина: Periodically clean the dust filters located at the top and bottom of the case. Gently remove them and use compressed air or a soft brush to clear accumulated dust.
- Case Exterior: Избришете ги надворешните површини со мека, гamp крпа. Избегнувајте абразивни средства за чистење или растворувачи.
- Панел од калено стакло: Clean the tempered glass panel with a microfiber cloth and a glass cleaner designed for electronics. Avoid excessive force or harsh chemicals.
- Внатрешно чистење: Every few months, open the case and use compressed air to remove dust from internal components and fan blades. Ensure the system is powered off and unplugged before cleaning.
5 Смена на проблеми
This section addresses common issues you might encounter with your Antec NX700 case.
5.1 Fans Not Spinning or Lighting Up
- Поврзување за напојување: Verify that all fan power cables are securely connected to the motherboard fan headers or a fan controller.
- ARGB конекција: Ensure ARGB cables are correctly connected to a 3-pin 5V ARGB header on the motherboard or the case's LED controller. Incorrect connection (e.g., to a 4-pin 12V RGB header) can damage the LEDs.
- LED Button Functionality: If using the case's LED button, ensure it is functioning. Try cycling through modes.
- Софтвер за матична плоча: If using motherboard sync, check your motherboard's ARGB software for fan control and lighting settings.
- Молекс конектор: Some fan controllers or hubs may require a Molex connector for power. Ensure this is properly connected to your power supply.
5.2 Нема напојување во системот
- Приклучок за напојување: Ensure the power supply is properly installed and connected to the motherboard and all components. Check that the PSU switch is in the 'ON' position.
- Конектори на предниот панел: Verify that the front panel power switch cable is correctly connected to the motherboard's front panel header. Refer to your motherboard manual for the correct pinout.
5.3 Missing Motherboard Mounting Stand-offs
While the case includes standard stand-offs, some motherboard layouts (e.g., certain ATX boards) may require additional stand-offs for full support. Ensure all necessary stand-offs are installed to prevent motherboard flex and potential damage.
6. Спецификации
Detailed technical specifications for the Antec NX700 Mid-Tower ATX Gaming Case.
| Карактеристика | Спецификација |
|---|---|
| Бренд | Антек |
| Серии | NX700 |
| Име на моделот | NX700 |
| Број на модел на ставка | 0-761345-81072-2 |
| Тип на случај | Mid Tower |
| Компатибилност со матична плоча | ATX, Micro ATX, Mini ITX |
| Материјал | SPCC + Plastic, Tempered Glass |
| Димензии на производот (ДxШxВ) | 17.32 x 8.66 x 19.37 инчи (440 x 220 x 492 мм) |
| Тежина на ставката | 15.84 фунти (7.2 килограми) |
| Вклучени навивачи | 2 x 185mm ARGB (Front), 1 x 120mm ARGB (Rear) |
| Поддршка за преден вентилатор | 3 x 120 mm / 3 x 140 mm / 2 x 185 mm |
| Најдобра поддршка од обожаватели | 2 x 120 mm / 2 x 140 mm |
| Задна потпора за вентилатор | 1 x 120 mm / 1 x 140 mm |
| PSU Shroud Fan Support | 2 x 120 mm |
| Поддршка за преден радијатор | До 360 мм |
| Врвна поддршка за радијатор | До 280 мм |
| Поддршка за заден радијатор | До 140 мм |
| Максимална висина на ладилникот на процесорот | 170 мм |
| Максимална должина на графичкиот процесор | 340 мм |
| Максимална должина на PSU | 200mm (with HDD) / 365mm (without HDD) |
| Диск Бејс | 2 x 3.5" HDD / 2.5" SSD (convertible), 4 x 2.5" SSD |
| I/O панел | Power, LED Control, Reset, 2 x USB 3.0, MIC/HD-AUDIO |
Figure 10: Dimensions of the Antec NX700 Mid-Tower ATX Gaming Case.
Слика 11: Заден дел view of the Antec NX700, showing expansion slots and fan mount.
7. Гаранција и поддршка
For warranty information, technical support, or to inquire about replacement parts, please visit the official Antec website or contact Antec customer service. Keep your proof of purchase for warranty claims.
Antec Official Webсајт: www.antec.com
