elemage 2K Outdoor Security Camera ZS-GQ3 User Manual

1. Производот завршиview

The elemage ZS-GQ3 is a 2K outdoor security camera designed for reliable surveillance. It features 2K (2560 x 1440) HD resolution, PIR motion detection, two-way audio communication, and advanced night vision capabilities up to 15 meters. With an IP65 waterproof rating, it is suitable for various outdoor conditions. The camera operates on a built-in battery and connects via 2.4 GHz WiFi (5 GHz WiFi is not supported).

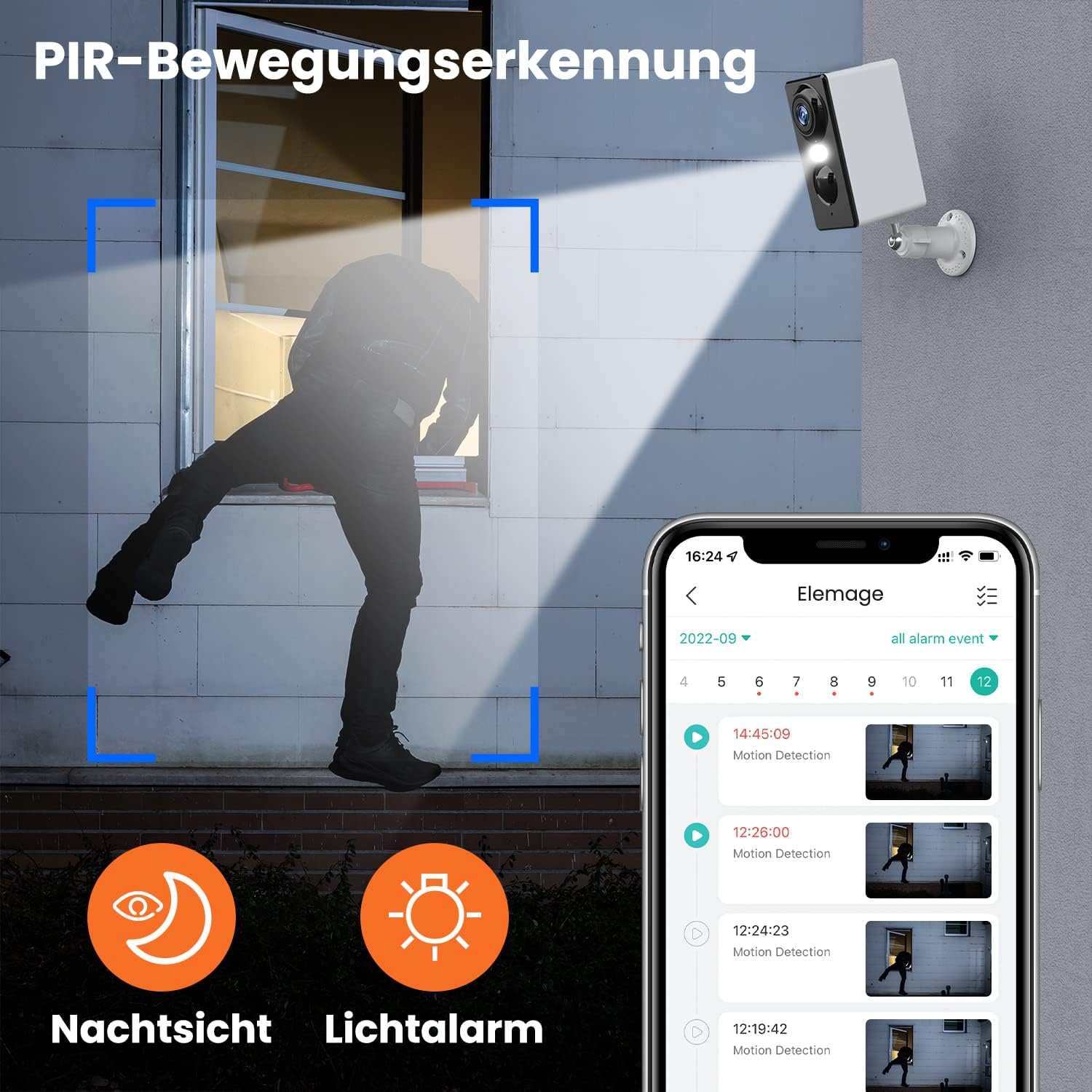

Слика 1.1: The elemage ZS-GQ3 camera features PIR motion detection, night vision, and a light alarm for enhanced security.

2. Содржина на пакетот

Ве молиме проверете дали сите артикли наведени подолу се вклучени во вашиот пакет:

• elemage 2K Outdoor Security Camera (ZS-GQ3)
• Држач за монтирање на ѕид
• USB кабел за полнење
• Монтирачки завртки и ѕидни приклучоци
• Упатство за употреба

Слика 2.1: The complete package contents of the elemage ZS-GQ3 security camera.

3. Водич за поставување

3.1 Почетно полнење

Before first use, fully charge the camera's built-in battery using the provided USB cable and a standard 5V USB power adapter (not included). A full charge ensures optimal performance and battery life.

3.2 Инсталација на апликација

Преземете и инсталирајте го 'elemage Cam' application on your smartphone. The app is available for both iPhone and Android devices. Пребарај за 'elemage Cam' in your device's app store.

3.3 Camera Pairing and WiFi Connection

1. Open the 'elemage Cam' app and create an account or log in.
2. Следете ги упатствата во апликацијата за да додадете нов уред.
3. Осигурајте се дека вашиот паметен телефон е поврзан со WiFi мрежа од 2.4 GHz. The camera does not support 5 GHz WiFi.
4. During the pairing process, you will be prompted to connect the camera to your home WiFi network. Enter your WiFi credentials carefully.
5. Once connected, the camera's status indicator will confirm successful pairing.

3.4 Монтирање на камерата

Камерата е дизајнирана за монтирање на ѕид. Изберете локација што ги обезбедува посакуваните услови. viewing angle and is within range of your 2.4 GHz WiFi network. Use the included wall mount bracket, screws, and wall plugs for secure installation.

• Mark the drilling points using the mount bracket as a template.
• Дупчете дупки и вметнете ги ѕидните приклучоци.
• Secure the mount bracket to the wall with the screws.
• Attach the camera to the mount bracket and adjust the angle as needed.

Слика 3.1: The camera is IP65 waterproof, allowing for outdoor installation in various weather conditions.

4. Упатства за работа

4.1 Во живо View

Access the 'elemage Cam' app on your smartphone to view the live feed from your camera anytime, anywhere. The live view provides real-time monitoring of your property.

4.2 PIR Motion Detection

The camera is equipped with PIR (Passive Infrared) motion detection. When motion is detected, the camera will automatically begin recording and send push notifications to your smartphone. You can review recorded events within the app.

Слика 4.1: Intelligent AI sensor provides user-defined motion detection and sends notifications to your phone.

4.3 Двонасочно аудио

Utilize the built-in microphone and speaker for two-way communication. Through the 'elemage Cam' app, you can speak to visitors or deter intruders directly from your smartphone.

Слика 4.2: Engage in real-time conversation with two-way audio functionality.

4.4 Ноќно гледање

The camera offers advanced night vision, providing clear surveillance even in low-light conditions. It supports both black-and-white and colored night vision, with an effective range of up to 15 meters.

Слика 4.3: Experience clear color night vision with a long-distance view.

4.5 Опции за складирање

The camera supports local storage via a MicroSD card (2GB to 128GB, not included) and cloud storage options (subscription may be required). Recorded footagможе да се пристапи до него и повторноviewed through the 'elemage Cam' app.

4.6 Multi-Device Viewинг

You can share access to your camera's live feed with multiple users. After sharing, several phones can view the security camera simultaneously through the 'elemage Cam' app.

Слика 4.4: View the camera feed from multiple phones, anytime and anywhere.

5. Одржување

5.1 Управување со батерии

The 'elemage Cam' app will send a reminder when the camera's battery level drops below 20%. Recharge the camera promptly to ensure continuous operation. Battery life varies based on usage, motion detection frequency, and environmental factors.

5.2 Чистење

Although the camera is IP65 waterproof, regularly clean the lens and camera body with a soft, damp крпа за отстранување прашина, нечистотија или дамки од вода што може да го попречат viewНе користете груби хемикалии или абразивни материјали.

5.3 Ажурирања на фирмверот

Periodically check the 'elemage Cam' app for available firmware updates. Keeping your camera's firmware up-to-date ensures optimal performance, security, and access to new features.

6 Смена на проблеми

• Камерата не се поврзува со WiFi: Ensure your WiFi network is 2.4 GHz. Verify the WiFi password is correct. Move the camera closer to the router to improve signal strength.
• No motion detection notifications: Check the motion detection settings in the 'elemage Cam' app. Ensure notifications are enabled for the app on your smartphone. Verify the camera's battery level.
• Лош квалитет на сликата: Исчистете го објективот на камерата. Уверете се дека нема пречки во полето на камерата. view. Check your internet connection speed.
• Кратко траење на батеријата: Reduce the sensitivity of motion detection or the duration of recorded events. Ensure the camera is not in an area with excessive motion.
• Проблеми со двонасочно аудио: Ensure your phone's microphone and speaker are enabled for the 'elemage Cam' app. Check the camera's audio settings in the app.

For more detailed troubleshooting or specific issues, refer to the help section within the 'elemage Cam' application or contact customer support.

7. Спецификации

8. Гаранција и поддршка

For warranty information, please refer to the documentation provided at the time of purchase or contact elemage customer support directly. If you encounter any issues or have questions regarding your elemage ZS-GQ3 camera, please reach out to the manufacturer's support team for assistance. Contact details are typically available on the product packaging or the official elemage webсајт.
