Вовед

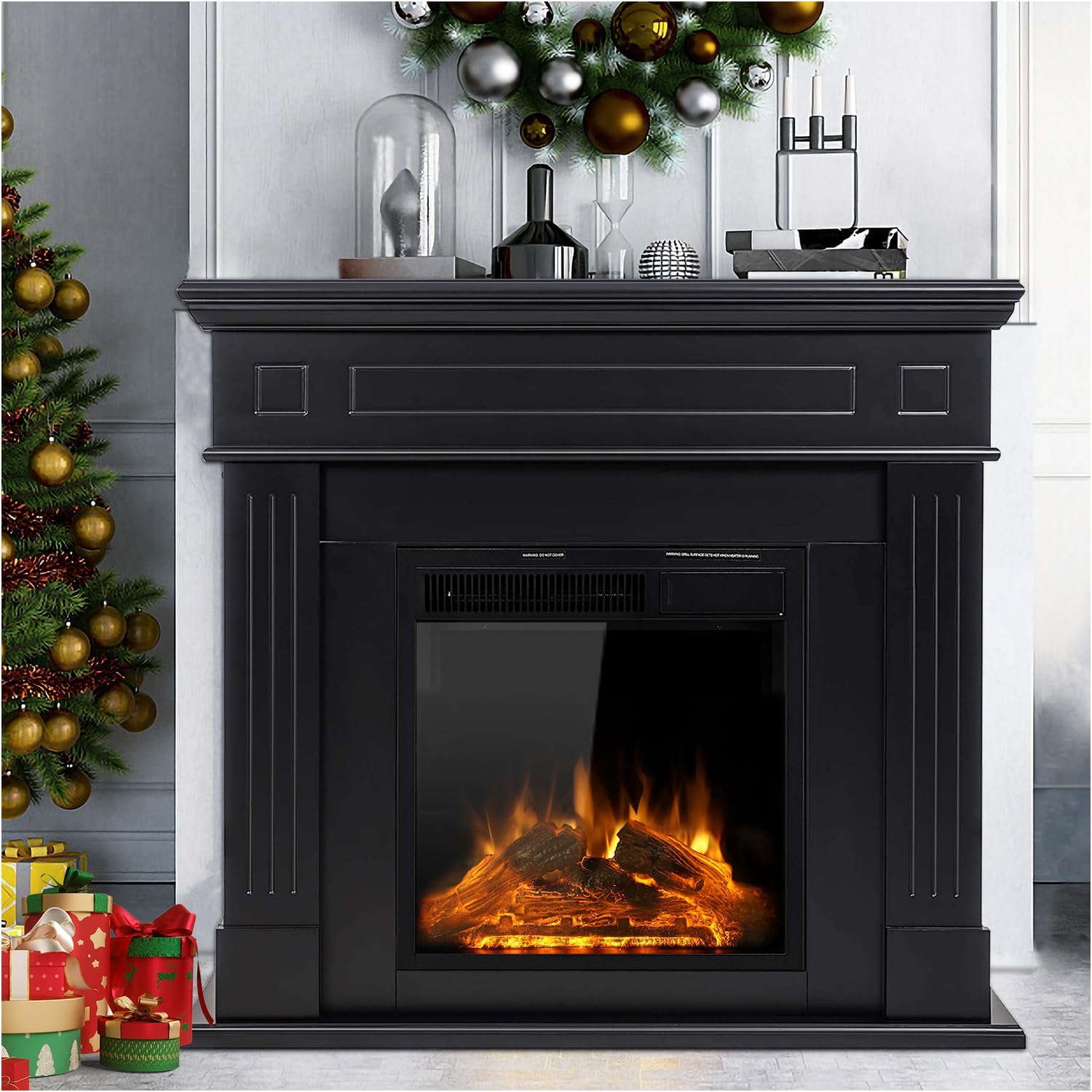

Thank you for choosing the COWSAR 44" Electric Fireplace with Mantel. This manual provides essential information for the safe and efficient operation of your new fireplace. Please read all instructions carefully before assembly and use, and retain this manual for future reference.
Клучни карактеристики:
- Durable Mantel: Waterproof and anti-corrosion wooden frame, easy to clean.
- Реален ефект на пламен: 3D technology with 7 adjustable flame brightness levels.
- Ефикасно греење: 5100 BTU heat output, covering up to 400 square feet. Two heat settings: 750W (warm air) and 1500W (hot air).
- Сертифицирано за безбедност: ETL certified with automatic power cut-off at 105°C to prevent overheating.
- Практична контрола: Operable via both control panel and remote control (up to 8m range).
- Two-Package Delivery: Fireplace unit and wooden mantel shipped separately for protection.
Поставување и склопување
Your COWSAR Electric Fireplace with Mantel arrives in two separate packages: one for the electric fireplace unit and one for the wooden mantel. Assembly is straightforward and typically takes about 40 minutes. Follow the instructions provided in the packaging for detailed steps.
- Отпакувајте ги компонентите: Carefully remove all parts from both packages. Verify that all components and hardware are present according to the packing list.
- Assemble Mantel: Begin by assembling the wooden mantel structure. Ensure all pieces are correctly oriented and securely fastened. The design is engineered for durability and stability.
- Инсталирајте го влошката за камин: Once the mantel is assembled, carefully slide the electric fireplace insert into the designated opening. Secure it using the provided screws (typically four screws are used to firmly attach the insert to the mantel).
- Поставување: Position the assembled fireplace on a flat, stable surface. Ensure there is adequate clearance from combustible materials as specified in the safety guidelines.
- Поврзување за напојување: Приклучете го каминот во стандарден штекер.
Видео за демонстрација на собранието:
Video 1: A visual guide demonstrating the assembly process of the electric fireplace and mantel. This video covers unpacking, mantel assembly, and fireplace insert installation.
Упатства за работа
Your COWSAR electric fireplace can be operated using either the control panel located on the unit or the included remote control.
Контролен панел и далечински управувач:
The control panel is discreetly located on the fireplace unit. The remote control offers convenient operation from a distance of up to 8 meters.
Функции:
- ВКЛУЧУВАЊЕ/ИСКЛУЧУВАЊЕ: Притиснете го копчето за вклучување на контролната табла или на далечинскиот управувач за да го вклучите или исклучите уредот.
- Осветленост на пламенот: Adjust the flame brightness using the '+' and '-' buttons for flame on the control panel or remote. There are 7 levels of flame brightness to choose from, creating a realistic 3D flame effect.
- Поставки за топлина: Select between two heat settings:
- Heater I (750W): Provides gentle warmth.
- Heater II (1500W): Delivers stronger heat for faster room warming.
- Заштита од прегревање: The unit is equipped with an ETL-certified safety feature that automatically cuts off power if the internal temperature reaches 105°C (221°F), ensuring safe operation.
Одржување
Редовното одржување обезбедува долготрајност и оптимални перформанси на вашиот електричен камин.
- Чистење на каминот: The wooden mantel surface is waterproof and anti-corrosion. Wipe it with a soft, damp cloth to remove dust and spills. Avoid abrasive cleaners that could damage the finish.
- Чистење на влошката за камин: Ensure the unit is unplugged and cool before cleaning. Use a soft, dry cloth to wipe the glass and exterior surfaces. Do not use liquid cleaners directly on the electrical components.
- Вентилација: Periodically check the air vents on the fireplace unit to ensure they are free from dust and obstructions. Blocked vents can reduce heating efficiency and pose a safety risk.
- Складирање: If storing the fireplace for an extended period, ensure it is clean, dry, and stored in a safe place away from moisture and extreme temperatures.
Решавање проблеми
If you encounter any issues with your COWSAR electric fireplace, refer to the following common problems and solutions:
| Проблем | Можна причина | Решение |
|---|---|---|
| Уредот не се вклучува. | No power, power switch off, or remote battery low. | Check power outlet, ensure main power switch is ON, replace remote batteries. |
| Нема излезна топлина. | Heater function not activated, or overheat protection triggered. | Activate heater function. If unit is hot, unplug and allow to cool for 15-20 minutes before restarting. |
| Пламените не се видливи или слаби. | Flame brightness set too low, or LED components issue. | Increase flame brightness using the control panel or remote. If issue persists, contact customer support. |
| Невообичаен шум за време на работата. | Obstruction in fan/heater area, or normal operational sounds. | Ensure vents are clear. Some minor fan noise is normal. If noise is loud or unusual, discontinue use and contact support. |
If these solutions do not resolve the issue, please contact COWSAR customer support for further assistance.
Спецификации
| Карактеристика | Детал |
|---|---|
| Бренд | COWSAR |
| Име на моделот | M027BK-BLACK |
| Извор на енергија | Електричен со кабел |
| Димензии на производот | 43.31" Д x 39.57" Ш x 13.7" В |
| Материјал | Дрво |
| Тип на завршница | Насликани |
| Тип на инсталација | Самостоен |
| Излез на топлина | 5100 Британски термални единици |
| Специјална карактеристика | Adjustable, Waterproof |
| Стил | Ретро |
| Боја | Црното |
| Тип на соба | Дневна соба |
| Тип на вентилација | Вентилација бесплатно |
| Покриеност за греење | 400 квадратни метри |
| Вклучени компоненти | Камин, далечински управувач |
| Облик | Правоаголни |
| Тип горилник | Кварц |
| Големина | 44 инчи |
| Производител | Каусар |
| Датум прв на располагање | 30 август 2022 година |
Информации за гаранцијата
The COWSAR 44" Electric Fireplace with Mantel comes with a Ограничена гаранција. For specific terms, conditions, and duration of the warranty, please refer to the warranty card included with your product or contact COWSAR customer support.
Поддршка за корисници
For any questions, concerns, or assistance with your COWSAR Electric Fireplace, please contact our customer support team. We are dedicated to ensuring your satisfaction.
- Поддршка преку Интернет: Visit the official COWSAR webстраница за често поставувани прашања и ресурси за поддршка.
- Контакт информации: Refer to your product packaging or the COWSAR brand store on Amazon for the most current contact details.
