1. Вовед
Thank you for choosing the Greenworks 24V Brushless 1-inch Compact One-Handed Reciprocating Saw, Model RSG404. This tool is designed for efficient cutting across various materials, offering portability and power within the Greenworks 24V lithium-ion platform. This manual provides essential information for safe operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your tool.
2. Информации за безбедност
WARNING: Read all safety warnings and instructions before operating this power tool. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
Општа безбедност на електричната алатка
- Секогаш носете заштита за очи и заштита за слух.
- Одржувајте го работното место чисто и добро осветлено.
- Не ракувајте со електричните алати во експлозивни атмосфери, како на пример во присуство на запаливи течности, гасови или прашина.
- Држете ги децата и случајните минувачи подалеку додека ракувате со електрична алатка.
- Избегнувајте ненамерно стартување. Проверете дали прекинувачот е во исклучена положба пред да го поврзете батерискиот пакет, да го подигнете или носите алатот.
- Не претерувајте. Одржувајте правилна основа и рамнотежа во секое време.
- Исклучете го батерискиот пакет од електричниот алат пред да направите какви било прилагодувања, да менувате додатоци или да ги чувате електричните алати.
Battery Safety (Battery Sold Separately)
- Use only with Greenworks 24V lithium-ion battery packs.
- Не полнете батерии во damp или влажни локации.
- Do not store the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C).
- Не го палете батерискиот пакет дури и ако е сериозно оштетен или целосно истрошен. Батерискиот пакет може да експлодира во пожар.
3. Карактеристики на производот
Технологија на мотори без четки
The high-efficiency brushless motor delivers up to 50% more run-time and increased performance compared to brushed motors, ensuring longer tool life and consistent power output.
Image: Diagram highlighting key features like cushioned overmold grip, brushless motor, LED worklight, tool-free blade change, pivoting shoe, and variable speed trigger.
Variable Speed & Stroke Length
Features a 1-inch stroke length and a variable speed trigger, allowing for precise control from 0 to 3000 strokes per minute (SPM). This adaptability makes it suitable for cutting through a variety of materials with optimal efficiency.
Image: Close-up of a hand operating the variable speed trigger on the reciprocating saw, demonstrating precise control.
Quick Tool-Free Blade Change
The tool-free blade release system enables fast and easy blade changes, minimizing downtime and enhancing productivity.
Image: A person's hands are shown easily changing the blade on the reciprocating saw using the tool-free release mechanism.
Compact Design & LED Worklight
Its compact body is designed for a comfortable one-handed grip, making it ideal for working in dark or tight spaces. An integrated LED worklight illuminates the cutting area for improved visibility.
Image: The reciprocating saw is shown in use, with its built-in LED worklight brightly illuminating the cutting path on a wooden beam.

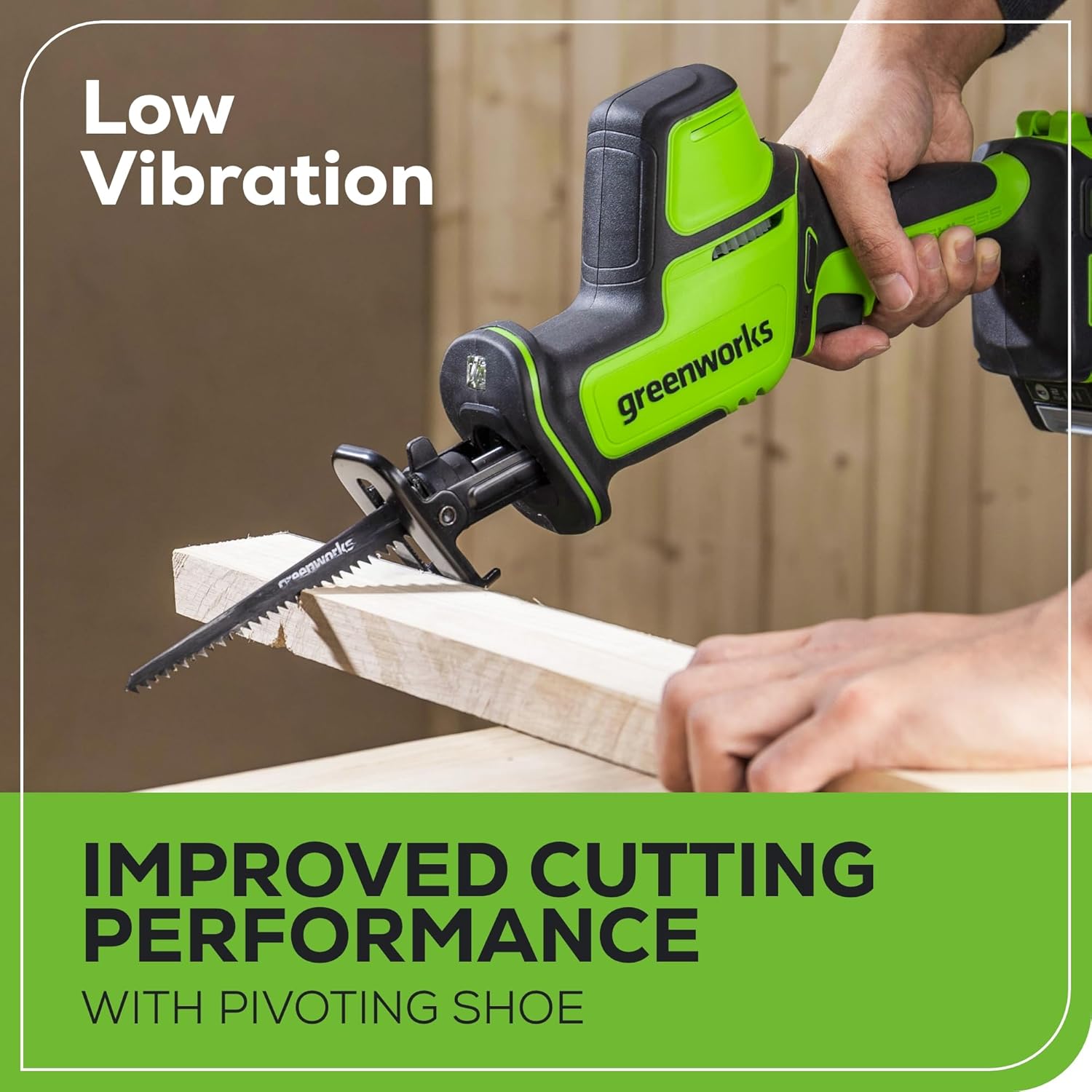

Pivoting Shoe for Stability
The pivoting shoe provides additional stability during cuts, enhancing control and improving overall cutting performance.
Image: The reciprocating saw is shown cutting wood, with the pivoting shoe resting against the workpiece for enhanced stability.
Versatile Material Cutting
Capable of cutting various materials including plywood, drywall, PVC, and lumber, making it a versatile tool for multiple applications.
Image: A collage displaying different materials such as plywood, drywall, PVC pipes, and lumber, illustrating the saw's versatility.
4. Содржина на пакетот
The Greenworks 24V Brushless 1-inch Compact One-Handed Reciprocating Saw (Model RSG404) "Tool Only" package typically includes:
- Greenworks 24V Brushless 1-inch Compact One-Handed Reciprocating Saw Body
- Reciprocating Saw Blade (typically one general-purpose blade)
- Прирачник за операторот
Забелешка: Батеријата и полначот се продаваат одделно.
5. Поставување
5.1 Installing/Removing the Blade
- Ensure the tool is disconnected from the battery pack for safety.
- Locate the tool-free blade release lever on the front of the saw.
- Push the blade release lever fully forward and hold it.
- Insert the shank of the reciprocating saw blade into the blade clamp until it clicks into place. Ensure the blade is fully seated.
- Release the blade release lever. Gently pull on the blade to confirm it is securely locked.
- To remove the blade, push the blade release lever fully forward and hold it, then pull the blade straight out.
5.2 Installing/Removing the Battery (Battery Sold Separately)
- Align the battery pack with the battery port on the bottom of the saw handle.
- Slide the battery pack into the tool until it locks securely into place. You should hear a "click".
- To remove the battery, press the battery release button (usually located on the battery itself or the tool near the battery port) and slide the battery pack out.
6. Упатства за работа
6.1 Вклучување/исклучување
- To turn on the saw, slide the safety lock button (located above the trigger) to the unlocked position, then press the variable speed trigger.
- To turn off the saw, release the variable speed trigger. For added safety, slide the safety lock button to the locked position when not in use.
6.2 Техники на сечење
- Општо сечење: Hold the saw firmly with one hand, ensuring a stable grip. Place the pivoting shoe firmly against the workpiece. Start the saw at a low speed and gradually increase as the blade engages the material.
- Потопно сечење: For plunge cuts (e.g., in drywall), tilt the saw forward so the pivoting shoe rests on the workpiece and the blade tip is clear. Start the saw, then slowly pivot the saw down until the blade cuts through the material.
- Материјални спецификации:
- Дрво: Use a coarse-tooth blade for fast cuts, fine-tooth for smoother finishes.
- Metal/PVC: Use a fine-tooth metal-cutting blade. Apply light pressure and allow the saw to do the work.
- Гипс ѕид: A general-purpose blade or specialized drywall blade can be used.
6.3 LED работно светло
The integrated LED worklight automatically activates when the trigger is pressed, illuminating the cutting area for improved visibility in low-light conditions.
Video: Demonstrates the Greenworks 24V Compact One-Handed Reciprocating Saw in action, highlighting its variable speed trigger, 1-inch stroke length, pivoting shoe for stability, and brushless motor technology during cutting tasks.
Video: Shows the Greenworks 24V Brushless 1-inch One-Handed Reciprocating Saw being used for various cutting applications, emphasizing its compact design and ease of use.
7. Одржување
7.1 Чистење
- По секоја употреба, исчистете ја алатката со мека, дamp крпа. Не користете груби хемикалии или абразивни средства за чистење.
- Remove any sawdust or debris from the ventilation openings to prevent overheating.
- Чувајте го сечилото clamp area clean to ensure proper blade installation and removal.
7.2 Грижа за сечилото
- Проверете ги сечилата пред секоја употреба за острина и оштетување. Веднаш заменете ги тапите или оштетените сечила.
- Чувајте ги сечилата на суво место за да спречите 'рѓа.
8 Смена на проблеми
| Проблем | Можна причина | Решение |
|---|---|---|
| Saw не започнува. | Battery not installed correctly or discharged. Safety lock engaged. | Ensure battery is fully charged and properly seated. Disengage the safety lock. |
| Сечилото не сече ефикасно. | Dull or incorrect blade for material. Excessive pressure. | Replace with a sharp, appropriate blade. Reduce cutting pressure. |
| Прекумерни вибрации. | Лабаво или оштетено сечило. | Проверете го сечилото за безбедно монтирање и оштетување. Заменете го доколку е потребно. |
| Алатката се прегрева. | Blocked ventilation slots. Prolonged heavy use. | Исчистете ги отворите за вентилација. Оставете ја алатката да се олади. |
9. Спецификации
| Карактеристика | Детал |
|---|---|
| Бренд | Зелените |
| Број на модел | RSG404 |
| Voltage | 24 волти |
| Тип на мотор | Без четкички |
| Должина на удар | 1 инчи |
| Удари во минута (SPM) | 0-3000 (променлива брзина) |
| Тежина на ставката | 3.8 фунти |
| Извор на енергија | Battery Powered (Lithium Ion, sold separately) |
| Материјал за сечилото | Челик со голема брзина |
| Препорака за површина | Дрво |
| Специјална карактеристика | Brushless, LED Worklight |
| Димензии на производот | 4.13"Д x 13.89"Ш x 8.46"В |
| UPC | 195526017097 |
10. Гаранција и поддршка
The Greenworks 24V Brushless 1-inch Compact One-Handed Reciprocating Saw (Model RSG404) comes with a limited warranty. The Greenworks 24V platform typically includes a 3-year tool / battery warranty to protect your investment.
For detailed warranty terms, service, or technical support, please refer to the official Greenworks webстраницата или директно контактирајте ја нивната служба за корисници. Чувајте ја сметката за купување како доказ за купување за гаранциски побарувања.
