Chihiros A Series LED Aquarium Light User Manual

1. Вовед

Thank you for choosing the Chihiros A Series LED Aquarium Light. This light is specifically designed to promote healthy growth of aquatic plants in your aquarium. Featuring 5730 LED chips and an 8000K color temperature, it provides optimal lighting conditions for a vibrant aquatic environment. Please read this manual carefully before installation and operation to ensure safe and efficient use.

Слика 1: Од горе надолу view of the Chihiros A Series LED Aquarium Light.

2. Инструкции за безбедност

• Секогаш исклучувајте го напојувањето од струја пред да вршите какво било одржување или инсталација.
• Do not immerse the light unit or power adapter in water. This product is not submersible.
• Ensure your hands are dry when handling the power plug and socket.
• Држете ја светлината подалеку од запаливи материјали.
• Do not attempt to disassemble or modify the light unit. Refer all servicing to qualified personnel.
• Обезбедете волtage and frequency of your power supply match the specifications of the light.
• This product is intended for indoor aquarium use only.

3. Содржина на пакетот

Проверете дали сите компоненти се присутни и во добра состојба:

• Chihiros A Series LED Aquarium Light Unit
• Адаптер за напојување
• Acrylic Stands (pre-attached or separate, depending on model)
• Wired Dimmer (included with some models)

Забелешка: Additional accessories such as remote controllers, metal brackets, and hanging kits are sold separately.

4. Спецификации

The Chihiros A Series LED Aquarium Light is available in various models with different lengths, power outputs, LED counts, and lumen ratings. Refer to the table below for detailed specifications.

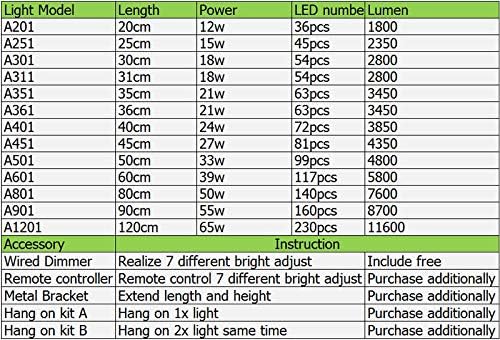

Image 2: Detailed specifications for various Chihiros A Series LED light models and available accessories.

Дополнителни информации за производот:

• Температура на боја: 8000 илјади
• Тип на LED: 5730 LED
• Тип на завршница: Полиран
• Материјал за сенка: Поликарбонат
• Стил: Модерен
• Вклучени компоненти: Lamp единица
• Метод на осветлување: Затемнувачко

Информации за додатоци:

• Wired Dimmer: Allows 7 different brightness adjustments. Included with some models.
• Далечински управувач: Enables 7 different brightness adjustments via remote. Purchase additionally.
• Метален држач: Used to extend light length and height. Purchase additionally.
• Hang on Kit A: For hanging one light unit. Purchase additionally.
• Hang on Kit B: For hanging two light units simultaneously. Purchase additionally.

5. Поставување

5.1 Отпакување

Carefully remove all components from the packaging. Inspect the light unit and accessories for any signs of damage. Keep the packaging for future storage or transport.

5.2 Монтирање на светилката

The Chihiros A Series LED light typically comes with acrylic stands for placement directly on the aquarium rim. Ensure the stands are securely attached to the light unit and positioned stably on the aquarium edges.

Image 3: Close-up of the light unit showing the acrylic stands.

If using optional accessories like metal brackets or hanging kits, follow their specific installation instructions. Ensure the light is positioned centrally over the aquarium for even light distribution.

Image 4: Chihiros A Series LED Aquarium Light installed over an aquarium.

5.3 Поврзување напојување

Connect the power adapter to the light unit. Then, plug the power adapter into a suitable electrical outlet. Ensure the connection is secure and dry.

6. Упатства за работа

6.1 Вклучување/исклучување

Once connected to power, the light can be turned on or off using the switch on the power cord or the wired dimmer, if included.

6.2 Прилагодување на осветленоста

If your light includes a wired dimmer, you can adjust the brightness through 7 different levels. Press the buttons on the dimmer to cycle through the brightness settings. If you have purchased a remote controller, refer to its specific instructions for brightness adjustment.

6.3 Recommended Usage for Aquatic Plants

For optimal aquatic plant growth, a photoperiod of 6-10 hours per day is generally recommended. The ideal brightness level will depend on the specific plant species, tank size, and CO2 injection. Start with a moderate brightness and duration, then gradually adjust based on plant response.

7. Одржување

• Чистење: Regularly wipe the light unit and acrylic stands with a soft, damp cloth to remove dust, water spots, and algae. Ensure the light is unplugged before cleaning. Do not use harsh chemicals or abrasive materials.
• Инспекција: Periodically check the power cord and adapter for any signs of damage or wear. Ensure all connections are secure.
• Вентилација: Ensure the light unit has adequate ventilation to prevent overheating. Do not cover the light.

8 Смена на проблеми

• Светлото што не се вклучува:
  • Проверете дали адаптерот за напојување е безбедно вклучен и во единицата за светло и во електричниот штекер.
  • Проверете дали електричниот штекер работи со вклучување на друг уред.
  • Ensure the switch on the power cord or dimmer is in the 'On' position.
• Светлината е слаба или трепка:
  • Check the dimmer settings to ensure it's not set to the lowest brightness.
  • Ensure all connections are secure. Loose connections can cause flickering.
  • If using a remote, check its battery.
• Excessive heat from the light:
  • Ensure there is proper ventilation around the light unit.
  • Verify that the light is not covered by any objects.

If you encounter issues not listed here or if troubleshooting steps do not resolve the problem, please contact customer support.

9. Гаранција и поддршка

9.1 Политика за гаранција

Овој производ доаѓа со а 12-месечна гаранција from the date of purchase. During this period, if you experience any quality issues with the product, you are eligible for a full refund or a replacement.

9.2 Поддршка за корисници

For any questions, concerns, or warranty claims, please do not hesitate to contact our customer service team. You can typically reach us through the seller's page on the platform where you purchased the product. Our team is committed to providing prompt and detailed assistance.
