Производот завршиview
The Nilight TR-155 LED Trailer Light Kit provides comprehensive lighting solutions for various 12V DC vehicles, including trailers, boats, trucks, RVs, and more. This kit includes all necessary components for stop, turn, tail, side marker, and license plate lighting, ensuring compliance and safety on the road.
Содржина на пакетот
Проверете дали сите компоненти наведени подолу се вклучени во вашиот пакет:
- 2 x Square LED Trailer Lights
- 1 x 16-inch Red LED Brake Light Bar
- 2 x Red Side Marker Lights
- 4 x Amber Side Marker Lights
- 1 x 25ft Trailer Wiring Harness
- 1 x држач за регистарска табличка
- 4 x Рефлектори
- 1 x Hardware Pack (includes wire nuts, wire clips, self-tapping screws, ring connectors, splice connectors, screws)
Инструкции за инсталација

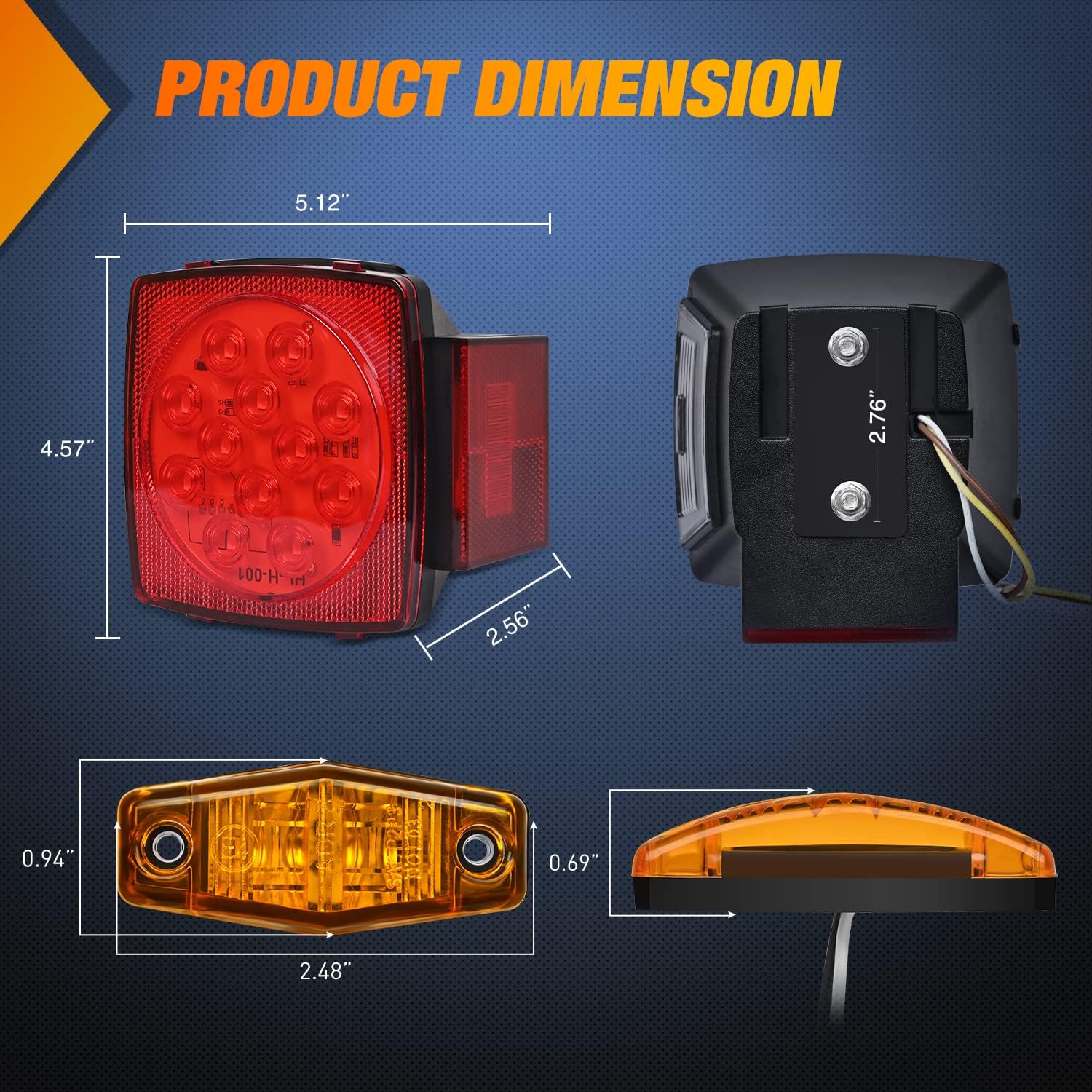

Димензии на компонентите
Refer to the following diagrams for component dimensions to ensure proper fitment:
Монтирање

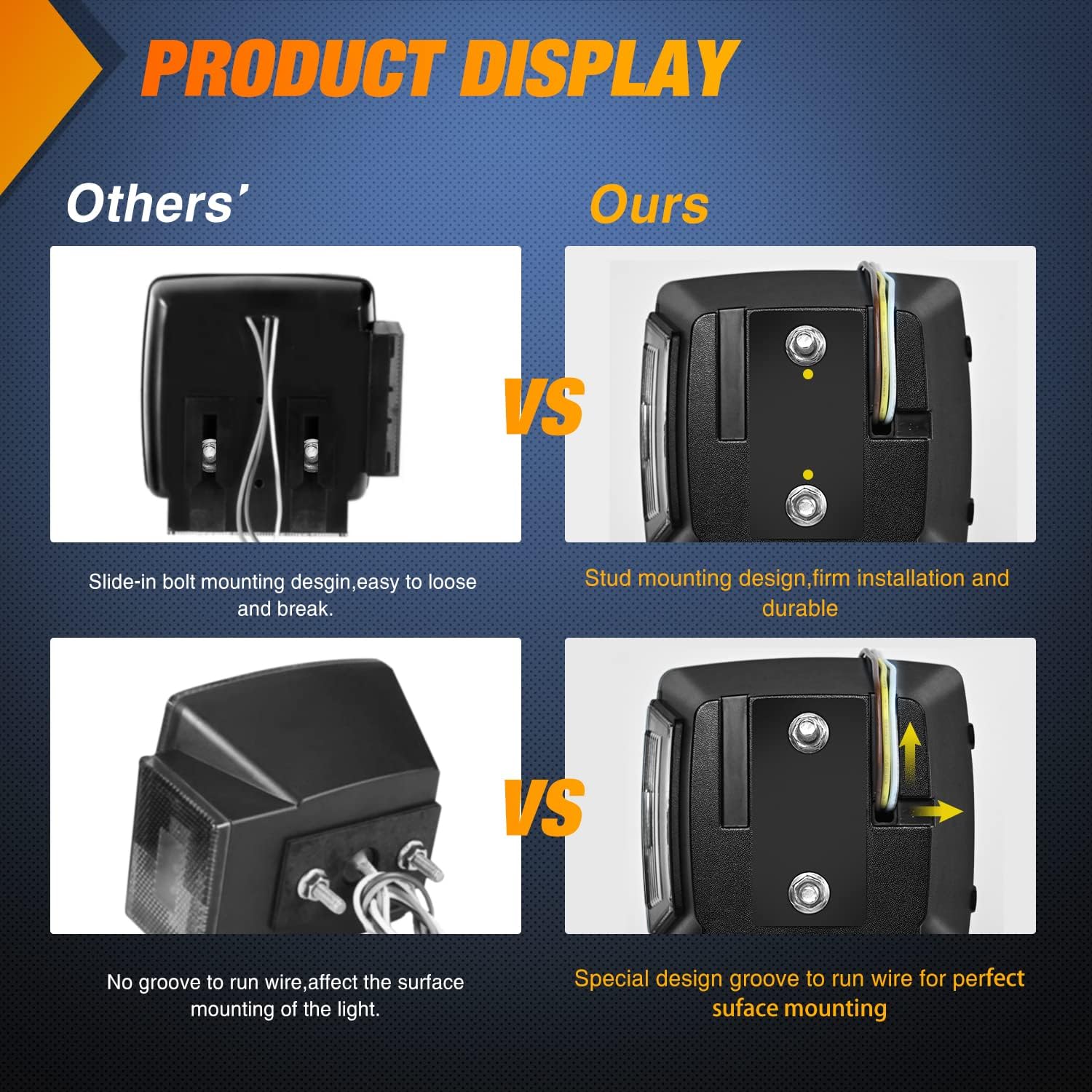

The square lights are designed for stud mounting. Ensure a firm and durable installation by tightening the mounting nuts securely. The side marker lights and the 16-inch brake light bar are installed using screws.
Приклучоци за жици
Proper wiring is crucial for the correct function of the trailer lights. Refer to the diagram and instructions below. If an existing trailer harness is present, connect color-to-color. For new installations, use the provided two-wire bundle.
- Square Lights:
- White wire: Ground (Negative)
- Brown wire: Running Light (Positive)
- Yellow wire: Left Turn and Brake Light (Positive)
- Green wire: Right Turn and Brake Light (Positive)
- 16-Inch Brake Light Bar:
- White wire: Ground (Negative)
- Black wire: Low Brightness Tail Light (Positive)
- Red wire: High Brightness Brake Light (Positive)
- Странични маркерски светла:
- White wire: Ground (Negative)
- Black wire: Positive
Оперативни функции
The Nilight TR-155 LED Trailer Light Kit provides multiple lighting functions for safe trailer operation:
- Светла за возење: Activated with vehicle headlights, providing continuous illumination.
- Stop/Brake Lights: Illuminate brightly when the vehicle's brakes are applied.
- Turn Signal Lights: Flash to indicate turns or lane changes.
- Странични маркерски светла: Provide additional visibility along the sides of the trailer.
- Светло за регистарска табличка: Illuminates the license plate for visibility.
Нега и одржување
To ensure the longevity and optimal performance of your Nilight LED Trailer Light Kit, follow these maintenance guidelines:
- Редовна инспекција: Periodically check all lights for proper function, including running, brake, turn signal, and marker lights.
- Проверка на жици: Inspect wiring for any signs of wear, corrosion, or loose connections. Secure any loose wires and repair damaged insulation.
- Чистење: Clean the light lenses regularly with a soft cloth and mild soap solution to remove dirt and debris. Avoid abrasive cleaners that could scratch the lens.
- Хидроизолација: While the lights are highly waterproof, ensure that all seals and connections remain intact. The square lights feature water drainage notches; ensure these are not obstructed.
- Хардвер: Periodically check mounting hardware for tightness and corrosion. Replace any corroded or damaged fasteners.
Решавање проблеми
If you encounter issues with your trailer light kit, refer to the following common problems and solutions:
| Проблем | Можна причина | Решение |
|---|---|---|
| Светлата не светат | No power, faulty wiring, blown fuse, damaged light unit | Check vehicle's fuse box, verify all wiring connections (ground, positive), test light unit with a known good power source. |
| Светлата се затемнети или треперат | Poor ground connection, insufficient power, loose wiring | Ensure ground wire is securely attached to a clean, unpainted metal surface. Check for corrosion on terminals. Verify power supply. |
| Incorrect light function (e.g., brake light acts as turn signal) | Неправилни жичени врски | Re-check wiring against the provided diagram, ensuring each wire is connected to its correct function. |
| Вода во куќиштето на светлото | Damaged seal, obstructed drainage notch | Inspect seals for damage. Clear any obstructions from the water drainage notches. If damage is severe, replacement may be necessary. |
Спецификации на производот
- Модел: ТР-155
- Бренд: Нилајт
- Voltage: 12V DC
- Ватtage: 4.44 вати
- Тип на извор на светлина: LED (2835 and 5050 SMD LEDs)
- Материјал: Објектив од поликарбонат
- Водоотпорна оцена: Highly sealed and waterproof design with drainage notches
- Тип на сервис на возилото: Bus, Snowmobile, Trailer, Truck, RV, Marine, Pickups, Camper, Tractors
- Max Vehicle Width: 80 инчи
- Тежина на ставката: 2.97 фунти
- Димензии на пакетот: 15.79 x 10.79 x 5.08 инчи
- Потребно собрание: бр
- Тип на автомобилско вклопување: Universal Fit
Гаранција и поддршка за корисници
Nilight products are designed for durability and performance. For warranty information or technical assistance, please refer to the official Nilight webстраницата или директно контактирајте ја нивната корисничка поддршка. Зачувајте ја сметката за гаранциски барања.
For further assistance, visit the official Nilight store: Nilight Store on Amazon.
