Zgrmbo 16-inch Digital Wall Clock User Manual

1. Вовед

Thank you for choosing the Zgrmbo 16-inch Digital Wall Clock. This manual provides detailed instructions for setting up, operating, and maintaining your new clock. Please read this manual thoroughly before use to ensure proper function and longevity of the product.

Image 1.1: Zgrmbo 16-inch Digital Wall Clock with its various display features.

2. Содржина на пакетот

Ве молиме проверете го пакувањето за следните ставки:

• Zgrmbo 16-inch Digital Wall Clock (Model DS-6626)
• Далечински управувач
• USB кабел за напојување
• Wall Adapter (USB to AC)
• CR2032 Battery (for memory function)
• Mounting Pegs/Screws
• Шаблон за монтирање
• Упатство за употреба

3. Карактеристики на производот

• Голем LED дисплеј: 16.2-inch screen with 4.25-inch jumbo digits for clear visibility from a distance.
• Мултифункционален дисплеј: Shows time, date, indoor temperature, and day of the week.
• Далечински управувач: Conveniently adjust settings, brightness, alarms, and timers.
• Прилагодлива осветленост: 10-level manual brightness adjustment and an auto-brightness mode that adapts to ambient light.
• Штоперица и тајмер: Integrated functions for various timing needs.
• Функција на меморија: Built-in CR2032 battery preserves time and settings during power outages (display turns off during battery backup).
• Флексибилно монтирање: Designed for wall mounting with multiple cable routing options.

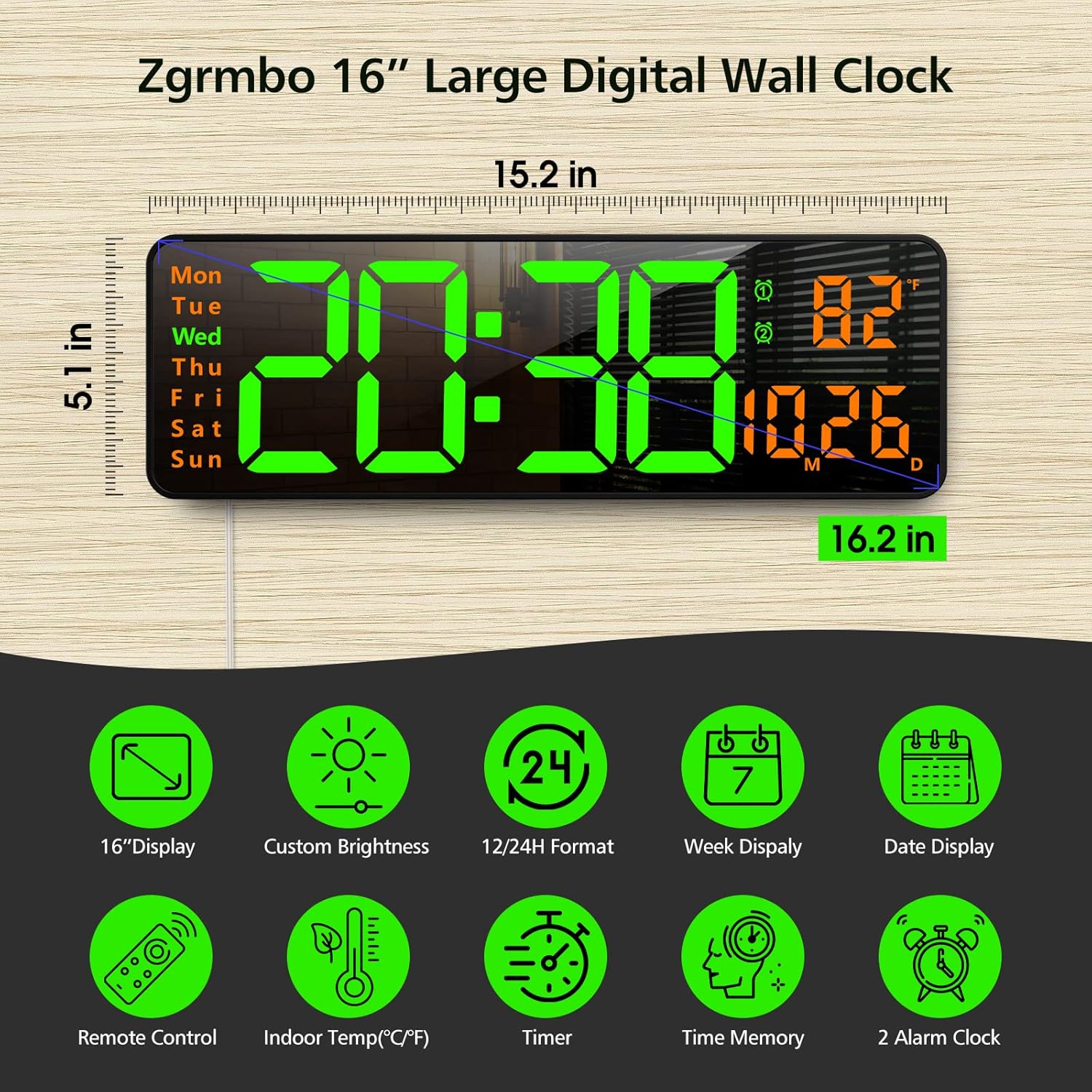

Слика 3.1: Готовоview of the clock's dimensions and primary features.

4. Поставување

4.1. Поврзување за напојување

1. Insert the CR2032 battery into the battery compartment on the back of the clock. This battery maintains settings during power interruptions.
2. Connect the USB power cable to the clock and then to the provided wall adapter.
3. Plug the wall adapter into a standard electrical outlet. The clock display will illuminate.

4.2. Монтирање на Wallид

The clock can be easily mounted on a wall using the provided template and hardware.

1. Select a desired location on the wall.
2. Use the mounting template to mark the positions for the mounting pegs/screws.
3. Install the mounting pegs/screws into the marked positions.
4. Align the keyhole slots on the back of the clock with the installed pegs/screws and slide the clock into place.
5. Route the power cable through one of the designated cutouts on the back of the clock to ensure it lies flush against the wall. Excess cable can be wrapped around the designated area on the back of the clock.

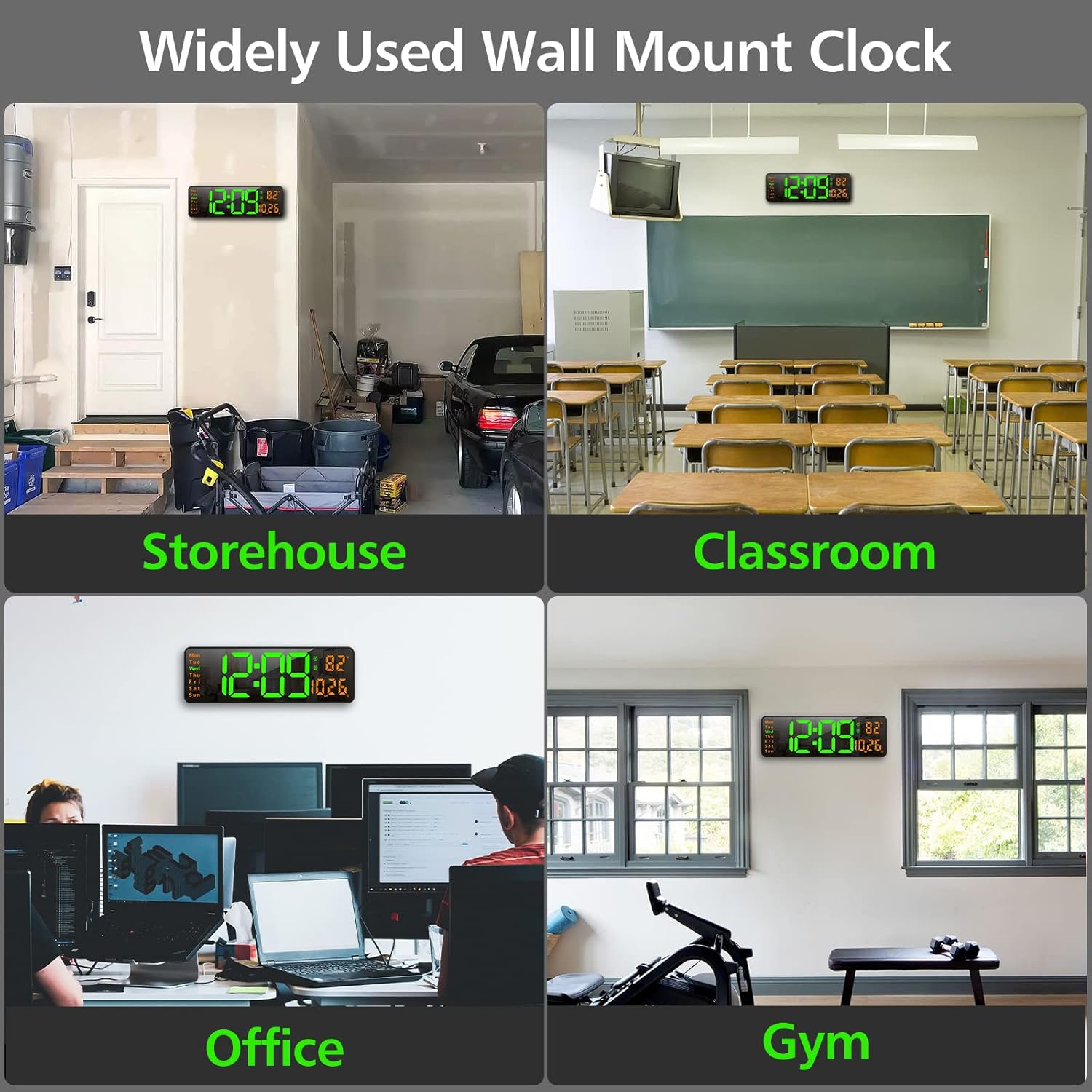

Слика 4.1: На пр.amples of the clock mounted in different environments.

5. Упатства за работа

The clock can be operated using the remote control or the buttons on the back of the unit.

5.1. Далечински управувачview

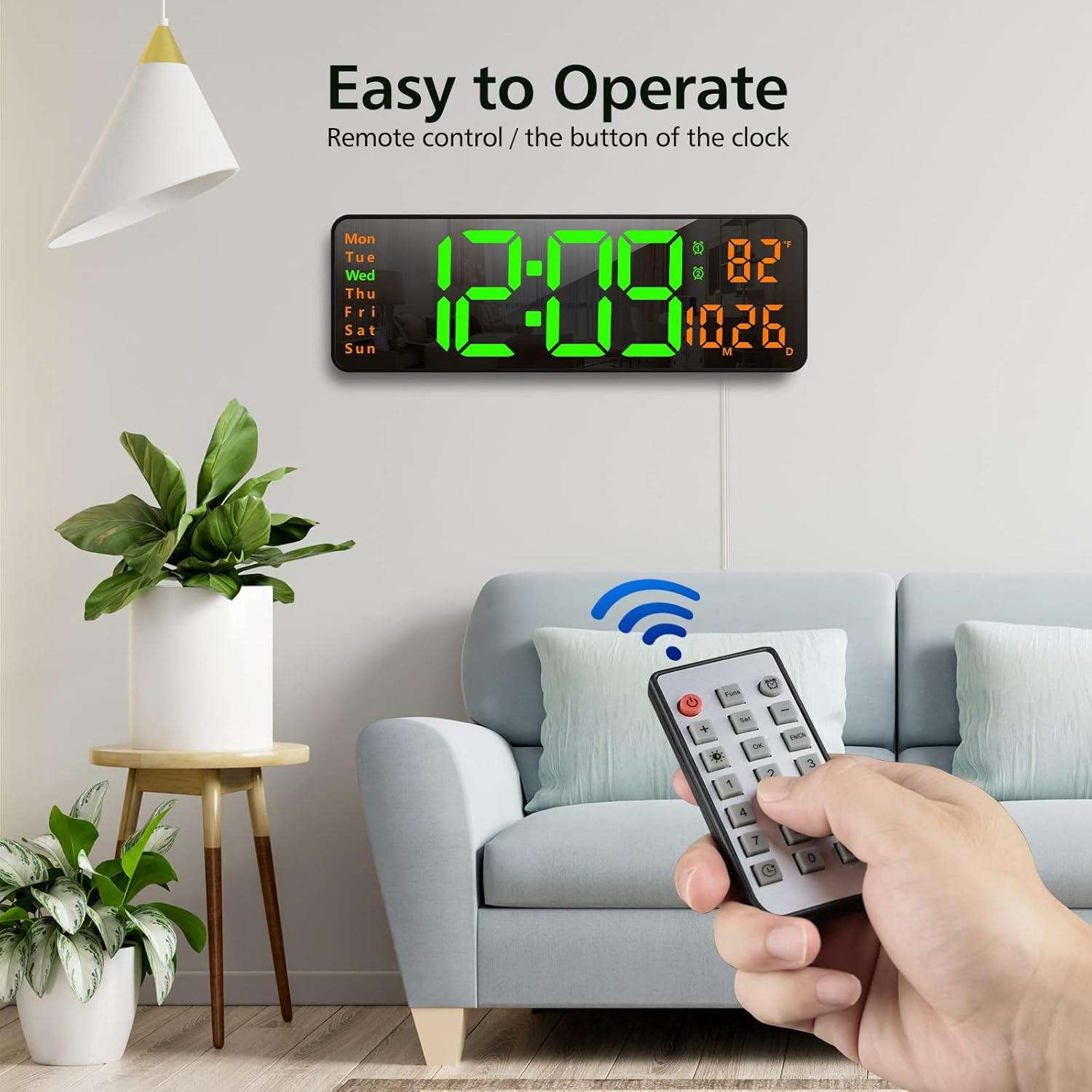

Image 5.1: Using the remote control to operate the clock.

• Копче за вклучување: Го вклучува/исклучува екранот.
• Funs Button: Cycles through various functions (e.g., time, date, temperature display modes).
• Копче за аларм: Пристапува до поставките за аларм.
• Копче за поставување: Enters setting mode for time, date, etc.
• +/- Копчиња: Adjust values up or down during setting.
• Brightness Button (Lightbulb icon): Cycles through brightness levels or activates auto-brightness.
• Добро копче: Ги потврдува изборите.
• Копчиња со броеви (0-9): For direct input of time/date values.
• Timer Buttons (Clock icons): Activates and controls the timer/stopwatch functions.

5.2. Поставување време и датум

1. Press the 'Set' button on the remote control. The time display will start flashing.
2. Use the '+/-' buttons to adjust the hour. Press 'Set' again to confirm and move to minutes.
3. Adjust minutes using '+/-' buttons. Press 'Set' to confirm.
4. Продолжете со овој процес за да ги поставите годината, месецот и денот.
5. After setting the date, you may be prompted to select 12-hour or 24-hour format. Use '+/-' and 'Set' to choose.
6. The clock will automatically exit setting mode after a few seconds of inactivity or by pressing 'OK'.

5.3. Прилагодување на осветленоста

The clock offers 10 levels of brightness and an automatic adjustment mode.

1. Press the 'Brightness' button (lightbulb icon) on the remote control once to cycle through manual brightness levels (L-01 to L-10).
2. Press the 'Brightness' button twice quickly to activate the auto-brightness mode (L-AU). The clock will then adjust its brightness based on ambient light conditions.

Image 5.2: Visual representation of the 10-level brightness adjustment and auto-brightness feature.

5.4. Поставување аларми

The clock supports up to two alarms.

1. Press the 'Alarm' button (clock icon) on the remote control. The alarm time will flash.
2. Use the '+/-' buttons to set the desired alarm hour. Press 'Set' to confirm.
3. Use the '+/-' buttons to set the desired alarm minutes. Press 'Set' to confirm.
4. Повторете за вториот аларм доколку е потребно.
5. To activate/deactivate an alarm, press the 'Alarm' button repeatedly until the alarm indicator (1 or 2) appears/disappears next to the temperature display.

5.5. Using the Timer/Stopwatch

The clock features both a countdown timer and a stopwatch function.

1. Тајмер за одбројување: Press the 'Timer' button (clock with arrow down icon) on the remote. Use the number buttons to input the desired countdown time (e.g., 10 for 10 minutes). Press 'OK' to start. Press 'OK' again to pause/resume. Long press 'Timer' to reset.
2. Стоперка Press the 'Timer' button (clock with arrow up icon) on the remote. Press 'OK' to start. Press 'OK' again to pause/resume. Long press 'Timer' to reset.

Image 5.3: The digital timer function in use.

6. Одржување

• Чистење: Use a soft, dry cloth to clean the display and body of the clock. Avoid abrasive cleaners or solvents.
• Замена на батерија: The CR2032 battery for the memory function should be replaced periodically (e.g., every 1-2 years) to ensure settings are retained during power outagес.
• Складирање: If storing the clock for an extended period, unplug it from power and remove the CR2032 battery. Store in a cool, dry place.

7 Смена на проблеми

8. Спецификации

• Бренд: Згрмбо
• Модел: DS-6626
• Тип на приказ: Дигитална LED диода
• Големина на екранот: 16.2 инчи (дијагонала)
• Висина на бројката: 4.25 inches (time digits)
• Димензии на производот: 15.2"Ш x 5.1"В
• Извор на енергија: Електрична кабли (USB)
• Резервна батерија: 1x CR2032 (for memory function)
• Материјал: Пластика, LED диода
• Тип на монтирање: Монтирање на ѕид
• Посебни карактеристики: Adjustable Brightness, Alarm, Large Display, Timer, Stopwatch, Date, Week, Temperature.

9. Гаранција и поддршка

Zgrmbo offers an 18-месечна гаранција за овој производ, заедно со Полиса за враќање од 45 дена. For any questions, technical support, or warranty claims, please contact Zgrmbo customer service through your purchase platform or visit the official Zgrmbo store page.

We are committed to providing high-quality products and excellent customer service. Your satisfaction is our priority.
