Godox SK400II-V Strobe Light Kit Instruction Manual

Вовед

This manual provides detailed instructions for the safe and effective use of your Godox SK400II-V Strobe Light Kit. Designed for studio photography, this kit offers stable output, powerful performance, and integrated wireless control, making it suitable for portraits, product photography, and more. Please read this manual thoroughly before operation to ensure proper setup and functionality.

Што има во кутијата

The Godox SK400II-V Strobe Light Kit includes the following components:

• Godox SK400II-V Strobe Light (400Ws)
• Кабел за напојување
• Standard 7-inch Reflector
• 60x90cm Rectangular Softbox with Grid
• Speed Ring for Softbox (Bowens Mount)
• Inner and Outer Diffusers for Softbox
• Light Stand (78 inches)
• Colored Filters (various colors)
• Protective Cover for Strobe

Image: All components included in the Godox SK400II-V Strobe Light Kit, neatly laid out.

Производот завршиview

Godox SK400II-V Strobe Light

The SK400II-V is a 400Ws studio strobe featuring a robust design and advanced functionalities for professional and enthusiast photographers.

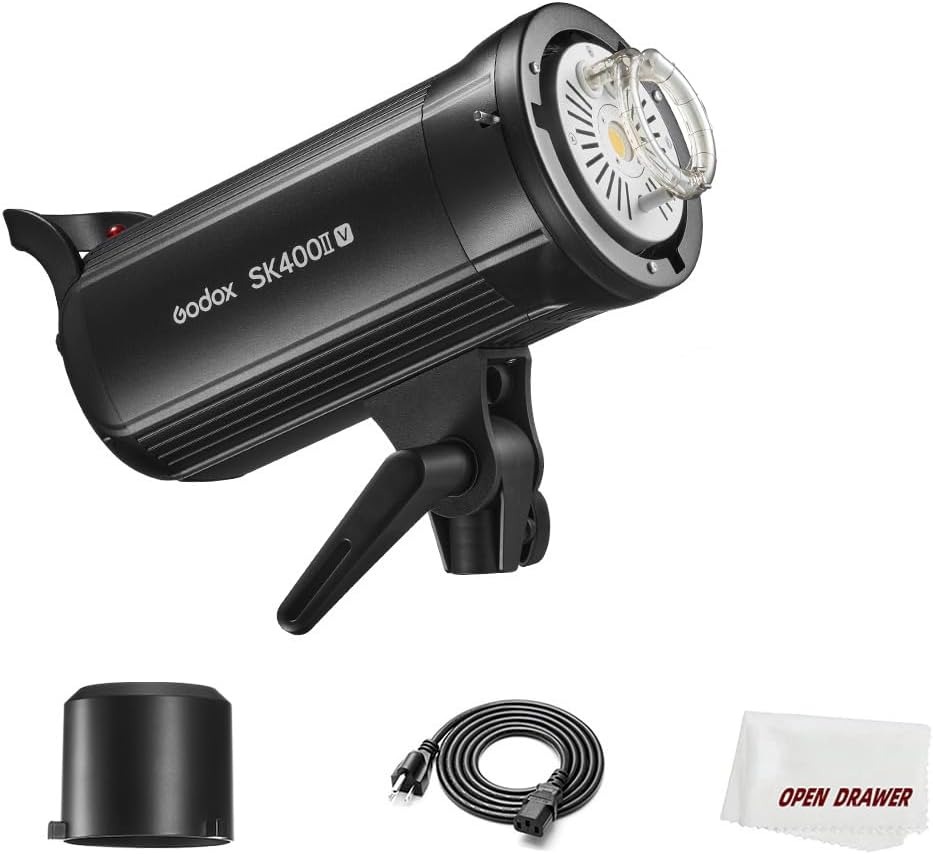

Image: The Godox SK400II-V Strobe Light with a standard reflector, showcasing неговиот компактен дизајн.

• Излезна моќност: 400Ws, adjustable from 1/16 to 1/1 (full power) in 40 steps.
• Време на рециклирање: Fast recycle time of 0.1-1.5 seconds.
• Светло за моделирање: 10W LED modeling light with 5%-100% manual dimming. Features a proportional mode where modeling light brightness adjusts with flash output.
• Безжичен систем: Built-in 2.4G Godox X wireless system for remote triggering and control with compatible Godox Xpro, X1, X2, XT32, or FT-16 flash triggers. Supports 16 groups and 32 channels.
• Монтирање: Standard Bowens mount for compatibility with a wide range of light modifiers.
• Безбедносни карактеристики: Anti-pre-flash function for synchronized shooting with cameras having pre-flash, built-in heat dissipation fan, and overheating protection.

Слика: Детална view of the strobe's control panel, showing the LCD screen and adjustment buttons.

Image: The strobe's 10W LED modeling lamp, illustrating its adjustable brightness.

Image: Illustration of the 2.4G Wireless X System, demonstrating remote control capabilities.

Поставување

1. Склопување на мекиот бокс

1. Unpack the softbox and speed ring.
2. Insert the metal rods into the designated channels on the softbox fabric, ensuring the tips reach the front pockets in each corner.
3. Attach the speed ring to the rear opening of the softbox, securing the rods into the holes on the speed ring.
4. Attach the inner diffuser by clipping its elastic loops to the corresponding points inside the softbox.
5. Attach the outer diffuser to the front of the softbox using the Velcro strips.
6. If desired, attach the honeycomb grid to the outer diffuser using its Velcro edges.

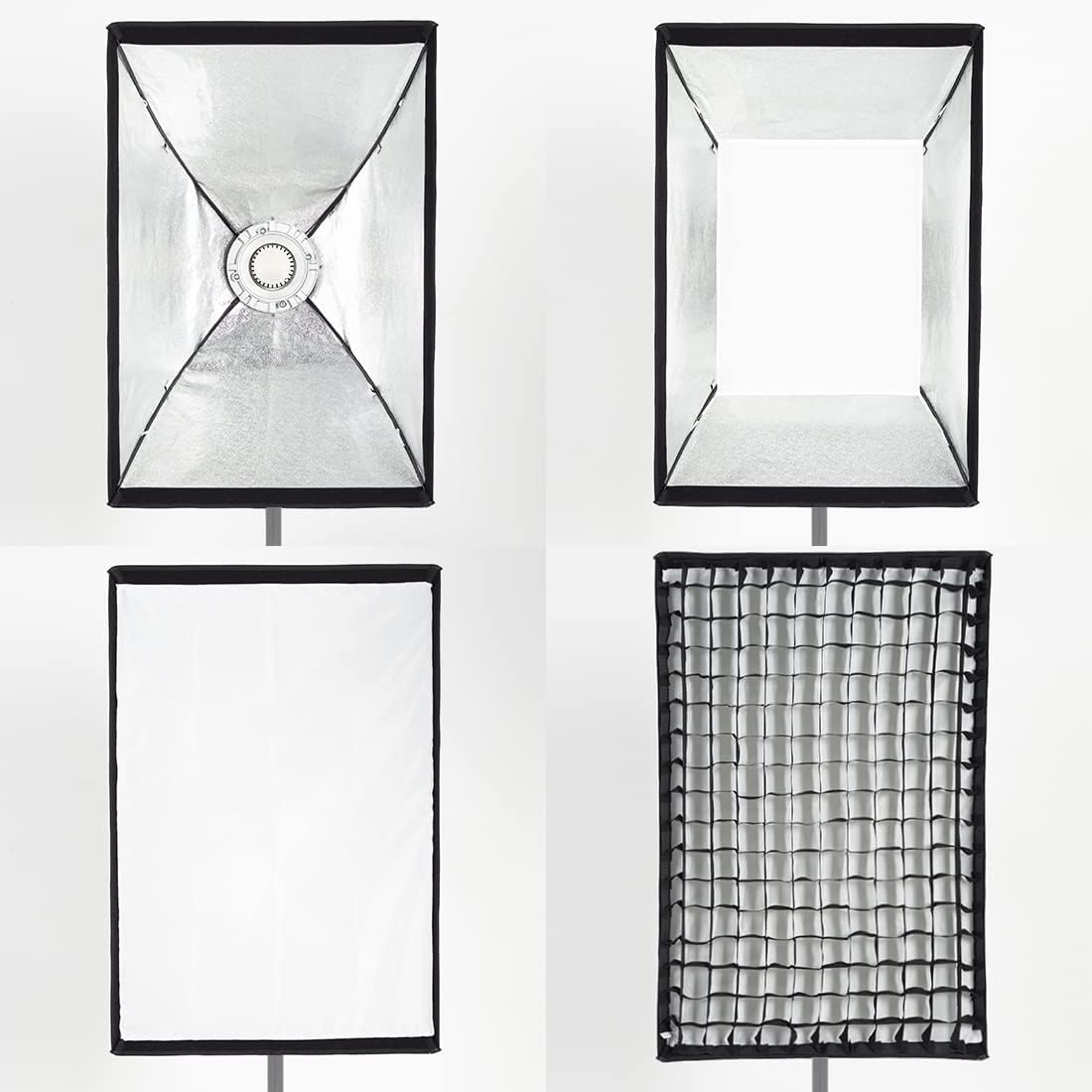

Image: Disassembled softbox components, showing the inner reflective material, diffusers, and grid.

Image: A fully assembled softbox with a strobe light, ready for use on a light stand.

2. Attaching the Strobe and Light Modifiers

1. Mount the SK400II-V Strobe Light onto the light stand. Secure it firmly.
2. Align the Bowens mount of the assembled softbox (or standard reflector) with the strobe's mount.
3. Twist the softbox/reflector clockwise until it clicks into place, ensuring it is securely locked.
4. Connect the power cable to the strobe and plug it into a suitable power outlet.

Image: The Godox SK400II-V Strobe Light with a standard reflector, mounted on a light stand.

Упатства за работа

1. Вклучување/исклучување

Flip the power switch located on the rear panel of the strobe to turn the unit on or off.

2. Прилагодување на моќноста на блицот

Use the rotary dial on the control panel to adjust the flash output from 1/16 to 1/1 (full power). The current power setting will be displayed on the LCD screen.

3. Modeling Light Control

• Рачен режим: Press the 'MODEL' button to cycle through modeling light modes. In manual mode, use the rotary dial to adjust brightness from 5% to 100%.
• Proportional Mode: In this mode, the modeling light brightness automatically adjusts in proportion to the set flash output.

4. Безжична контрола

The SK400II-V has a built-in 2.4G wireless receiver. To control it remotely:

1. Set the strobe to the desired group and channel using the buttons on the control panel.
2. Ensure your Godox Xpro, X1, X2, XT32, or FT-16 flash trigger is set to the same group and channel.
3. You can now trigger the flash and adjust settings remotely from your trigger.

5. Buzzer Function

The strobe features an audible buzzer that indicates when the flash has fully recycled and is ready to fire again. This can be toggled on or off via the control panel.

6. Sync Cable Port

For wired triggering, connect a sync cable from your camera or a compatible trigger to the sync port on the strobe's rear panel.

Одржување

• Секогаш исклучувајте го кабелот за напојување пред чистење или вршење на какво било одржување.
• Clean the strobe body and accessories with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• Ensure proper ventilation during operation to prevent overheating. The built-in fan helps, but do not obstruct air vents.
• Чувајте го комплетот на сува и без прашина средина кога не е во употреба.
• Handle the flash tube and modeling light with care to avoid damage.

Решавање проблеми

• Блицот не свети: Check power connection, ensure the strobe is turned on, verify trigger settings (group/channel), and check if the flash has fully recycled (listen for the beep).
• Светлото за моделирање не работи: Ensure the modeling light is turned on and not set to 0% brightness. Check the power connection.
• Неконзистентен излез на блиц: Verify power settings on the strobe and trigger. Ensure the strobe is not overheating (allow it to cool down if necessary).
• Softbox assembly issues: Ensure all rods are correctly inserted into their channels and secured in the speed ring.

Спецификации

Гаранција и поддршка

For warranty information and customer support, please refer to the documentation included with your product or visit the official GODOX webлокација. Чувајте ја сметката за купување како доказ за какви било гаранциски побарувања.
