1. Информации за безбедност
Внимателно прочитајте ги сите упатства пред инсталација и работа. Непочитувањето на овие упатства може да резултира со електричен удар, пожар или други опасности.
- Електрична безбедност: Ensure power is disconnected at the circuit breaker before installation or servicing. All wiring must be in accordance with national and local electrical codes.
- Квалификуван персонал: Инсталирањето треба да го изврши квалификуван електричар.
- Заземјување: This fixture must be properly grounded to prevent potential electrical shock.
- Опкружување за работа: Do not install in areas with explosive atmospheres or corrosive gases. Ensure the operating temperature is within the specified range.
- Безбедно монтирање: Always use the provided safety cable and ensure the fixture is securely mounted to prevent falling.
- Инспекција: Regularly inspect the fixture for any damage to the housing, lens, or wiring. Do not operate if damaged.
2. Производот завршиview
The Lightdot 250W LED High Bay Light is designed for commercial and industrial applications, offering high efficiency and durability. This UFO-style LED fixture provides bright, uniform illumination for large spaces.
Клучни карактеристики:
- Висока ефикасност: 250W LED producing 37500 lumens, equivalent to a 1000W HPS/MH fixture, for significant energy savings.
- Издржлива конструкција: Commercial-grade design with an aluminum body and fin heat dissipation for extended lifespan (50,000+ hours).
- Лесна инсталација: Features a US hook, safety rope, and a 3.3ft extension cord with a US 3-PIN plug for simple plug-and-play setup.
- Оптимизирано осветлување: 120-degree lens for uniform light output without yellow spots, ensuring maximum light utilization.
- ETL наведени: Сертифициран за стандарди за безбедност и квалитет.
Компоненти на производот:
- Светлосна тела со LED High Bay
- US Hook for hanging
- Безбедносен кабел
- Integrated 3-PIN Plug Cable
Image: Lightdot 250W LED High Bay Light highlighting its ETL listing and energy efficiency.

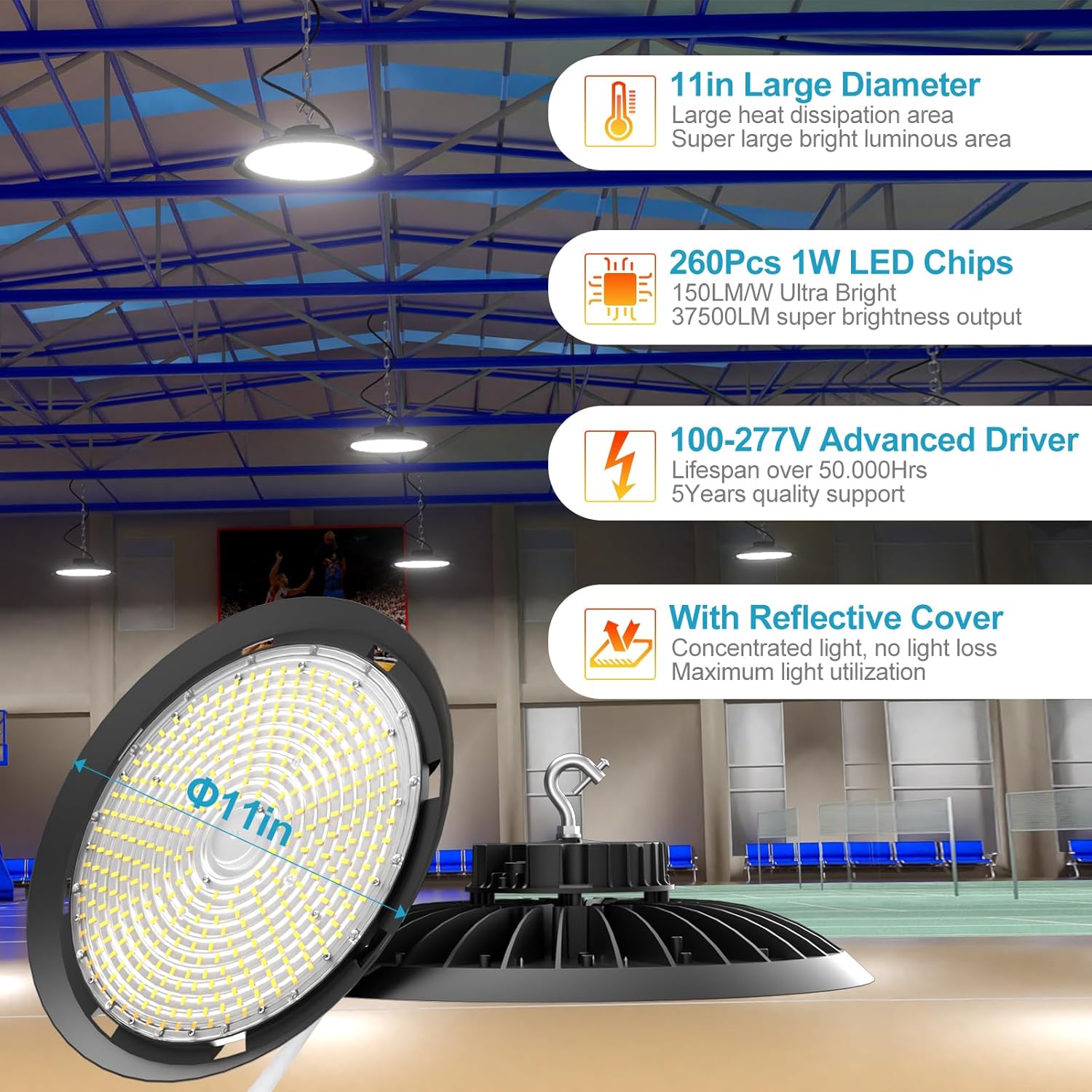

Image: Detailed diagram of the high bay light's internal components and features.
3. Спецификации
| Бренд | Lightdot |
| Име на моделот | ЛЕД Светло за високо залив |
| Број на модел | LUFO-15 |
| Ватtage | 250 вати |
| Осветленост | 37500 лумени |
| Light Color / Color Temperature | 5000K дневна светлина |
| Voltage | 100-277 волти (AC) |
| Материјал | Алуминиум, поликарбонат |
| Димензии на производот | 11"Д x 11"Ш x 3.9"В |
| Тежина на ставката | 40.5 фунти (за пакување од 8) |
| Животниот век | 50,000+ часови |
| Тип на инсталација | US Hook |
| Внатрешна/надворешна употреба | Затворен |
| Сертификација | Наведени ETL |
4. Поставување и инсталација
The Lightdot 250W LED High Bay Light is designed for straightforward installation using the provided hook and plug-and-play wiring. Always ensure power is off before beginning installation.
Чекори за инсталација:
- Подгответе ја локацијата за монтирање: Identify a suitable overhead mounting point capable of supporting the fixture's weight. The recommended installation height is between 18 to 30 feet for optimal light distribution.
- Инсталирајте го хардверот за монтирање: Securely install a sturdy hook or chain system at the chosen location. Ensure it is rated for the weight of the fixture and any potential dynamic loads.
- Attach Safety Cable: Before hanging the fixture, attach the provided safety cable to both the fixture and a secure structural point. This provides an additional layer of security.
- Закачете го апаратот: Use the integrated US hook on the fixture to hang it from your pre-installed mounting hardware.
- Поврзете напојување: Plug the 3-PIN plug cable into a compatible AC100-277V power outlet. The fixture is designed for plug-and-play operation, requiring no complex wiring.
- Тест операција: Restore power and test the light fixture to ensure proper function.
Image: Components for easy installation, including the hook, safety cable, and plug.
Image: Recommended installation heights and light distribution for the 250W model.
Видео за инсталација:
Video: This video demonstrates the unboxing and installation process for the Lightdot LED High Bay Light, including attaching the hook and connecting power.
5. Упатства за работа
The Lightdot 250W LED High Bay Light is designed for simple operation once installed.
- Вклучување/исклучување: The light operates by connecting it to a power source. Use a wall switch or circuit breaker to turn the power on or off to the fixture.
- Континуирано работење: The LED fixture is designed for continuous use in appropriate environments.
Note: This model does not include a remote control. If you require remote control functionality, please refer to other Lightdot models.
6. Одржување
Minimal maintenance is required for the Lightdot 250W LED High Bay Light due to its durable design and long lifespan.
- Чистење: Periodically clean the outer surface and lens with a soft, damp крпа. Не користете абразивни средства за чистење или растворувачи. Пред чистење, проверете дали е исклучено напојувањето.
- Инспекција: Annually inspect the mounting hardware, safety cable, and power cord for any signs of wear, damage, or corrosion. Tighten any loose connections.
- Дисипација на топлина: Ensure the fins on the fixture's housing are free from dust and debris to maintain optimal heat dissipation.
- Нема делови што се сервисираат од страна на корисникот: Do not attempt to open or repair the fixture. Refer all servicing to qualified personnel.

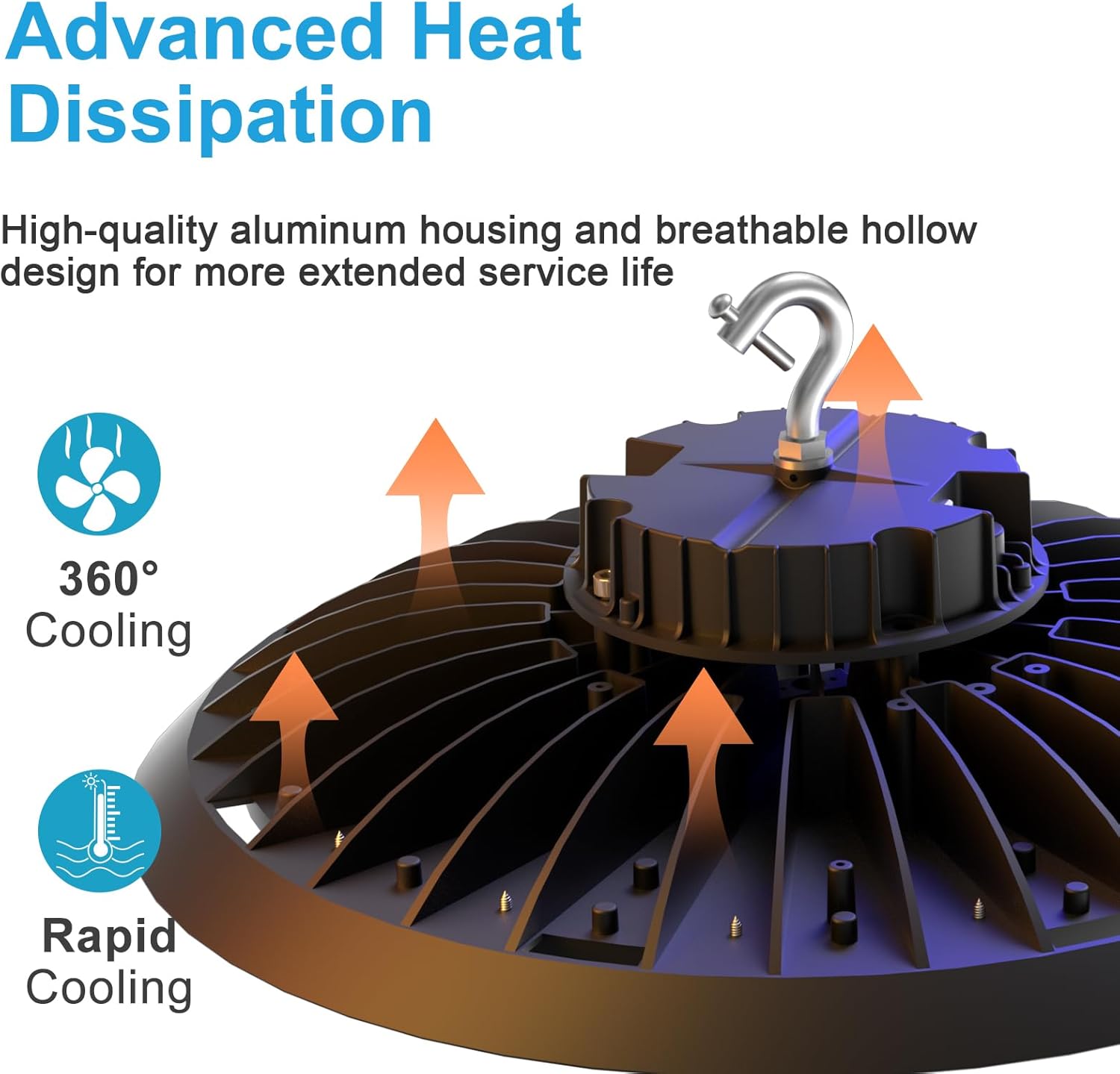

Image: Advanced heat dissipation design for extended product life.
7 Смена на проблеми
If you encounter issues with your Lightdot 250W LED High Bay Light, refer to the following common problems and solutions:
| Проблем | Можна причина | Решение |
|---|---|---|
| Светлото не се вклучува. | No power supply, loose connection, faulty outlet. | Check circuit breaker. Ensure plug is securely connected. Test the outlet with another device. |
| Светлината е слаба или трепка. | Unstable power supply, partial component failure. | Verify stable power input (AC100-277V). If problem persists, contact customer support. |
| Fixture is overheating. | Poor ventilation, excessive ambient temperature, dust accumulation on fins. | Ensure adequate airflow around the fixture. Clean dust from heat dissipation fins. Verify ambient temperature is within operating limits. |
If troubleshooting steps do not resolve the issue, please contact Lightdot customer support.
8. Гаранција и поддршка
Lightdot provides a 5 година гаранција for this 250W LED High Bay Light, covering defects in materials and workmanship under normal use. This warranty ensures reliable after-sales support.
For warranty claims, technical assistance, or any product-related inquiries, please contact Lightdot customer support through the platform where the product was purchased or visit the official Lightdot webсајт за информации за контакт.
Ве молиме зачувајте го доказот за купување за потврда на гаранцијата.
