SHAHE 5346

SHAHE Dual Axis Digital Protractor Inclinometer Model 5346 User Manual

Model: 5346 | Brand: SHAHE

1. Вовед

This manual provides detailed instructions for the safe and effective use of your SHAHE Dual Axis Digital Protractor Inclinometer, Model 5346. This high-precision digital angle gauge is designed for accurate angle measurements in various applications, including interior decoration, construction, plumbing, flooring, and woodworking. It features both uniaxial and biaxial measurement capabilities, multiple unit displays, a magnetic base, and a rechargeable battery.

2. Производот завршиview

2.1 Компоненти и дисплеј

The SHAHE Digital Protractor Inclinometer is equipped with a clear LED display and intuitive controls. Key components include:

Diagram of SHAHE Digital Angle Gauge with labeled parts
Слика 2.1: Labeled components of the SHAHE Digital Angle Gauge. This diagram highlights the LED display, control buttons (HOLD, ON/OFF/REF, Unit Conversion), horizontal bubble, charging port, and magnetic base.
Dimensions of SHAHE Digital Angle Gauge
Слика 2.2: Dimensions of the SHAHE Digital Angle Gauge. The device measures approximately 95.5mm in length and 45mm in height.

2.2 Unboxing the Product

Upon opening the package, you will find the digital protractor, a Type-C charging cable, and this instruction manual. Please inspect all items for any damage.

Видео 2.1: Unboxing and initial overview of the SHAHE Digital Angle Gauge. This video demonstrates the contents of the package and a brief look at the device.

3. Спецификации

Refer to the table below for detailed technical specifications of the SHAHE Digital Protractor Inclinometer Model 5346.

КарактеристикаОпис
Range (Uniaxial)4 x 90°
Range (Biaxial)±60°
Решавачка моќ0.1°
Accuracy (Uniaxial)±0.2°
Accuracy (Biaxial)±0.3°
Повторливост0.1°
Напојување3.7V литиум-јонска батерија
Интерфејс за полначDC5V 400mA (Тип-C)
Оперативна средина0-40°C (Humidity ≤ 80%)
МагнетMagnetic adsorption measuring surface
РеперAbsolute zero measurement based on horizontal plane
Тежина на ставката118 гр
Димензии на пакетот15.49 x 10.31 x 4.29 cm

4. Поставување

4.1 Почетно полнење

Before first use, ensure the device is fully charged. Connect the provided Type-C charging cable to the charging port on the side of the inclinometer and to a standard USB power source (e.g., computer USB port, wall adapter). The battery indicator on the display will show charging status.

SHAHE Digital Angle Gauge showing charging port and backlight
Слика 4.1: The Type-C charging port and the illuminated display with backlight enabled.

4.2 Вклучување/исклучување

Притиснете го ON/OFF/REF копчето за да го вклучите уредот. Притиснете и држете го ON/OFF/REF button for a few seconds to turn it off. The device will automatically power off after 3 minutes of inactivity to conserve battery life.

5. Упатства за работа

5.1 Absolute and Relative Measurement Modes

The inclinometer supports two measurement modes: Absolute and Relative.

To switch between Absolute and Relative modes, briefly press the ON/OFF/REF button while the device is on. The display will indicate the current mode (ABS or REF).

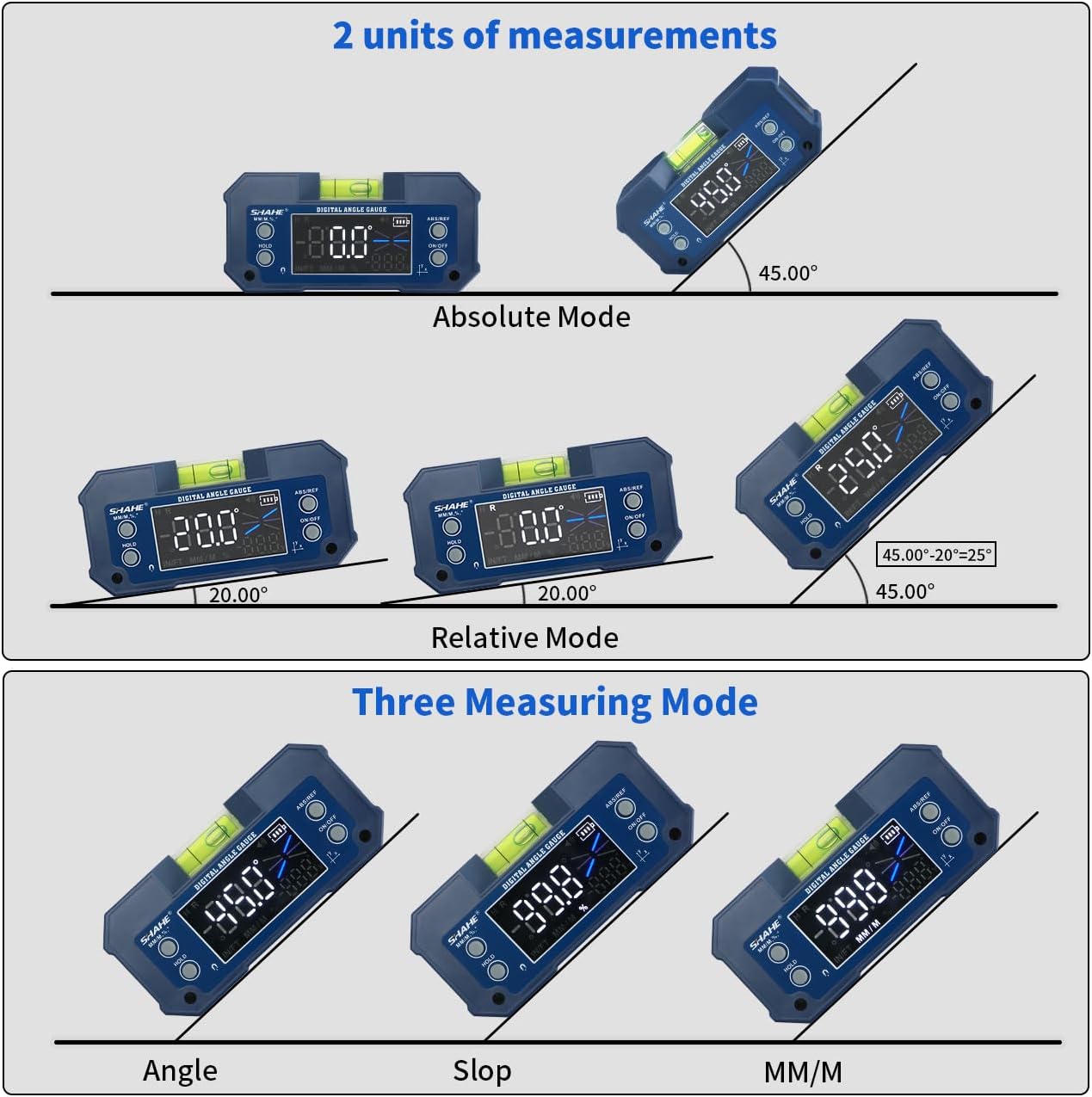

SHAHE Digital Angle Gauge showing Absolute and Relative measurement modes
Слика 5.1: Illustration of Absolute and Relative measurement modes. The top row shows absolute measurements from a horizontal plane, while the bottom row demonstrates setting a relative zero for differential measurements.

5.2 Конверзија на единици

The device can display measurements in three units: degrees (°), percentage (%), and millimeters per meter (mm/m).

To change the unit, press the MM/M, %, ° button (often labeled IN/FT MM/M %) repeatedly until your desired unit is displayed.

SHAHE Digital Angle Gauge showing different measurement units
Слика 5.2: The digital angle gauge displaying measurements in degrees, slope percentage, and mm/m units.

5.3 Функција за задржување

За да го замрзнете моменталното мерење на екранот, притиснете го копчето ДРЖИ button. This is useful for reading measurements in difficult-to-view positions. Press the ДРЖИ button again to release the measurement and return to live readings.

5.4 Задно осветлување

The device features a white backlight for improved readability in low-light conditions. The backlight typically activates automatically when the device is turned on or a button is pressed. Refer to Figure 4.1 for an example of the backlight in use.

5.5 Употреба на магнетна основа

The strong built-in magnetic base allows the inclinometer to be securely attached to ferrous metal surfaces, such as miter saws, band saws, or table saw blades, for hands-free operation and precise angle setting.

SHAHE Digital Angle Gauge attached to a saw blade using its magnetic base
Слика 5.3: The digital angle gauge demonstrating its magnetic base functionality, attached to a saw blade for hands-free measurement.

6. Апликации

The SHAHE Digital Protractor Inclinometer is a versatile tool suitable for a wide range of applications, including but not limited to:

7. Одржување

8 Смена на проблеми

ПроблемМожна причинаРешение
Уредот не се вклучува.Слаба батерија.Наполнете го уредот користејќи го испорачаниот кабел Type-C.
Неточни читања.Device not properly calibrated (in Absolute mode).Ensure the surface used for absolute zero is truly level. If persistent, contact support.
Екранот е затемнет или трепка.Слаба батерија.Наполнете го уредот.
Readings do not update smoothly.This behavior can occur with very small, gradual angle changes due to internal filtering.This is a characteristic of the device's design to filter noise. For precise adjustments, make slight movements and observe the display for updates.

9. Гаранција и поддршка

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official SHAHE Measuring Tools webлокација. Можете исто така да контактирате со вашиот продавач за помош.

Производител: Wenzhou Sanhe Measuring Instrument Co.,LTD
