GOLUMUP Hydroponics Growing System

1. Вовед

Thank you for choosing the GOLUMUP Hydroponics Growing System. This system allows you to cultivate herbs, vegetables, and flowers indoors without soil, providing an efficient and clean gardening experience. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your hydroponic garden to ensure optimal plant growth.

The GOLUMUP Hydroponics Growing System, featuring a white base, LED grow light, and multiple plant pods for indoor herb and vegetable cultivation.

2. Компоненти на производот

Before assembly, please ensure all components are present and undamaged. Refer to the diagram below for identification.

• LED светлосен панел
• Lamp Продолжен пол
• Germination Basket Kit (12 pods, no seeds included)
• Water Opening
• Резервоар за вода
• Пумпа за вода
• Индикатор за нивото на водата
• Напојување

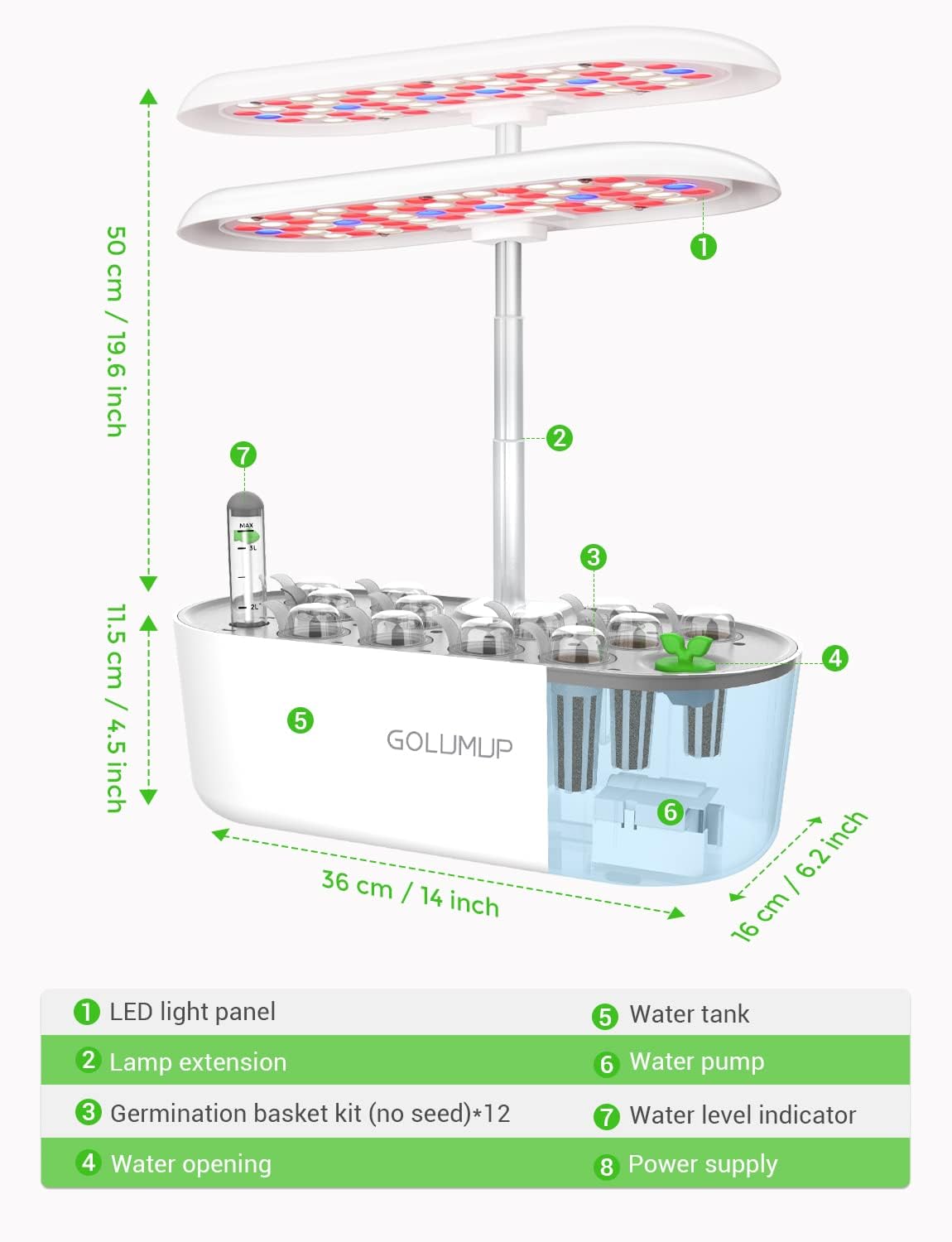

Експлодираше view diagram illustrating the main components of the hydroponics system, including the LED light panel, lamp extension, germination basket kit, water opening, water tank, water pump, water level indicator, and power supply.

3. Упатства за поставување

Follow these steps to set up your GOLUMUP Hydroponics Growing System:

1. Инсталирајте ја главната единица: Assemble the LED light panel onto the lamp extension pole, then insert the pole into the base unit. Ensure it is securely fitted.
2. Mount Germination Basket Kit: Place the germination baskets into the designated holes on the top cover of the water tank. Insert your chosen seeds into the grow sponges within these baskets.
3. Додадете вода и хранливи материи: Open the water opening and fill the water tank with 0.5-1 liter of clean water. Add 1 gram of hydroponic nutrient solution (not included) per liter of water. Do not exceed the 'MAX' fill line on the water level indicator.
4. Connect Power and Select Mode: Plug in the power supply. Press the power button on the control panel and select your desired growth mode to start your garden.

A visual guide demonstrating the four primary setup steps: installing the main unit, mounting the germination basket kit, adding water and nutrients, and selecting a growth mode.

4. Упатства за работа

The GOLUMUP Hydroponics System features a smart control panel for easy operation.

Функции на контролниот панел:

The control panel of the hydroponics system, showing buttons for power, growth modes, light intensity, timer settings, pump cycle, and mute function.

• Копче за вклучување/исклучување: Powers the system on or off.
• Growth Modes: Select from 4 growth modes:
  • Sprout: For initial germination.
  • Сеење: For young plants.
  • Цветање: For plants producing flowers or fruits.
  • Ripening: За финалниот сtage of fruit development.
• Осветленост на светлината: Adjust light intensity (Low/High).
• Режими на тајмер: Set the light cycle duration (8H, 10H, 12H). The system will automatically turn off after the set time and turn on again at the same time the next day.
• Pump Cycle: Controls the water pump operation.
• Исклучи звук: Silences system alerts.

Индикатор за ниво на вода:

Monitor the water level using the indicator on the side of the unit. Refill water when it drops below the minimum line. The system may also provide a water shortagе потсетник.

5. Plant Growth Guidance

For optimal plant development, consider the following guidance:

• Nutrient Management: Regularly check the water level and replenish water and nutrients as needed. The frequency depends on plant type and growth stage.
• Прилагодување на светлосниот панел: As plants grow taller, adjust the height of the LED light panel to ensure all leaves receive adequate light. The light panel should be positioned a few inches above the tallest plants.
• Кастрење: Prune your plants regularly to encourage bushier growth and prevent overcrowding.

A visual timeline depicting the growth progression of plants from sprouting to mature stages, emphasizing the importance of adjusting the LED light panel height to cover all leaves as plants grow.

Илустративна презентацијаasing various herbs and vegetables such as basil, arugula, spinach, oregano, stevia, mizuna, rosemary, cherry tomato, strawberry, and chili, which can be successfully cultivated using this hydroponic system.

6. Одржување

Regular maintenance ensures the longevity and efficiency of your hydroponics system.

• Чистење на резервоарот за вода: It is recommended to clean the water tank every 2-4 weeks, especially when changing plant cycles or if algae growth is observed. Empty the old water, rinse the tank thoroughly with clean water, and refill with fresh water and nutrients.
• Nutrient Solution Replacement: Replace the entire nutrient solution every 2-3 weeks to ensure plants receive a balanced supply of minerals. Simply topping off with water is not sufficient for long-term health.
• Одржување на пумпата: Periodically check the water pump for any blockages from plant debris or nutrient residue. Clean the pump filter if accessible, following manufacturer guidelines.
• Light Panel Cleaning: Gently wipe the LED light panel with a dry or slightly damp cloth to remove dust and ensure maximum light output.

7 Смена на проблеми

If you encounter issues with your GOLUMUP Hydroponics System, refer to the following common problems and solutions:

• LED светлото не работи:
  • Ensure the power supply is securely plugged into both the unit and a working electrical outlet.
  • Check if the light timer mode is correctly set. The light will turn off during its programmed dark cycle.
  • If the light is completely unresponsive, try unplugging and re-plugging the unit to reset it.
• Пумпата не работи:
  • Verify that the water level is above the minimum line. The pump may not activate if the water level is too low.
  • Check for any blockages in the pump or tubing. Clean if necessary.
  • Ensure the pump cycle setting is active on the control panel.
• Plants Not Growing / Yellowing Leaves:
  • Nutrient Deficiency: Ensure you are using appropriate hydroponic nutrients and replacing the solution regularly (every 2-3 weeks).
  • Недоволна светлина: Adjust the LED light panel closer to the plants and ensure the light duration is appropriate for the plant type (e.g., 12-16 hours for most leafy greens).
  • Квалитет на вода: Use clean, filtered water. Tap water can sometimes contain chlorine or other chemicals that may harm plants.
  • Температура/Влажност: Maintain a suitable room temperature (typically 20-25°C) and moderate humidity for optimal growth.
• Automatic Timer Function Failure:
  • Ensure the system is not experiencing power interruptions. Even brief power outages can disrupt the timer.
  • Try resetting the timer by turning the unit off and on, then re-selecting your desired light cycle.
  • Ако проблемот продолжи, контактирајте со поддршката за корисници.

8. Спецификации

9. Гаранција и поддршка

For warranty information or technical support, please refer to the documentation included with your purchase or contact GOLUMUP customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
