RLS Huina 1572 RC Crawler Crane User Manual

1. Вовед

Ви благодарам за купувањетоasing the RLS Huina 1572 RC Crawler Crane. This 1:14 scale, 15-channel remote-controlled model is designed to replicate the functionality and appearance of a real construction tower excavator. Featuring durable metal alloy components and advanced 2.4GHz control technology, this model offers precise operation and realistic play.

This manual provides essential information for the safe operation, setup, maintenance, and troubleshooting of your RC Crawler Crane. Please read it thoroughly before first use to ensure optimal performance and longevity of your product.

2. Информации за безбедност

WARNING: Adult supervision is recommended when operating this toy.

• Чувајте ги рацете, косата и широката облека подалеку од подвижните делови.
• Do not operate near people, pets, or obstacles to prevent injury or damage.
• Ensure the operating area is clear and safe.
• Не работете во влажни услови или во близина на вода.
• Use only the provided charging cable and follow battery charging instructions carefully.
• Не обидувајте се да го менувате или расклопите производот.
• This product contains small parts and is not suitable for children under 3 years due to choking hazards. Recommended age is 3 years and up.

3. Содржина на пакетот

Проверете ја содржината на пакувањето за да се осигурате дека сите артикли се присутни:

• 1 x RLS Huina 1572 RC Crawler Crane
• 1 x далечински управувач
• 1 x Rechargeable Battery for Crane (Lithium-Ion)
• 1 x Кабел за полнење
• 2 x AA Batteries for Remote Control (included)
• 1 x Simulated Wood Log (accessory)
• 1 x Упатство за производот (овој документ)

Image 1: The RLS Huina 1572 RC Crawler Crane and its accompanying remote control, as found in the package.

4. Производот завршиview

The Huina 1572 RC Crawler Crane is a highly detailed 1:14 scale model designed for realistic operation. It features a 15-channel 2.4GHz control system, allowing for precise and independent control of various functions.

Клучни карактеристики:

• Издржлива конструкција: The bucket, cab, and wheel hubs are crafted from hard metal alloy for enhanced durability.
• Реално движење: Rubber treads provide excellent grip, allowing the crane to climb effortlessly.
• Напредна контрола: 2.4GHz transmitter offers 15 separate functions, enabling control of all model joints.
• 680° Cab Rotation: The die-cast alloy cab can rotate a full 680 degrees for comprehensive operational range.
• Multi-Model Operation: 2.4GHz technology allows multiple models to operate simultaneously without interference.
• Програмабилни функции: The transmitter can be programmed to perform a series of movements with a single button.
• Реални детали: Features include working lights and music for an immersive experience.

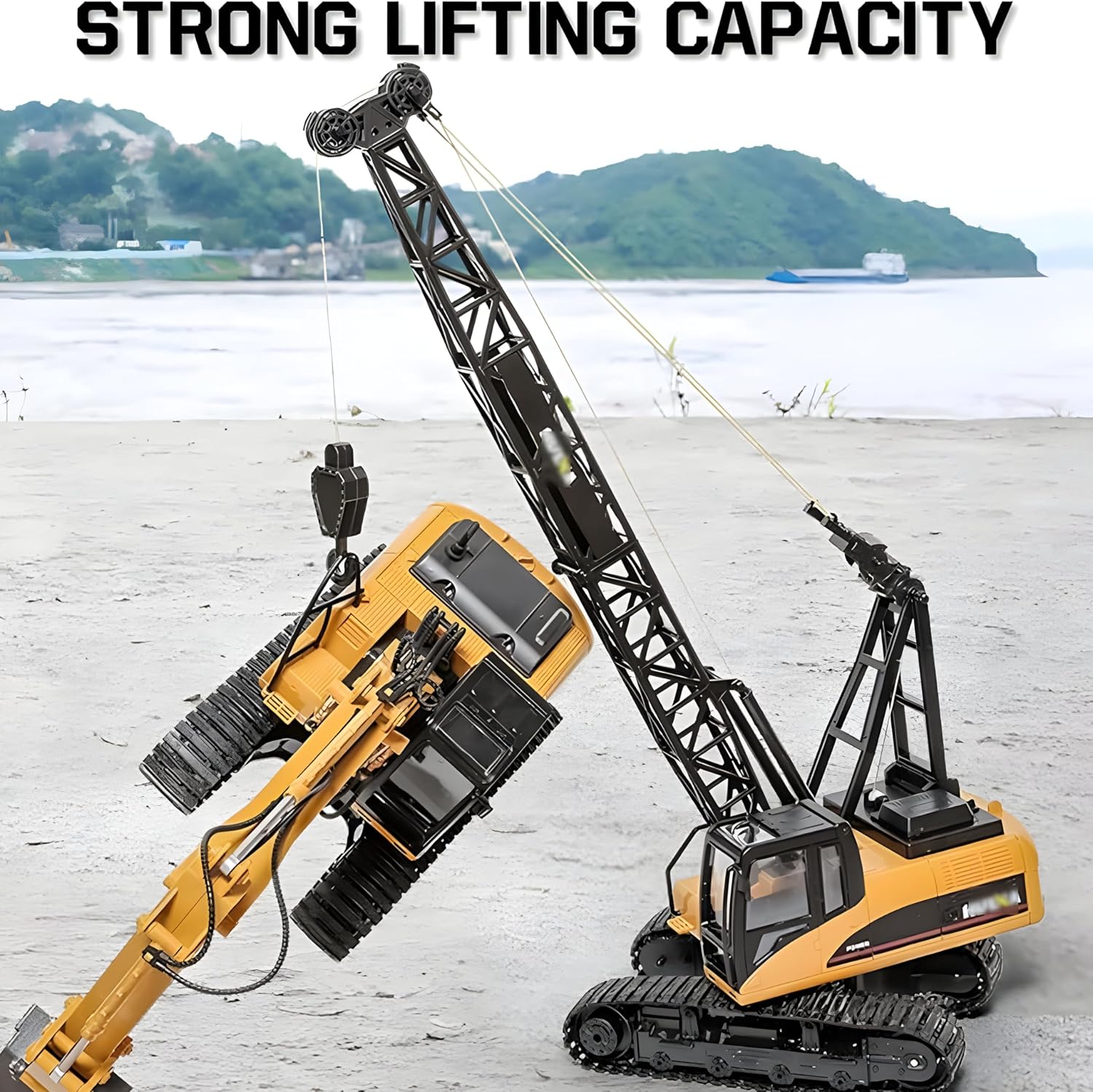

Image 2: The RC Crawler Crane showcasing its strong lifting capacity, capable of lifting other remote-controlled vehicles.

Image 3: The main body of the RC Crawler Crane demonstrating its 680-degree rotation capability, allowing for wide operational coverage.

5. Поставување

5.1 Charging the Crane Battery

1. Locate the rechargeable Lithium-Ion battery for the crane.
2. Connect the battery to the provided charging cable.
3. Plug the charging cable into a suitable USB power source (e.g., computer USB port, USB wall adapter).
4. The charging indicator light on the cable will show the charging status (refer to cable instructions for specific light behavior).
5. Откако целосно ќе се наполни, исклучете ја батеријата од полначот. Не преполнувајте.

5.2 Инсталирање батерии во далечинскиот управувач

1. Пронајдете ја преградата за батерии на задниот дел од далечинскиот управувач.
2. Отворете го капакот на преградата за батерии.
3. Insert 2 AA batteries (included) into the compartment, ensuring correct polarity (+/-).
4. Добро затворете го капакот на преградата за батерии.

5.3 Installing the Crane Battery

1. Locate the battery compartment on the underside or rear of the crane.
2. Отворете го капакот на преградата за батерии.
3. Carefully connect the charged battery to the crane's power connector.
4. Ставете ја батеријата во преградата и цврсто затворете го капакот.

5.4 Спарување на далечинскиот управувач

1. Ensure both the crane and the remote control are powered off.
2. Turn on the crane's power switch.
3. Вклучете го прекинувачот за вклучување на далечинскиот управувач.
4. The remote control and crane should automatically pair. A successful pairing is usually indicated by a solid light on both devices or an audible confirmation. If pairing fails, turn both off and repeat the steps.

6. Упатства за работа

Familiarize yourself with the remote control layout and functions before operating the crane.

6.1 Функции на далечинскиот управувач

The 15-channel remote control allows for comprehensive operation:

• Лев џојстик: Controls forward/backward movement and left/right turning of the crawler tracks.
• Десен џојстик: Controls the main boom's up/down movement and the hook's up/down movement.
• Cab Rotation Buttons: Dedicated buttons for 680° left and right rotation of the crane's cab.
• Boom Extension/Retraction: Buttons to extend and retract the crane's boom.
• Lights/Sound Buttons: Activates realistic lights and sounds.
• Копче за програмирање: Initiates and saves programmed sequences of movements.
• Refer to the remote control's diagram for exact button mapping.

Слика 4: Детално view of the crane's boom and hook, highlighting the independent control mechanisms for precise operation.

6.2 Основно работење

1. Возење: Use the left joystick to move the crane forward, backward, and turn.
2. Cab Rotation: Use the dedicated buttons to rotate the cab left or right.
3. Boom Control: Use the right joystick to raise or lower the main boom. Use specific buttons for boom extension/retraction.
4. Hook Control: Use the right joystick to raise or lower the hook.
5. Lifting Objects: Carefully position the crane, lower the hook, attach the simulated wood log (or other light objects), and slowly raise the hook. Ensure the load is balanced and within the crane's lifting capacity.

Image 5: A side profile of the RC Crawler Crane, illustrating its detailed design and robust construction, reflecting a high degree of realism.

6.3 Programming Functions

The remote control allows you to record and replay a sequence of movements:

1. Press the "Program" button (refer to remote diagram). The remote may emit a sound or light to indicate recording mode.
2. Perform the desired sequence of movements using the joysticks and buttons.
3. Press the "Program" button again to save the sequence.
4. To replay the sequence, press the "Play" or "Program" button (depending on remote design).

7. Одржување

7.1 Чистење

• Wipe the crane and remote control with a soft, dry cloth after each use.
• Не користете вода или хемиски средства за чистење, бидејќи тоа може да ги оштети електронските компоненти.
• Remove any debris from the crawler tracks and moving parts.

7.2 Грижа и складирање на батеријата

• Always remove batteries from both the crane and the remote control when not in use for extended periods.
• Чувајте го производот на ладно и суво место, подалеку од директна сончева светлина и екстремни температури.
• Do not dispose of batteries in fire; they may explode.
• Отстранете ги искористените батерии одговорно во согласност со локалните прописи.

8 Смена на проблеми

9. Спецификации

• Број на модел: 1572
• Скала: Скала 1:14
• Димензии: 29 x 17 ​​x 28.5 cm (Д x Ш x В)
• Тежина: 3.1 кг
• Контролна фреквенција: 2.4 GHz
• Канали: 15 канали
• Cab Rotation: 680 степени
• Crane Battery: Lithium-Ion (rechargeable, included)
• Батерии за далечински управувач: 2 x AA батерии (вклучени)
• Материјал: Alloy Steel, Plastic, Cotton, Rubber
• Боја: Жолто и црно
• Препорачана возраст од производителот: 3 години па нагоре

10. Гаранција и поддршка

Информации за гаранцијата: Specific warranty details for this product are not provided in this manual. Please refer to your purchase documentation or contact the seller for warranty terms and conditions.

Поддршка за корисници: For any questions, technical assistance, or issues not covered in this manual, please contact the seller, Reliable Local Stores, through the platform where you purchased the product. They will be able to provide further support and guidance.

Официјални видеа за производи: Во моментов нема достапни официјални видеа за производи од продавачот за вградување.
