1. Вовед
Thank you for choosing the Moman PD65 D-Tap to USB-C 65W Bidirectional Charging Adapter. This device is designed to provide versatile power solutions, enabling both charging and discharging for a wide range of devices, including V-mount batteries, cameras, phones, laptops, and tablets, via a USB Type-C interface. Please read this manual thoroughly before use to ensure proper operation and safety.
1.1 Што има во кутијата
- Moman PD65 D-Tap to USB-C 65W Bidirectional Charging Adapter (1 unit)
2. Важни безбедносни информации
За да спречите оштетување на производот или повреда на себе или на другите, ве молиме почитувајте ги следниве безбедносни мерки на претпазливост:
- Не го изложувајте адаптерот на вода, влага или екстремни температури.
- Do not attempt to disassemble, repair, or modify the adapter.
- Обезбедете соодветен волtage and current compatibility when connecting devices.
- Да се чува подалеку од дофат на деца.
- The Moman PD65 features built-in overheating, overvoltage, overload, and input/output reverse protection. However, always use the device responsibly.
- Avoid dropping or subjecting the adapter to severe impacts.

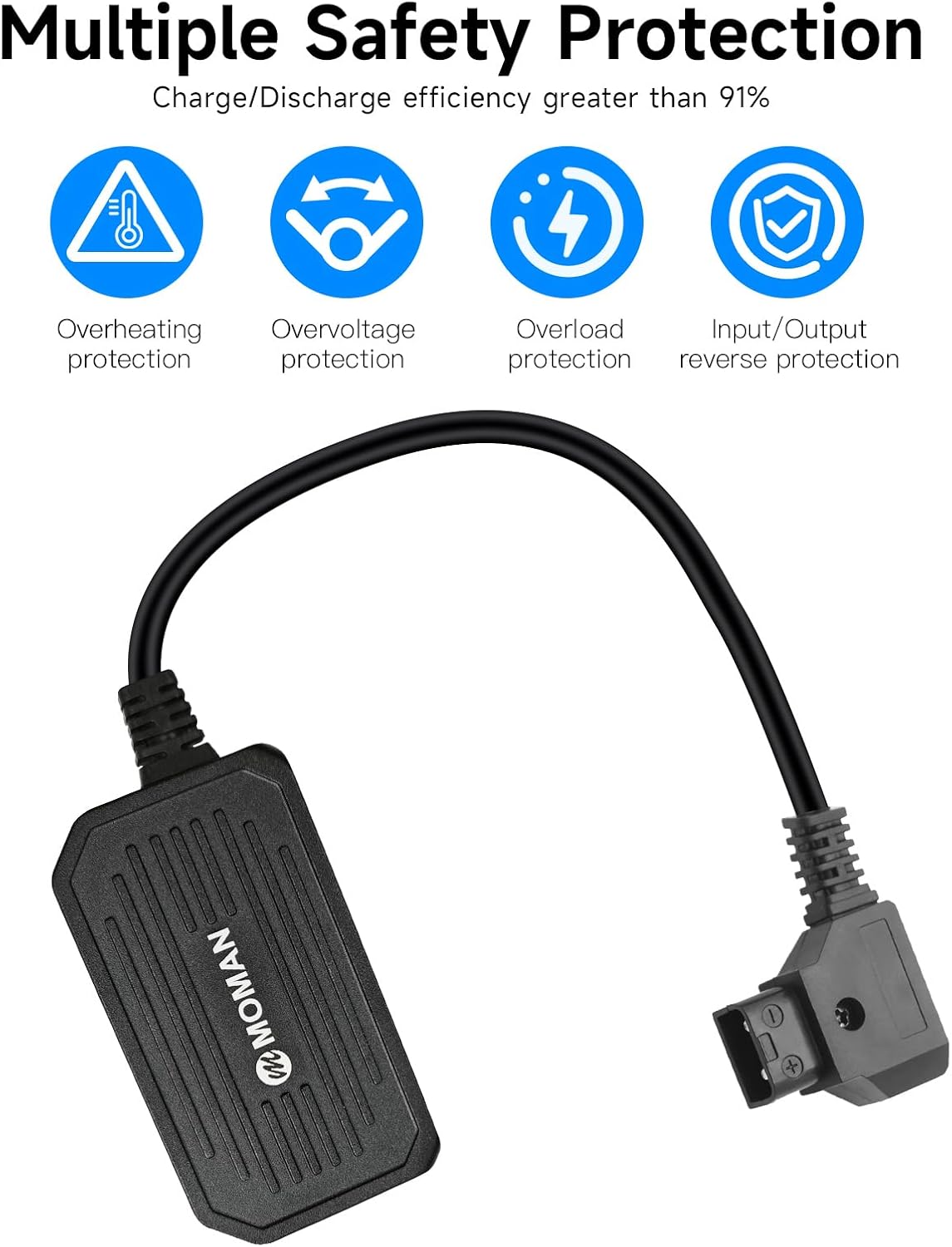

Image: The Moman PD65 adapter highlighting its multiple safety protections, including overheating, overvoltage, overload, and input/output reverse protection, ensuring safe operation.
3. Производот завршиview
The Moman PD65 is a compact and efficient D-Tap to USB-C adapter designed for professional and everyday use. It facilitates bidirectional power flow, meaning it can charge devices from a D-Tap source or allow a D-Tap battery to be charged via a USB-C power source (if the D-Tap battery supports USB-C input charging).
3.1 Клучни карактеристики
- Bidirectional Power: Supports both charging and discharging through the D-Tap and USB-C interfaces.
- 65W брзо полнење: Delivers up to 65W output via USB-C for rapid charging of compatible devices.
- Широка компатибилност: Works with V-mount batteries and a broad range of USB-C powered devices.
- Повеќекратни безбедносни заштити: Includes overheating, overvoltage, overload, and input/output reverse protection.
- Компактен дизајн: Weighs approximately 90g, making it highly portable.
Image: A visual representation of the Moman PD65 adapter's bidirectional functionality, showing power flow in both directions between D-Tap and USB-C connections.
Image: The Moman PD65 adapter is shown held in a hand, emphasizing its small size and light weight (90g) as a modern alternative to bulkier traditional chargers.
4. Спецификации
| Карактеристика | Спецификација |
|---|---|
| D-TAP Input | 12-17V, 48W Max. (No-load Voltage 16.8V) |
| Излез од тип C | 65W Макс. |
| Должина на кабелот | 50 см (19.7 инчи) |
| Поддржани протоколи | APPLE, HUAWEI FCP, BC1.2, SCP, SAMSUNG AFC, QC2.0, QC3.0, PD3.0 |
| Тежина | Приближно 90 г (3.17 унци) |
| Димензии (тело на адаптерот) | Приближно 4.65 x 4.09 x 1.06 инчи (Димензии на пакувањето) |
Слика: Крупен план view of the Moman PD65 adapter's D-Tap and USB-C connectors, with labels indicating their respective input/output parameters and cable length.
5. Поставување
5.1 Connecting to a D-Tap Power Source
- Locate the D-Tap port on your V-mount battery or battery holder.
- Carefully align the D-Tap connector of the Moman PD65 adapter with the D-Tap port on your power source. Ensure correct polarity (the adapter's D-Tap connector is designed to prevent incorrect insertion, but always double-check).
- Firmly insert the D-Tap connector until it is securely seated.
5.2 Connecting to a USB-C Device
- Locate the USB-C port on the device you wish to charge or power (e.g., camera, phone, laptop, tablet).
- Connect the USB-C end of the Moman PD65 adapter to your device's USB-C port.
- Осигурајте се дека врската е цврста.
Image: The Moman PD65 adapter is shown connected to a V-mount battery, which in turn is providing power to a camera light, demonstrating a typical setup.
6. Упатства за работа
6.1 Charging Devices from a D-Tap Source
Once the Moman PD65 is connected to a D-Tap power source (like a V-mount battery) and a USB-C device, it will automatically begin charging the connected USB-C device. The adapter supports various fast charging protocols, including PD3.0, QC2.0, QC3.0, and others, to optimize charging speed for compatible devices.
Image: This graphic illustrates the Moman PD65's 65W charging efficiency, detailing estimated charging times for V-mount batteries and percentage gains for devices like iPad Pro, MacBook Pro, and iPhone 15 Pro in 30 minutes.
6.2 Discharging (Charging a D-Tap Battery via USB-C)
The Moman PD65 supports bidirectional power. If your D-Tap battery is designed to accept charge via its D-Tap port, you can connect a USB-C power source (e.g., a USB-C wall charger) to the Moman PD65, and then connect the adapter's D-Tap end to your D-Tap battery. The adapter will then facilitate charging of the D-Tap battery.
Забелешка: The Moman PD65 does not feature indicator lights. To confirm operation, observe the charging status on your connected device or the D-Tap battery, or note if the adapter becomes slightly warm during use, which is normal for power transfer.
Слика: Изложба на колажиasing the Moman PD65 adapter in action, demonstrating its versatility in charging V-mount batteries, smartphones, and tablets in different professional and personal settings.
7. Компатибилност
The Moman PD65 adapter is widely compatible with:
- All V-mount batteries or other batteries equipped with a D-Tap socket.
- Mobile phones, tablets, and laptops that support USB-C fast charging.
- Mobile power supplies, SDI converters, wireless transmitters, and digital cameras equipped with a USB-C power input.
Supported charging protocols include APPLE, HUAWEI FCP, BC1.2, SCP, SAMSUNG AFC, QC2.0, QC3.0, and PD3.0.
8. Одржување
8.1 Чистење
Wipe the adapter with a soft, dry cloth. Do not use liquid cleaners or solvents.
8.2 Складирање
Чувајте го адаптерот на ладно и суво место, подалеку од директна сончева светлина и екстремни температури кога не е во употреба.
9 Смена на проблеми
- Уредот не се полни:
- Ensure both the D-Tap and USB-C connections are secure.
- Verify that the D-Tap power source (e.g., V-mount battery) has sufficient charge.
- Check if the USB-C device is compatible with the adapter's charging specifications.
- If attempting to charge a D-Tap battery via USB-C, confirm that the D-Tap battery itself supports charging through its D-Tap port.
- Adapter feels warm:
- It is normal for the adapter to become slightly warm during operation, especially during high-power charging. If it becomes excessively hot, disconnect it immediately and contact support.
- No indicator lights:
- The Moman PD65 adapter does not include built-in indicator lights. Confirm operation by checking the charging status on your connected device or D-Tap battery.
10. Гаранција и поддршка
Moman products are designed for reliability and performance. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Moman website. For technical support or inquiries, please contact Moman customer service through their official channels.
Moman Official Webсајт: www.moman.co
